ELW2611S(TB)-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ELW2611S(TB)-V

ELW2611S(TB)-V: DescriptionLogic IC Output Optocoupler; CategoryLED optoelectronic/LED photoelectric; File Size721KB，14 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ELW2611S(TB)-V Overview

Logic IC Output Optocoupler

ELW2611S(TB)-V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	DIP-8
Reach Compliance Code	compliant
Other features	CMOS COMPATIBLE, UL APPROVED, VDE APPROVED
Configuration	SINGLE
Nominal data rate	10 MBps
Maximum forward current	0.05 A
Maximum insulation voltage	5000 V
Installation features	SURFACE MOUNT
Number of components	1
Number of functions	1
Maximum on-state current	0.05 A
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
method of packing	TR
Nominal response time	4e-8 ns
shape	RECTANGULAR
surface mount	YES

Preview

Download Datasheet

View All

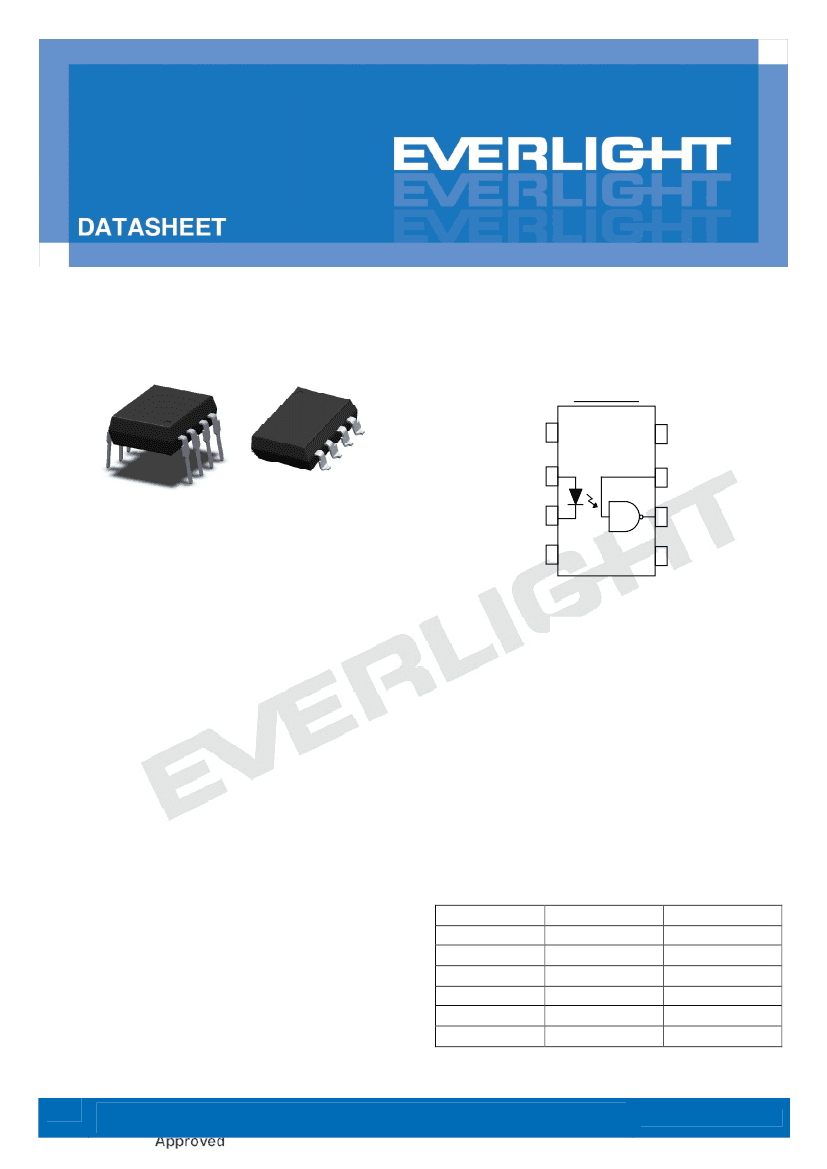

8 PIN DIP WIDE BODY HIGH SPEED

10MBit/s LOGIC GATE PHOTOCOUPLER

ELW137 ELW26XX Series

Schematic

Features

• High speed 10Mbit/s

• Guaranteed performance from -40 to 85℃

• Logic gate output

• High isolation voltage between input

and output (Viso=5000 V rms )

• Pb free and RoHS compliant.

• UL approved (No. 214129)

• VDE approved (No. 40028391)

• SEMKO approved

• NEMKO approved

• DEMKO approved

• FIMKO approved

A 0.1μF bypass capacitor must be

connected between pins 8 and 5

Pin Configuration

1, No Connection

2, Anode

3, Cathode

4. No Connection

5, Gnd

6, Vout

7, V

8, V

Description

The ELW137, ELW2601 and ELW2611 consists of an infrared emitting diode optically coupled to a high speed

integrated photo detector logic gate with a strobable output.

It is packaged in a 8-pin wide body package and available SMD options.

Applications

•

Ground loop elimination

•

LSTTL to TTL, LSTTL or 5 volt CMOS

•

Line receiver, data transmission

•

Data multiplexing

•

Switching power supplies

•

Pulse transformer replacement

•

Computer peripheral interface

•

High speed logic ground isolation

Truth Table (Positive Logic)

Input

Enable

Output

Revision

LifecyclePhase:

Release Date:2013-08-29

No: DPC-0000115 Rev.5

www.everlight.com

00:46:05.0

Expired Period: Forever

ELW2611S(TB)-V Related Products

	ELW2611S(TB)-V	ELW2611S(TA)	ELW2611-V	ELW2611S(TB)	ELW2611S	ELW2611S-V
Description	Logic IC Output Optocoupler	Logic IC Output Optocoupler	Logic IC Output Optocoupler	Logic IC Output Optocoupler	Logic IC Output Optocoupler	Logic IC Output Optocoupler
Maker	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-
package instruction	DIP-8	DIP-8	DIP-8	DIP-8	-	-
Other features	CMOS COMPATIBLE, UL APPROVED, VDE APPROVED	CMOS COMPATIBLE, UL APPROVED	CMOS COMPATIBLE, UL APPROVED, VDE APPROVED	CMOS COMPATIBLE, UL APPROVED	-	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	-
Nominal data rate	10 MBps	10 MBps	10 MBps	10 MBps	-	-
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	-	-
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	-	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNT	SURFACE MOUNT	-	-
Number of components	1	1	1	1	-	-
Number of functions	1	1	1	1	-	-
Maximum on-state current	0.05 A	0.05 A	0.05 A	0.05 A	-	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-
Nominal response time	4e-8 ns	4e-8 ns	4e-8 ns	4e-8 ns	-	-
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
surface mount	YES	YES	NO	YES	-	-
