NYPFREQ-12GGC-E(L) datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> NYPFREQ-12GGC-E(L)

NYPFREQ-12GGC-E(L): DescriptionParallel - 3Rd Overtone Quartz Crystal, 27MHz Min, 60MHz Max, ROHS COMPLIANT, RESISTANCE WELDED PACKAGE-2; CategoryPassive components Crystal/resonator; File Size329KB，2 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

NYPFREQ-12GGC-E(L) Overview

Parallel - 3Rd Overtone Quartz Crystal, 27MHz Min, 60MHz Max, ROHS COMPLIANT, RESISTANCE WELDED PACKAGE-2

NYPFREQ-12GGC-E(L) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
package instruction	ROHS COMPLIANT, RESISTANCE WELDED PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AT CUT CRYSTAL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	12 pF
Manufacturer's serial number	HC49/U
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	27 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Series resistance	40 Ω
surface mount	NO

Preview

Download Datasheet

View All

GA Series |

Legacy HC49/U Series

Quartz Crystal

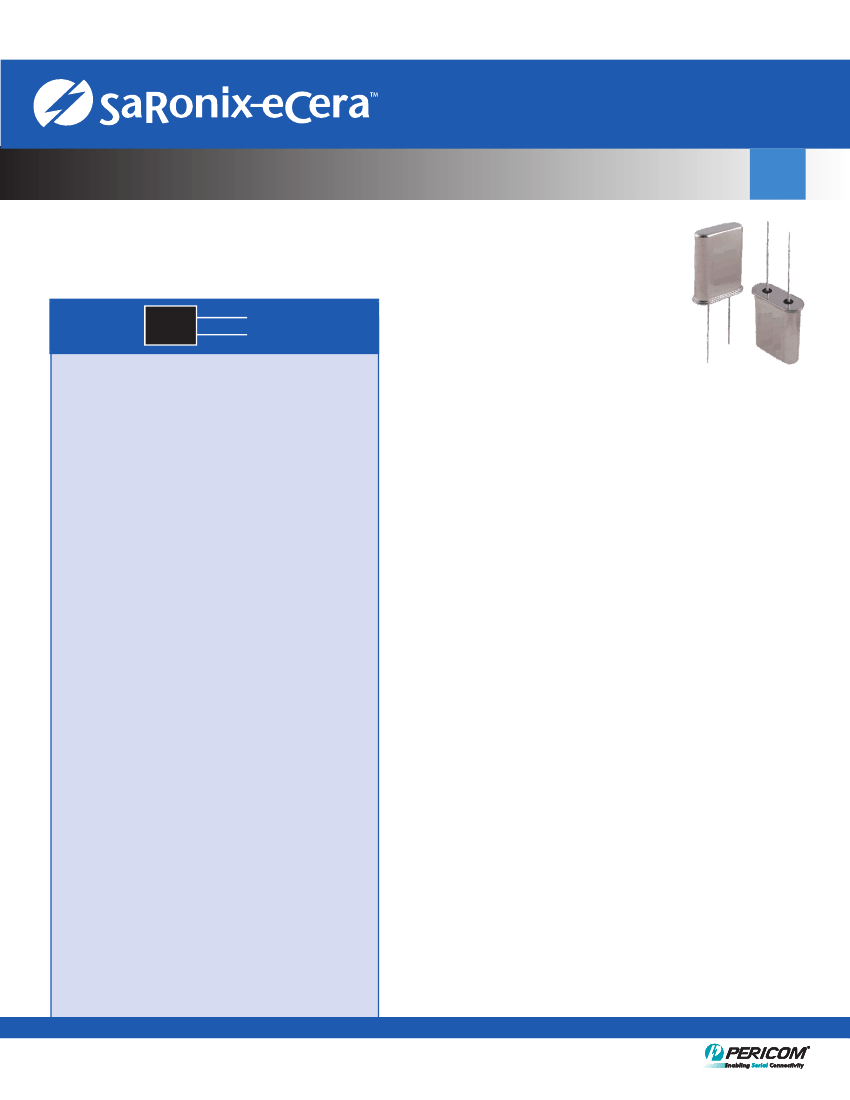

Actual Size

Frequency Range:

• 1.8432 to 27.0000 MHz (Fundamental)

• 27.0001 to 60.0000 MHz (3rd OT)

Product Description

The GA series is an industry standard AT-cut crystal that

is housed in Mil standard package.

Characteristics at 25°C ±2°C:

• Frequency Calibration Tolerance (as specified): ±30ppm, ±50ppm

• Load Capacitance (as specified): 12 to 32pF or Series Resonance

• Effective Series Resistance:

700Ω max (1.8432 to 3.199MHz)

150Ω max (3.2 to 3.499MHz)

120Ω max (3.5 to 3.999MHz)

100Ω max (4 to 4.999MHz)

50Ω max (5 to 6.000MHz)

40Ω max (6 to 7.999MHz)

35Ω max (8 to 9.999MHz)

30Ω max (10 to 12.999MHz)

25Ω max (13 to 17.999MHz)

20Ω max (18 to 27.000MHz, AT Fund)

40Ω max (27 to 60MHz, AT (3rd overtone)

• Drive Level: 100μW correlation, (2000μW Max)

• Shunt Capacitance: 7pF Max.

Product Features

• AT-cut performance

• Resistance weld seal

• Low cost

• Versatile

• Pb-free and RoHS/Green compliant available

Typical Applications

• Set-Top Box/Multimedia

• Clock/VCXO Multiplier

• Network Adapter Cards

• Modems

• Microcontrollers and Processors

• Remote control devices

Temperature Range:

• Operating: –20 to +70°C ; -40 to +85°C (as specified)

• Storage: –55 to +125°C

Temperature Stability (as speciﬁed):

• ±30ppm (–20 to +70°C)

• ±50 or ±100ppm (–40 to +85°C)

Aging @ 25°C,

ﬁ

rst year:

• ±3ppm (typ), ±5ppm (max)

Reﬂow Temperature:

• 260°C Max, 10 sec max (RoHS package)

SaRonix-eCera™ is a Pericom® Semiconductor Corporation company • 1-800-435-2336 • www.pericom.com/saronix

All specifications are subject to change without notice.

DS 121 Rev K | 07/05/07
