LC54-151K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LC54-151K

LC54-151K: DescriptionGeneral Purpose Inductor, 150uH, 10%, 1 Element, SMD; CategoryPassive components inductor; File Size18KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

LC54-151K Overview

General Purpose Inductor, 150uH, 10%, 1 Element, SMD

LC54-151K Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	1.1 Ω
Nominal inductance(L)	150 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LC54
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Maximum rated current	0.4 A
self resonant frequency	8.28 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	NO LEAD
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

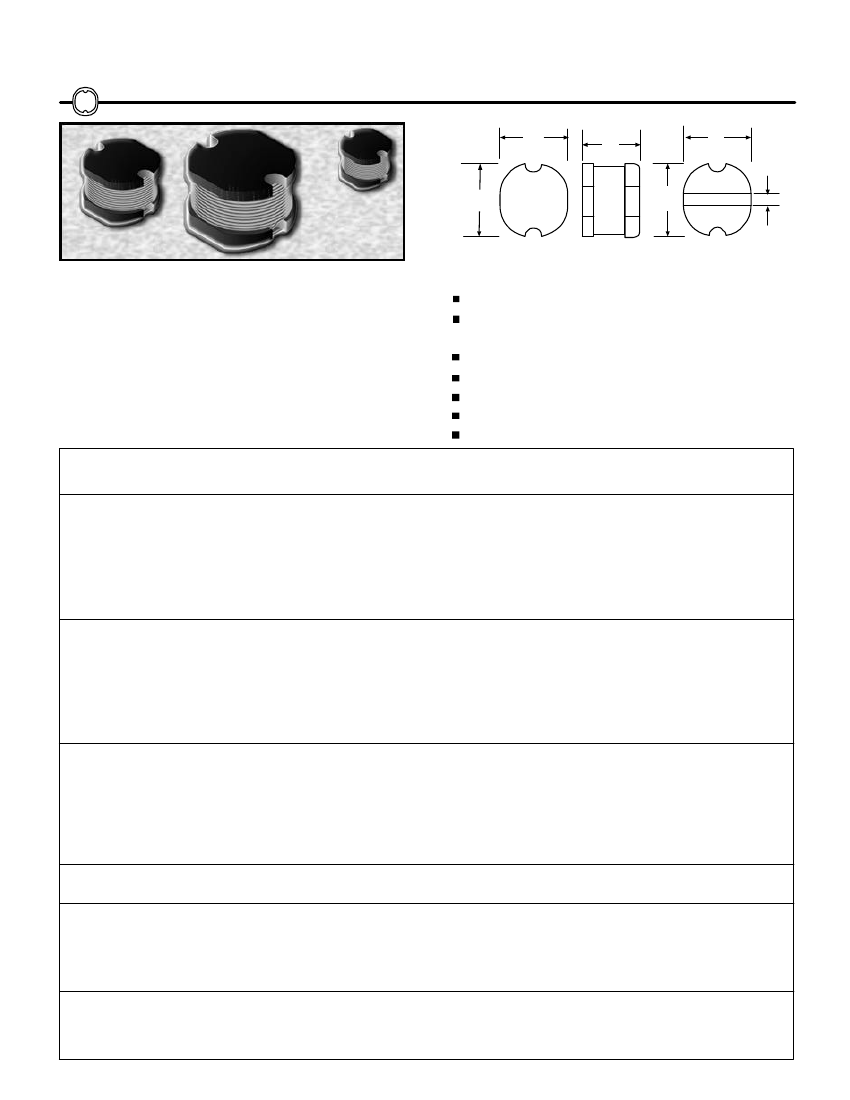

LC54

Power

Inductors

5.2

+/- 0.3

4.5

+/- 0.35

5.8

Typ.

5.3

Typ.

1.3

Typ.

5.8

+/- 0.3

CHARACTERISTICS

INDUCTANCE RANGE 10 µH to 220 µH.

TOLERANCE 10% over entire range.

CURRENT RATING Current to cause maximum 10% of

inductance drop, or 40°C temperature rise.

OPERATING TEMPERA

TURE -30 to +100°C.

°C

PART

NUMBER

LC54-100K

LC54-120K

LC54-150K

LC54-180K

LC54-220K

LC54-370K

LC54-330K

LC54-390K

LC54-470K

LC54-560K

LC54-680K

LC54-820K

L ±10%

µH

TEST

FREQUENCY

(MHz)

2.5

TEST

FREQUENCY

(kHz)

LC54-101K

LC54-121K

LC54-151K

LC54-181K

LC54-221K

100

120

150

180

220

1.0

FEATURES

High current rating

Low core loss for high frequency power application

APPLIC

ATIONS

DC/DC Converters

Computers

Telecommunications equipment

Filters

LCD display

SELF RESONANT

FREQUENCY

TYPIC AL (MHz)

30.6

27.7

25.9

23.3

19.5

17.5

16.3

15.8

13.6

12.1

11.7

10.2

DC RESIST ANCE

MAXIMUM

(OHMS)

0.10

0.12

0.14

0.15

0.18

0.20

0.23

0.32

0.37

0.42

0.46

0.60

RATED DC

CURRENT

MAXIMUM (AMPS)

1.44

1.40

1.30

1.23

1.11

0.97

0.88

0.80

0.72

0.68

0.61

1.58

9.24

8.61

8.28

6.42

5.73

0.70

0.93

1.10

1.38

1.57

0.52

0.48

0.40

0.38

0.35
