F4205R-FREQ-BM0 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> F4205R-FREQ-BM0

F4205R-FREQ-BM0: DescriptionHCMOS Output Clock Oscillator, 1.544MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size79KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

F4205R-FREQ-BM0 Overview

HCMOS Output Clock Oscillator, 1.544MHz Min, 50MHz Max, LEAD FREE, CERAMIC, SMD, 4 PIN

F4205R-FREQ-BM0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1.544 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	6.0mm x 3.5mm x 1.4mm
longest rise time	6 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

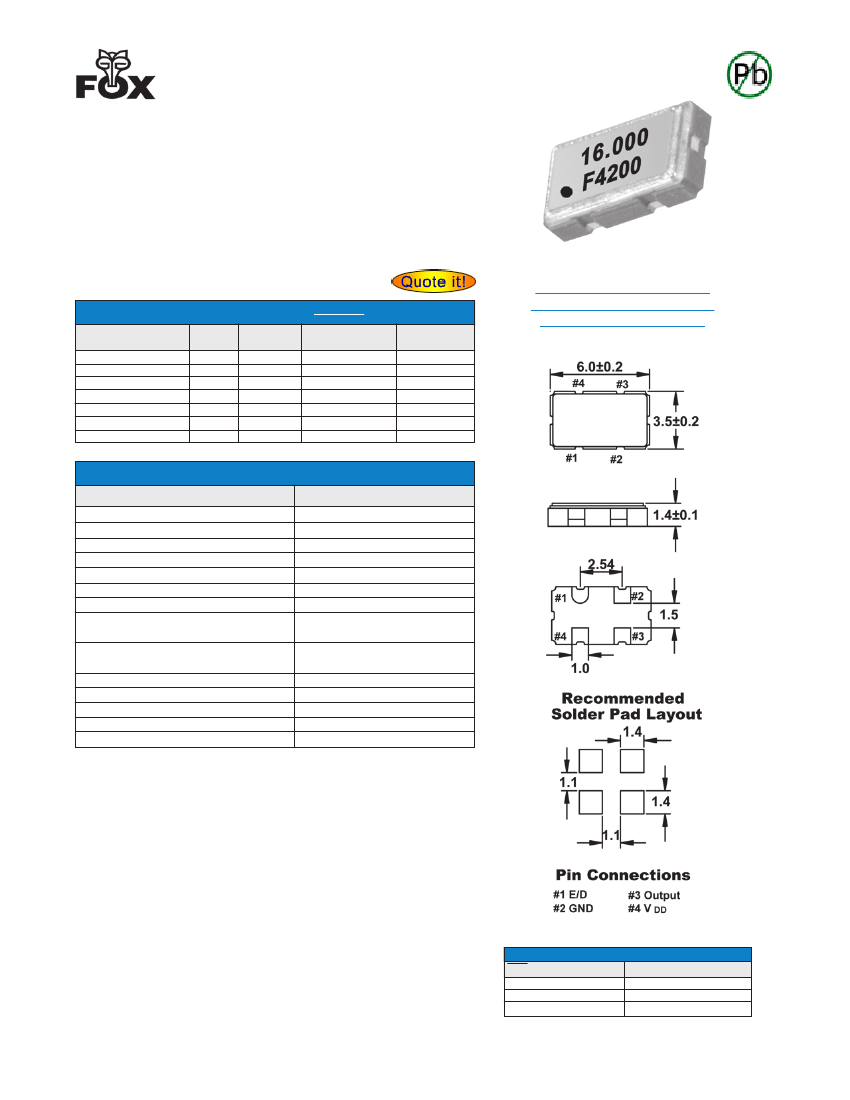

3.3V HCMOS CERAMIC SMD OSCILLATOR WITH STANDBY

MODEL: F4200 SERIES

FEATURES

•

OPTIONS

3.3V Operation

• 5.0V (F3400) Version Available

HCMOS Output

Standby Function

Tape and Reel

(2,000 pcs. STD)

• PART NUMBER SELECTION

Learn More - Internet Required

Part Number

129-Frequency-xxxxx

130-Frequency-xxxxx

131-Frequency-xxxxx

132-Frequency-xxxxx

133-Frequency-xxxxx

506-Frequency-xxxxx

134-Frequency-xxxxx

Model Frequency

Number Stability

F4200

±100PPM

F4200R

±100PPM

F4205

±50PPM

F4205R

±50PPM

F4206

±25PPM

F4206R

±25PPM*

F4208

±20PPM*

Operating

Temperature (ºC)

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

Frequency

Range (MHz)

1.544 ~ 50.000

Learn more about:

Part Marking Identification

Tape and Reel Specification

Mechanical Specification

Internet required

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

STG

)

Supply Voltage

)

Input Current

)

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

) (T

)

Fall Time (90% ~ 10% V

) (T

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

MAX

(unless otherwise noted)

1.544 ~ 50.000 MHz

-55ºC ~ +125ºC

3.3V ± 10%

20mA

40% ~ 60%

6nS

10% V

90% V

Min

2mA Min

-2mA Min

15pF

10µA

10mS

150nS

10mS

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration. *Excludes Shock/Vibration

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

All specifications subject to change without notice.

Rev. 6/1/04

All dimensions are in millimeters.

• ENABLE / DISABLE FUNCTION

INH (Pin 1)

OUTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239)693-0099 FAX +1(239)693-1554

http://www.foxonline.com
