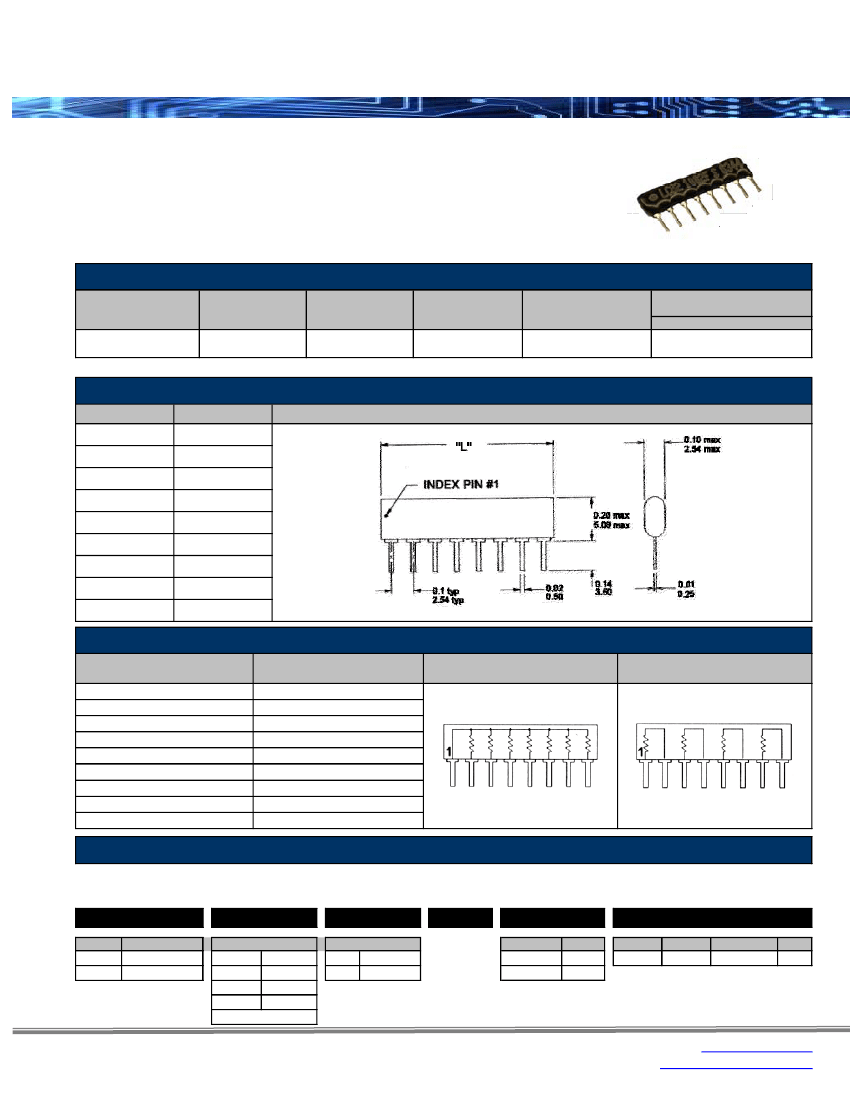

LC Series
SIP Thick Film Resistor Networks
Features:
•
•
•
•
•
•
•
•
Standard low profile
6, 8 or 10 pins standard
4, 5, 7, 9, 11 and 12 pins available
Steel leads standard
Conformally coated
Absolute TCR typically better than ±100ppm
TCR tracking typically better than ±50ppm
RoHS compliant / lead-free available (LCF)
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications
Type / Code
LC
Power Rating
(Watts) @ 70ºC
0.125w
Each resistor
Derated to
0 Load @
125ºC
Max Working
Voltage1
200V
Resistance Temperature
Coefficient
±100 ppm/ºC
Ohmic Range and Tolerance
1%, 2%
30Ω - 100KΩ
1Lesser
of
√PR
or maximum working voltage
Mechanical Specifications
(inches – mm)
No. of Pins
4
5
6
7
8
9
10
11
12
"L" Max.
0.41 (10.41)
0.51 (12.95)
0.61 (15.49)
0.71 (18.03)
0.81 (20.57)
0.91 (23.11)
1.01 (25.65)
1.11 (28.19)
1.21 (30.73)
Low Profile - LC Series
Performance Characteristics
Test
Thermal Shock
Low Temperature Operation
Short Time Overload
Moisture Resistance
Load Life @ 70ºC - 1,000 Hours
Resistance to Soldering Heat
Terminal Strength
Shock (Specified Pulse)
Vibration (High Frequency)
Test Results per MIL-R-S83401
(%∆R max.)
±0.5%
±0.5%
±0.5%
±0.5%
±1%
±0.25%
±0.25%
±0.25%
±0.25%
Standard Configurations – Low Profile SIP Package
Single Common (Bussed)
Up / Pull-Down
Pull-
Discrete (Isolated) Terminator
How to Order
SEI Type
Pin Count
Circuit Type
Nominal
Resistance
Tolerance
Packaging
LC
Type
LC
LCF
Description
Standard
RoHS
8
Pin Count
4 = 4 pin 8 = 8 pin
5 = 5 pin 9 = 9 pin
6 = 6 pin 0 = 10 pin
7 = 7 pin 1 = 11 pin
2 = 12 pin
1
Circuit Type
1
Bussed
2
Isolated
2.2K
2%
Tolerance
1%
2%
Value
E24
E24
Type
All
Qty
1,000
B
Description Code
Bulk
B
Rev Date: 9/30/2009
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
