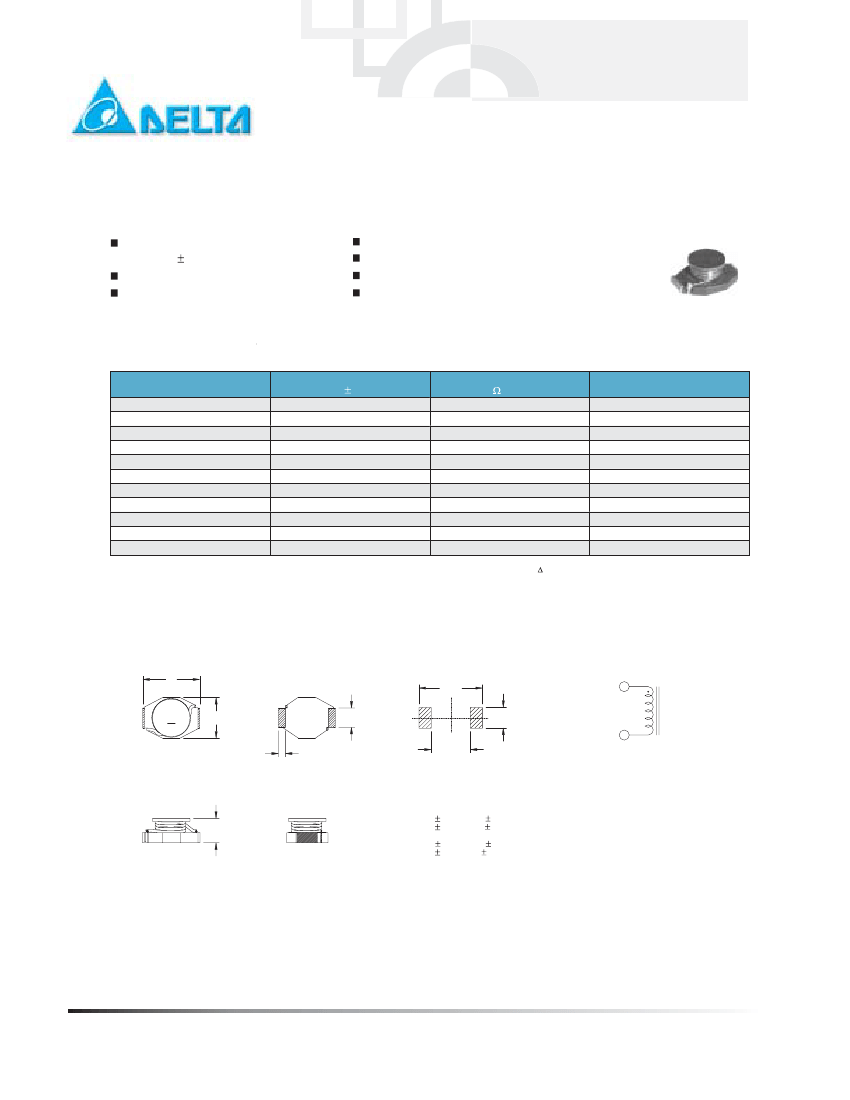

Power Inductor
LCD63 TYPE
FEATURES
Tolerance of inductance
0.6~47uH 20%
Low profile
Low cost
SMD TYPE
APPLICATIONS
Notebook computers
Battery powered equipment
DC/DC converters, PDAs
Digital cameras, Scanners, CD-ROMs & DVDs
AT 25
o
C: 100KHz, 0.1V
PART NO.
LCD63-0R5
LCD63-1R0
LCD63-2R2
LCD63-3R3
LCD63-4R0
LCD63-4R7
LCD63-100
LCD63-150
LCD63-220
LCD63-330
LCD63-470
Inductance
(uH 20%)
0.6
1
2.2
3.3
4.0
4.7
10
15
22
33
47
DCR
( ) MAX
0.01
0.017
0.035
0.038
0.040
0.054
0.111
0.170
0.250
0.350
0.470
Isat
(Amperes)
7.5
5.0
3.2
3.2
3.0
2.3
1.6
1.3
1.0
0.9
0.75
T=45
O
C, depending on whichever is lower.
Note: Isat indicates the value of current when the inductance is 15% lower than its initial value or temperature rising
MECHANICAL CONSTRUCTION
A
8.80
SCHEMATICS
1
2.70
a
B
D
2
F
BOTTOM VIEW
6.40
SUGGESTED PCB LAYOUT
C
UNIT : mm / inch
A = 8.60 0.254 / 0.339 0.010
B = 5.84 0.254 / 0.230 0.010
C = 4.00 / 0.157 MAX
D = 2.50 0.254 / 0.098 0.010
E = 1.50 0.30 / 0.059 0.012
F = 0.80 / 0.032 (REF)
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
252, SHANG YING ROAD, KUEI SAN, TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com/products/networking/power.htm
A-2
