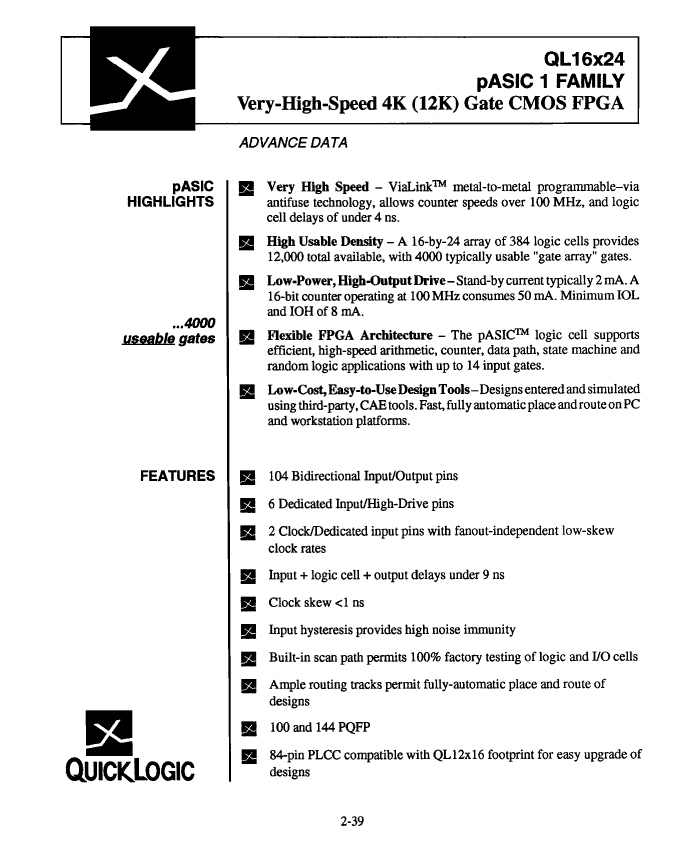

QL16X24-0PF144C: DescriptionField Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP144, PLASTIC, QFP-144; CategoryProgrammable logic devices Programmable logic; File Size37KB，2 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

QL16X24-0PF144C Overview

Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP144, PLASTIC, QFP-144

QL16X24-0PF144C Parametric

Parameter Name	Attribute value
Maker	QuickLogic Corporation
Parts packaging code	QFP
package instruction	QFP,
Contacts	144
Reach Compliance Code	unknown
Other features	MAX 104 I/OS; 12000 AVAILABLE GATES
maximum clock frequency	100 MHz
JESD-30 code	S-PQFP-G144
length	28 mm
Configurable number of logic blocks	384
Equivalent number of gates	4000
Number of terminals	144
Maximum operating temperature	70 °C
Minimum operating temperature
organize	384 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	4.17 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	28 mm

Preview

Download Datasheet

View All

QL16X24-0PF144C Related Products

	QL16X24-0PF144C	QL16X24-0PF100C	QL16X24-0PL84C	QL16X24-1PF100C	QL16X24-1PF144C	QL16X24-1PL84C	QL16X24-2PF100C	QL16X24-2PF144C	QL16X24-2PL84C
Description	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP144, PLASTIC, QFP-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQCC84, PLASTIC, LCC-84	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP144, PLASTIC, QFP-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQCC84, PLASTIC, LCC-84	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQFP144, PLASTIC, QFP-144	Field Programmable Gate Array, 384 CLBs, 4000 Gates, 100MHz, CMOS, PQCC84, PLASTIC, LCC-84
Maker	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation
Parts packaging code	QFP	QFP	LCC	QFP	QFP	LCC	QFP	QFP	LCC
package instruction	QFP,	LFQFP,	QCCJ,	LFQFP,	QFP,	QCCJ,	LFQFP,	QFP,	QCCJ,
Contacts	144	100	84	100	144	84	100	144	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES	MAX 104 I/OS; 12000 AVAILABLE GATES
maximum clock frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
JESD-30 code	S-PQFP-G144	S-PQFP-G100	S-PQCC-J84	S-PQFP-G100	S-PQFP-G144	S-PQCC-J84	S-PQFP-G100	S-PQFP-G144	S-PQCC-J84
length	28 mm	14 mm	29.3116 mm	14 mm	28 mm	29.3116 mm	14 mm	28 mm	29.3116 mm
Configurable number of logic blocks	384	384	384	384	384	384	384	384	384
Equivalent number of gates	4000	4000	4000	4000	4000	4000	4000	4000	4000
Number of terminals	144	100	84	100	144	84	100	144	84
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES	384 CLBS, 4000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	LFQFP	QCCJ	LFQFP	QFP	QCCJ	LFQFP	QFP	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	CHIP CARRIER	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK	CHIP CARRIER
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.17 mm	1.6 mm	5.08 mm	1.6 mm	4.17 mm	5.08 mm	1.6 mm	4.17 mm	5.08 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	J BEND	GULL WING	GULL WING	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	0.65 mm	0.5 mm	1.27 mm	0.5 mm	0.65 mm	1.27 mm	0.5 mm	0.65 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	28 mm	14 mm	29.3116 mm	14 mm	28 mm	29.3116 mm	14 mm	28 mm	29.3116 mm
