ASV22-FREQ-I-Y-S-L2-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASV22-FREQ-I-Y-S-L2-T

ASV22-FREQ-I-Y-S-L2-T: DescriptionHCMOS/TTL Output Clock Oscillator, 0.012MHz Min, 133MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size372KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASV22-FREQ-I-Y-S-L2-T Overview

HCMOS/TTL Output Clock Oscillator, 0.012MHz Min, 133MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASV22-FREQ-I-Y-S-L2-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
Manufacturer's serial number	ASV2
Installation features	SURFACE MOUNT
Maximum operating frequency	133 MHz
Minimum operating frequency	0.012 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	15 TTL
physical size	7.0mm x 5.0mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

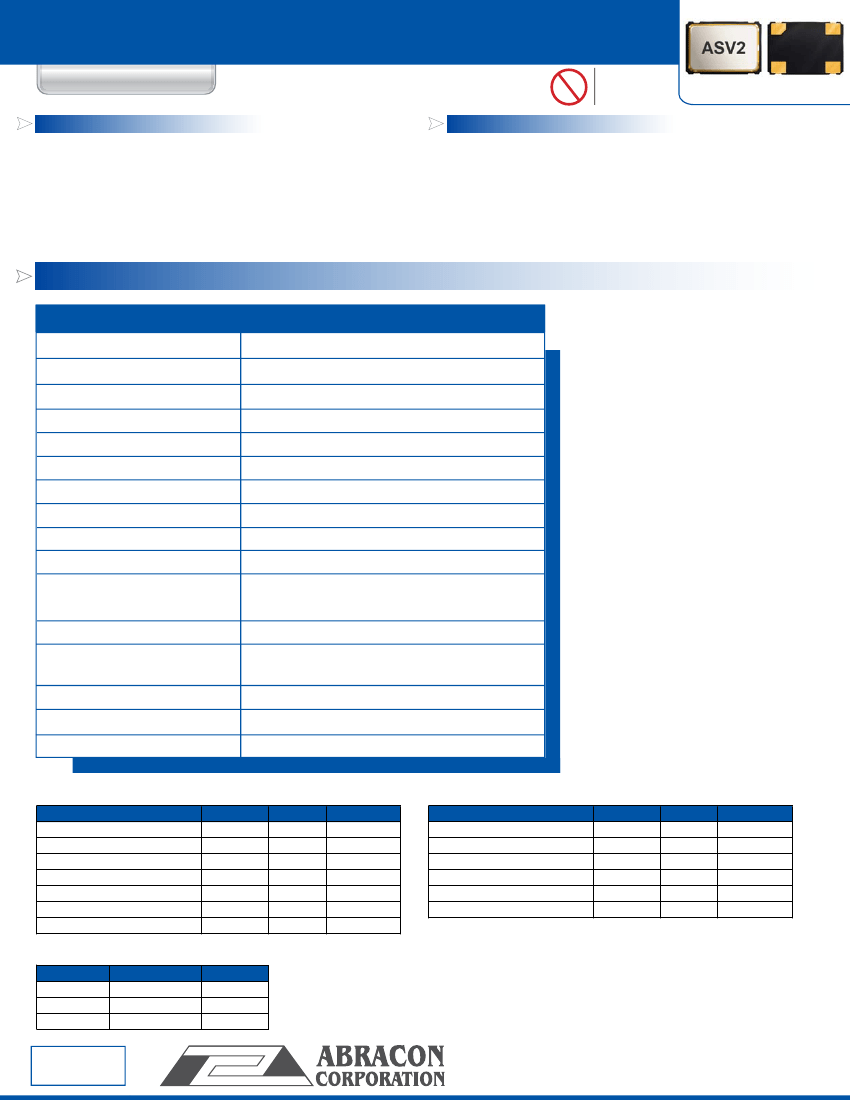

HCMOS/TTL LOW PROFILE SMD CRYSTAL CLOCK OSCILLATOR

ASV2 SERIES

FEATURES:

• 1.4 mm max. in height

• HCMOS and TTL compatible, 1.8V to 3.3V

• Tristate Enable / Disable function

• Reflow capable

• Available optional -40

C to 85

C extended temperature

• Seam sealed package

RoHS

Compliant

7.0 x 5.0 x 1.4mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Clock signaling for

μProcessors,

PC Motherboards & Graphic

Cards

• High load output drive capability applications

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise time / Fall time (Tr/Tf)

Output Load

Output Voltage

Start-up Time

Tristate Function

Aging at 25°C/year

Absolute Clock Period Jitter

Disable Current

TABLE 1

Frequency

0.012MHz Fo < 0.048MHz

0.048MHz Fo < 1.5MHz

1.5MHz Fo < 20MHz

20MHz Fo < 50MHz

50MHz Fo < 70MHz

70MHz Fo < 125MHz

125MHz Fo 133MHz

ASV2 Series

0.012 MHz to 133.000 MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 Vdc ± 10% (see options)

See Table 1

40/60 % max.@ 1/2Vdd (see options)

See Table 2

15pF (5TTL) (see options)

VOH = 0.9 * Vdd min. (90% of Vdd)

VOL = 0.4 Vdc max. (10% of Vdd)

8ms max.

"1" (VIH: see table 3) or open: Oscillation

"0" (VIL: see table 3): Hi Z

±5ppm max.

± 40ps max.

10μA max.

TABLE 2

Frequency

3.3Vdd

TABLE 3

Vdd

1.8

2.5

3.3

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

2.5Vdd

1.8Vdd

N/A

Unit: (mA max)

3.3Vdd

2.5Vdd

1.8Vdd

0.012MHz Fo < 1.0MHz

200

N/A

1.0MHz Fo < 20MHz

20MHz Fo < 50MHz

50MHz Fo < 70MHz

70MHz Fo < 125MHz

125MHz Fo 133MHz

N/A

Tr times are measured between 10% & 90% of Vdd with 15pF load.

1.26

1.75

0.5

Revised: 08.09.07
