SN74LS541NSRE4 datasheet, PDF - EEWORLD Datasheet

SN74LS541NSRE4: DescriptionBus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, GREEN, PLASTIC, SOP-20; Categorylogic logic; File Size968KB，22 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74LS541NSRE4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74LS541NSRE4	-	-	View	Buy Now

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, GREEN, PLASTIC, SOP-20

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	LS
JESD-30 code	R-PDSO-G20
length	12.6 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	18 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

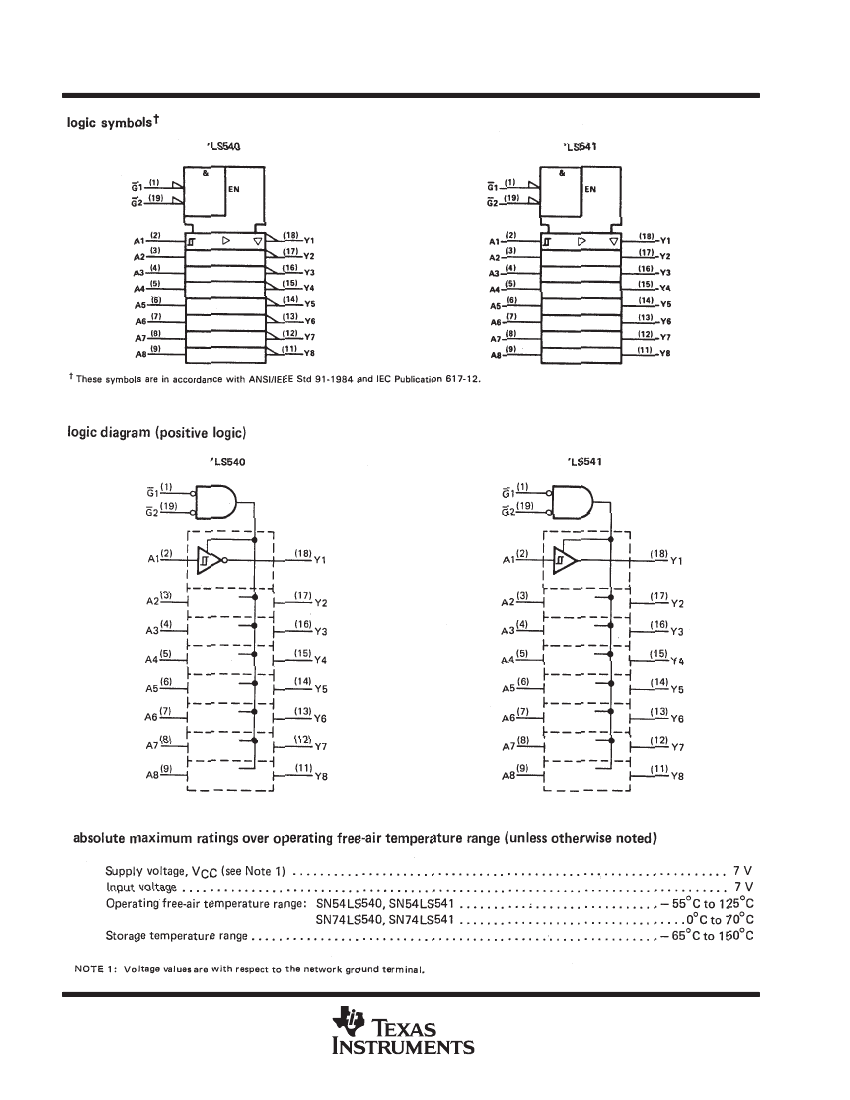

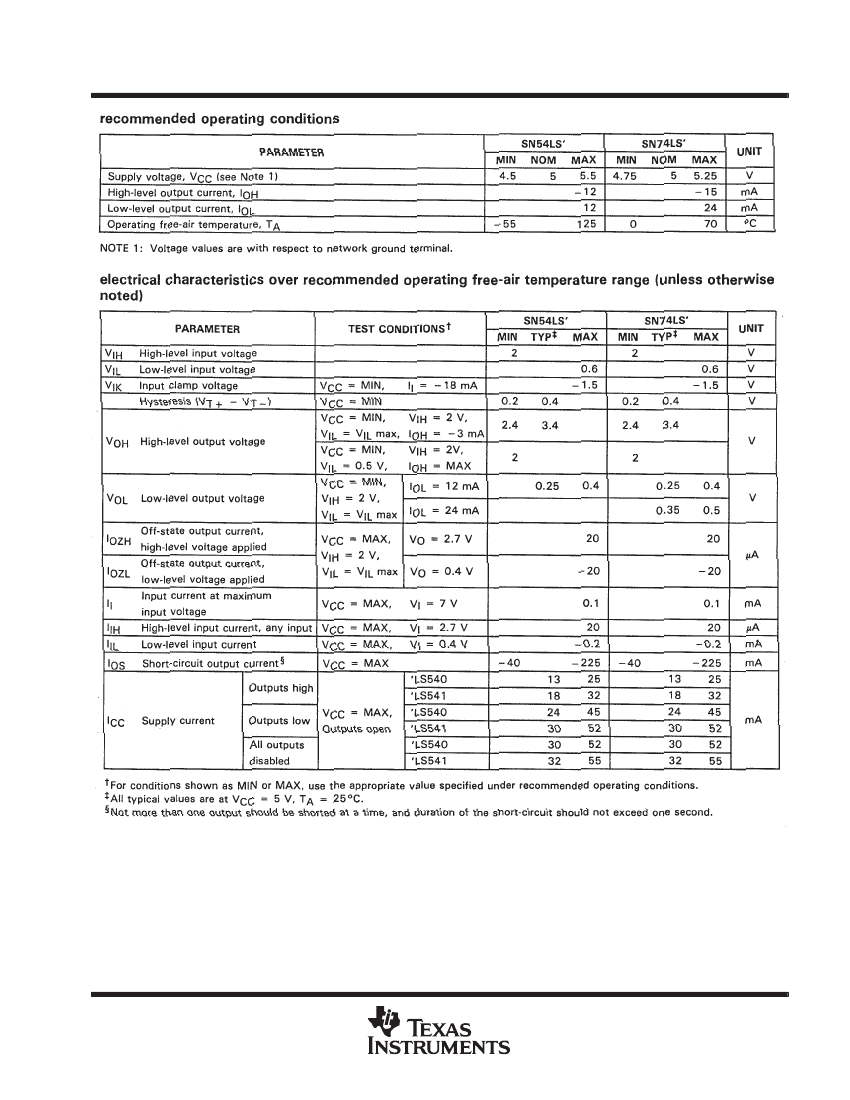

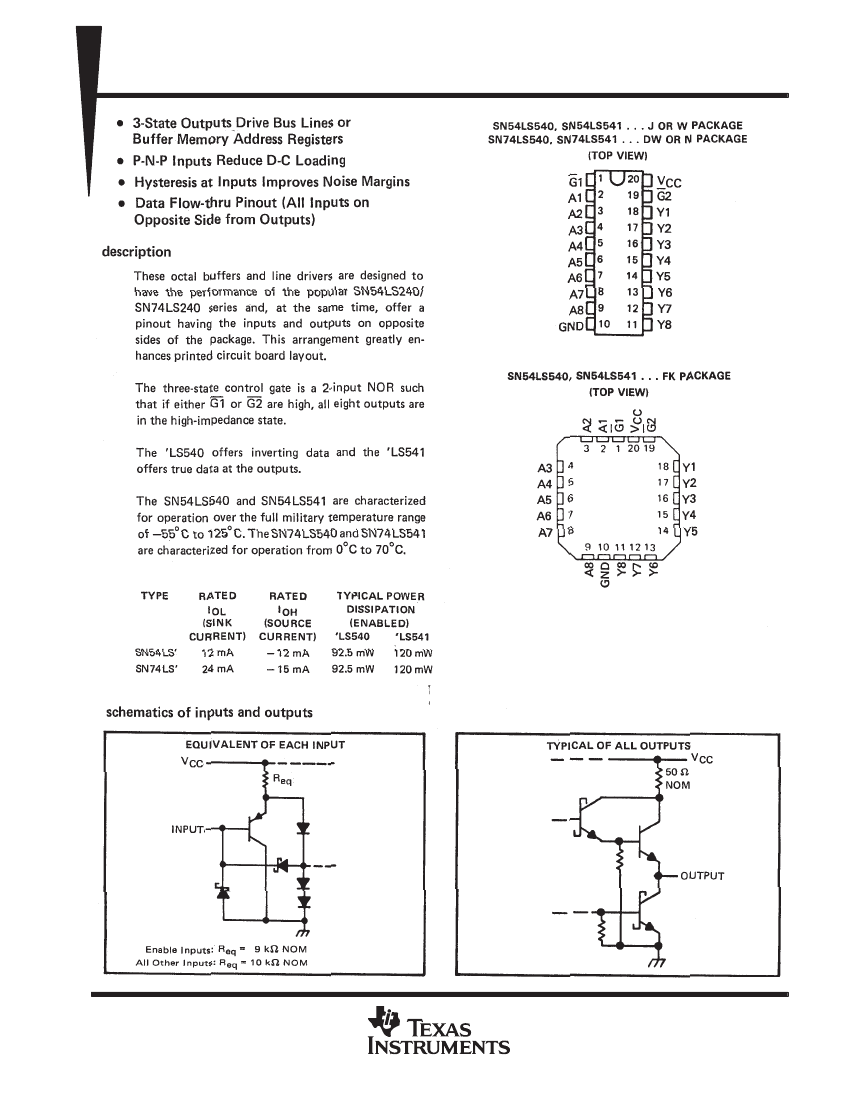

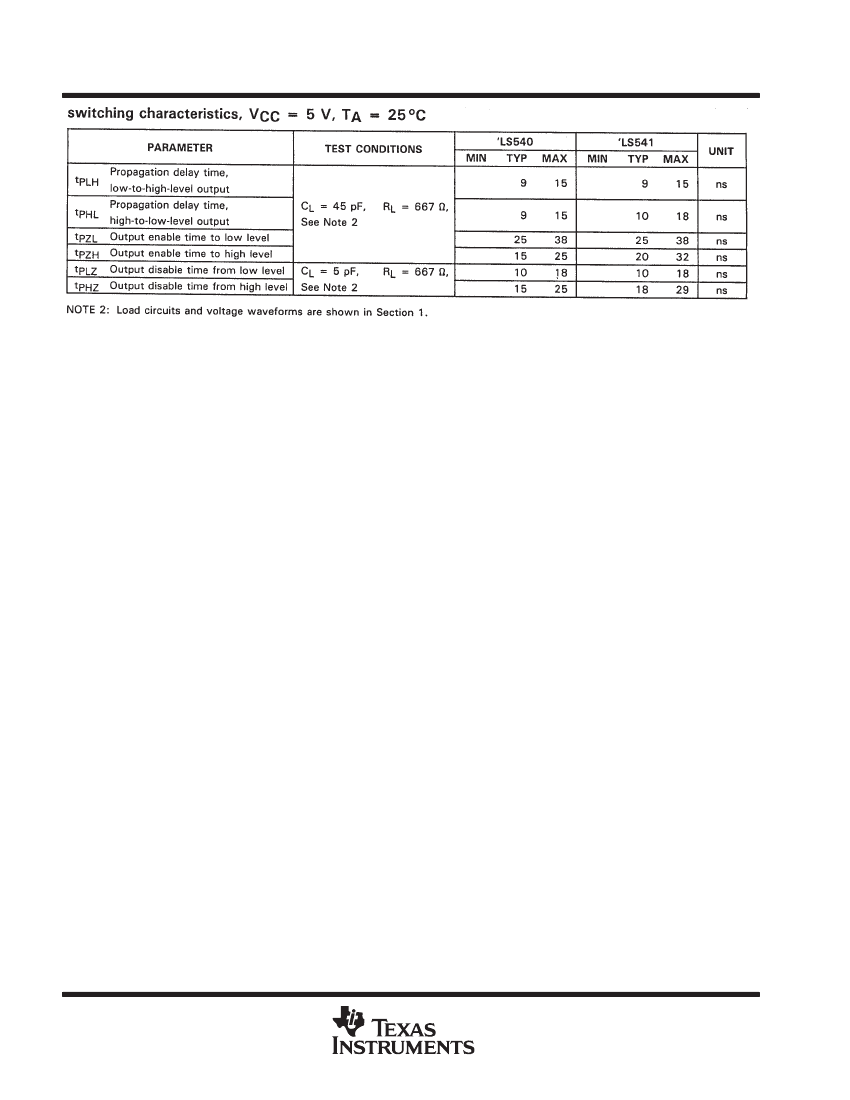

SN54LS540, SN54LS541, SN74LS540, SN74LS541

OCTAL BUFFERS AND LINE DRIVERS

WITH 3 STATE OUTPUTS

SDLS180 − AUGUST 1979 − REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.



1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

	SN74LS541NSRE4	SN74LS541DWRE4
Description	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, GREEN, PLASTIC, SOP-20	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, GREEN, PLASTIC, SOIC-20
Maker	Rochester Electronics	Rochester Electronics
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	LS	LS
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	12.6 mm	12.8 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	18 ns	18 ns
Maximum seat height	2 mm	2.65 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.5 mm
