Part Number

Search

SN74LS686NDS

Description
LS SERIES, 8-BIT MAGNITUDE COMPARATOR, INVERTED OUTPUT, PDIP24, PLASTIC PACKAGE-24
Categorylogic    logic
File Size194KB,7 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

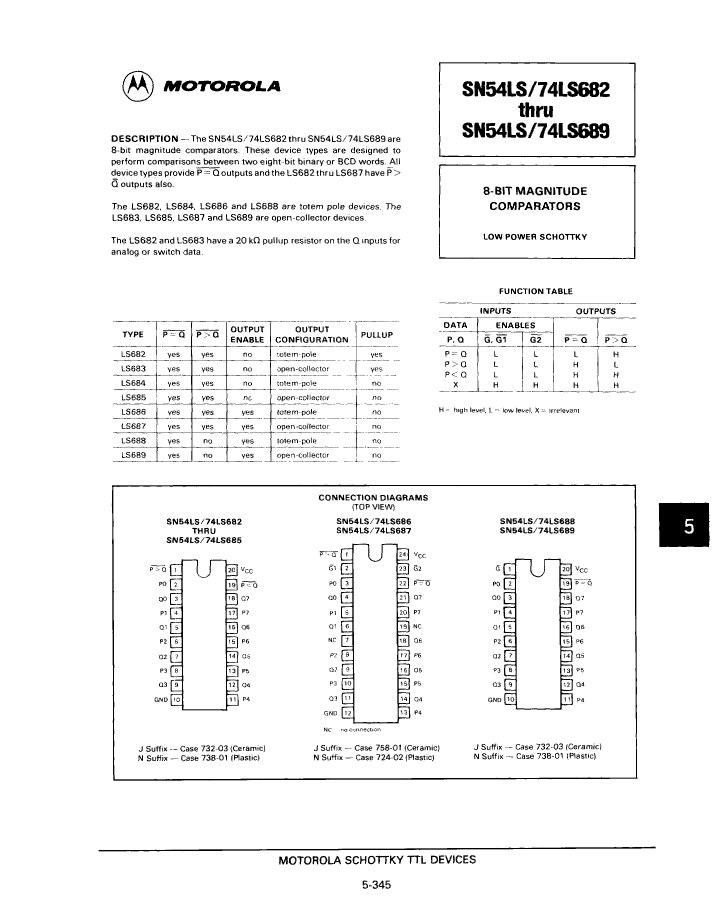

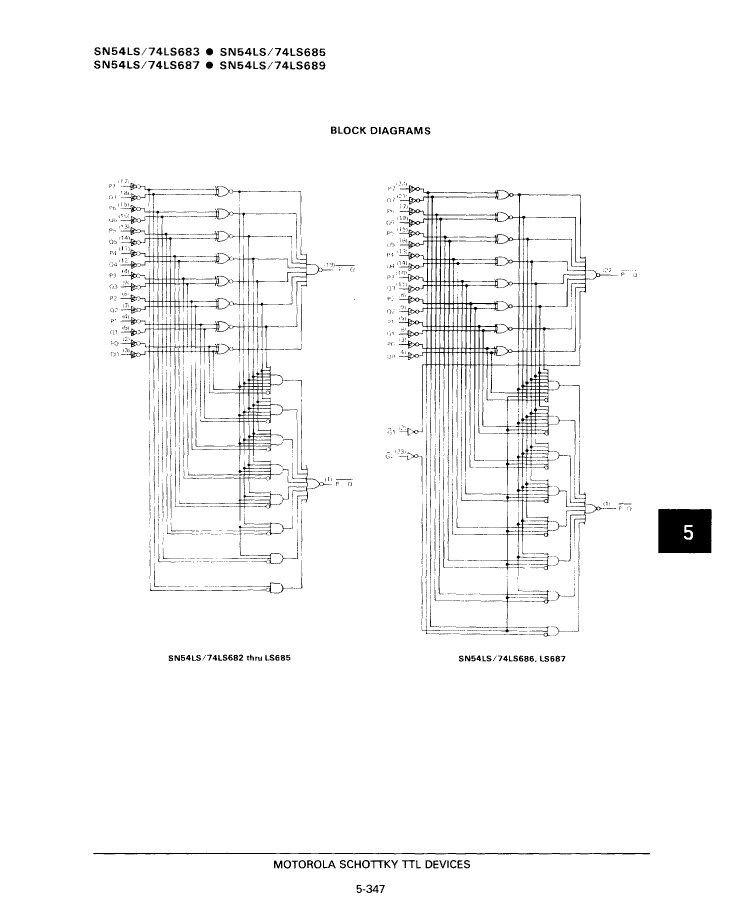

SN74LS686NDS Overview

LS SERIES, 8-BIT MAGNITUDE COMPARATOR, INVERTED OUTPUT, PDIP24, PLASTIC PACKAGE-24

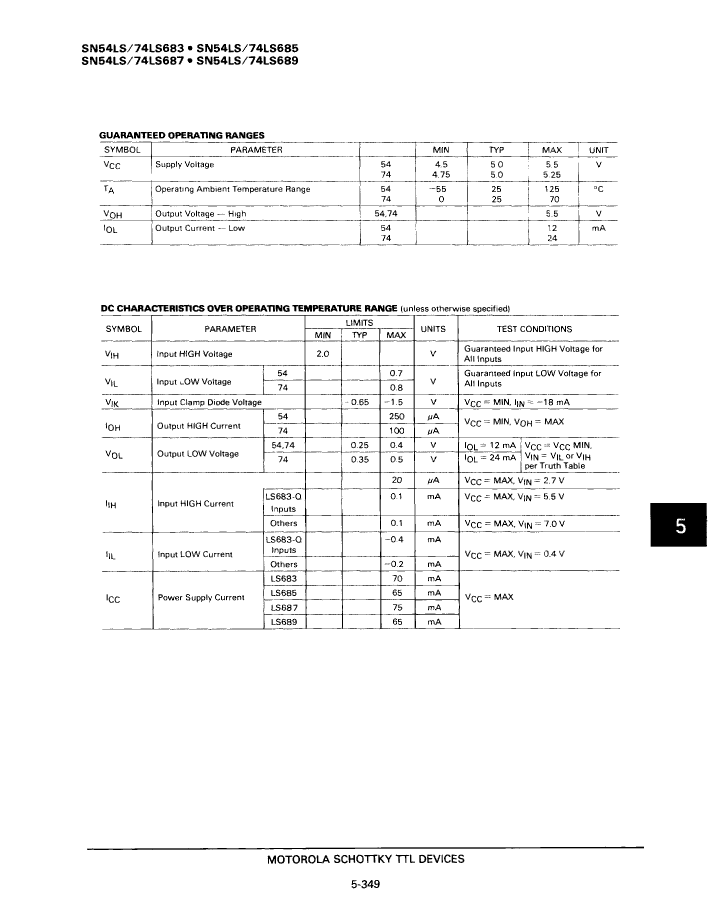

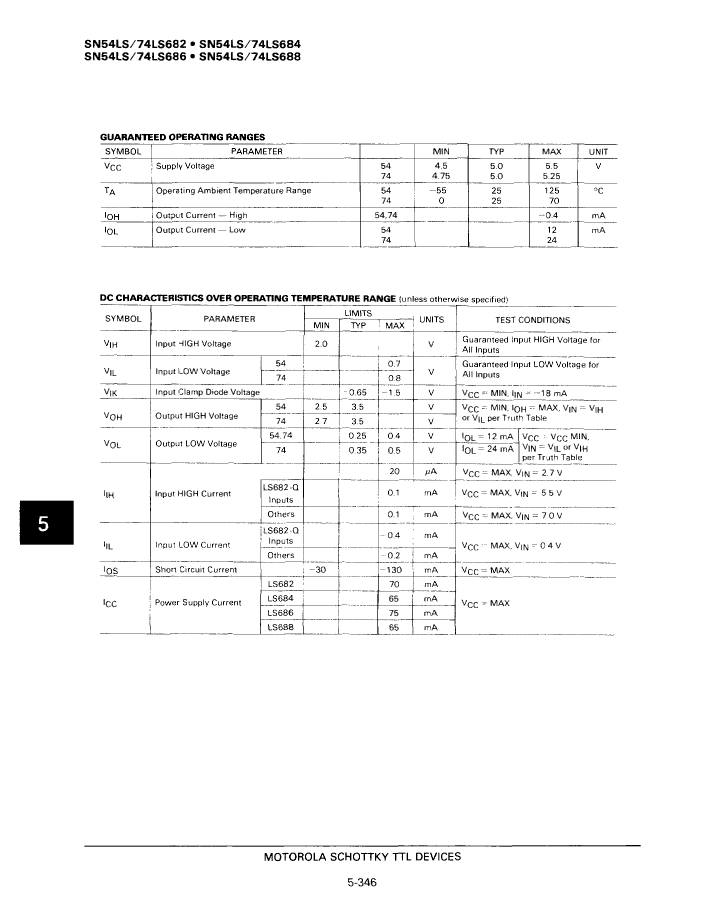

SN74LS686NDS Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP24,.3
Contacts24
Reach Compliance Codeunknown
Other featuresWITH P = Q & P > Q OUTPUTS; WITH INHIBIT
seriesLS
JESD-30 codeR-PDIP-T24
JESD-609 codee0
length31.685 mm
Logic integrated circuit typeMAGNITUDE COMPARATOR
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Output polarityINVERTED
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)30 ns
Certification statusNot Qualified
Maximum seat height4.57 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
