ML79M05FA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ML79M05FA

ML79M05FA: DescriptionFixed Negative Standard Regulator, 5V, BIPolar, PSFM3, TO-220F, 3 PIN; CategoryPower/power management The power supply circuit; File Size200KB，6 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

ML79M05FA Overview

Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3, TO-220F, 3 PIN

ML79M05FA Parametric

Parameter Name	Attribute value
Maker	Micro Electronics
Parts packaging code	TO-220F
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	35 V
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-30 °C
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

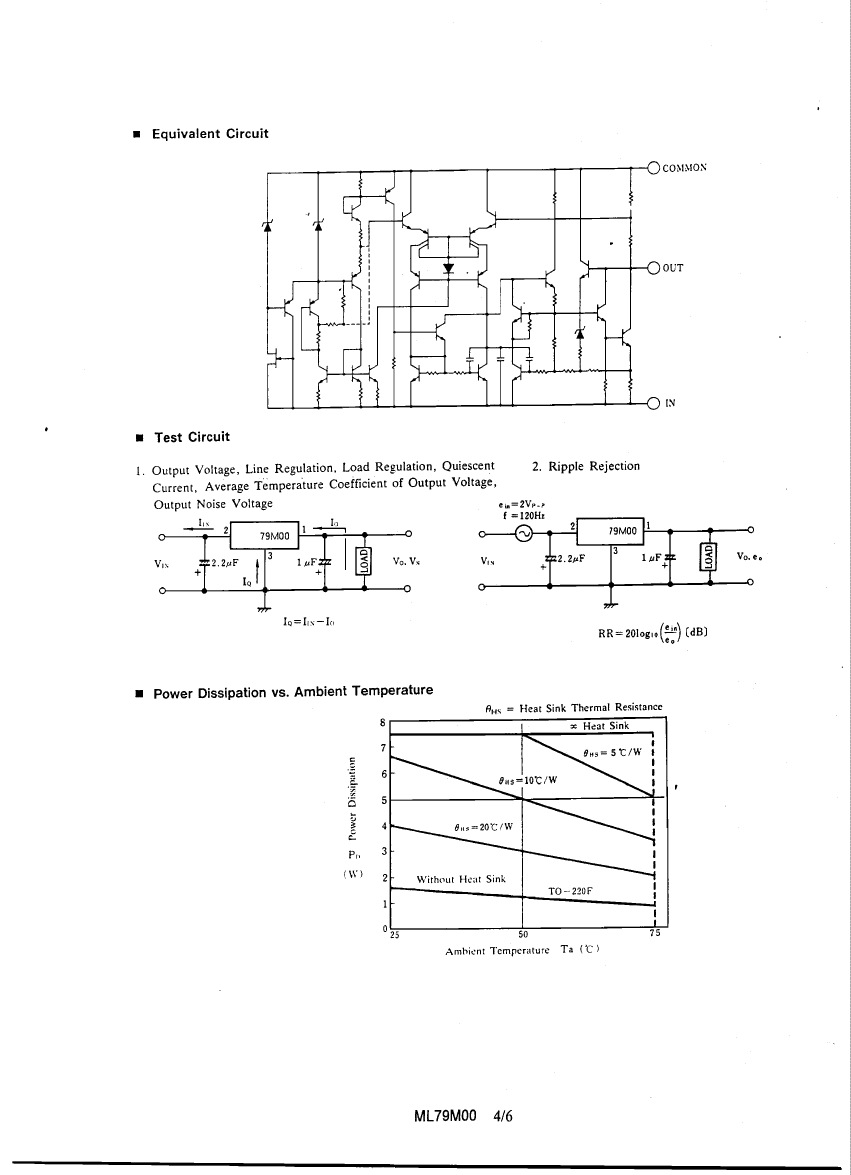

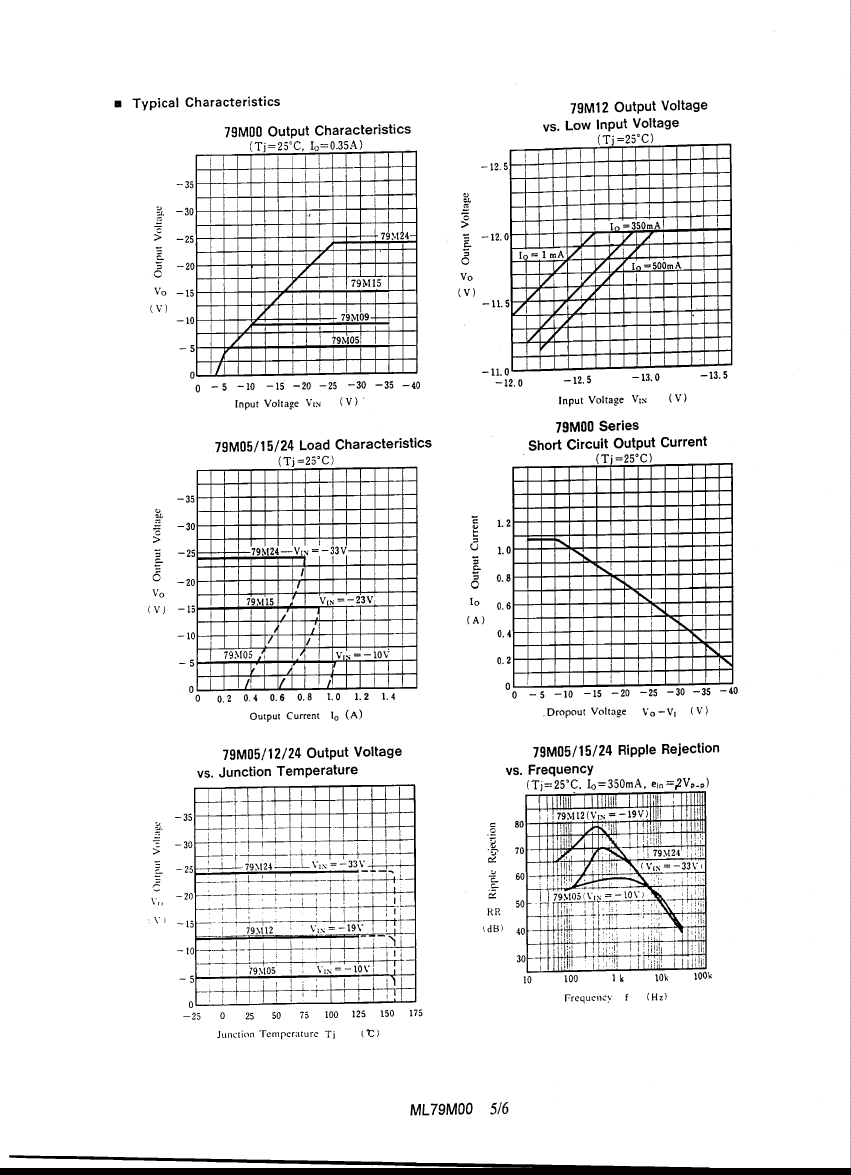

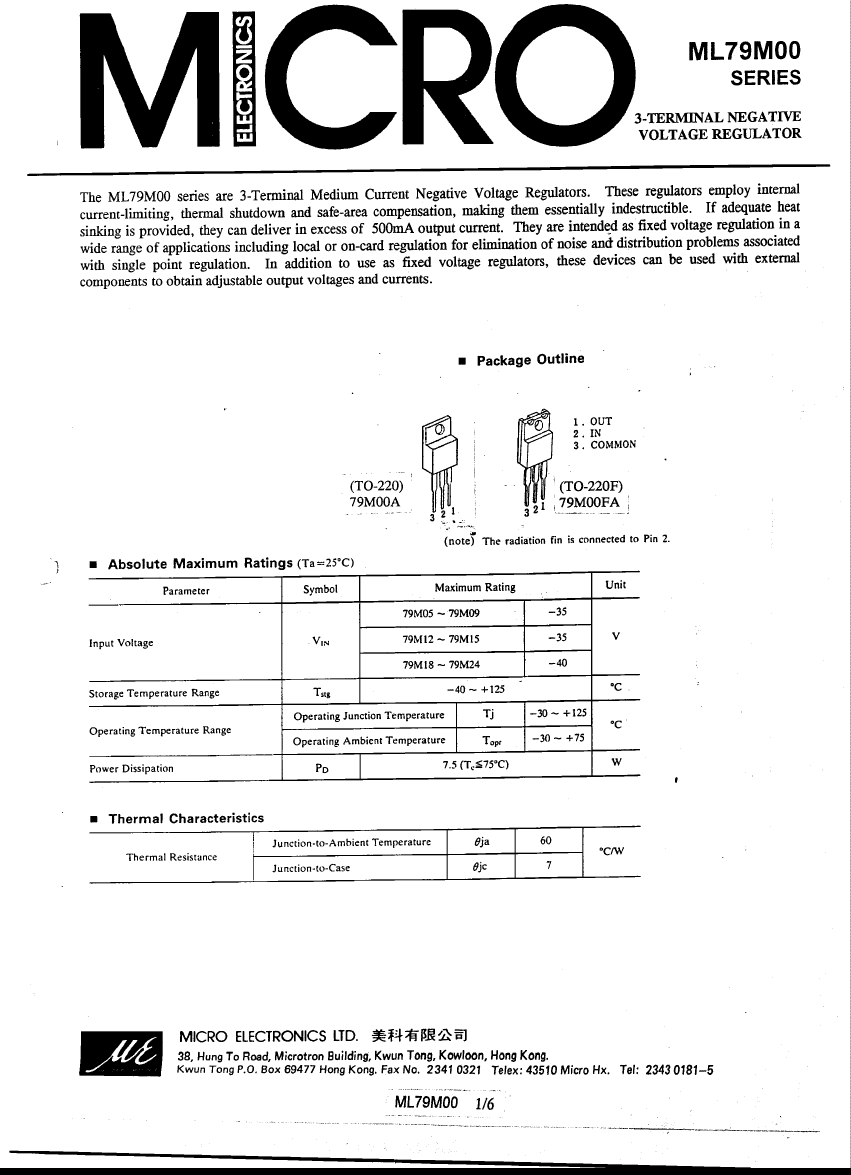

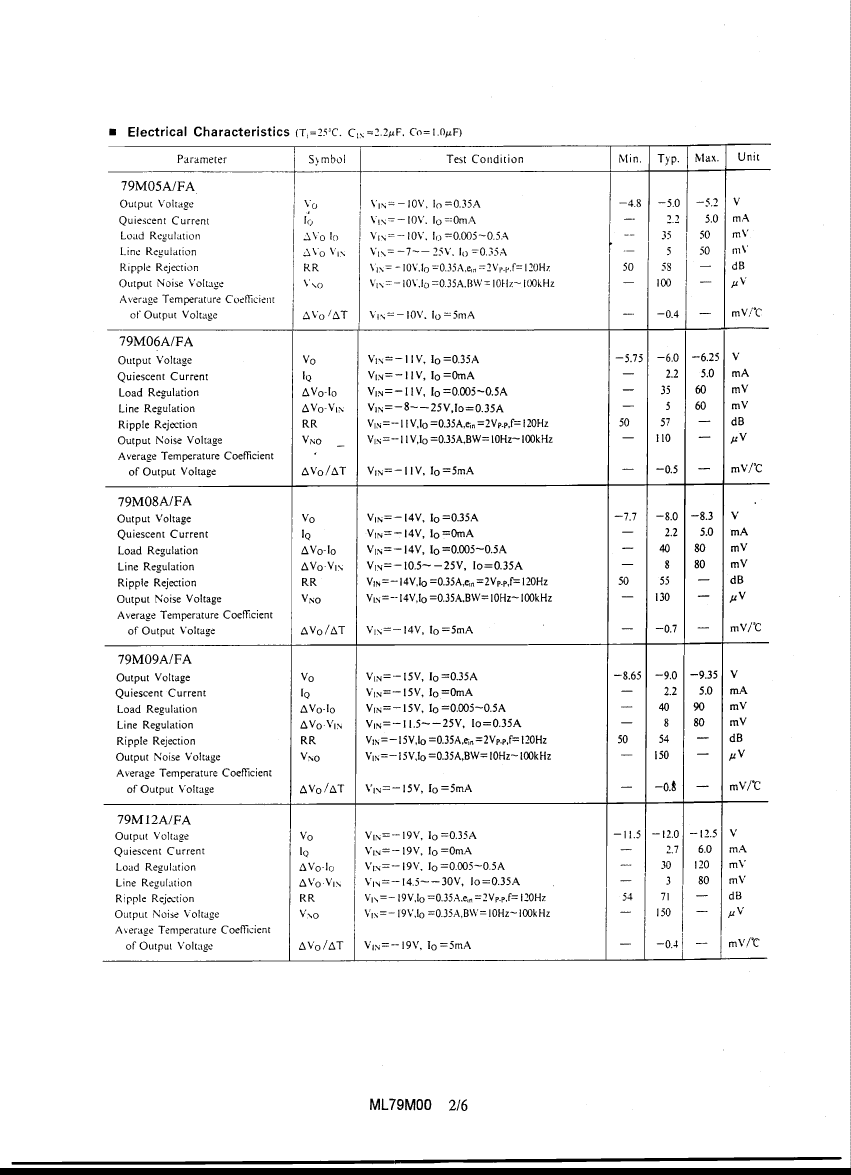

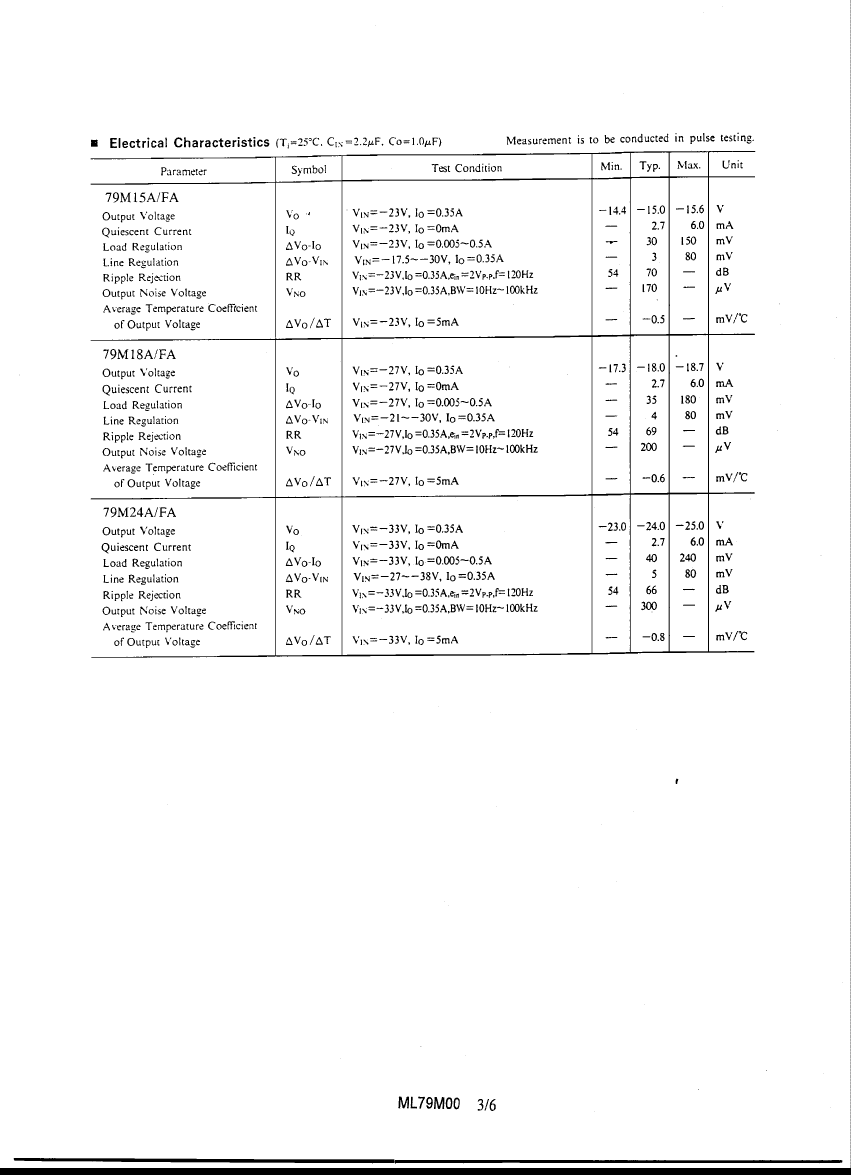

Preview

Download Datasheet

View All

ML79M05FA Related Products

	ML79M05FA	ML79M06FA	ML79M08FA	ML79M09FA	ML79M12FA	ML79M15FA	ML79M18FA	ML79M24FA
Description	Fixed Negative Standard Regulator, 5V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 6V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 8V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 9V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 12V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 15V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 18V, BIPolar, PSFM3, TO-220F, 3 PIN	Fixed Negative Standard Regulator, 24V, BIPolar, PSFM3, TO-220F, 3 PIN
Maker	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics
Parts packaging code	TO-220F	TO-220F	TO-220F	TO-220F	TO-220F	TO-220F	TO-220F	TO-220F
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	35 V	35 V	35 V	35 V	35 V	35 V	40 V	40 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Maximum output voltage 1	5.2 V	6.25 V	8.3 V	9.35 V	12.5 V	15.6 V	18.7 V	25 V
Minimum output voltage 1	4.8 V	5.75 V	7.7 V	8.65 V	11.5 V	14.4 V	17.3 V	23 V
Nominal output voltage 1	5 V	6 V	8 V	9 V	12 V	15 V	18 V	24 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
