7P-SAN-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7P-SAN-W

7P-SAN-W: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Crimp Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size123KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

7P-SAN-W Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Crimp Terminal, ROHS COMPLIANT

7P-SAN-W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SAN
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

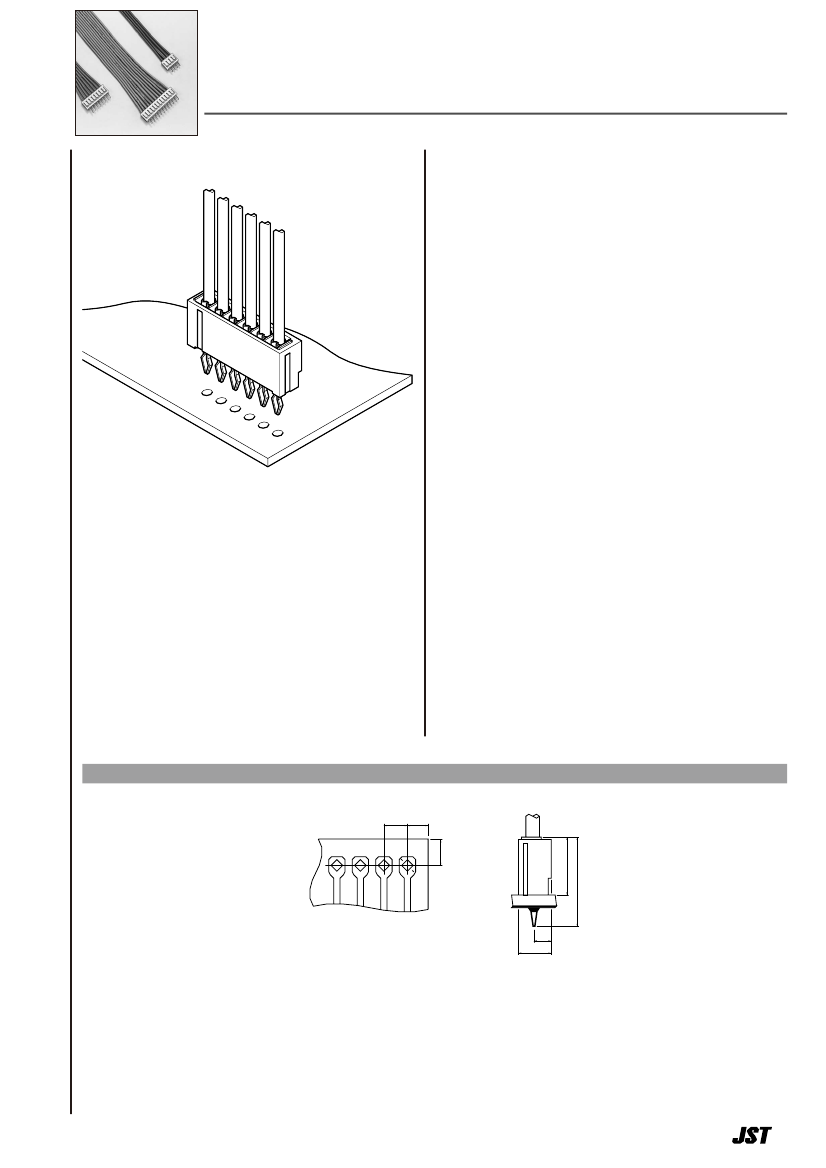

SAN

CONNECTOR

2.0mm pitch/Board-in Crimp style connectors

Specifications –––––––––––––––––––

• Current rating: 2A AC, DC (AWG #24)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 800V AC/minute

• Applicable wire: AWG #30 to #24

• Applicable PC board thickness:

Type A contact: 1.2mm,1.6mm

Type B contact: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Measuring 2.0mm in pitch, 6.0mm in

mounting height, and 3.25mm in thickness,

this board-in connector meets the needs for

high-density mounting on printed circuit

boards efficiently and economically.

The connector is ideal for VCRs, car stereo

systems, audio products and many other

consumer oriented electronic products.

• Compact

• Housing lances

• Easy mounting onto printed circuit boards

• Two types of contacts

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

PC board layout (viewed from soldering side) and Assembly layout

2.0

±0.05

1.6

min

2.0

min

6.0

1.85

3.25

9.2

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

*Type A 0.8

+0.1

dia.

-0.05

*Type B 2 to 7 circuits: 0.75

0.05 dia.

8 to 15 circuits: 0.85

0.05 dia.

2. Hole dimensions differ according to the kind of PC board and piercing method.

The dimensions above should serve as a guideline. Contact JST for details.
