D16EET130GRN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D16EET130GRN

D16EET130GRN: DescriptionPushbutton Switch, 3PDT, Latched, 6A, 24VDC, Solder Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size715KB，7 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

D16EET130GRN Overview

Pushbutton Switch, 3PDT, Latched, 6A, 24VDC, Solder Terminal, Panel Mount

D16EET130GRN Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	RECTANGULAR TYPE
body width	18 mm
body height	25.2 mm
Body length or diameter	24 mm
Contact (AC) maximum rated R load	8A@125VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@24VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	24 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	D16
Installation features	PANEL MOUNT
Maximum operating force	8.83 N
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	LATCHED
switch function	3PDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	SILVER
Termination type	SOLDER

Preview

Download Datasheet

View All

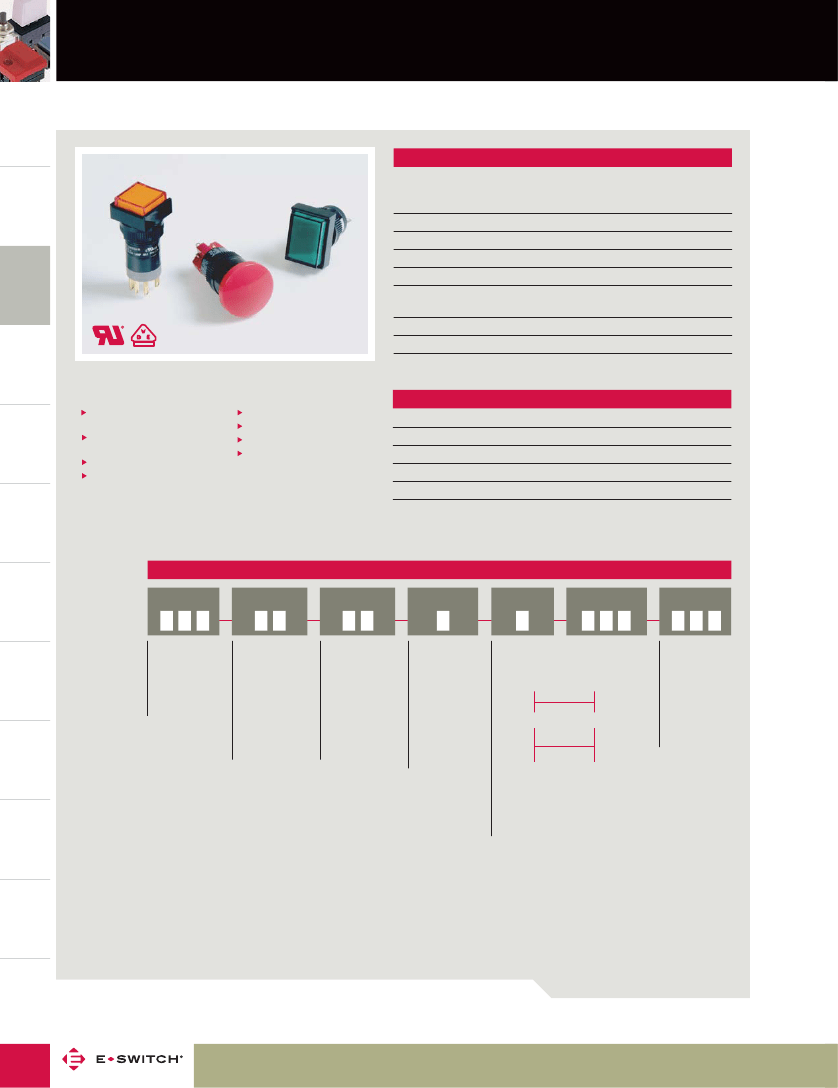

SERIES D16, P16, L16 SWITCHES

TACT

SWITCHES

PUSHBUTTON SWITCHES - ILLUMINATED

SPECIFICATIONS

NAVIGATION

SWITCHES

Contact Rating:

5A@250 VAC-UL, VDE

8A@125 VAC - UL, CSA

6A@24 VDC - UL, CSA

50,000 cycles

Life Expectancy (Mechanical): 100,000 cycles

Life Expectancy (Electrical):

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

100mΩ max. typical; initial @ 2-4 VDC

> 1,000MΩ

> 1,500 volts 1 minute

> 3,000 volts between poles

300g/pole

PUSHBUTTON

SWITCHES

TOGGLE

SWITCHES

Operating Temperature: -20°C to 55°C

FEATURES & BENEFITS

Modular interface/contact

block design

Robust product for industrial

applications

Attractive front panel design

Illuminated options available

ROCKER

SWITCHES

APPLICATIONS/MARKETS

Industrial controls

Instrumentation

Transportation

Telecommunications

MATERIALS

Switch Housing:

Contact Housing:

Lens:

Contacts:

Terminals:

Polyetherimide (PEI)

Diallyl Phthalate (DAP)

Polycarbonate (PC)

Silver plated copper alloy

SLIDE

SWITCHES

▲

SNAP-ACTION

SWITCHES

HOW TO ORDER

SERIES

MECHANICAL

CONFIGURATION

PUSHBUTTON

HEAD

CIRCUIT

LAMP TYPE

& VOLTAGE

LAMP COLOR

(WHERE APPLICABLE)

LENS

COLOR

D16 = Solder Lug

DIP

SWITCHES

P16 = Socket

L16 = Pilot

Indicator

EE = Latching

OA = Momentary

PL* =

Pilot Indicator

*For L16

(Pilot Indicator)

*R (Mushroom

Head) Available for

D16 & P16 Only.

0* =

1**=

2 =

3 =

4 =

Pilot Ind.

SPDT

DPDT

3PDT

4PDT

0 = None

Red

Grn

Red

Grn

Yel

RED = Red

GRN= Green

BLU = Blue*

WHT=White*

ORG= Orange*

YEL = Yellow*

*Not Available For

‘R’ Mushroom Head.

*For L16 only

(Pilot Indicator)

**P16

available SPDT only

ROTARY

SWITCHES

KEYLOCK

SWITCHES

▲

Example Ordering Number

D16_ EE_ R1_ 3_ A_ BLU

CAP

OPTIONS

DETECTOR

SWITCHES

Specifications subject to change without notice.

Phone: 800-867-2717

Fax: 763-531-8235
