FESB16GT-45

Description
Rectifier Diode, 1 Phase, 1 Element, 16A, 400V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3
CategoryDiscrete semiconductor    diode
File Size216KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

FESB16GT-45 Overview

Rectifier Diode, 1 Phase, 1 Element, 16A, 400V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3

FESB16GT-45 Parametric

Parameter NameAttribute value
MakerVishay
Parts packaging codeD2PAK
package instructionR-PSSO-G2
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW POWER LOSS
applicationEFFICIENCY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeTO-263AB
JESD-30 codeR-PSSO-G2
Maximum non-repetitive peak forward current250 A
Number of components1
Phase1
Number of terminals2
Maximum output current16 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum repetitive peak reverse voltage400 V
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal formGULL WING
Terminal locationSINGLE
FES16JT, FESF16JT, FESB16JT Series
Vishay Semiconductors
formerly General Semiconductor
Ultrafast Plastic Rectifiers
Reverse Voltage
50 to 600V
Forward Current
16A
Reverse Recovery Time
35/50ns

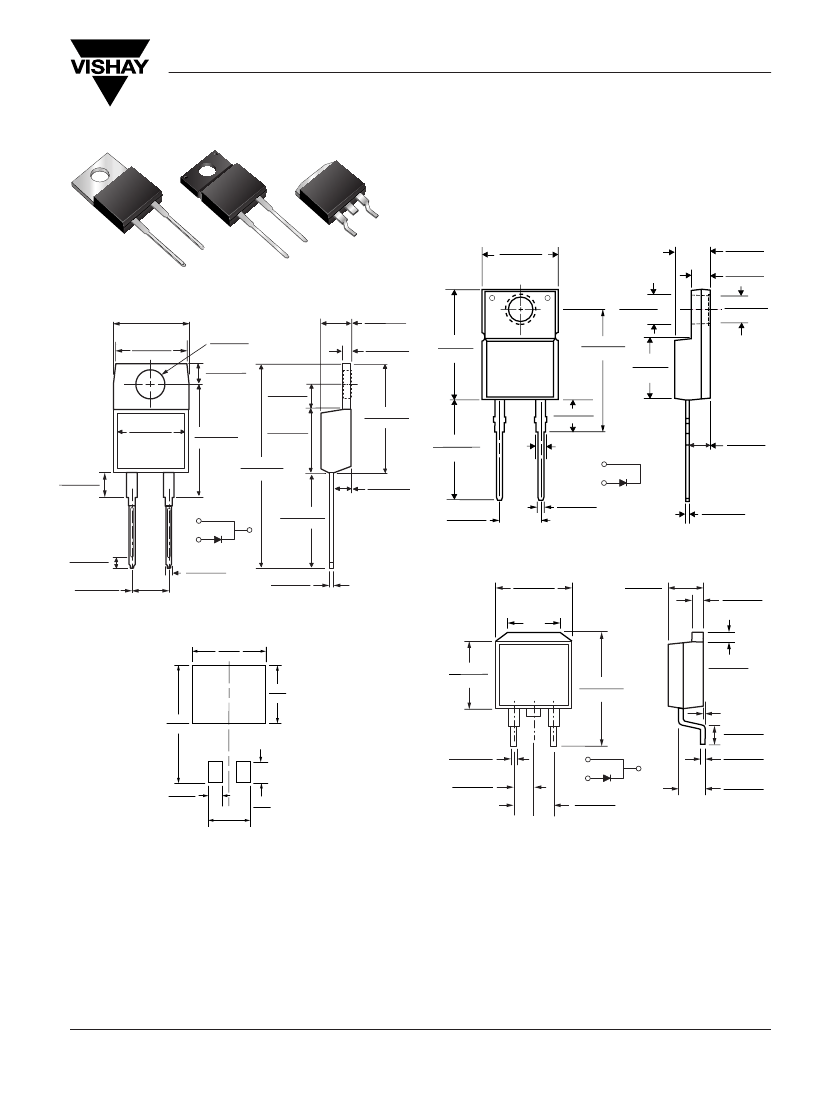

ITO-220AC (FESF16JT Series)
0.405 (10.27)
0.383 (9.72)
0.188 (4.77)
0.172 (4.36)
0.110 (2.80)
0.100 (2.54)
0.140 (3.56)
DIA.
0.130 (3.30)
0.131 (3.39)
DIA.
0.122 (3.08)
TO-220AC (FES16JT Series)
0.415 (10.54) MAX.
0.154 (3.91)
0.370 (9.40)
0.360 (9.14)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.410 (10.41)
0.390 (9.91)
PIN
1
0.160 (4.06)
0.140 (3.56)
2
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
CASE
1
0.185 (4.70)
0.175 (4.44)
DIA.
0.055 (1.39)
0.045 (1.14)
0.600 (15.5)
0.580 (14.5)
0.676 (17.2)
0.646 (16.4)
0.350 (8.89)
0.330 (8.38)
PIN
2
0.635 (16.13)
0.625 (15.87)
0.350 (8.89)
0.330 (8.38)
0.603 (15.32)
0.573 (14.55)
0.560 (14.22)
0.530 (13.46)
0.191 (4.85)
0.171 (4.35)
0.060 (1.52)
PIN 1
PIN 2
0.110 (2.80)
0.100 (2.54)
PIN 1
PIN 2
0.205 (5.20)
0.195 (4.95)
0.037 (0.94)
0.027 (0.69)
0.022 (0.55)
0.014 (0.36)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.037 (0.94)
0.027 (0.68)
0.022 (0.56)
0.014 (0.36)
TO-263AB (FESB16JT Series)
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN
K
0.055 (1.40)
0.047 (1.19)
1
K
2
0.624 (15.85)
0.591 (15.00)
0-0.01 (0-0.254)
0.110 (2.79)
0.090 (2.29)
0.027 (0.686)
0.037 (0.940)
0.105 (2.67)
PIN 1
PIN 2
K - HEATSINK
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout TO-263AB
0.42
(10.66)
0.360 (9.14)
0.320 (8.13)
0.33
(8.38)
0.63
(17.02)
Dimensions in inches
and (millimeters)
0.021 (0.53)
0.014 (0.36)
0.140 (3.56)
0.110 (2.79)
0.08
(2.032)
0.24
(6.096)
0.095 (2.41)
0.12
(3.05)
0.205 (5.20)
0.195 (4.95)
Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated chip junction
• Low power loss
• High surge current capability
• Low forward voltage, high current capability
• Superfast recovery times for high efficiency
Mechanical Data
Case:
JEDEC TO-220AC, ITO-220AC & TO-263AB
molded plastic body
Terminals:
Plated leads, solderable per
MIL-STD-750, Method 2026
High temperature soldering guaranteed:
250°C/10 sec. at terminals
Polarity:
As marked
Mounting Position:
Any
Mounting Torque:
10 in-lbs maximum
Weight:
0.08 oz., 2.24 g

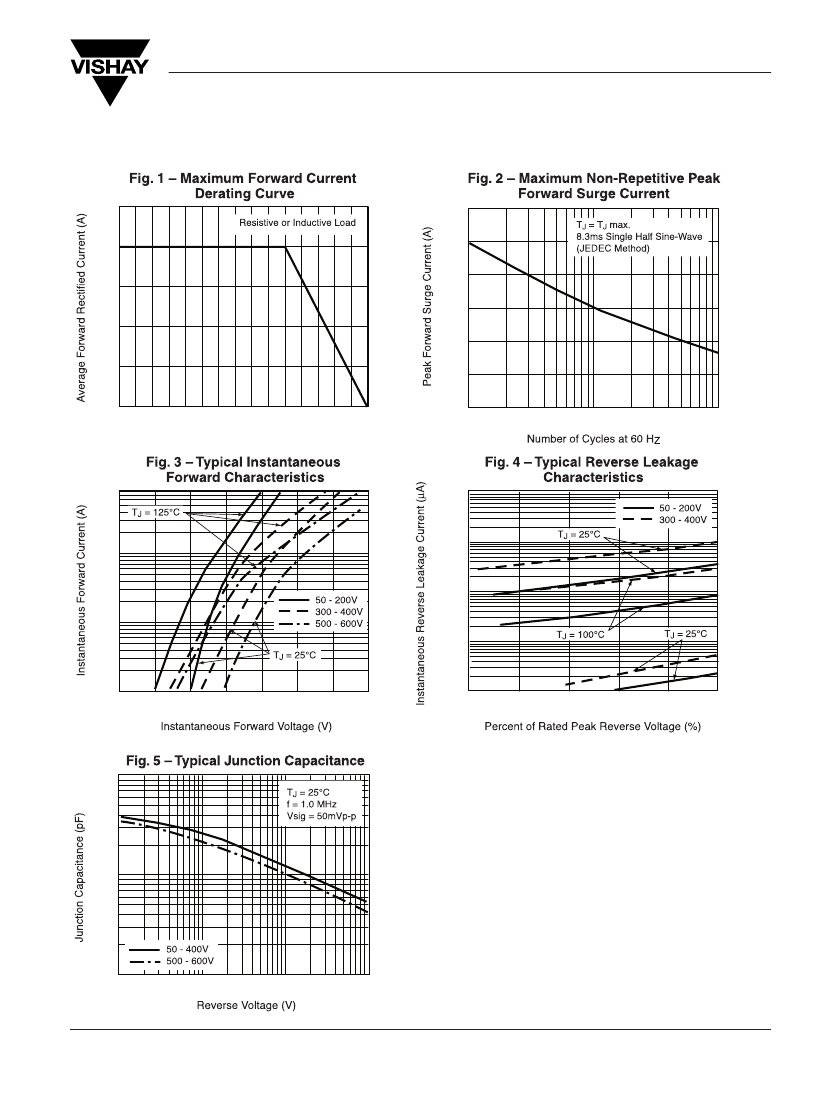

www.vishay.com
1
Document Number 88599
15-Jan-03
