2Mb: 128K x 18, 64K x 32/36
PIPELINED, DCD SYNCBURST SRAM
2Mb SYNCBURST
™
SRAM
FEATURES
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V isolated output buffer supply
(V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL
WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data
I/Os and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down
• 100-pin TQFP package
• 165-pin FBGA package
• Low capacitive bus loading
• x18, x32, and x36 options available
MT58L128L18D, MT58L64L32D,
MT58L64L36D
3.3V V
DD
, 3.3V I/O, Pipelined, Double-Cycle
Deselect

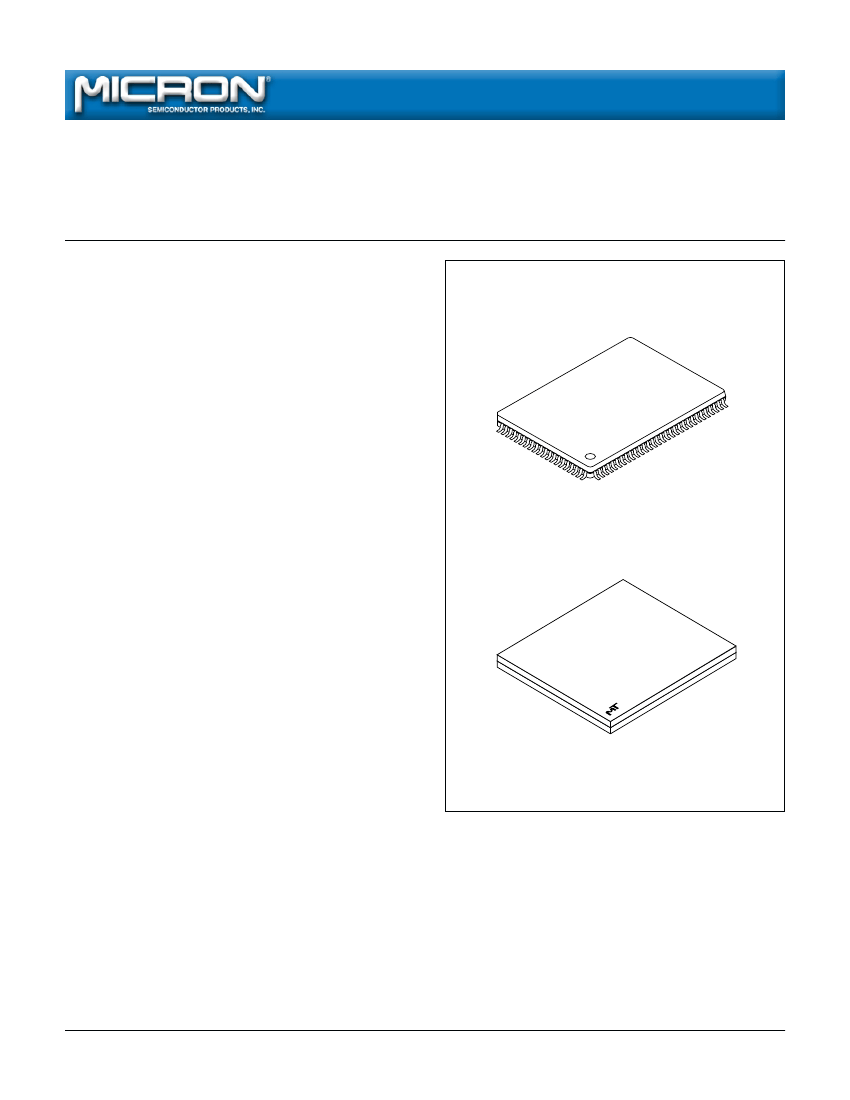

100-Pin TQFP*
165-Pin FBGA
(Preliminary Package Data)
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
128K x 18
64K x 32
64K x 36
• Packages
100-pin TQFP
165-pin FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Part Number Example:
MARKING
-6
-7.5
-10
MT58L128L18D
MT58L64L32D
MT58L64L36D
T
F
None
*JEDEC-standard MS-026 BHA (LQFP).
MT58L128L18DT-10*
*See page 24 for the FBGA Part Marking Guide
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs
high- speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
2Mb: 128K x 18, 64K x 32/36 Pipelined, DCD SyncBurst SRAM
MT58L128L18D_2.p65 – Rev. 8/00
Micron’s 2Mb SyncBurst SRAMs integrate a 128K x
18, 64K x 32, or 64K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single clock
input (CLK). The synchronous inputs include all ad-
dresses, all data inputs, active LOW chip enable (CE#),
two additional chip enables for easy depth expansion
(CE2, CE2#), burst control inputs (ADSC#, ADSP#,
ADV#), byte write enables (BWx#) and global write
(GW#).
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
2Mb: 128K x 18, 64K x 32/36
PIPELINED, DCD SYNCBURST SRAM

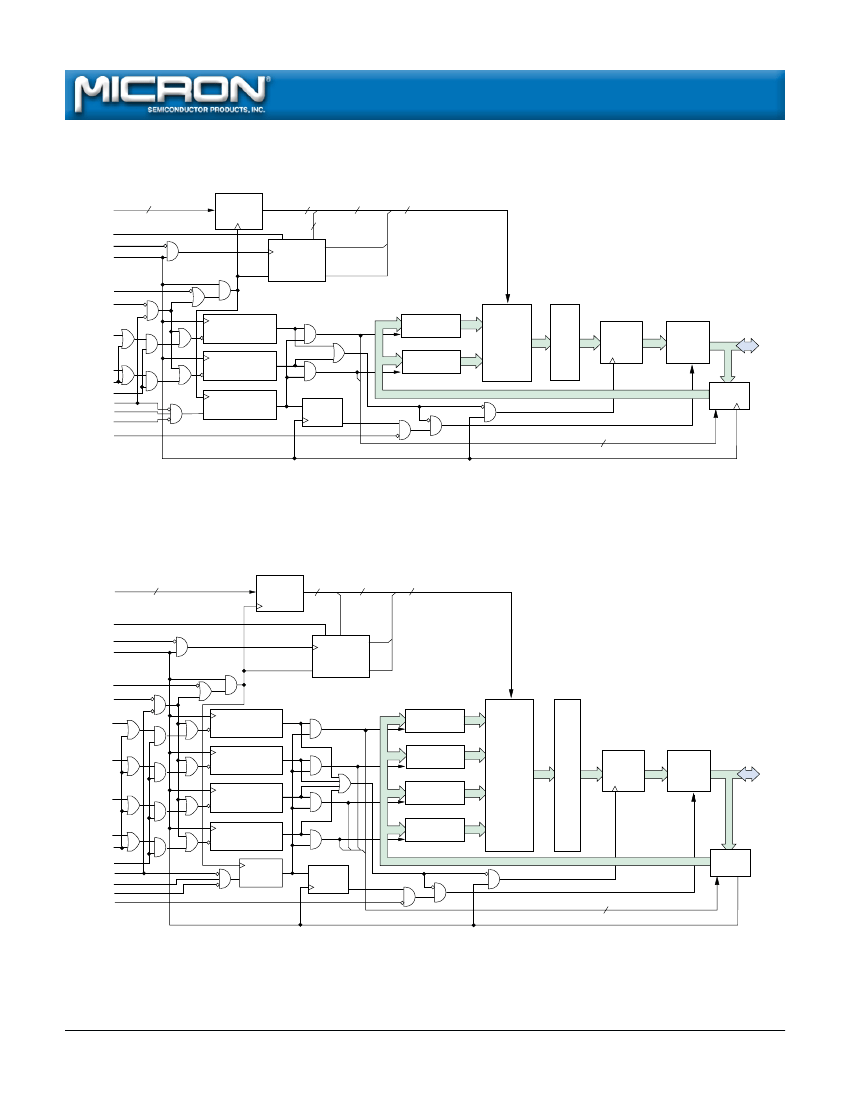

FUNCTIONAL BLOCK DIAGRAM
128K x 18
17
SA0, SA1, SA
MODE
ADDRESS
REGISTER
17
15
17
2
SA0-SA1
SA1'
ADV#
CLK
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BWb#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
128K x 9 x 2
MEMORY
ARRAY
9
18
SENSE
18
AMPS
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
18
BWa#
BWE#
GW#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
E
DQs
DQPa
DQPb
CE#
CE2
CE2#
OE#
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
64K x 32/36
16
SA0, SA1, SA
ADDRESS
REGISTER
16
14
SA0-SA1
16
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
64K x 8 x 4
(x32)
64K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
36
DQs
DQPa
DQPb
DQPb
DQPb
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional Block Diagrams illustrate simplified device operation. See truth table, pin descriptions and timing diagrams for
detailed information.
2Mb: 128K x 18, 64K x 32/36 Pipelined, DCD SyncBurst SRAM
MT58L128L18D_2.p65 – Rev. 8/00
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
2Mb: 128K x 18, 64K x 32/36
PIPELINED, DCD SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
Asynchronous inputs include the output enable
(OE#), clock (CLK) and snooze enable (ZZ). There is also
a burst mode pin (MODE) that selects between inter-
leaved and linear burst modes. The data-out (Q), en-
abled by OE#, is also asynchronous. WRITE cycles can
be from one to two bytes wide (x18) or from one to four
bytes wide (x32/x36), as controlled by the write control
inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) input pins. Subsequent burst addresses can be
internally generated as controlled by the burst advance
pin (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE
cycles. Individual byte enables allow individual bytes
to be written. During WRITE cycles on the x18 device,
BWa# controls DQa pins and DQPa; BWb# controls
DQb pins and DQPb. During WRITE cycles on the x32
and x36 devices, BWa# controls DQa pins and DQPa;
BWb# controls DQb pins and DQPb; BWc# controls
DQc pins and DQPc; BWd# controls DQd pins and
DQPd. GW# LOW causes all bytes to be written. Parity
pins are only available on the x18 and x36 versions.
The device incorporates an additional pipelined
enable register which delays turning off the output
buffer an additional cycle when a deselect is executed.
This feature allows depth expansion without penaliz-
ing system performance.
Micron’s 2Mb SyncBurst SRAMs operate from a
+3.3V V
DD
power supply, and all inputs and outputs are
TTL-compatible. The device is ideally suited for
Pentium
®
and PowerPC pipelined systems and systems
that benefit from a very wide, high-speed data bus. The
device is also ideal in generic 16-, 18-, 32-, 36-, 64-, and
72-bit-wide applications.
Please refer to Micron’s Web site (www.micron.com/
mti/msp/html/sramprod.html)
for the latest data sheet.
