CAT28F020P-70: DescriptionFlash, 256KX8, 70ns, PDIP32, PLASTIC, DIP-32; Categorystorage storage; File Size316KB，14 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT28F020P-70 Overview

Flash, 256KX8, 70ns, PDIP32, PLASTIC, DIP-32

CAT28F020P-70 Parametric

Parameter Name	Attribute value
Maker	Catalyst
Parts packaging code	DIP
package instruction	DIP, DIP32,.6
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	70 ns
Other features	100000 PROGRAM/ERASE CYCLES; 10 YEARS DATA RETENTION
command user interface	YES
Data polling	NO
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDIP-T32
length	42.037 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	32
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
switch bit	NO
type	NOR TYPE
width	15.24 mm

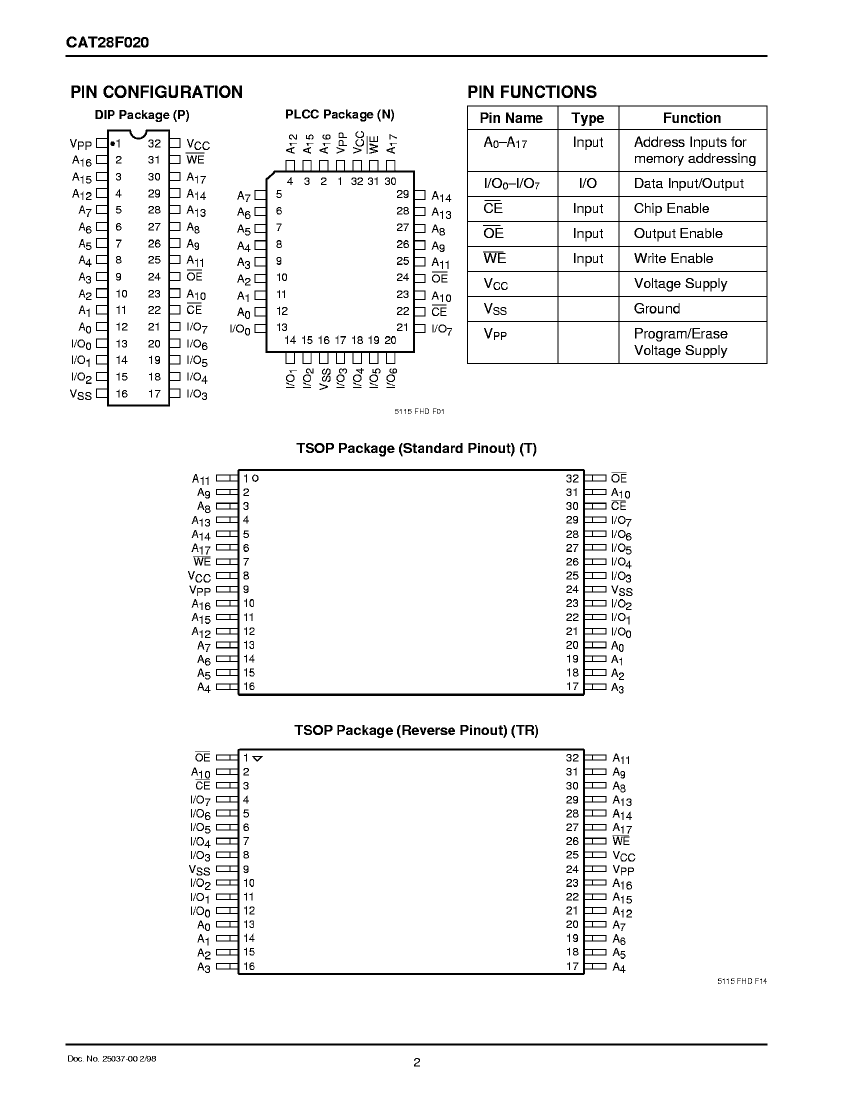

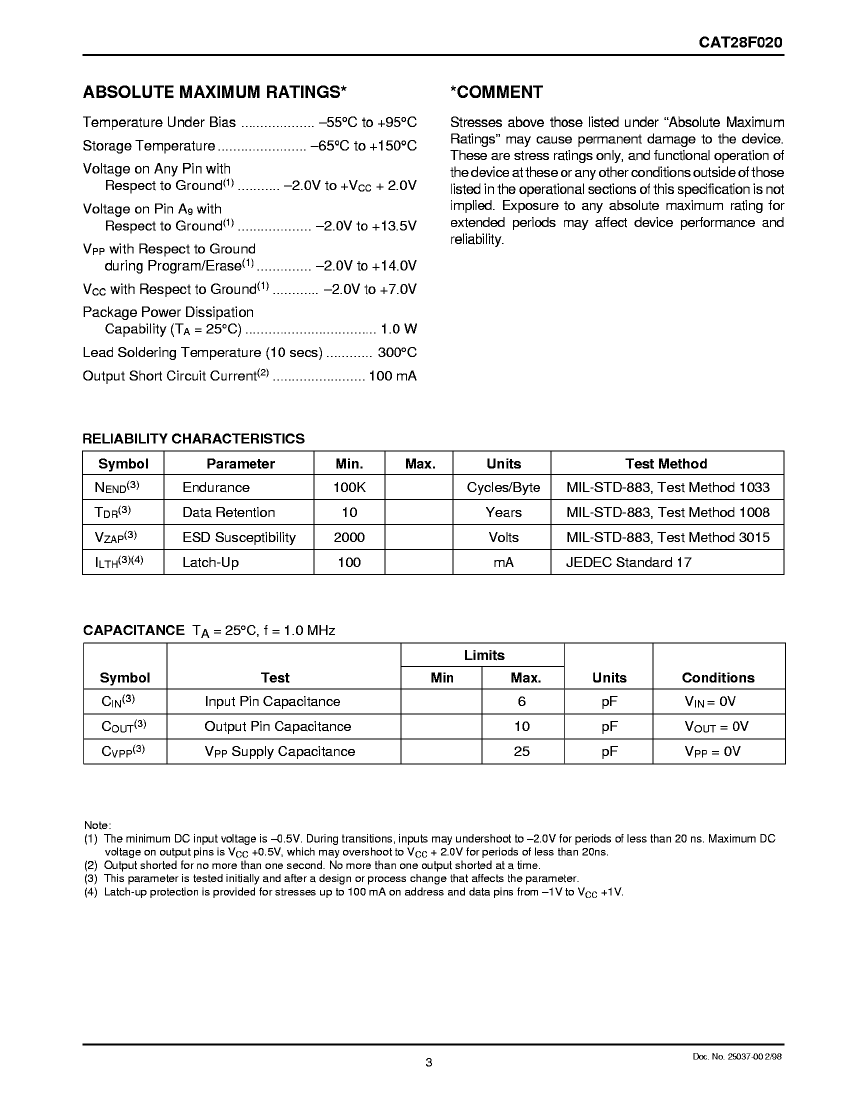

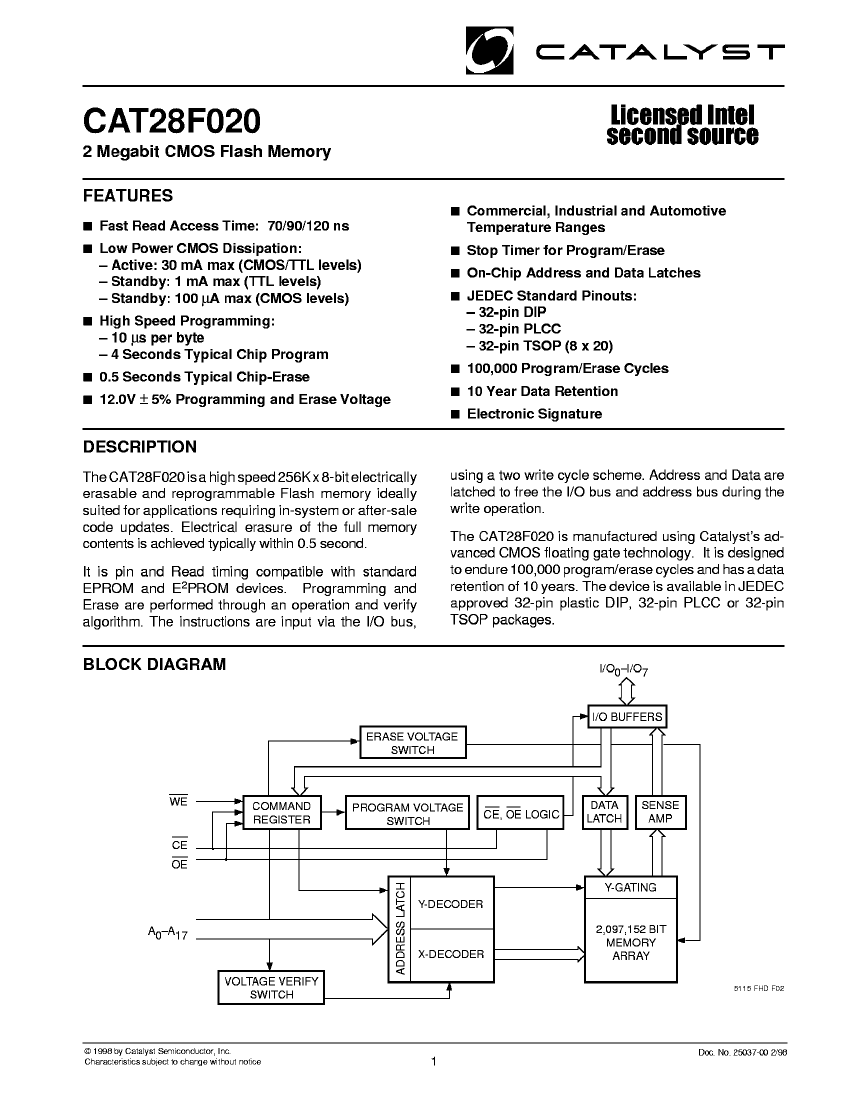

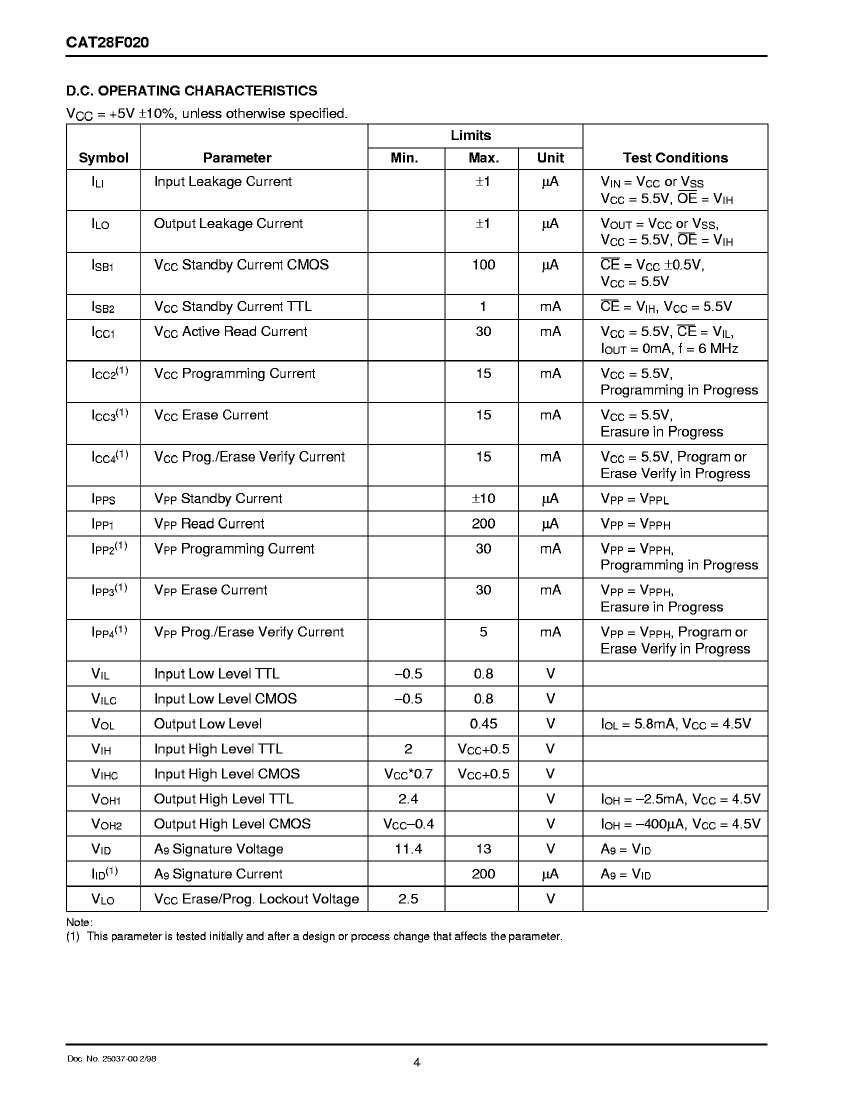

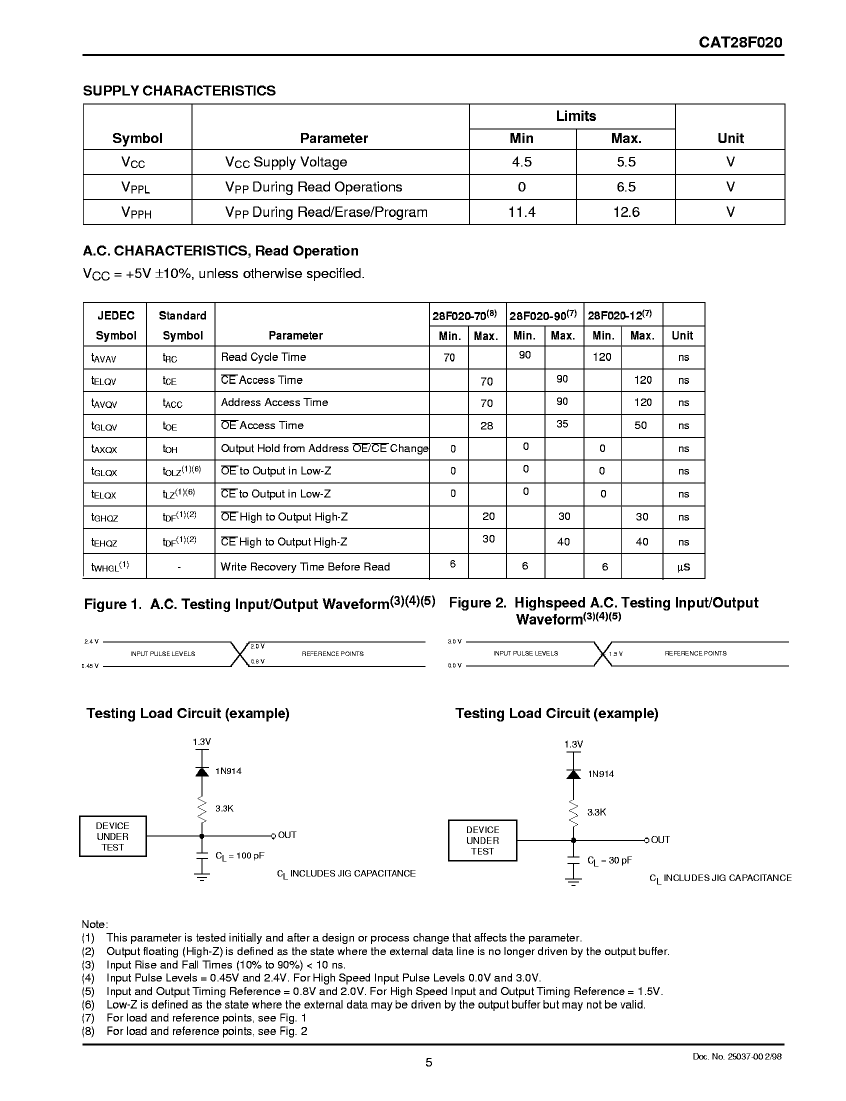

Preview

Download Datasheet

View All

CAT28F020P-70 Related Products

	CAT28F020P-70	CAT28F020PI-70	CAT28F020PA-70
Description	Flash, 256KX8, 70ns, PDIP32, PLASTIC, DIP-32	Flash, 256KX8, 70ns, PDIP32, PLASTIC, DIP-32	Flash, 256KX8, 70ns, PDIP32, PLASTIC, DIP-32
Maker	Catalyst	Catalyst	Catalyst
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP32,.6	DIP, DIP32,.6	DIP, DIP32,.6
Contacts	32	32	32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	70 ns	70 ns	70 ns
Other features	100000 PROGRAM/ERASE CYCLES; 10 YEARS DATA RETENTION	100000 PROGRAM/ERASE CYCLES; 10 YEARS DATA RETENTION	100000 PROGRAM/ERASE CYCLES; 10 YEARS DATA RETENTION
command user interface	YES	YES	YES
Data polling	NO	NO	NO
Data retention time - minimum	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32
length	42.037 mm	42.037 mm	42.037 mm
memory density	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	32	32	32
word count	262144 words	262144 words	262144 words
character code	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C
organize	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Programming voltage	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum standby current	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.03 mA	0.03 mA	0.03 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
switch bit	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE
width	15.24 mm	15.24 mm	15.24 mm
