PLC42VA12IN datasheet, PDF - EEWORLD Datasheet

PLC42VA12IN: DescriptionOT PLD, 55ns, PDIP24; CategoryProgrammable logic devices Programmable logic; File Size1MB，20 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

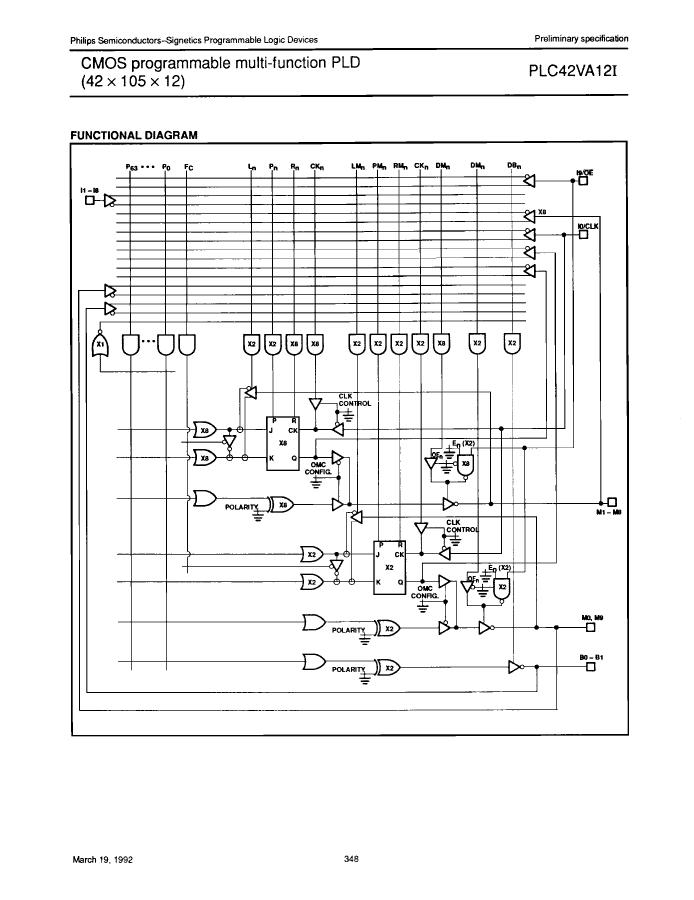

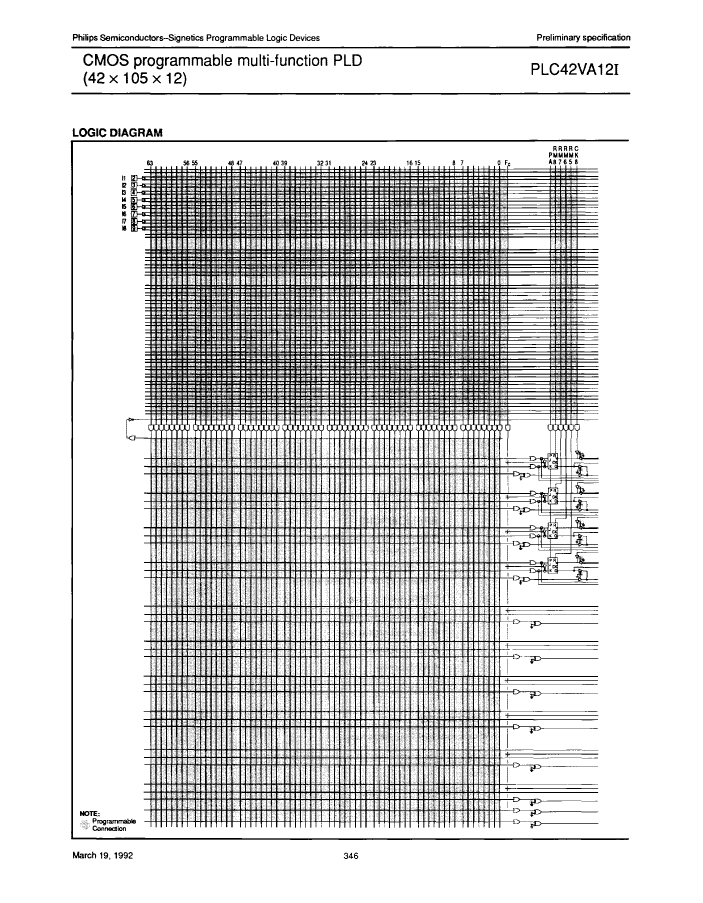

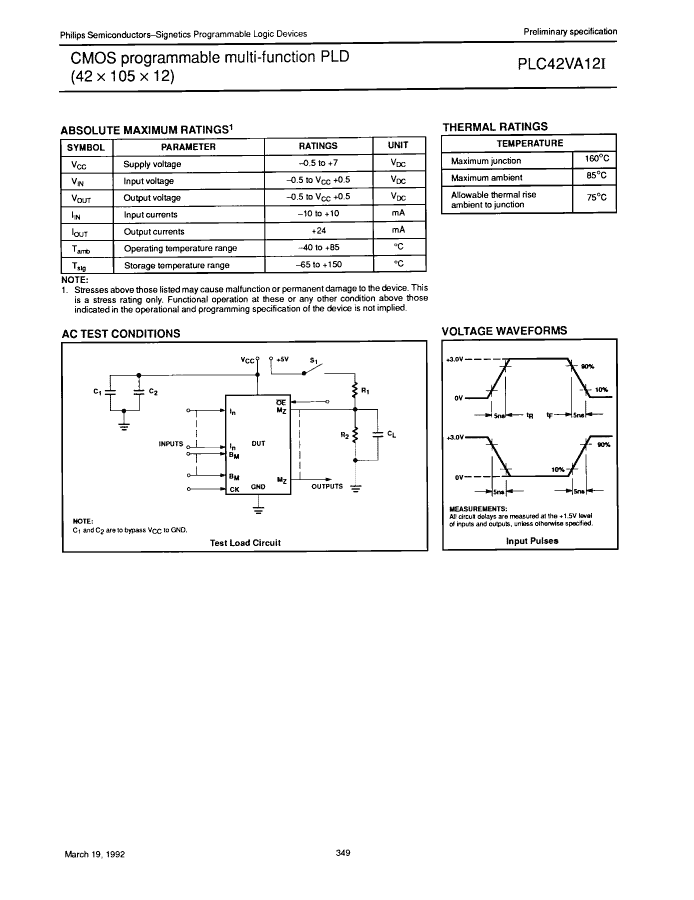

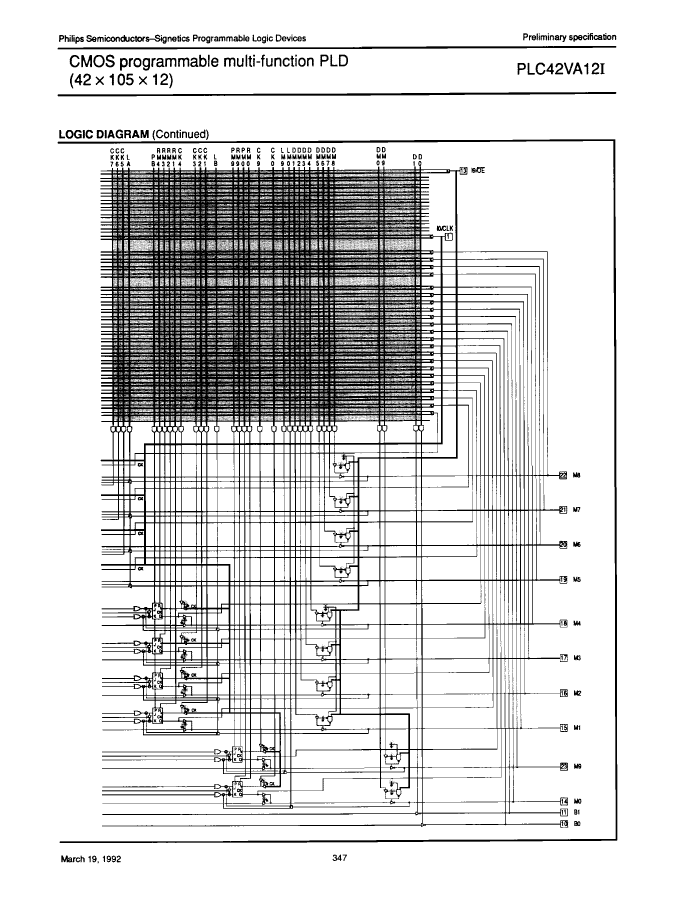

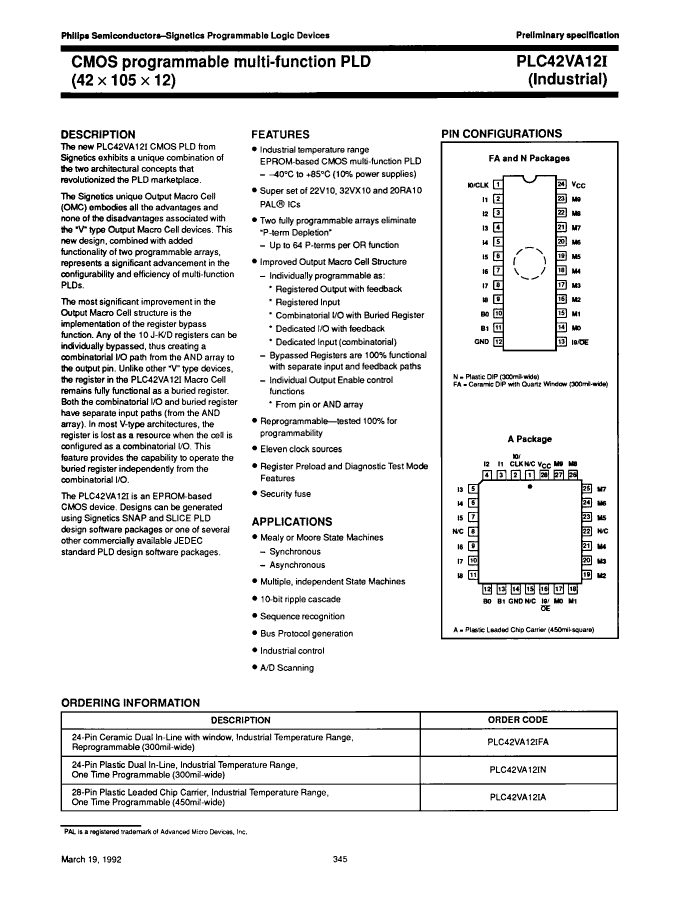

PLC42VA12IN Overview

OT PLD, 55ns, PDIP24

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
Other features	PROGRAMMABLE MULTI-FUNCTION PLD; REGISTER PRELOAD; SHARED INPUT/CLOCK
maximum clock frequency	14.9 MHz
JESD-30 code	R-PDIP-T24
Dedicated input times	8
Number of I/O lines	12
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	55 ns
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	PLC42VA12IN	PLC42VA12IA	PLC42VA12IFA
Description	OT PLD, 55ns, PDIP24	OT PLD, 55ns, PQCC28	UV PLD, 55ns, CDIP24
Maker	NXP	NXP	NXP
package instruction	DIP,	QCCJ,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	PROGRAMMABLE MULTI-FUNCTION PLD; REGISTER PRELOAD; SHARED INPUT/CLOCK	PROGRAMMABLE MULTI-FUNCTION PLD; REGISTER PRELOAD; SHARED INPUT/CLOCK	PROGRAMMABLE MULTI-FUNCTION PLD; REGISTER PRELOAD; SHARED INPUT/CLOCK
maximum clock frequency	14.9 MHz	14.9 MHz	14.9 MHz
JESD-30 code	R-PDIP-T24	S-PQCC-J28	R-GDIP-T24
Dedicated input times	8	8	8
Number of I/O lines	12	12	12
Number of terminals	24	28	24
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	8 DEDICATED INPUTS, 12 I/O	8 DEDICATED INPUTS, 12 I/O	8 DEDICATED INPUTS, 12 I/O
Output function	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCJ	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
Programmable logic type	OT PLD	OT PLD	UV PLD
propagation delay	55 ns	55 ns	55 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL
