319-10-164-30-041000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 319-10-164-30-041000

319-10-164-30-041000: Description64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size548KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

319-10-164-30-041000 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

319-10-164-30-041000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	319
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

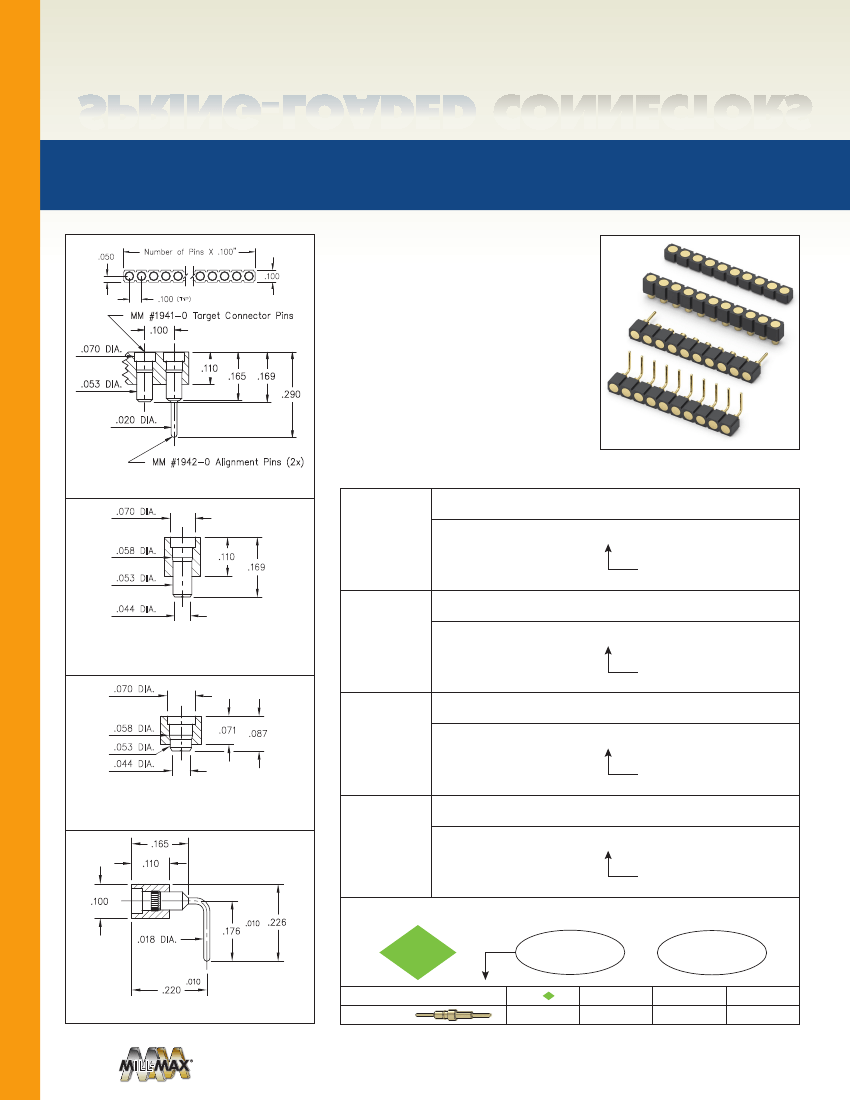

SPRING-LOADED

CONNECTORS

SERIES 319, 399 • .100” GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 319 and 399 Spring Target Connectors,

supplied in single row strips. Available in SMT

and right angle through-hole termination

configurations

• Target Connectors provide an excellent gold-

plated conductive mating surface for spring

loaded connectors. These series are offered

with a flat face for making contact with our

standard .042” dia. spring pin plungers

• Target connectors use MM #1940, #1941/1942,

#1953 and #1954 pins. See pages 218 & 223.3

for details

• Insulators are high temperature thermoplastic

.050

Number of Pins X .100"

.100

FIG. 1

.070 DIA.

ORDERING INFORMATION

Series 319...041

Surface Mount w/ Alignments Pins

319-10-1_ _-30-041000

Specify number of pins

03-64

.058 DIA.

.053 DIA.

.044 DIA.

.110

FIG. 1

.169

Series 319...008

Surface Mount

319-10-1_ _-30-008000

Coplanarity .005”. For Pin counts >10 positions, consult

Technical Support.

FIG. 2

Series 319...054

Specify number of pins

01-64

.070 DIA.

Low Profile Surface Mount

319-10-1_ _-30-054000

.058 DIA.

.053 DIA.

.071

.087

FIG. 3

Series 399...008

PAGE 20.1 | SPRING-LOADED CONNECTORS

.044 DIA.

Coplanarity .005”. For Pin counts >10 positions, consult

Technical Support.

Specify number of pins

01-64

FIG. 3

Right Angle Solder Tails

399-10-1_ _-10-008000

.165

.110

FIG. 4

Specify number of pins

01-64

.100

.176

.010

.226

2011/65/EU

.018 DIA.

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.220

.010

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
