499-10-264-00-008000: Description8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size571KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet View All

499-10-264-00-008000 Overview

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

SPRING-LOADED

CONNECTORS

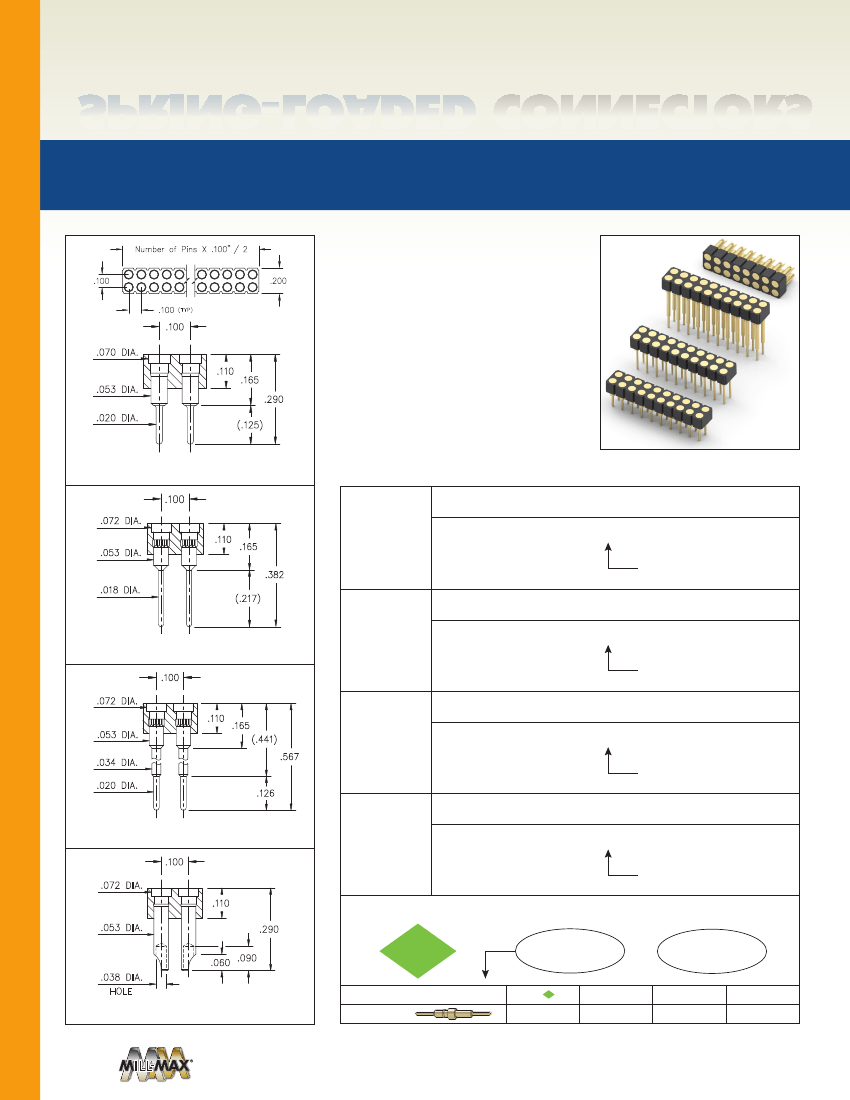

SERIES 419, 430 • .100” GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • DOUBLE ROW STRIPS

• Series 419 and 430 Spring Target Connectors,

supplied in double row strips. Available in

through-hole and wire termination

configurations

• Target Connectors provide an excellent gold-

plated conductive mating surface for spring

loaded connectors. These series are offered

with a flat face for making contact with our

standard .042” dia. spring pin plungers

.290

(.125)

Number of Pins X .100" / 2

.100

.200

.100

.070 DIA.

.110

.053 DIA.

.020 DIA.

.165

• Target connectors use MM #1938, #1940,

#1942 and #3024 pins. See page 218 for details

• Insulators are high temperature thermoplastic

FIG. 1

.100

.072 DIA.

.110

.053 DIA.

.165

.382

.018 DIA.

(.217)

ORDERING INFORMATION

Series 419...001

Standard Solder Tails

419-10-2_ _-00-001000

Specify number of pins

04-64

FIG. 1

Series 419...002

Long Solder Tails

419-10-2_ _-00-002000

FIG. 2

.100

.072 DIA.

.110

.053 DIA.

.034 DIA.

.165

(.441)

.567

FIG. 2

Series 419...005

Specify number of pins

04-64

Elevated with Solder Tails

419-10-2_ _-00-005000

FIG. 3

Series 430...240

PAGE 21 | SPRING-LOADED CONNECTORS

.020 DIA.

Specify number of pins

.126

04-64

Solder Cups

430-10-2_ _-00-240000

FIG. 3

.100

.072 DIA.

.110

.053 DIA.

.090

.290

.060

.038 DIA.

HOLE

FIG. 4

Specify number of pins

04-64

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
