PERFORMANCE PLASTIC PACKAGE ULTRA MINIATURE
PURE SILICON
TM
CLOCK OSCILLATOR
ASFLMP
• Ultra Miniature Pure Silicon
TM
Clock Oscillator
• High Performance MEMS Technology by Discera
• Low Power Consumption for high speed communication
• Exceptional Stability Over Temp. at -40 to +85°C, ±15ppm
• Extended Automotive Grade Temp. stability at -55 to +125°C, ±25ppm
• Available in 50kG Shock Resistance Configuration upon request
• MIL-STD-883 shock and vibration compliant
• Durable QFN Plastic Compact Packaging
• Standby or Disable Tri-state function
• Low jitter (Period jitter RMS and Phase jitter RMS)
• High power supply noise reduction, -50dBc
ASFLMP
Life S ize
5.0 x 3.2 x 0.85 mm
FEATURES:
Moisture Sensitivity Level- MSL 1
Pb
RoHS/RoHS II compliant
| | | | | | | | | | | | | |
|
• Storage Area Networks
High Performance
(SATA, SAS, Fiber Channel)
• Passive Optical Networks (EPON,
3G MEMS Technology!
10G-EPON, GPON, 10G-PON)
• Ethernet (1G, 10GBASE-T,/KR/LR/SR, FCoE
• HD/SD/SDI Video & Surveillance
• PCI Express
• Display port
APPLICATIONS:
Low Jitter
Common Key Electrical Specifications – CMOS, LVPECL, LVDS, and HCSL
Parameters
CMOS
CMOS
Frequency Range
LVPECL
LVDS
HCSL
Operating Temperature
S
torage
T
e
m
perature
Overall Frequency Stability
Supply
Voltage (Vdd)
S
tartup
Tim
e
Enable Time
D
i
sa
b
le
Tim
e
Disable Current
Tri-state Function (Standby/Disable)
A
g
i
ng
Minimum
2.3000*
2.3000*
2.3000*
2.3000*
2.3000*
-20
-55
-50
+2.25
Typical
Maximum
170.0000
100.0000
460.0000
460.0000
460.0000
°C
°C
ppm
V
m
s
ns
ms
ns
mA
V
pp
m
MHz
Units
Commercial, Industrial
temp. range
Automotive
temp. range
-55 ~
+125
°C
Commercial, Industrial
temp. range
Commercial, Industrial
temp. range
Commercial, Industrial
temp. range
STANDARD SPECIFICATIONS:
Notes
* For 2.3000MHz < F0 < 9.9999MHz, 6-8 weeks lead-time applies
Key Electrical Specifications – CMOS
Parameters
Supply
Current
(I
dd
)
Output
Logic
Level
Rise Time
Fall
Time
Duty Cycle
Integrated Phase Jitter
(J
PH
)
Period Jitter RMS
(J
PER
)
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
+70
+
150
+50
+3.6
5
20
5
5
20
22
0.095
"1"
(VIH≥0.75*Vdd) or Open: Oscillation
"0" (VIL<0.25*Vdd)
: Hi
Z
-5.0
+
5.0
See
options
See options
STD (Tri-state)
PD option (Power Down)
STD (Tri-state)
40kΩ pull-up resister
embedded
Fi
rst year
PD option (Power Down)
Minimum
V
OH
V
OL
Tr
Tf
0.9*V
dd
Typical
31
1.1
1.3
0.30
0.38
1.70
3.0
Maximum
35
0.1*V
dd
2.0
2.0
55
2
2
2
4
5
Units
mA
V
V
ns
ns
%
ps
ps
Notes
CL=15pF,
125MHz
I=±6mA
CL=15pF
20%
to 80%
200kHz
~ 20MHz@125MHz
100kHz
~ 20MHz@125MHz
12kHz ~ 20MHz@125MHz
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 02.28.14
30332Esperanza,
Rancho
Santa Margarita,California92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
PERFORMANCE PLASTIC PACKAGE ULTRA MINIATURE
PURE SILICON
TM
CLOCK OSCILLATOR
ASFLMP
Pb
Minimum
V
OH
V
OL
V
dd
-1.08
Typical
56.5
800
250
250
0.25
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
0.38
1.70
2.5
RoHS/RoHS II compliant
ASFLMP
Life Size
5.0 x 3.2 x 0.85 mm
Key Electrical Specifications – LVPECL
Parameters
Supply Current (I
dd
)
Output Logic Level
Maximum
58
V
dd
-1.55
Units
mA
V
V
mV
ps
%
ps
ps
| | | | | | |
|
| | | | | | |
Notes
RL=50Ω
RL=50Ω
Single ended
RL=50Ω , CL=0pF
20% to 80%
Differential
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
48
52
2
2
2
Key Electrical Specifications – LVDS
Parameters
Supply Current (I
dd
)
Output Offset Voltage (V
OS
)
Delta Offset Voltage (∆V
OS
)
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
Minimum
1.125
Typical
29
350
200
200
0.28
0.40
1.70
2.5
Maximum
32
1.4
50
Units
mA
V
mV
mV
ps
%
ps
ps
Notes
RL=100Ω
RL=100Ω differential
Single ended
RL=50Ω , CL=2pF
20% to 80%
Differential
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
48
52
2
2
2
Key Electrical Specifications – HCSL
Parameters
Supply Current (I
dd
)
Output Logic Level
Minimum
V
OH
V
OL
0.725
200
200
48
Typical
40
750
Maximum
42
0.1
400
400
52
2
2
2
ps
ps
Units
mA
V
V
mV
ps
%
Notes
RL=50Ω
RL=50Ω
Single ended
RL=50Ω , CL=2pF
20% to 80%
Differential
200kHz ~ 20MHz
@156.25MHz
100kHz ~ 20MHz
@156.25MHz
12kHz ~ 20MHz
@156.25MHz
Peak to Peak Output Swing (V
pp
)
Rise Time
Tr
Fall Time
Tf
Duty Cycle
Integrated Phase Jitter (J
PH
)
Period Jitter RMS (J
PER
)
0.25
0.37
1.70
2.5
ABRACON IS
ISO9001:2008
CE
RC
I
F
I
E
D
IE D
T
E R TIF
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 02.28.14
30332Esperanza, Rancho Santa Margarita,California92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
PERFORMANCE PLASTIC PACKAGE ULTRA MINIATURE
PURE SILICON
TM
CLOCK OSCILLATOR
ASFLMP
Pb
Absolute Maximum Ratings
Item
Supply Voltage
Input Voltage
Junction Temp.
Storage Temp.
Soldering Temp.
ESD
HBM
MM
CDM
Minimum
-0.3
-0.3
-55
Maximum
+4.0
V
dd
+0.3
+150
+150
+260
4,000
400
1,500
Unit
V
V
°C
°C
°C
V
Condition
RoHS/RoHS II compliant
ASFLMP
Life Size
5.0 x 3.2 x 0.85 mm
|
| | | | | | | | | | | | | |
40sec max
OPTIONS AND PART IDENTIFICATION: (Left Blank if Standard)
Programmed Orders (Quantity > 1,000pcs)
ASFLMP
-
MHz -
-
-
Output Type
C: CMOS
LP: LVPECL
LV: LVDS
HC: HCSL
Frequency in MHz
e.g. 156.2500 MHz
(Maximum 4 digits
after decimal)
Operating Temp.
Blank: -20°C ~ +70°C
L: -40°C ~ +85°C
X: -40°C ~ +105°C
Z**: -55°C ~ +125°C
Overall Freq.
Stability
Blank: ±50ppm
Y: ±10ppm*
R: ±25 ppm
Tri-state (Pin 1)
Blank: Tri-state
PD: Power Down
* Temp option L, X or -20°C ~ +70°C, only
** CMOS output only
*** For Quick turn-around programmable orders < 1000pcs: Due to the
immediate availability of stock and the qty of the order, the parts may
be delivered as BULK: Cut Tape, Loose parts in Antistatic Bag or in
Tube(s). The MOQ per the series will still apply for Tube packaging.
Packaging
Blank***: Tube
(72pcs / Tube)
T: Tape & Reel
(1kpcs / reel)
T3: Tape & Reel
(3kpcs / reel)
Un-Programmed Orders
Blank un-programmed oscillators and our low cost portable programmer are available for quick turn engineering requirements.
Please call ABRACON or visit MEMSpeed Pro II site
http://www.abracon.com/memspeedpro/MEMSpeedProFlyerII.pdf
for more information.
ASFLMP
- BLANK -
-
-
Output Type
C: CMOS
LP: LVPECL
LV: LVDS
HC: HCSL
Operating Temp.
Blank: -20°C ~ +70°C
L: -40°C ~ +85°C
X: -40°C ~ +105°C
Z**: -55°C ~ +125°C
Overall Freq. Stability
Blank: ±50ppm
Y: ±10ppm*
R: ±25 ppm
Tri-state (Pin 1)
Blank: Tri-state
PD: Power Down
Packaging
Blank: Tube (72pcs / Tube)
T: Tape & Reel (1kpcs / reel)
T3: Tape & Reel (3kpcs / reel)
* Temp option L, X or -20°C ~ +70°C, only
** CMOS output only
Visit
www.abracon.com
for Terms & Conditions of Sale
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
Revised: 02.28.14
30332Esperanza, Rancho Santa Margarita,California92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
PERFORMANCE PLASTIC PACKAGE ULTRA MINIATURE
PURE SILICON
TM
CLOCK OSCILLATOR
ASFLMP
Pb
RoHS/RoHS II compliant
ASFLMP
Life Size
5.0 x 3.2 x 0.85 mm
| | | | | | |
|
| | | | | | |
NOMINAL PERFORMANCE PARAMETERS
(Unless specified otherwise: T=25° C, VDD=3.3 V)

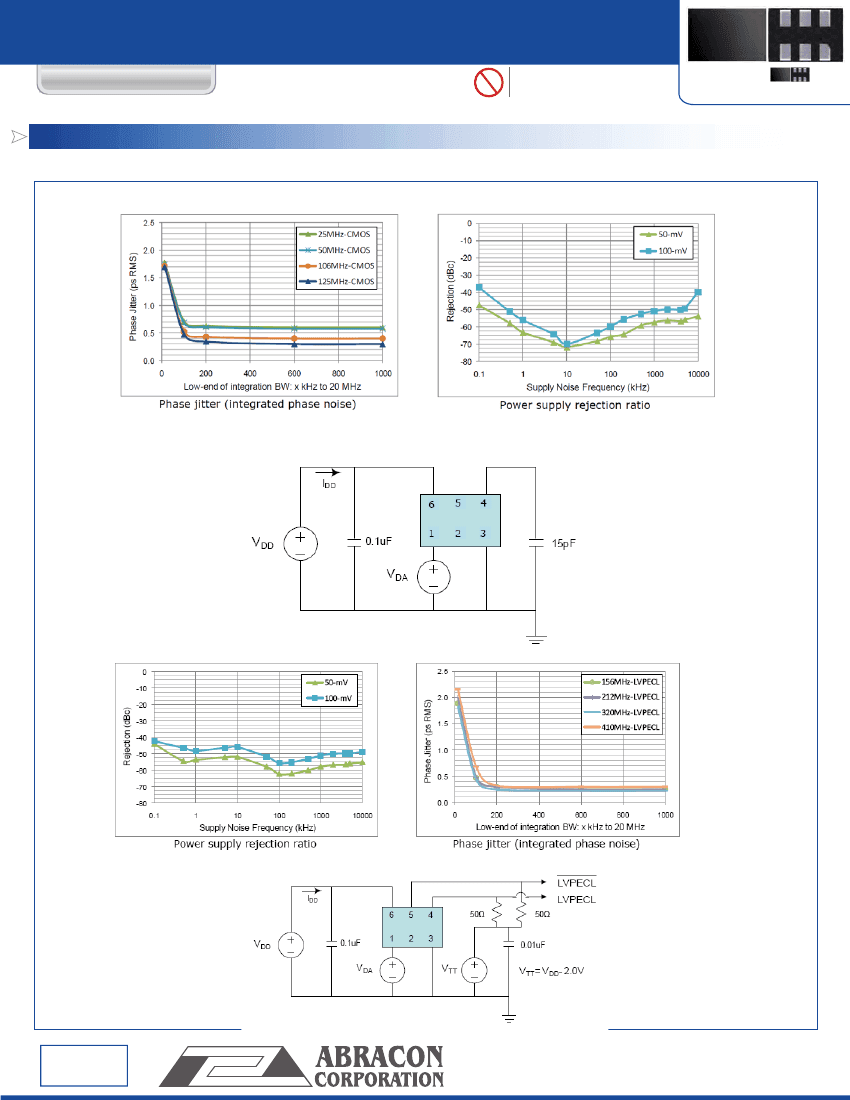

CMOS OUTPUT
Test Circuit
LVPECL output
Test Circuit
ABRACON IS
ISO9001:2008
CE
RC
I
F
I
E
D
IE D
T
E R TIF
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 02.28.14
30332Esperanza, Rancho Santa Margarita,California92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
PERFORMANCE PLASTIC PACKAGE ULTRA MINIATURE
PURE SILICON
TM
CLOCK OSCILLATOR
ASFLMP
Pb
RoHS/RoHS II compliant
ASFLMP
Life Size
5.0 x 3.2 x 0.85 mm
| | | | | | | | | | | | | |

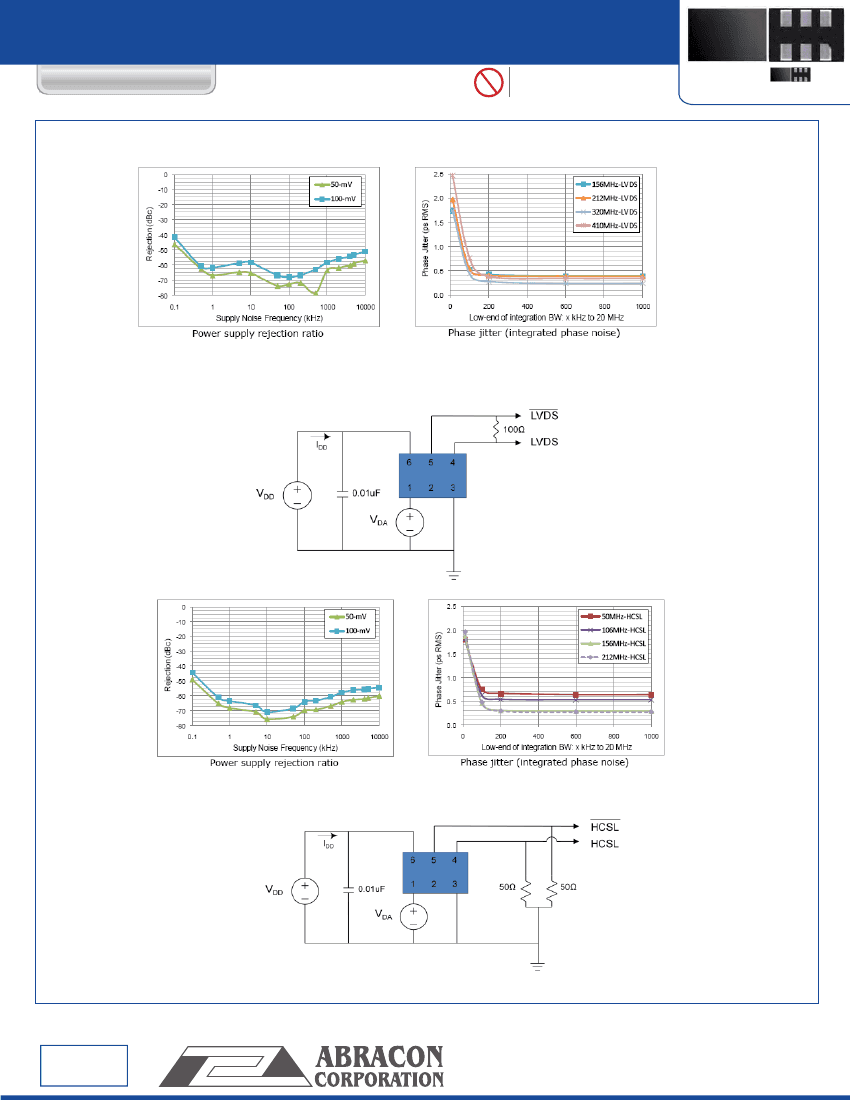

LVDS output
Test Circuit
HCSL output
Test Circuit
ABRACON IS
ISO9001:2008
CE
RC
I
F
I
E
D
IE D
T
E R TIF
Visit
www.abracon.com
for Terms & Conditions of Sale
Revised: 02.28.14
30332Esperanza, Rancho Santa Margarita,California92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
