CAT24C64HU4E-GT3 datasheet, PDF

Datasheet> All Categories > storage> storage> CAT24C64HU4E-GT3

CAT24C64HU4E-GT3: Description8K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8; Categorystorage storage; File Size121KB，13 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric View All

CAT24C64HU4E-GT3 Overview

8K X 8 I2C/2-WIRE SERIAL EEPROM, PDIP8

CAT24C64HU4E-GT3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	SON
package instruction	HVSON, SOLCC8,.12,20
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Other features	100 YEAR DATA RETENTION
Maximum clock frequency (fCLK)	1 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DDDR
JESD-30 code	R-PDSO-N8
JESD-609 code	e4
length	3 mm
memory density	65536 bi
Memory IC Type	EEPROM
memory width	8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	HVSON
Encapsulate equivalent code	SOLCC8,.12,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	0.55 mm
Serial bus type	I2C
Maximum standby current	0.000005 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE
Base Number Matches	1

Preview

Download Datasheet

View All

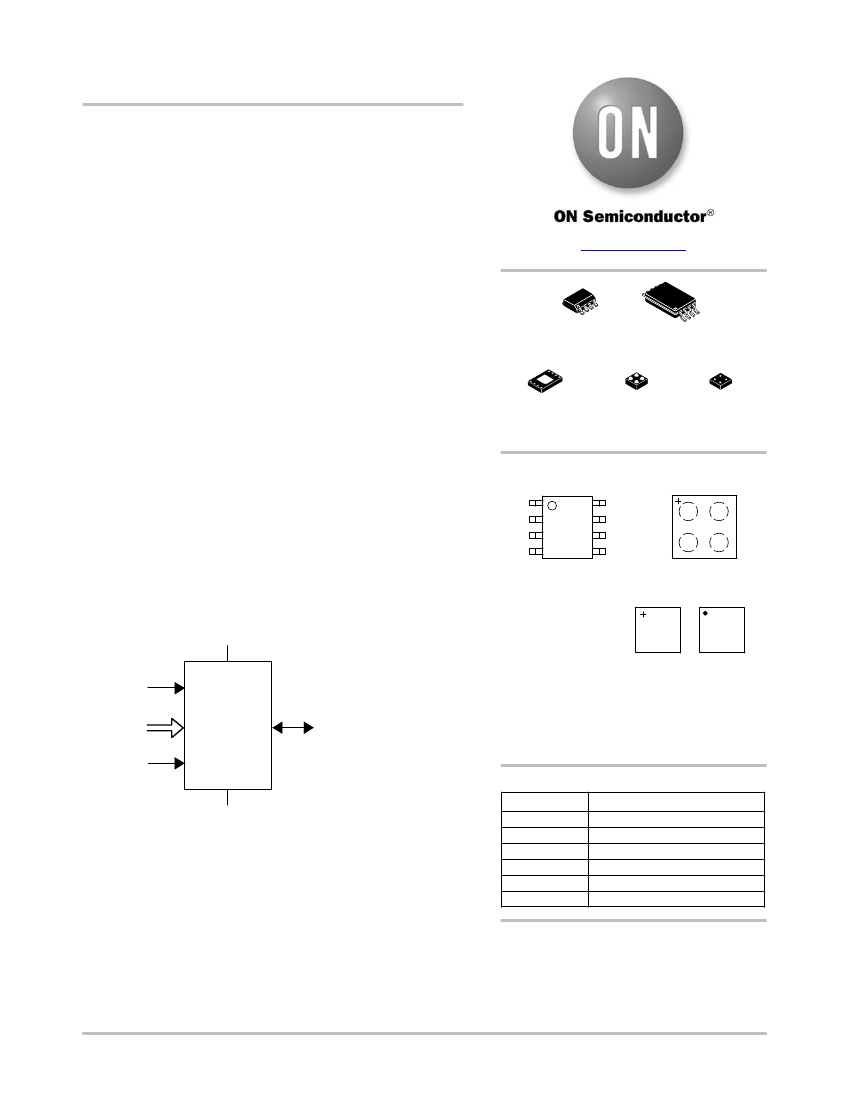

CAT24C64

64 Kb I

C CMOS Serial

EEPROM

Description

The CAT24C64 is a 64 Kb CMOS Serial EEPROM device,

internally organized as 8192 words of 8 bits each.

It features a 32−byte page write buffer and supports the Standard

(100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I

C protocol.

External address pins make it possible to address up to eight

CAT24C64 devices on the same bus.

Features

www.onsemi.com

•

Supports Standard, Fast and Fast−Plus I

C Protocol

1.7 V to 5.5 V Supply Voltage Range

32−Byte Page Write Buffer

Hardware Write Protection for Entire Memory

Schmitt Triggers and Noise Suppression Filters on I

C Bus Inputs

(SCL and SDA)

Low Power CMOS Technology

1,000,000 Program/Erase Cycles

100 Year Data Retention

Industrial and Extended Temperature Range

SOIC, TSSOP, UDFN 8−pad and Ultra−thin WLCSP 4−bump

Packages

This Device is Pb−Free, Halogen Free/BFR Free, and RoHS

Compliant

SOIC−8

W SUFFIX

CASE 751BD

TSSOP−8

Y SUFFIX

CASE 948AL

UDFN−8

HU4 SUFFIX

CASE 517AZ

WLCSP−4

C4C SUFFIX

CASE 567JY

WLCSP−4

C4U SUFFIX

CASE 567PB

PIN CONFIGURATIONS

(Top Views)

SCL

SDA

SCL

SDA

SOIC (W), TSSOP (Y),

UDFN (HU4)

(C4C)

WLCSP

(C4U)

MARKING

DIAGRAMS

(WLCSP−4)

SCL

, A

CAT24C64

SDA

= Specific Device Code

(see ordering information)

= Production Year (Last Digit)

M = Production Month (1−9, O, N, D)

W = Production Week Code

For the location of Pin 1, please consult the

corresponding package drawing.

PIN FUNCTION

Pin Name

Function

Device Address

Serial Data

Serial Clock

Write Protect

Power Supply

Ground

, A

SDA

SCL

Figure 1. Functional Symbol

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 13 of this data sheet.

For serial EEPROM in a US8 package, please

consult the N24C64 datasheet.

Semiconductor Components Industries, LLC, 2018

April, 2018 − Rev. 27

Publication Order Number:

CAT24C64/D
