IPS2480-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> IPS2480-D

IPS2480-D: DescriptionSplitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size1MB，2 Pages; ManufacturerInternational Manufacturing Services Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

IPS2480-D Overview

Splitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4

IPS2480-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	International Manufacturing Services Inc
package instruction	0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4
Reach Compliance Code	compliant
Characteristic impedance	75 Ω
structure	COMPONENT
Maximum input power (CW)	45.41 dBm
Maximum operating frequency	7000 MHz
Minimum operating frequency
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

ims

9.5dB

Each Output

Rated Power

0.7dB

Amplitude

Balance

International

Manufacturing

Services, Inc.

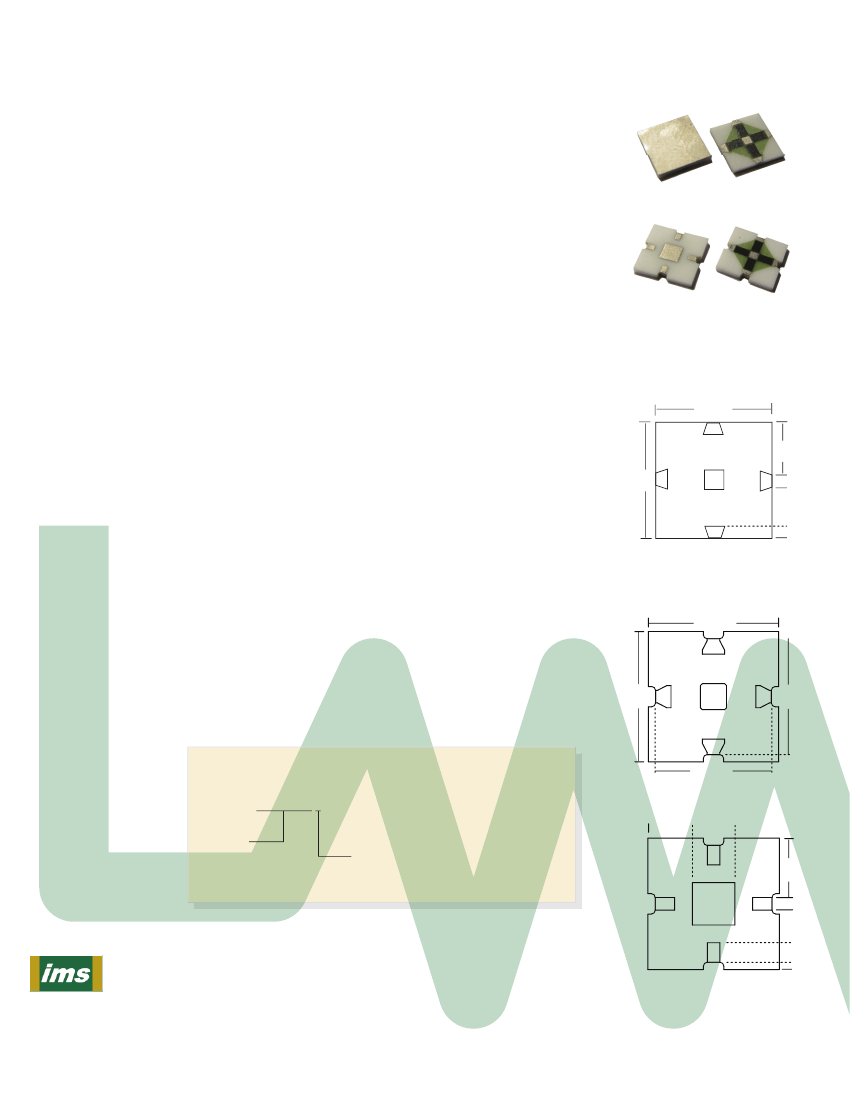

IPS Series Three Way Thick Film

Resistive Power Splitter

Microstrip Version

IPS2480-X

SMT Version

IPS2481-X

Dimensions (inches)

IPS2480 and IPS2481

TOP

0.240

0.107

0.240

0.026

IPS2521-X

0.024

IPS Series 3-Way Specifications

IPS2521

TOP

0.270

0.240

Ordering Information

0.240

IPS2521

BACK

0.092 0.087

0.122

0.026

0.040

0.015

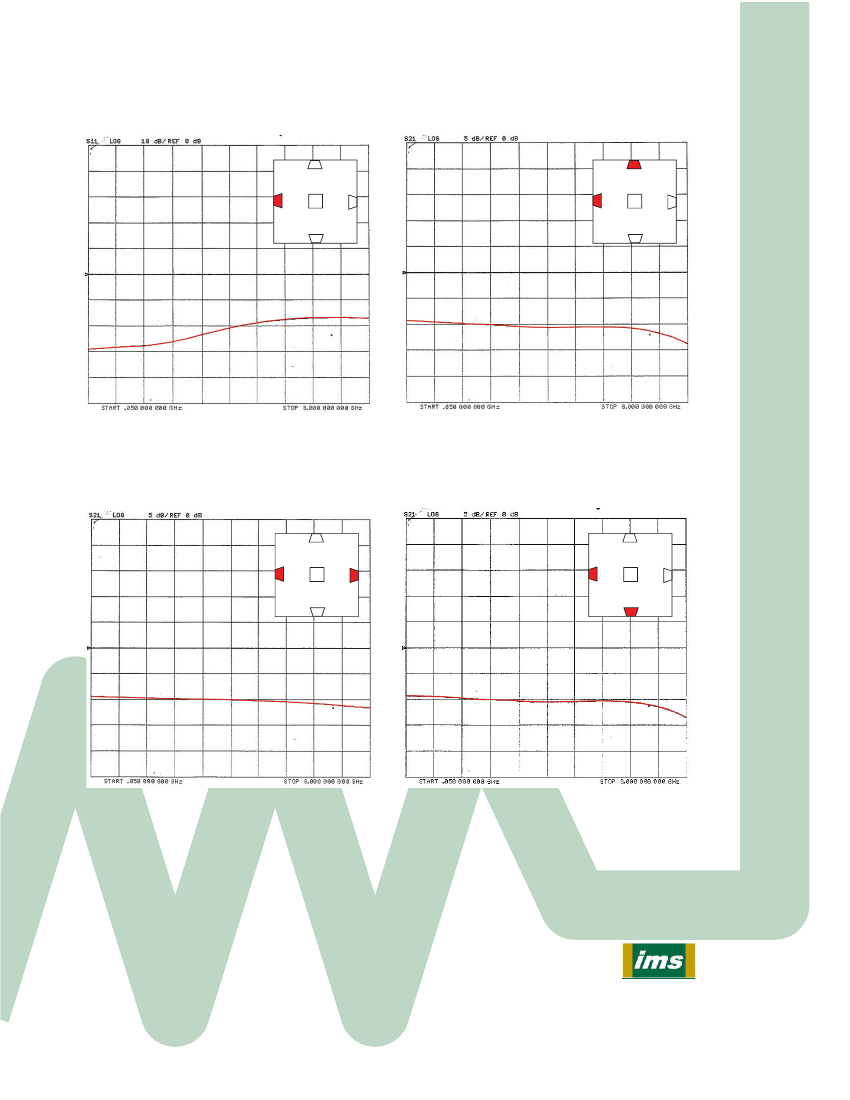

impossible made simple

IPS2480-D Related Products

	IPS2480-D	IPS2521-C	IPS2521-D	IPS2480-C	IPS2481-D	IPS2481-C
Description	Splitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	Splitter, 0MHz Min, 7000MHz Max, 0.270 X 0.270 INCH, 0.035 INCH HEIGHT, SMT, 4 PIN	Splitter, 0MHz Min, 7000MHz Max, 0.270 X 0.270 INCH, 0.035 INCH HEIGHT, SMT, 4 PIN	Splitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	Splitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	Splitter, 0MHz Min, 7000MHz Max, 0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	International Manufacturing Services Inc	International Manufacturing Services Inc	International Manufacturing Services Inc	International Manufacturing Services Inc	International Manufacturing Services Inc	International Manufacturing Services Inc
package instruction	0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	0.270 X 0.270 INCH, 0.035 INCH HEIGHT, SMT, 4 PIN	0.270 X 0.270 INCH, 0.035 INCH HEIGHT, SMT, 4 PIN	0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4	0.240 X 0.240 INCH, 0.035 INCH HEIGHT, MICROSTRIP PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Characteristic impedance	75 Ω	50 Ω	75 Ω	50 Ω	75 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	45.41 dBm	45.41 dBm	45.41 dBm	45.41 dBm	45.41 dBm	45.41 dBm
Maximum operating frequency	7000 MHz	7000 MHz	7000 MHz	7000 MHz	7000 MHz	7000 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.3	1.3	1.3	1.3	1.3	1.3
