BUS-61566-300: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82; CategoryThe embedded processor and controller Microcontrollers and processors; File Size187KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-61566-300 Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82

BUS-61566-300 Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DFP
package instruction	METAL, FP-82
Contacts	82
Reach Compliance Code	unknown
Address bus width	16
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-MDFP-F82
Number of serial I/Os	2
Number of terminals	82
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	4.6 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

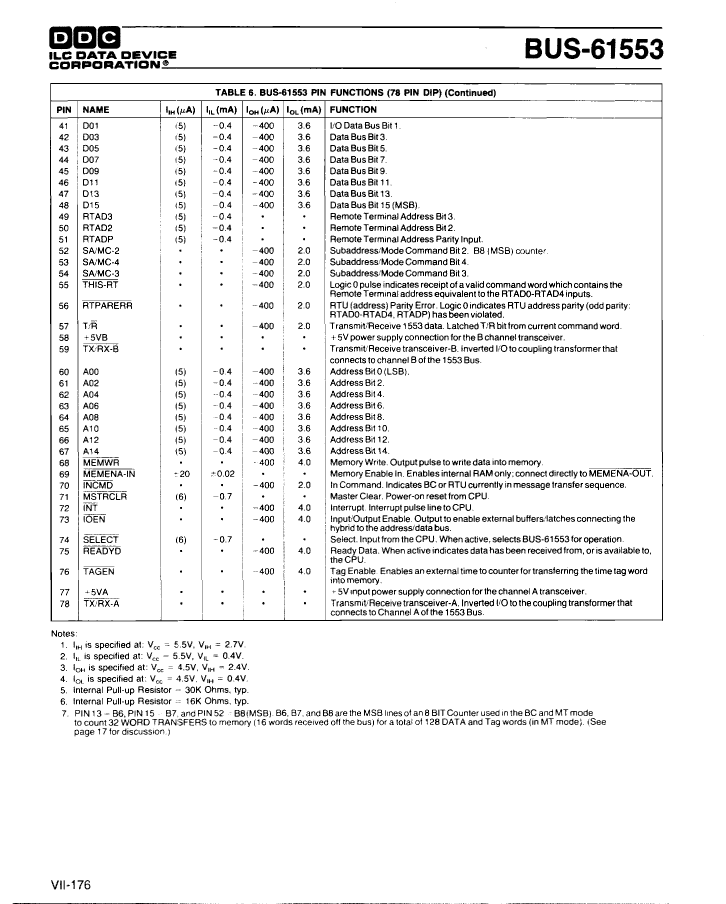

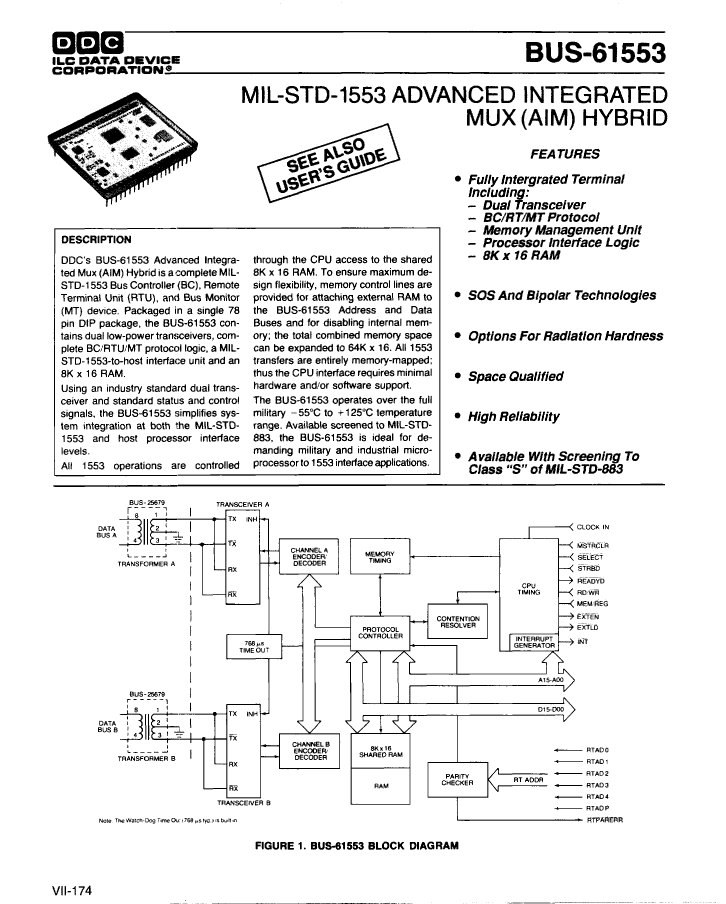

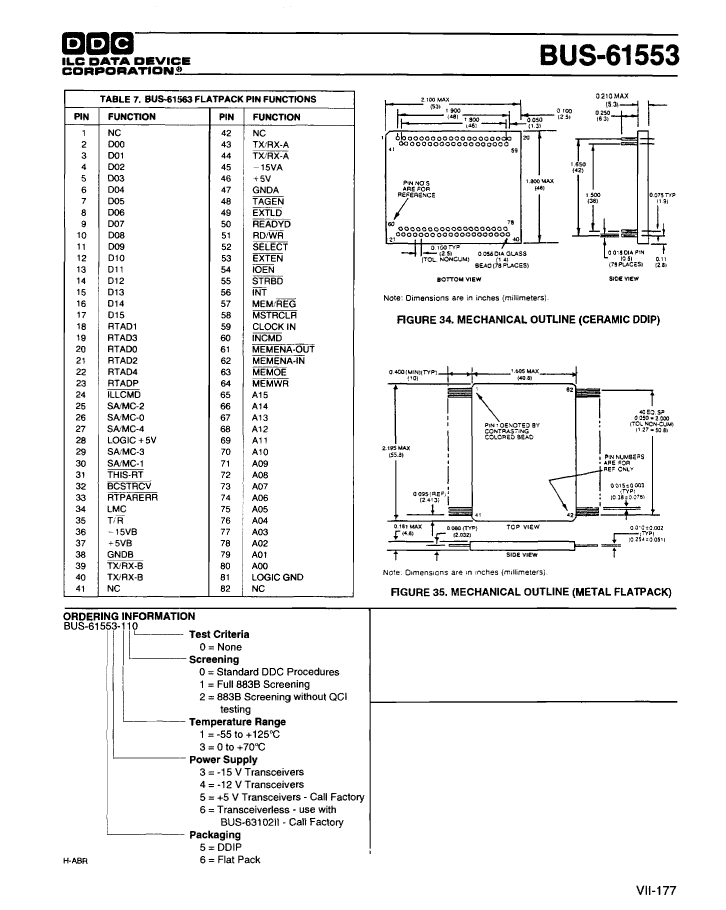

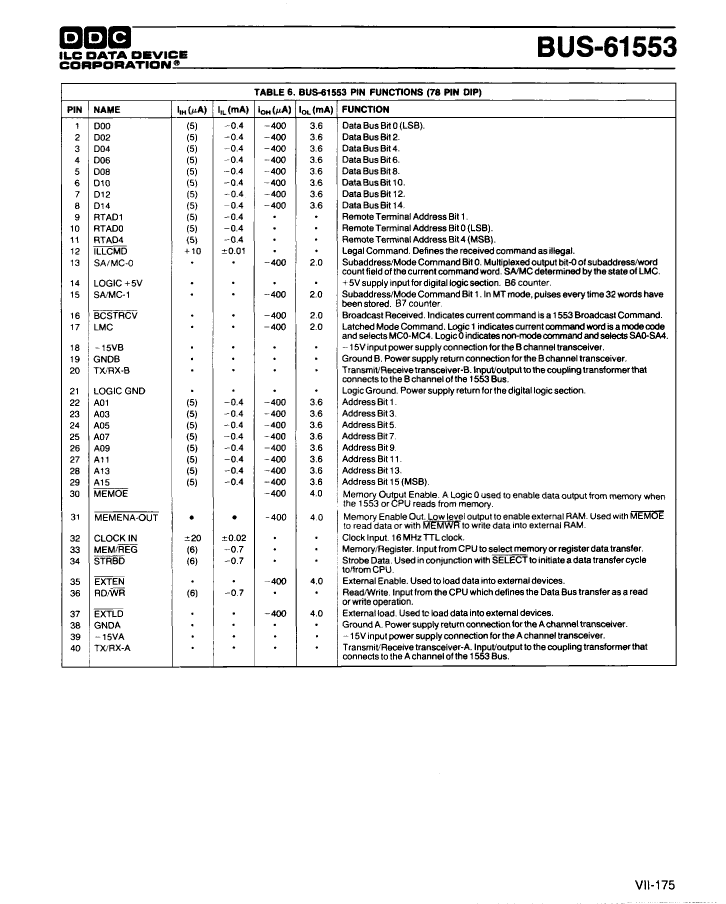

Preview

Download Datasheet

View All

BUS-61566-300 Related Products

	BUS-61566-300	BUS-61553-300	BUS-61565-300	BUS-61564-300	BUS-61563-300	BUS-61554-300	BUS-61556-300	BUS-61555-300
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, MDFP82, METAL, FP-82	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, CERAMIC, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, CERAMIC, DDIP-78
Parts packaging code	DFP	QIP	DFP	DFP	DFP	QIP	QIP	QIP
package instruction	METAL, FP-82	CERAMIC, DDIP-78	DFP,	DFP,	DFP,	CERAMIC, DDIP-78	CERAMIC, DDIP-78	CERAMIC, DDIP-78
Contacts	82	78	82	82	82	78	78	78
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	16	16	16	16	16	16	16	16
letter of agreement	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16	16	16	16	16
JESD-30 code	R-MDFP-F82	R-CQIP-P78	R-MDFP-F82	R-MDFP-F82	R-MDFP-F82	R-CQIP-P78	R-CQIP-P78	R-CQIP-P78
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	82	78	82	82	82	78	78	78
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	METAL	METAL	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QIP	DFP	DFP	DFP	QIP	QIP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.6 mm	5.334 mm	4.6 mm	4.6 mm	4.6 mm	5.334 mm	5.334 mm	5.334 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	PIN/PEG	FLAT	FLAT	FLAT	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	-	-	Data Device Corporation	Data Device Corporation	Data Device Corporation
