P200-83527-2A-N-10P10-P-10P10-P-C: DescriptionRack and Panel Connector, 20 Contact(s), Male-Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSabritec; Environmental Compliance

Download Datasheet Parametric View All

P200-83527-2A-N-10P10-P-10P10-P-C Overview

Rack and Panel Connector, 20 Contact(s), Male-Male, Crimp Terminal, Receptacle,

P200-83527-2A-N-10P10-P-10P10-P-C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Sabritec
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-83527, POLARIZED
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	20

Preview

Download Datasheet

View All

MIL-DTL-83527

MIL-DTL-83527 connectors are designed to meet or exceed all applicable requirements

of the military specification. These connectors come standard with anti-rotational keyed

insert assemblies for filter, high-speed fibre channel or Ethernet twinax and quadrax

contacts. Offered in a number of different contact arrangements and shell sizes, these

connectors are intermateable and interchangeable with the standard non-filtered MIL-

DTL-83527 connectors.

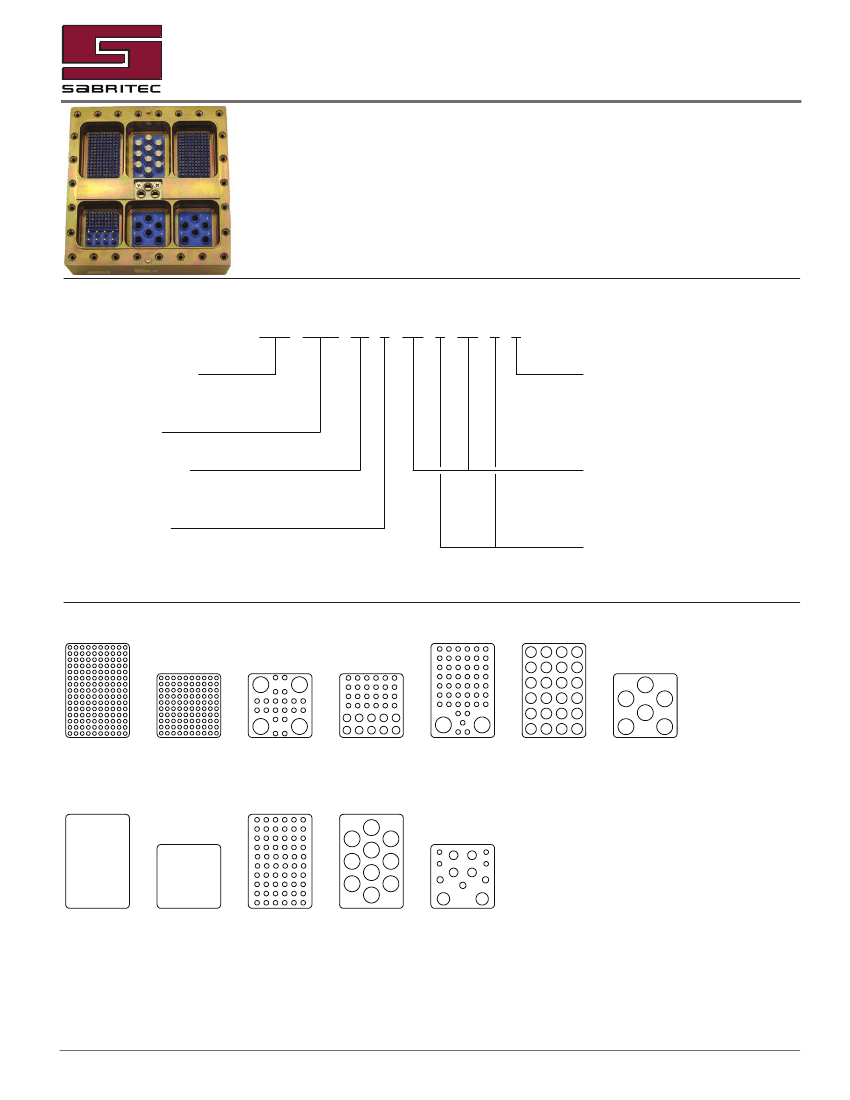

Part Number Description Code

P200 - 83527 - 4A - N - 150 - P - 150 - P - S

FILTER TYPE:

Pi, L, C

PREFIX:

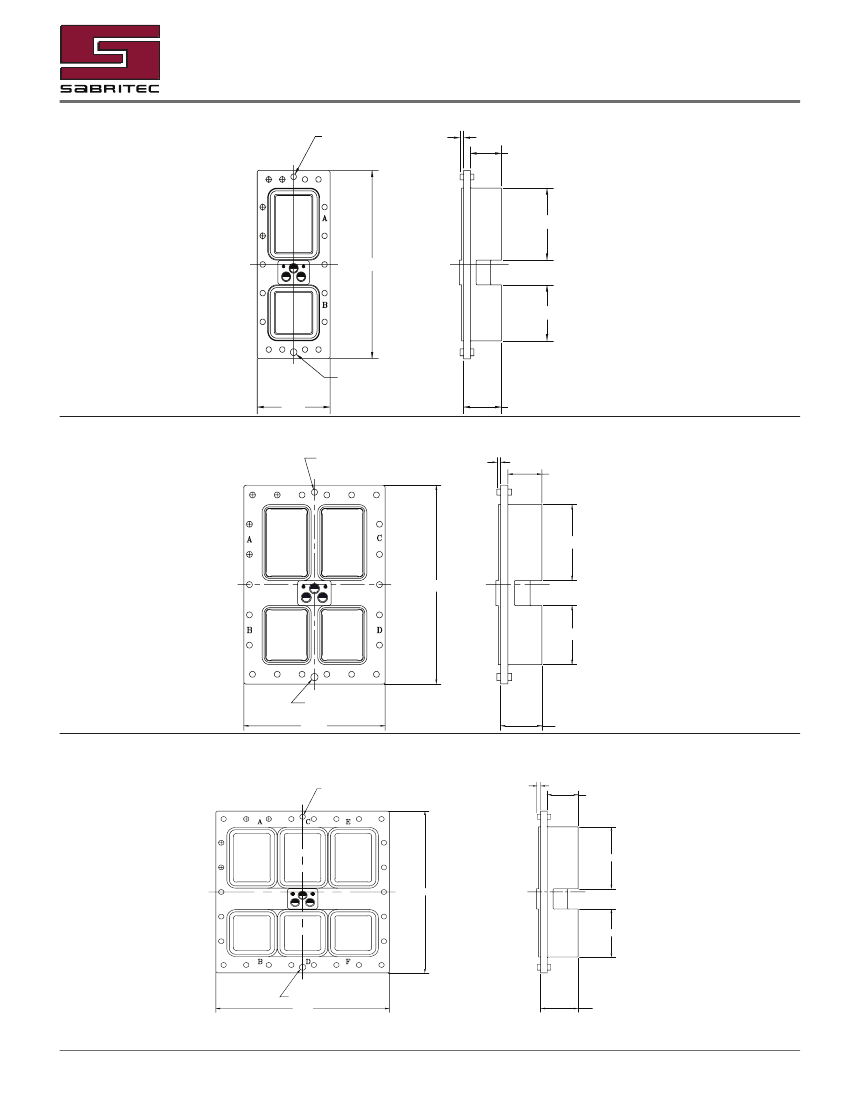

SHELL SIZE:

2A, 3A, 4A

PLATING:

C - Cadmium (Yellow Chromate)

N - Electroless Nickel

CONTACT TERMINATION:

S - Solder Cup

P - PC Tail

C - Crimp

INSERT ARRANGEMENTS:

Cavity A, B, C, D, E, F

CONTACT TYPE:

P - Pin

S - Socket

Insert Arrangements

I-150

150 #22

II-100

100 #22

II-20T4

20 #20

4 #8 T/C

II-34

24 #20

10 #16

I-47T2

47 #20

2 #8 T/C

I-24

24 #12

II-T6

6 #8 T/C

For Size 8 Contacts Please Specify:

T = Twinax/Quadrax Cavity (Anti-Rotational)

C = Coaxial/Triaxial Cavity

I-0

BLANK

CUSTOM

II-0

BLANK

CUSTOM

I-60

60 #20

10P10

10 #8 T/C

II-11C2

4 #20

3 #16

4 #12

2 #5

Sabritec provides specialty, enhanced performance connectors and cable assemblies and as such does not currently offer circular, rack and panel, or D-subminiature connectors that are listed

on military standard Qualified Products Lists (QPL) per applicable detail specification sheets. Sabritec’s connectors are fully intermateable with applicable QPL products and meet the applicable

requirements of all military standards listed in this catalog.

17550 Gillette Avenue, Irvine, CA 92614 • www.sabritec.com • Tel: (949) 250-1244 • Fax (949) 250-1009

Pg. 37
