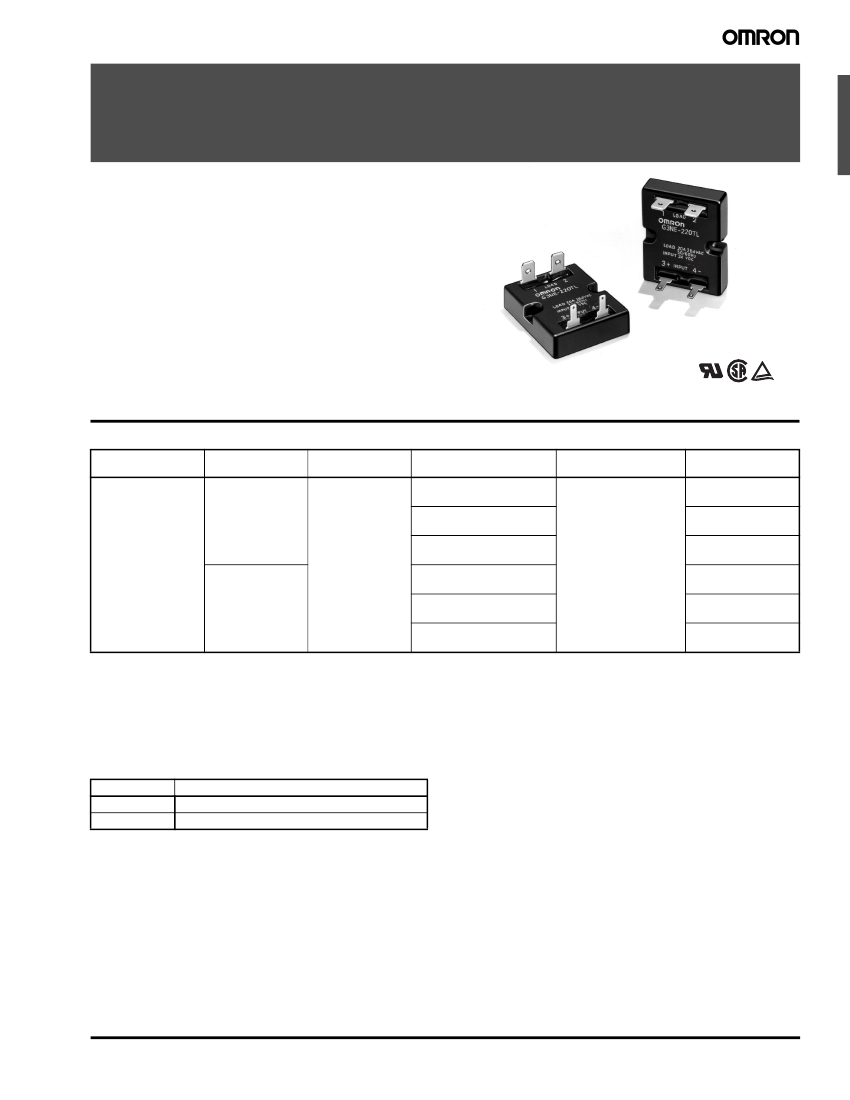

Solid State Relays
G3NE
Compact, Low-cost, SSR Switching
5 to 20 A
• Wide load voltage range: 75 to 264 VAC.
• Dedicated, compact aluminum PCB and power elements
used.
• Built-in varistor effectively absorbs external surges.
• Quick-connect #110 input terminals and #250 output con-
nections. (#187 input terminals and #250 output connec-
tions are available.)
• “-US” models certified by UL, CSA, and IEC/EN (TÜV).
Ordering Information
To order: Select the part number and add the desired coil voltage rating. (e.g., G3NE-205T-US
DC24)
Isolation
Phototriac
Yes
Zero cross
function
No
Indicator
Rated output load
5 A at 100 to 240 VAC
(5 A at 75 to 264 VAC)
10 A at 100 to 240 VAC
(10 A at 75 to 264 VAC)
20 A at 100 to 240 VAC
(20 A at 75 to 264 VAC)
No
5 A at 100 to 240 VAC
(5A at 75 to 264 VAC)
10 A at 100 to 240 VAC
(10 A at 75 to 264 VAC)
20 A at 100 to 240 VAC
(20 A at 75 to 264 VAC)
Rated input voltage
5, 12, 24 VDC
Model
G3NE-205T-US
G3NE-210T-US
G3NE-220T-US
G3NE-205TL-US
G3NE-210TL-US
G3NE-220TL-US
Note:
When ordering #187 input terminal versions, place “-2” before “-US in the part number. (e.g., G3NE-210TL-2-US DC12)
■
Accessories (Order Separately)
Heat Sinks
The following heat sinks are thin and can be DIN-track mounted.
See
Dimensions
for details.
Model
Y92B-N50
Y92B-N100
Applicable SSR
G3NE-205T(L)(-2)-US/-210T(L)(-2)-US
G3NE-220T(L)(-2)-US
Solid State Relays
G3NE
439
Specifications
■
Ratings
(at an Ambient Temperature of 25°C)
Input
Rated voltage
5 VDC
12 VDC
24 VDC
Operating voltage
4 to 6 VDC
9.6 to 14.4 VDC
19.2 to 28.8 VDC
4 VDC max.
9.6 VDC max.
19.2 VDC max.
Voltage level
Must operate
Must release
1 VDC min.
250
Ω±20%
600
Ω±20%
1.6 kΩ±20%
Input impedance
With zero cross function Without zero cross function
300
Ω±20%
800
Ω±20%
Note:
Each model has 5-VDC, 12-VDC, and 24-VDC input versions.
Output
Model
Rated load voltage Load voltage range
Applicable load
Load current
(See note 1)
With heat sink
G3NE-205T(L)(-2)-US
G3NE-210T(L)(-2)-US
G3NE-220T(L)(-2)-US
100 to 240 VAC
75 to 264 VAC
0.1 to 5 A
0.1 to 10 A
(See note 2)
0.1 to 20 A
(See note 2)
Without heat sink
0.1 to 5 A
0.1 to 5 A
0.1 to 5 A
60 A (60 Hz, 1 cycle)
150 A (60 Hz, 1 cycle)
220 A (60 Hz, 1 cycle)
Inrush current
Note: 1.
The load current varies depending on the ambient temperature. Refer to
Load Current vs. Ambient Temperature
under
Engineering Data
for details.
2.
These values apply when using a dedicated heat sink or a radiation plate of specified size.
■
Characteristics
Item
Operate time
Release time
Output ON voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Certified standards
Weight
G3NE-2@@T(-2)-US
1/2 of load power source cycle + 1 ms max.
1/2 of load power source cycle + 1 ms max.
1.6 V (RMS) max.
2 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min
Malfunction: 10 to 55, 1.5-mm double amplitude
Malfunction: 1,000 m/s
2
(approx. 100G)
Operating:–30°C to 80°C (with no icing or condensation)
Storage:–30°C to 100°C (with no icing or condensation)
Operating:45% to 85%
UL File No.E64562/CSA File No. LR35535
TÜV R9051064 (VDE0435) (EN60950)
Approx. 37 g
1 ms max.
G3NE-2@@TL(-2)-US
440
Solid State Relays
G3NE
■
Engineering Data

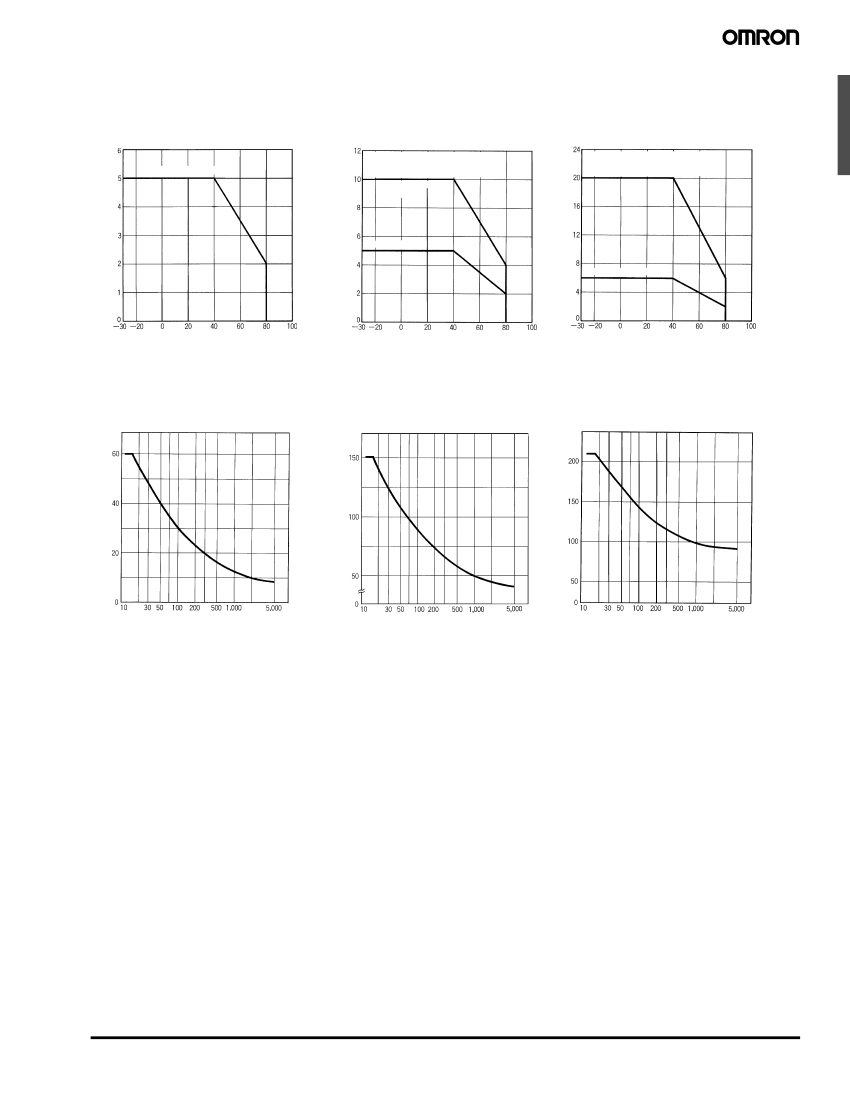

Load Current vs. Ambient Temperature
G3NE-205T(L)(-2)-US
Without heat sink
G3NE-210T(L)(-2)-US
With standard heat sink (Y92B-N50)
or aluminum plate measuring 100 mm
x 100 mm x t2 mm (W x H x D)
G3NE-220T(L)(-2)-US
With standard heat sink (Y92B-N100) or
aluminum plate measuring 300 mm x
300 mm x t3 mm (W x H x D)
Load current (A)
Load current (A)
Without heat sink
Load current (A)
Without heat sink
Ambient temperature (°C)
Ambient temperature (°C)
Ambient temperature (°C)
Inrush Current Resistivity
One cycle, non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.)
G3NE-205T(L)(-2)-US
Inrush current (A. Peak)
Inrush current (A. Peak)
G3NE-210T(L)(-2)-US
Inrush current (A. Peak)
Energized time (ms)
G3NE-220T(L)(-2)-US
Energized time (ms)
Energized time (ms)
Solid State Relays
G3NE
441

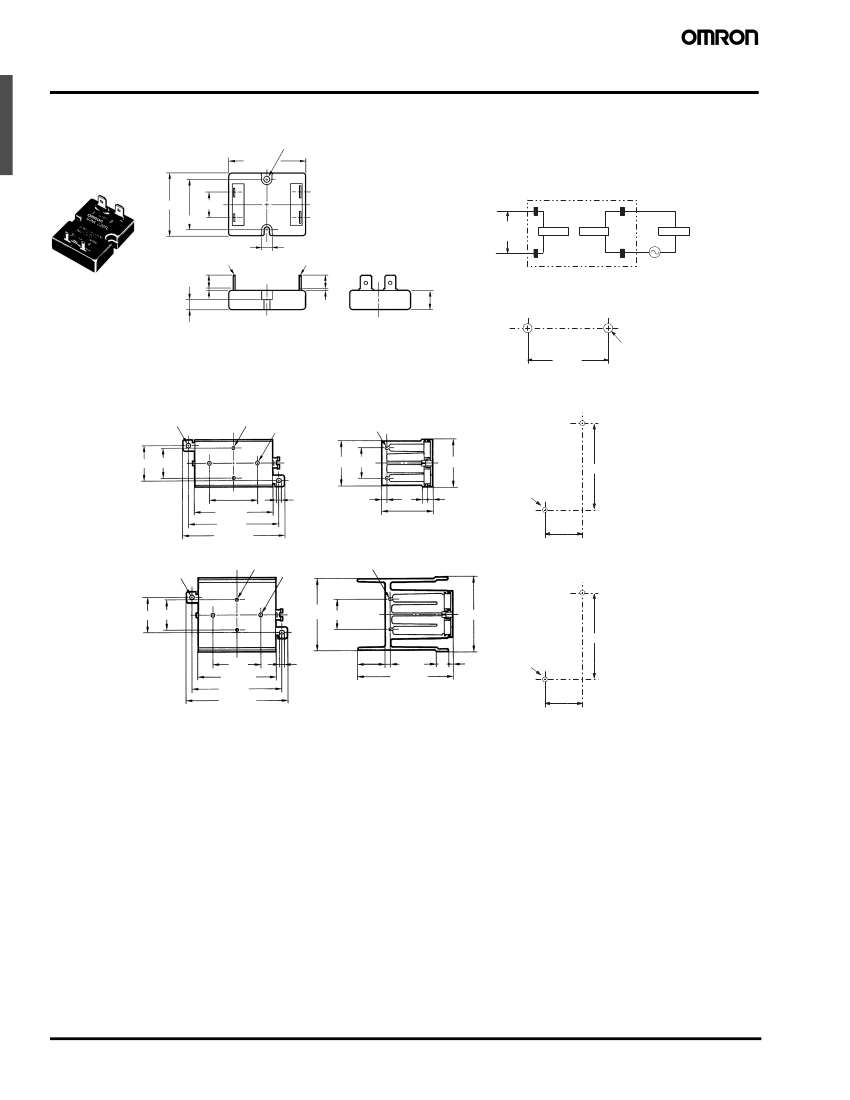

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
G3NE-205T(L)/210T(L)/220T(L)(-2)-US
3.5 dia. hole
47.5
max.
Terminal Arrangement/
Internal Connections
(Top View)
3+
Input
voltage
Input
Output
37.5 max.
14.5
1
Load
30+0.5
Two #250 (t = 0.8) (Faston
tab or equivalent)
7.95
3
11.5 max.
Two #110 (t = 0.5) (Faston
tab or equivalent)*
7.1
2.9
6
6.5
4
−
2
Load power
supply
Mounting Holes
* G3NE-2@@T(L)-2-US: Two, #187 (t=0.5) (Faston tab or equivalent)
Two, 3.5-dia. or M3 holes
30±0.2
Heat Sink
Y92B-N50
Mounting Holes
4.6 dia. hole
Two, M3 holes
Two, M4 holes
Two, 3.2-dia.
holes
44 max. 30
47 max.
Two, 4.4-dia.
or M4 holes
35 30.5±0.3
90±0.4
47.6
77 max.
90±0.3
100 max.
5.6
5
6
51 max.
4.5
Weight: approx. 200
g
35±0.2
Two, M4
holes
Two, 3.2-dia. holes
Y92B-N100
4.6 dia. hole
Two, M3 holes
Mounting Holes
35 30.5±0.3
71 max. 30
75 max.
90±0.4
47.6
77 max.
90±0.3
100 max.
5.6
28
5
100 max.
13
4.5
Two, 4.4-dia.
or M4 holes
35±0.2
Weight: approx. 400
g
442
Solid State Relays
G3NE
■
Approvals
UL Recognized (File No. E64562) / CSA Certified (File No. LR35535) - - Ambient Temp. = 40°C
Input voltage
5, 12, 24 VDC
SSR type
G3NE-205
Output ratings
5A resistive, 240 VAC
3A Tungsten, 240 VAC
3.2A FLA/ 19.2A LRA, 240 VAC 50/60 Hz
10A resistive, 240 VAC
7.5A Tungsten, 240 VAC
4.8A FLA/ 28.8A LRA, 240 VAC 50/60 Hz
5A resistive, 240 VAC
5A Tungsten, 240 VAC
3A FLA/ 18A LRA, 240 VAC 50/60 Hz
20A resistive, 240 VAC
11A Tungsten, 240 VAC
11.1A FLA/ 66.6A LRA, 240 VAC 50/60 Hz
6A resistive, 240 VAC
6A Tungsten, 240 VAC
3.3A FLA/ 19.8A LRA, 240 VAC 50/60 Hz
G3NE-210
G3NE-210
G3NE-220
G3NE-220
Precautions
Do not apply excessive force to the terminals. Exercise care when
pulling or inserting the terminal clips.
When attaching a heat sink to the G3NE, apply heat-conductive
grease on the heat sink. Tighten the mounting screws of the heat
sink with a torque of 0.59 to 0.98 N•m
Thermal Resistance Rth (Back of Junction SSR)
Model
Thermal resistance (°C/W)
G3NE-205T (L) 2.72
G3NE-210T (L) 2.12
G3NE-220T (L) 2.22
EMC Directive Compliance
The G3NE complies with EMC Directives under the following
conditions ("-US" models only).
10 m max.
Load
Input
G3NE-US
Output
Film capacitor:
•
1
μF,
250 VAC
•
Connect a film capacitor to the load power supply.
•
The input cable must be less than 10 m.
Solid State Relays
G3NE
443
