DHC2815S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DHC2815S

DHC2815S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8; CategoryPower/power management The power supply circuit; File Size279KB，5 Pages; ManufacturerApex [Apex Microtechnology]

Download Datasheet Parametric Compare View All

DHC2815S Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8

DHC2815S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Apex [Apex Microtechnology]
Parts packaging code	DIP
package instruction	DIP, DIP10,.8,200
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	OUTPUT POWER IS 5.4W WITH INPUT 16V-40V
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	74%
Maximum input voltage	50 V
Minimum input voltage	11 V
Nominal input voltage	28 V
JESD-30 code	S-MDIP-P8
JESD-609 code	e0
length	25.4 mm
Maximum grid adjustment rate	0.12%
Maximum load regulation	0.532%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.4 A
Maximum output voltage	16.5 V
Minimum output voltage	13.5 V
Nominal output voltage	15 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP10,.8,200
Package shape	SQUARE
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
Maximum seat height	9.27 mm
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	YES
width	20.32 mm

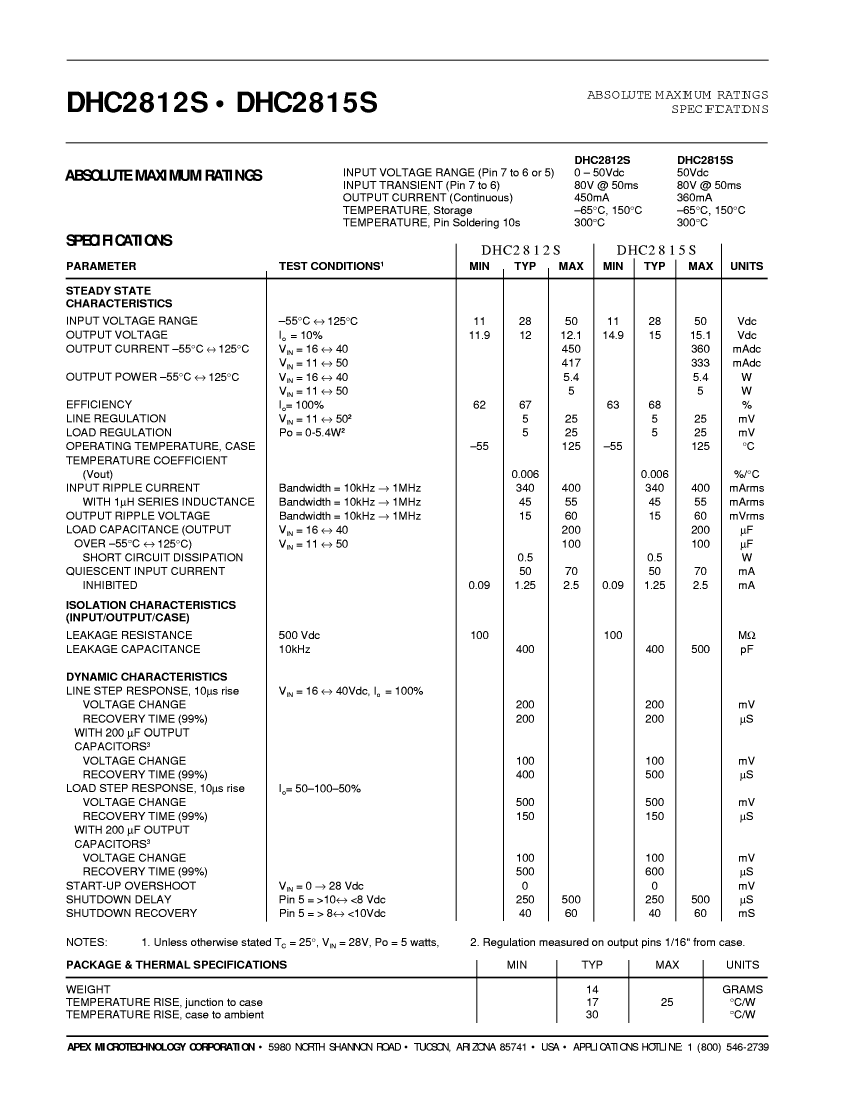

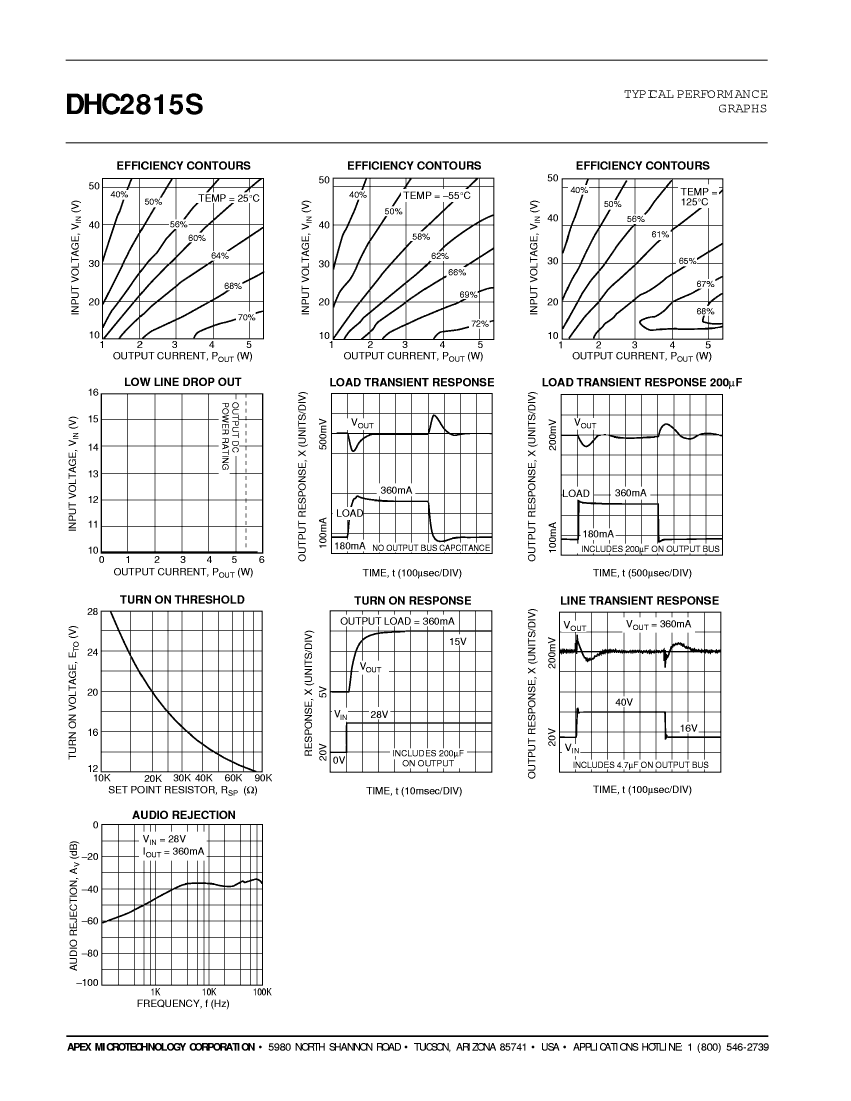

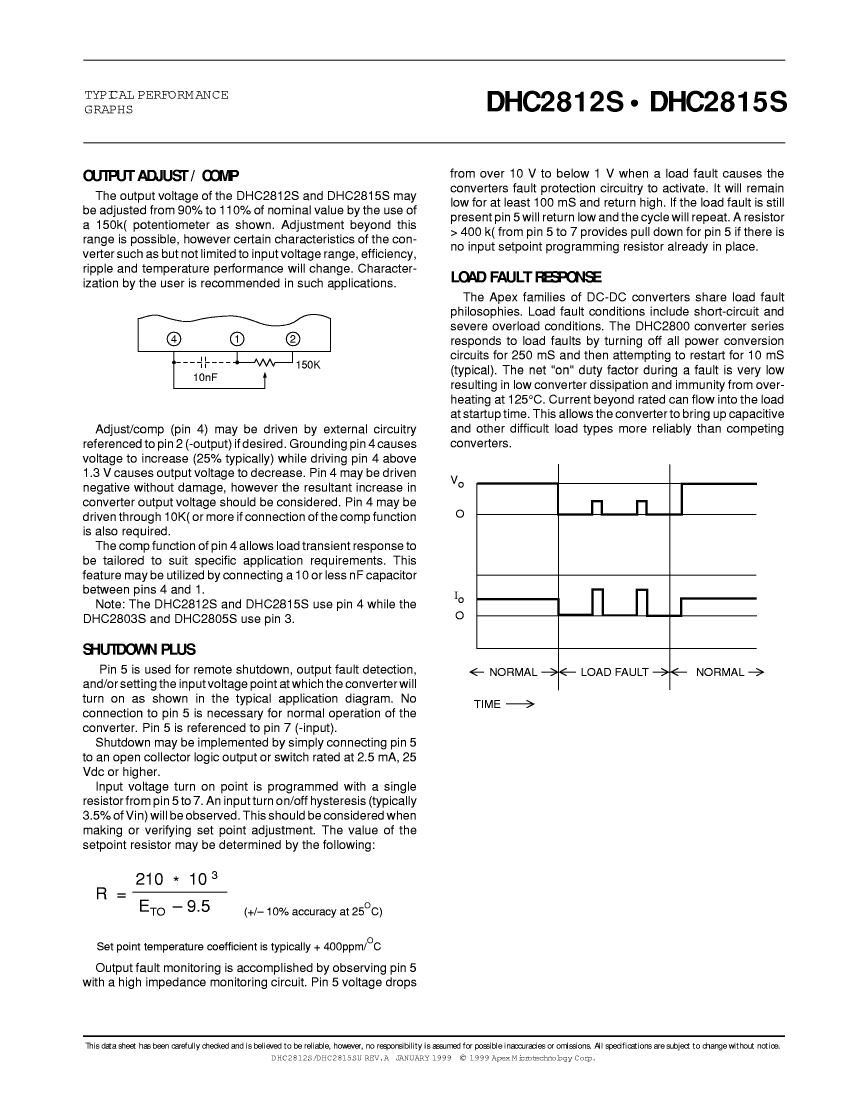

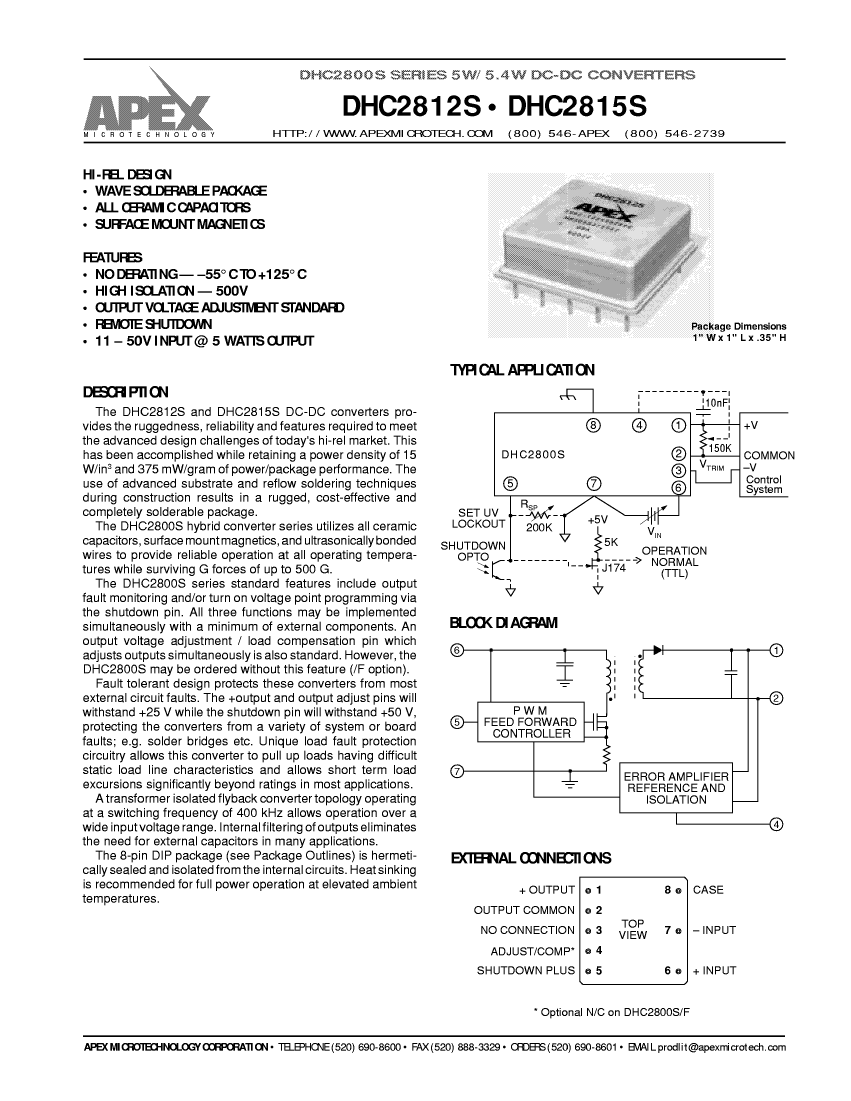

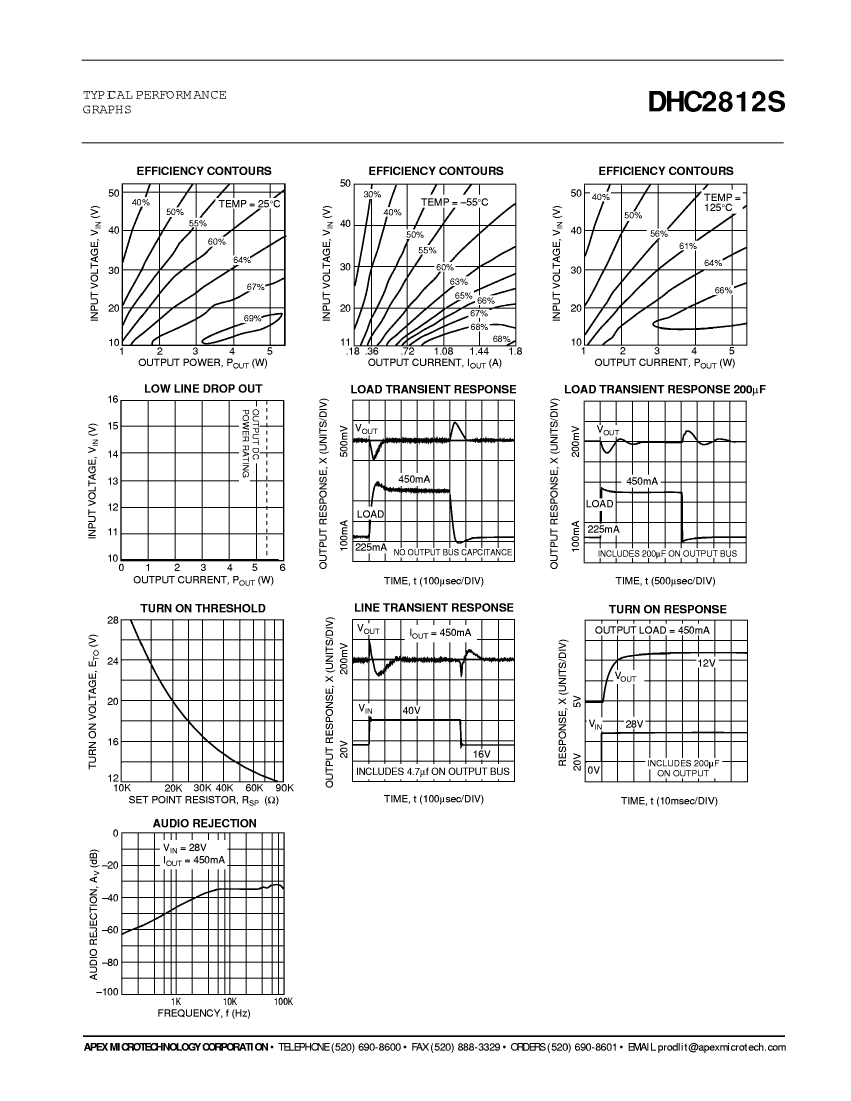

Preview

Download Datasheet

View All

DHC2815S Related Products

	DHC2815S	DHC2812S	DHC2812S/F	DHC2815S/F
Description	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, 1 X 1 INCH, 0.350 INCH HEIGHT, HERMETIC SEALED, DIP-8
Maker	Apex [Apex Microtechnology]	Apex [Apex Microtechnology]	Apex [Apex Microtechnology]	Apex [Apex Microtechnology]
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP, DIP10,.8,200	DIP, DIP10,.8,200	DIP,	DIP,
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	OUTPUT POWER IS 5.4W WITH INPUT 16V-40V	OUTPUT POWER IS 5.4W WITH INPUT 16V-40V	OUTPUT POWER IS 5.4W WITH INPUT 16V-40V	OUTPUT POWER IS 5.4W WITH INPUT 16V-40V
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	50 V	50 V	50 V	50 V
Minimum input voltage	11 V	11 V	11 V	11 V
Nominal input voltage	28 V	28 V	28 V	28 V
JESD-30 code	S-MDIP-P8	S-MDIP-P8	S-MDIP-P8	S-MDIP-P8
length	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Maximum load regulation	0.532%	0.664%	0.208%	0.167%
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output voltage	16.5 V	13.2 V	12.1 V	15.1 V
Minimum output voltage	13.5 V	10.8 V	11.9 V	14.9 V
Nominal output voltage	15 V	12 V	12 V	15 V
Package body material	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	9.27 mm	9.27 mm	9.27 mm	9.27 mm
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W	5 W
Fine-tuning/adjustable output	YES	YES	NO	NO
width	20.32 mm	20.32 mm	20.32 mm	20.32 mm
