LM285Z-1.2RB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM285Z-1.2RB

LM285Z-1.2RB: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.235V, PBCY3; CategoryPower/power management The power supply circuit; File Size143KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM285Z-1.2RB Overview

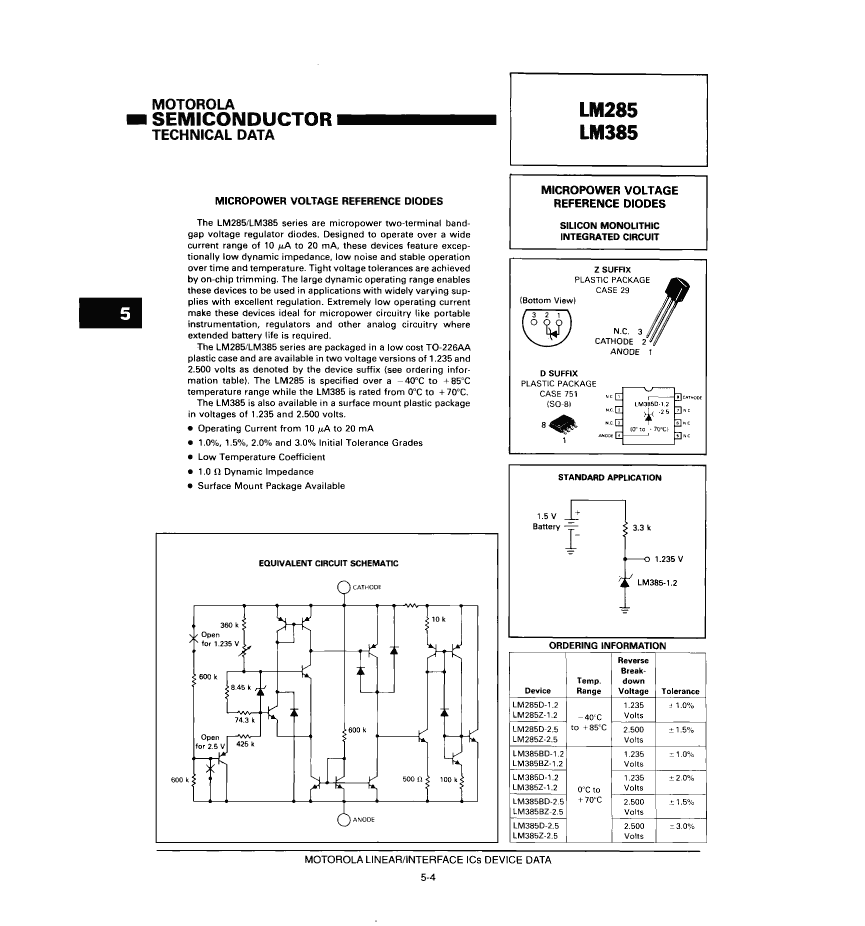

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.235V, PBCY3

LM285Z-1.2RB Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	1.247 V
Minimum output voltage	1.223 V
Nominal output voltage	1.235 V
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum supply current (Isup)	0.02 mA
surface mount	NO
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO

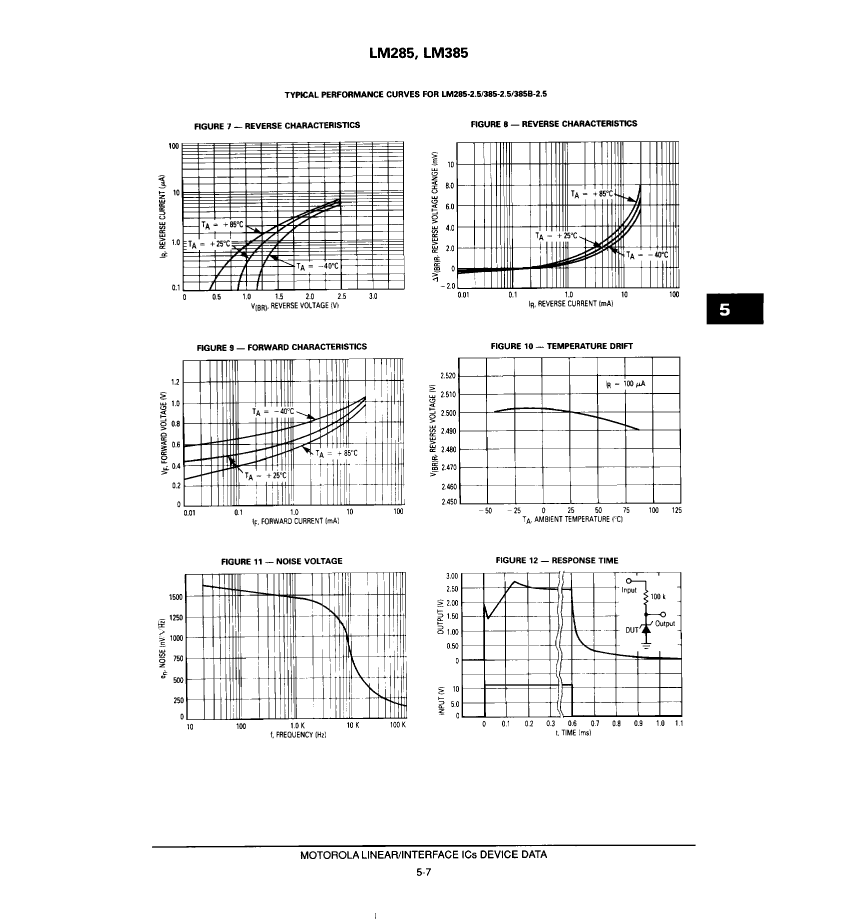

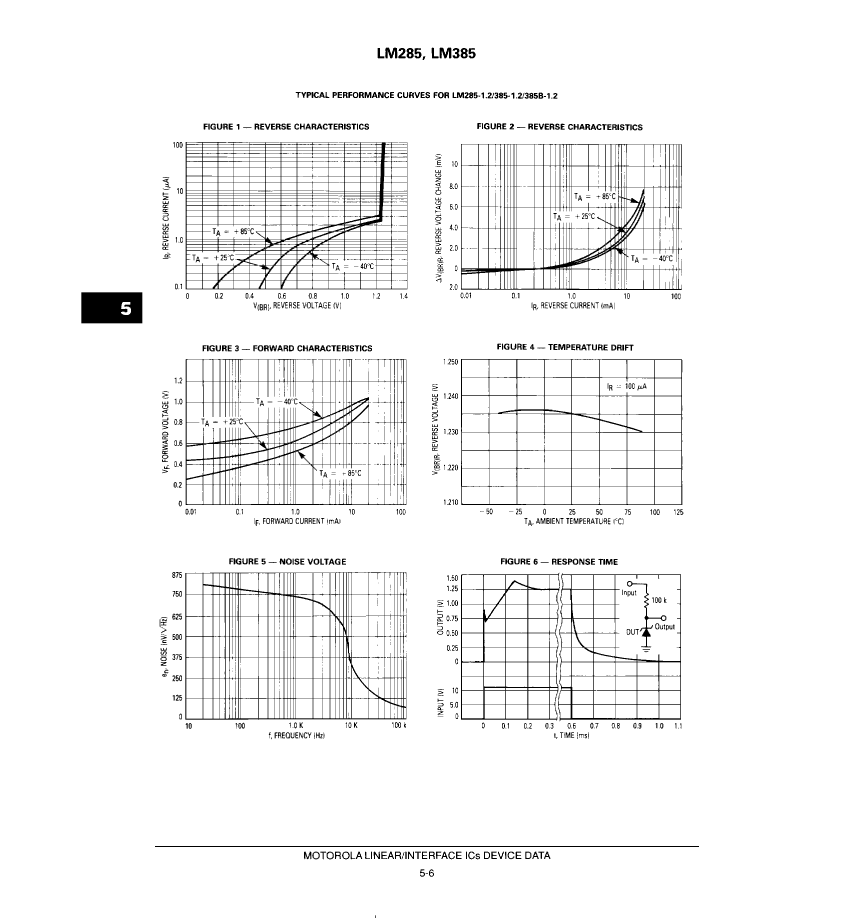

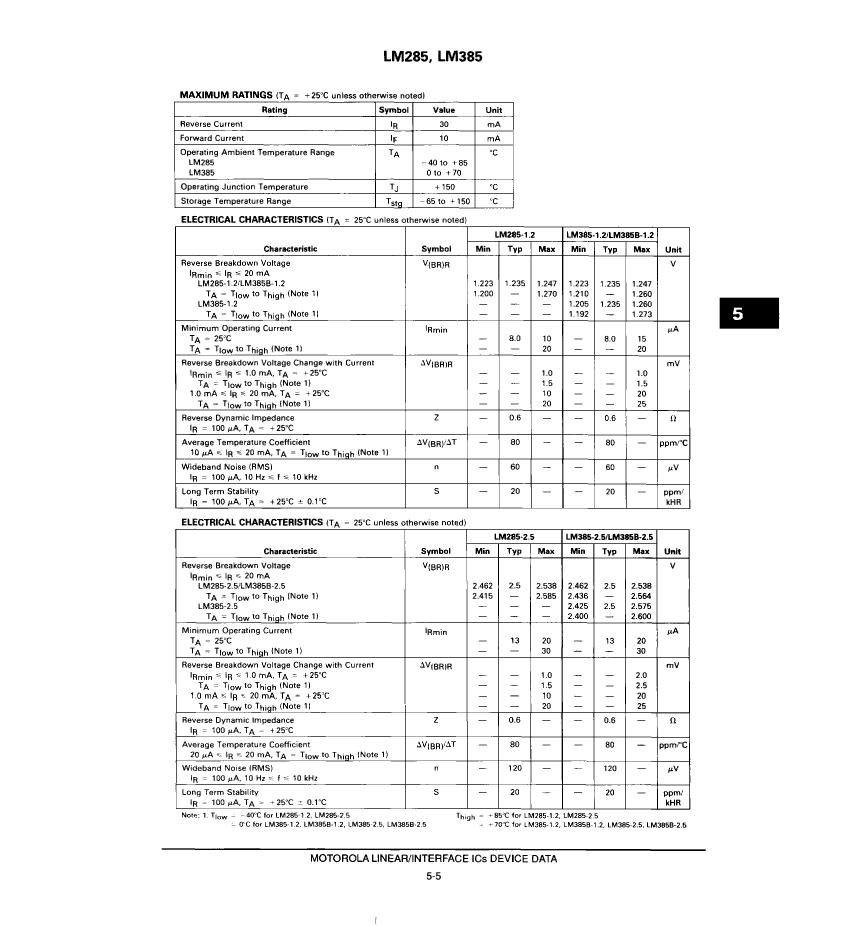

Preview

Download Datasheet

View All

LM285Z-1.2RB Related Products

	LM285Z-1.2RB	LM385BZ-2.5RB	LM385Z-2.5RB	LM285Z-2.5RB	LM385BZ-1.2RB	LM385Z-1.2RB
Description	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 1.235V, PBCY3	Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.5V, PBCY3	Two Terminal Voltage Reference, 1 Output, 2.5V, PBCY3	Two Terminal Voltage Reference, 1 Output, 1.235V, PBCY3	Two Terminal Voltage Reference, 1 Output, 1.235V, PBCY3,
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C
Maximum output voltage	1.247 V	2.538 V	2.575 V	2.538 V	1.247 V	1.26 V
Minimum output voltage	1.223 V	2.462 V	2.425 V	2.462 V	1.223 V	1.205 V
Nominal output voltage	1.235 V	2.5 V	2.5 V	2.5 V	1.235 V	1.235 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.02 mA	0.03 mA	0.03 mA	0.03 mA	0.02 mA	0.02 mA
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
