0.5A,30V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 30V, 0.5A, 0.43V, 0.5A, 2A

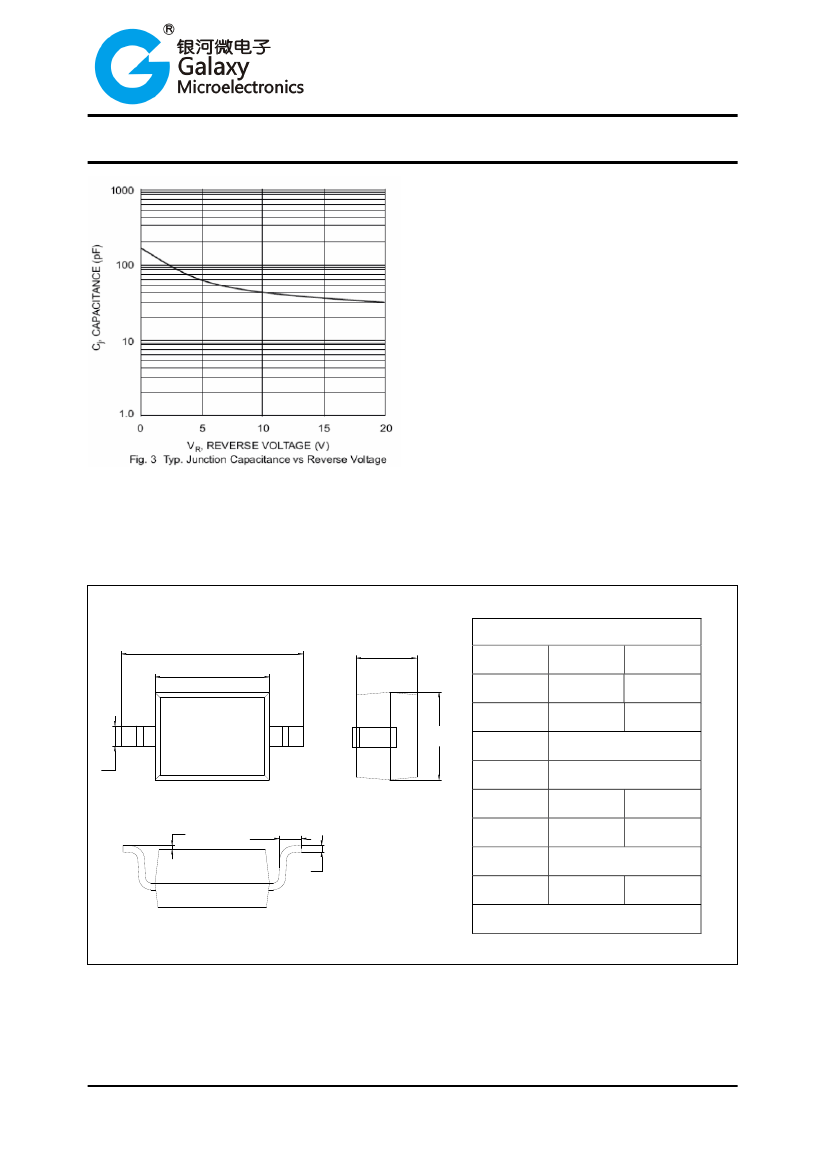

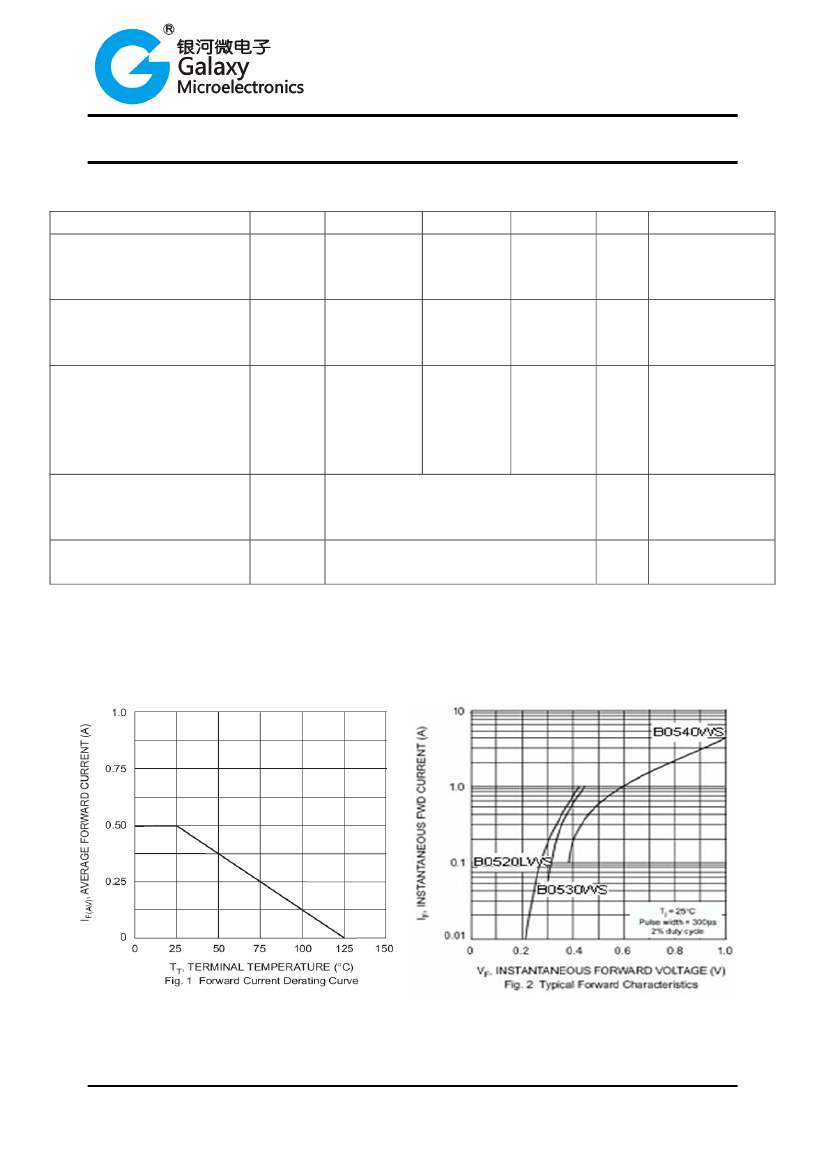

| Parameter Name | Attribute value |
| Maker | Galaxy Microelectronics |
| Parts packaging code | SOD-323 |
| Reach Compliance Code | unknown |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PDSO-G2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 0.5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum power dissipation | 0.235 W |
| Maximum repetitive peak reverse voltage | 30 V |
| Maximum reverse recovery time | 0.004 µs |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| category | |
| VRRM (V) max | 30 |
| IF (A) max | 0.5 |
| VF (V) max | 0.43 |
| Condition1_IF (A) | 0.5 |
| IFSM (A) max | 2 |
| IR (uA) max | 130 |
| Condition2_VR (V) | 30 |
| trr (ns) max | 4 |
| AEC Qualified | No |
| Maximum operating temperature | 125 |
| Minimum operating temperature | -55 |
| MSL level | 1 |
| Is it lead-free? | Yes |
| Comply with Reach | Yes |
| RoHS compliant | Yes |
| ECCN code | EAR99 |
| Package Outlines | SOD-323 |
| B0530WS | B0540WS | B0520LWS | |
|---|---|---|---|
| Description | 0.5A,30V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 30V, 0.5A, 0.43V, 0.5A, 2A | Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, |
| Reach Compliance Code | unknown | unknown | unknown |
| Configuration | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PDSO-G2 | R-PDSO-G2 | R-PDSO-G2 |
| Number of components | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 |
| Maximum output current | 0.5 A | 0.5 A | 0.5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum power dissipation | 0.235 W | 0.235 W | 0.235 W |
| Maximum repetitive peak reverse voltage | 30 V | 40 V | 20 V |
| Maximum reverse recovery time | 0.004 µs | 0.004 µs | 0.004 µs |
| surface mount | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL |
| VRRM (V) max | 30 | 40 | 20 |
| IF (A) max | 0.5 | 0.5 | 0.5 |
| VF (V) max | 0.43 | 0.62 | 0.385 |
| Condition1_IF (A) | 0.5 | 1 | 0.5 |
| IFSM (A) max | 2 | 2 | 2 |
| IR (uA) max | 130 | 20 | 250 |
| Condition2_VR (V) | 30 | 40 | 20 |
| trr (ns) max | 4 | 4 | 4 |
| AEC Qualified | No | No | No |
| MSL level | 1 | 1 | 1 |
| Is it lead-free? | Yes | Yes | Yes |
| Comply with Reach | Yes | Yes | Yes |
| RoHS compliant | Yes | Yes | Yes |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Package Outlines | SOD-323 | SOD-323 | SOD-323 |
| Maker | Galaxy Microelectronics | Galaxy Microelectronics | - |
| Maximum operating temperature | 125 | 125 | 100 |
| Minimum operating temperature | -55 | -55 | -55 |
| Base Number Matches | - | 1 | 1 |
