B0540W: Description0.5A,40V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 40V, 0.5A, 0.62V, 1A, 5.5A; File Size161KB，4 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

B0540W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B0540W	-	-	View	Buy Now

B0540W Overview

0.5A,40V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 40V, 0.5A, 0.62V, 1A, 5.5A

B0540W Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOD-123
Reach Compliance Code	unknown
category
Configuration	Single
VRRM (V) max	40
IF (A) max	0.5
VF (V) max	0.62
Condition1_IF (A)	1
IFSM (A) max	5.5
IR (uA) max	20
Condition2_VR (V)	40
trr (ns) max	-
AEC Qualified	No
Maximum operating temperature	125
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOD-123

Preview

Download Datasheet

View All

Production specification

Schottky Barrier Diode

FEATURES



Low forward voltage drop.

Guard ring construction for transient

Protection.

High conductance.

MSL 1

B0520LW/B0530W/B0540W

Lead-free

APPLICATIONS



0.5A surface mount schottky barrier rectifier.

SOD-123

ORDERING INFORMATION

Type No.

B0520LW

B0530W

B0540W

Marking

Package Code

SOD-123

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Reverse Voltage

RMS Reverse Voltage

Average Rectified Output Current @ T

= 100℃

Non-Repetitive Peak Forward Surge Current

8.3ms single half sine-wave superimposed on

rated load

Power Dissipation

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Voltage Rate of Change

Symbol

RRM

RWM

R(RMS)

0.5

B0520LW

B0530W

B0540W

Unit

FSM

5.5

θjA

stg

dv/dt

410

244

-65 to +125

1000

℃/W

℃

V/μs

A005

Rev.A

www.gmesemi.com

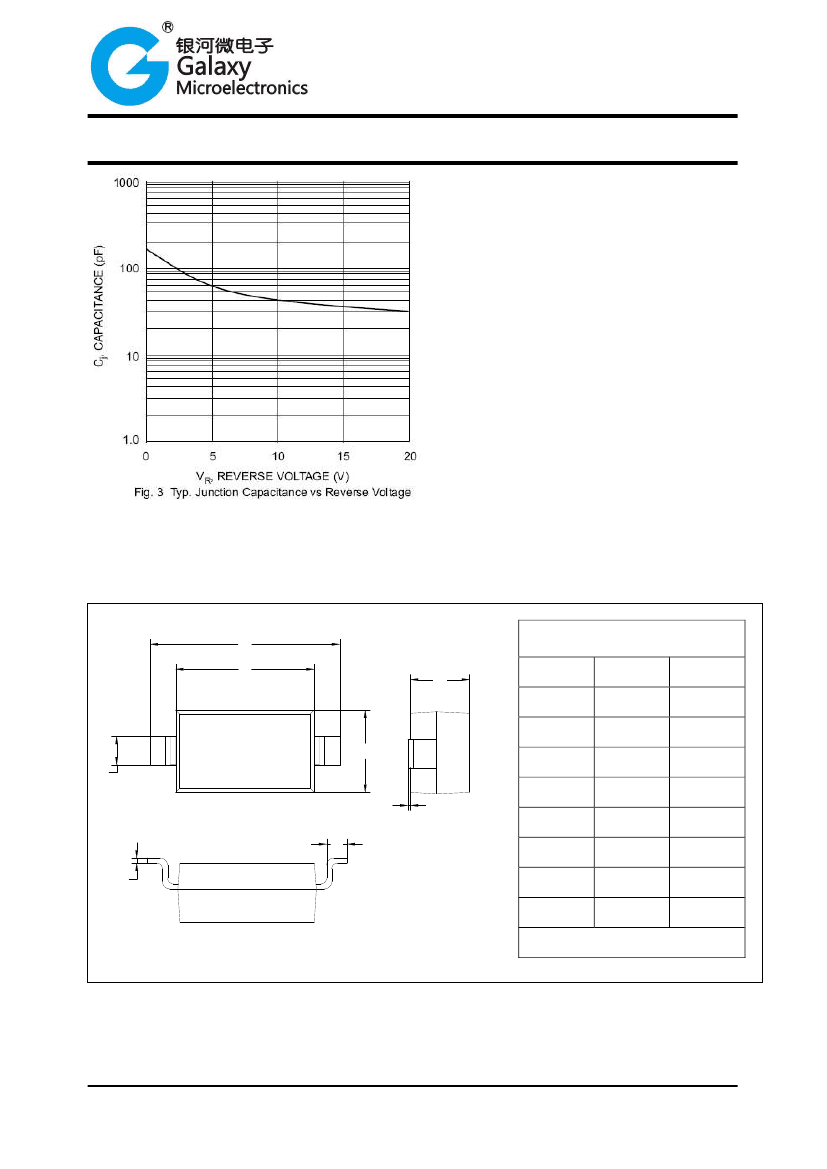

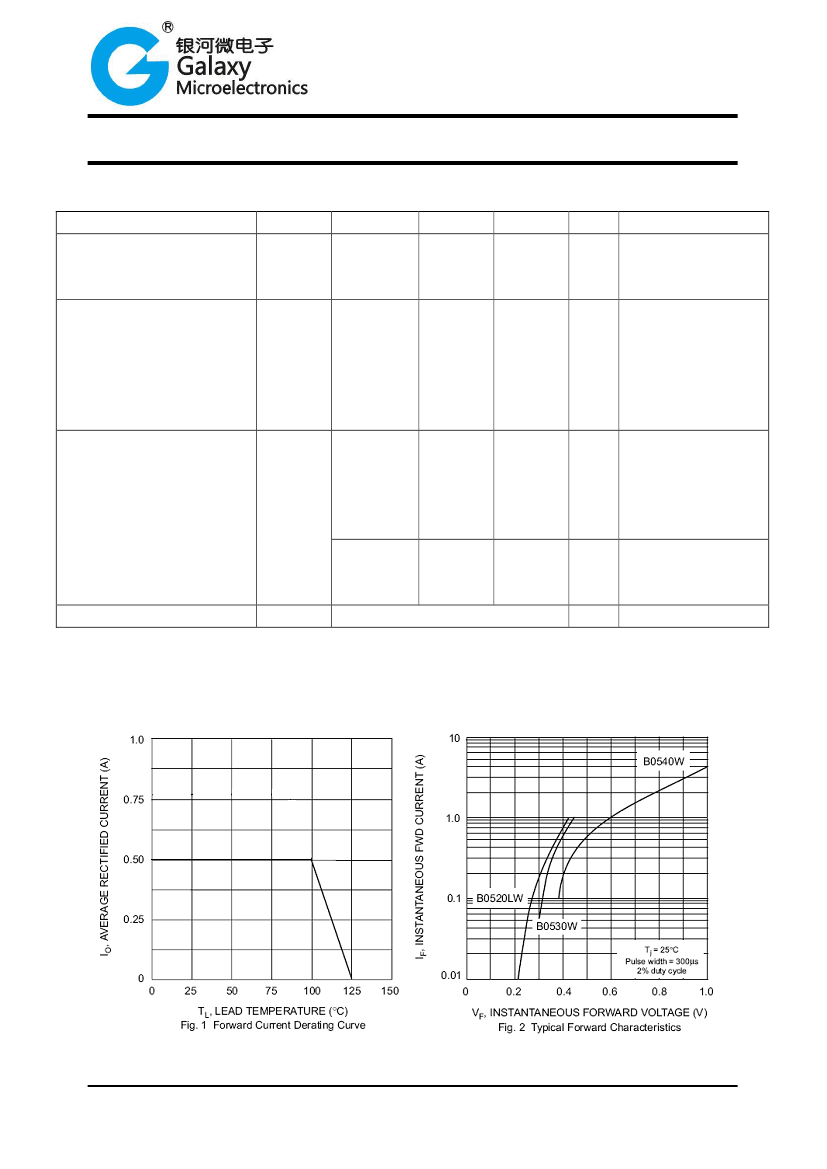

B0540W Related Products

	B0540W	B0530W	B0520LW
Description	0.5A,40V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 40V, 0.5A, 0.62V, 1A, 5.5A	0.5A,30V,Surface Mount Small Signal Schottky Diodes, Diode, Single, 30V, 0.5A, 0.43V, 0.5A, 5.5A	0.5A,20V,Surface Mount Small Signal Schottky Diodes, 二极管, Single, 20V, 0.5A, 0.385V, 0.5A, 5.5A
Configuration	Single	Single	Single
VRRM (V) max	40	30	20
IF (A) max	0.5	0.5	0.5
VF (V) max	0.62	0.43	0.385
Condition1_IF (A)	1	0.5	0.5
IFSM (A) max	5.5	5.5	5.5
IR (uA) max	20	130	250
Condition2_VR (V)	40	30	20
AEC Qualified	No	No	No
Maximum operating temperature	125	125	100
Minimum operating temperature	-65	-65	-65
MSL level	1	1	1
Is it lead-free?	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99
Package Outlines	SOD-123	SOD-123	SOD-123
Maker	Galaxy Microelectronics	Galaxy Microelectronics	-
Parts packaging code	SOD-123	SOD-123	-
Reach Compliance Code	unknown	unknown	-
