General Purpose Relays
Accessories Power Relay RM
I
I
For RM 2 / 3 pole, 10 / 16 A
RoHS compliant (Directive 2002/95/EC)
F0237-A

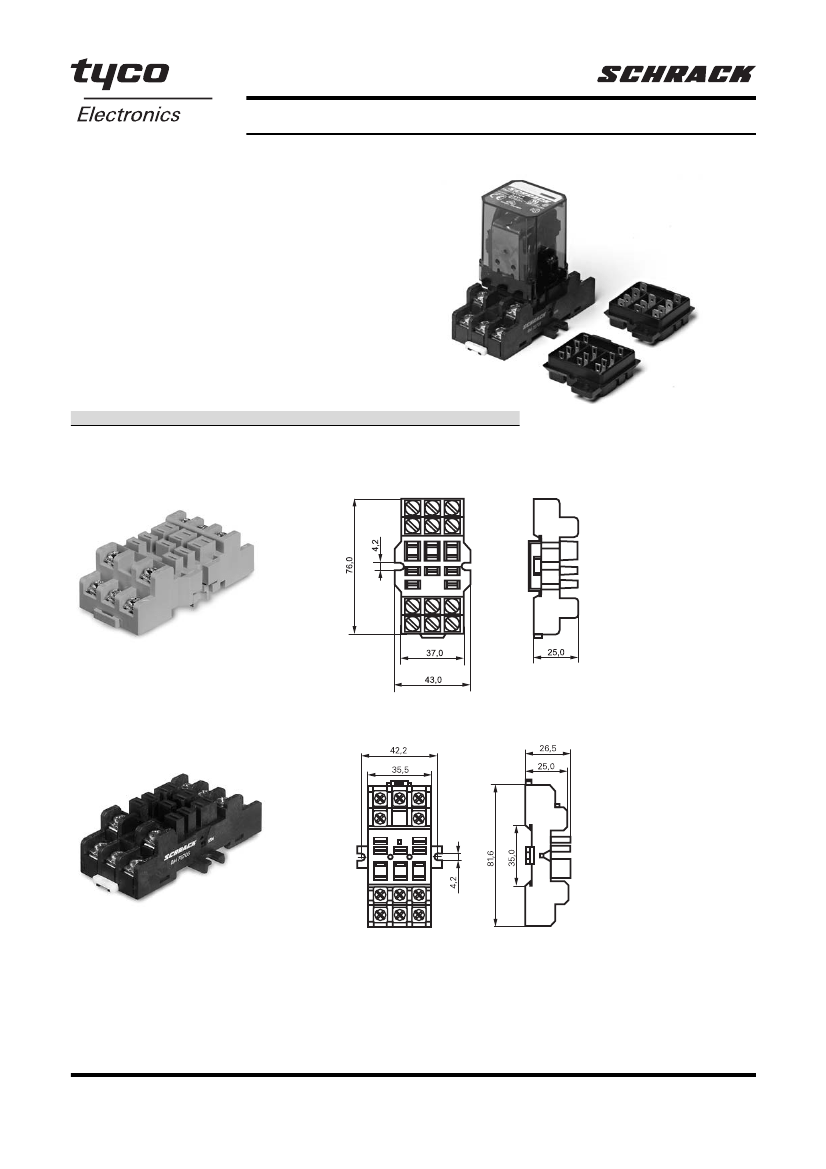

RM Sockets with screw-type terminals RM 78 704, RM 78 705
RM 78704
Socket with screw-type terminals
F0113-A
S0317-A
RM 78 705
Socket with screw-type terminals
F0114-A
S0318-A
1
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Accessories Power Relay RM
(Continued)
Approvals
V
REG.-Nr. 5333 ÜG-2 (RM 78 704), REG.-Nr. 4003144 in preparation
Technical data
RM 78 704
RM 78 705
Rated current
16 A
Rated voltage / max.switching voltage AC
380 VAC
250 VAC
Dielectric strength coil-contact circuit
2500 V
rms
open contact circuit
1500 V
rms
adjacent contact circuits
2500 V
rms
Clearance / creepage coil-contact circuit
W
4.0/14.9 mm
Material group of insulation parts
W
IIIa
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
basic
open contact circuit
functional
adjacent contact circuits
basic
Rated insulation voltage
250 V
Pollution degree
2
Rated voltage system
230/400 V
Overvoltage category
III
RoHS - Directive 2002/95/EC
RM 78 704
compliant as per product date code 0312
RM 78 705
compliant as per product date code 0522
Degree of protection DIN 40050
IP20
Ambient temperature range
-40...+50°C
-40...+40°C
Terminals
screw
Terminal screw torque acc. IEC 61984
0.8 Nm
max.
1.2 Nm
Wire cross section
single wire
2 x 2.5 mm
2
fine wire
2 x 2.5 mm
2
with bootlace crimp (DIN 46228/1)
2 x 1.5 mm
2
Insertion cycles
A (10)
Max. Insertion Force total
100 N
Mounting distance
0, dense packing
Weight
66 g
Packaging unit
100 pcs
Socket with screw-type terminals
Type
RM 78 704
RM 78 705
Socket with screw-type terminals
Socket with screw-type terminals
Part Number
2-1393844-4
2-1393844-5
2
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Accessories Power Relay RM
(Continued)

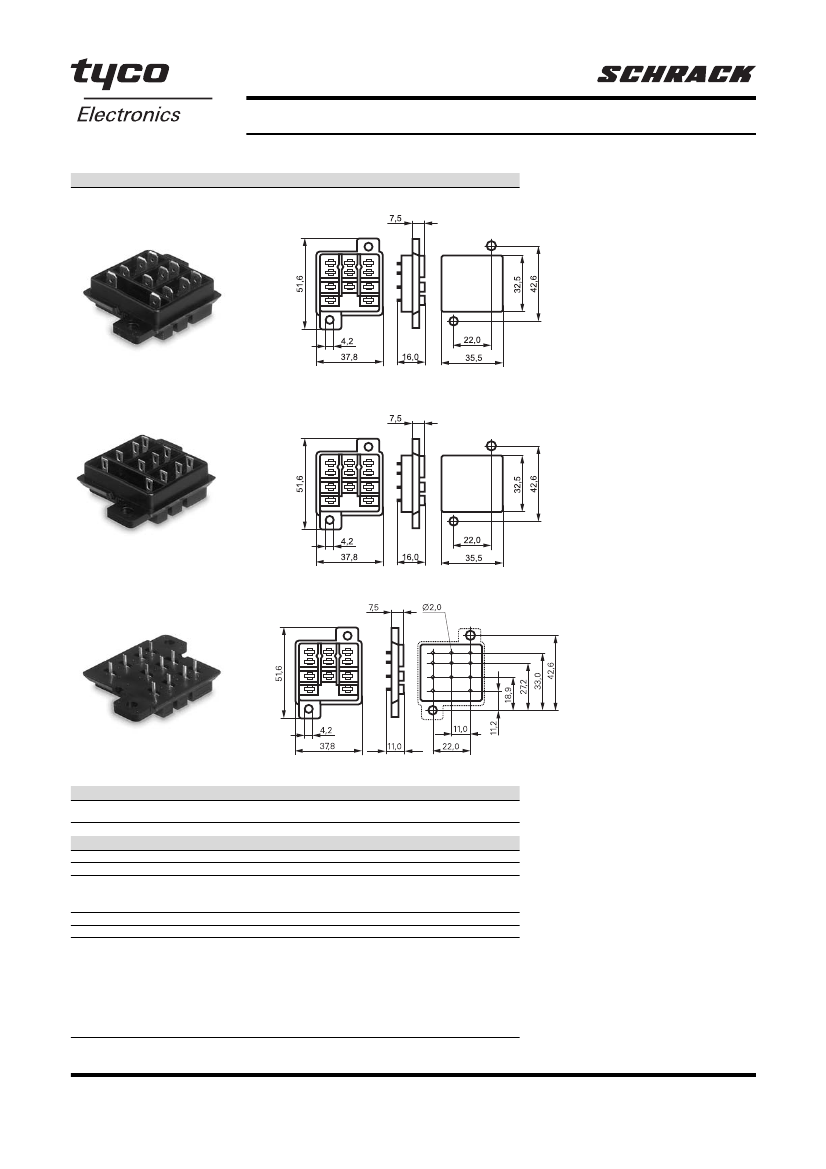

RM Sockets for PCB and with solder terminals RM 78 700/701/702
RM 78 700
Socket with quick connect terminals
Chassis cut-out
F0110-A
S0319-AA
RM 78 701
Socket with solder terminals
Chassis cut-out
F0111-A
S0319-AA
RM 78 702
Socket with PCB terminals
F0112-A
S0319-AB
Approvals
Z
E135149
Technical data
Rated current
Rated voltage / max.switching voltage AC
Dielectric strength coil-contact circuit
open contact circuit
adjacent contact circuits
Clearance / creepage coil-contact circuit
Material group of insulation parts
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
adjacent contact circuits
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
RM 78 700/701/702
10 A
240/400 VAC
2500 V
rms
1500 V
rms
2500 V
rms
W
4.0/6.3 mm
W
IIIa
basic
functional
basic
250 V
2
230/400 V
III
3
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
General Purpose Relays
Accessories Power Relay RM
(Continued)
Technical data
(Continued)
RoHS - Directive 2002/95/EC
Degree of protection DIN 40050
Ambient temperature range
Terminals
Insertion cycles
Max. Insertion Force total
Mounting distance
Resistance to soldering heat
Weight
Packaging unit
RM 78 700/701/702
compliant
IP20
-40...+70°C
pcb, solder terminals
A (10)
100 N
0, dense packing
270°C / 10 s
9g
25 pcs
Sockets
Type
RM 78 700
RM 78 701
RM 78 702
Socket with quick connect terminals
Socket with solder terminals
Socket with PCB terminals
Part Number
1419118-6
4-1393149-9
2-1393844-3
Accessories for RM 78 700, RM 78 701, RM 78 702
Type
RM 28 802
Metal retaining clip RM
Part Number
1419118-5
4
Datasheet
Rev. FG1
Issued 2006/07
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
