D82C288-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> D82C288-10

D82C288-10: DescriptionControl/Command Signal Generator, 20MHz, CMOS, CDIP20, CERDIP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size700KB，21 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D82C288-10 Overview

Control/Command Signal Generator, 20MHz, CMOS, CDIP20, CERDIP-20

D82C288-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
Bus compatibility	80286
maximum clock frequency	20 MHz
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.825 mm
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	75 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR

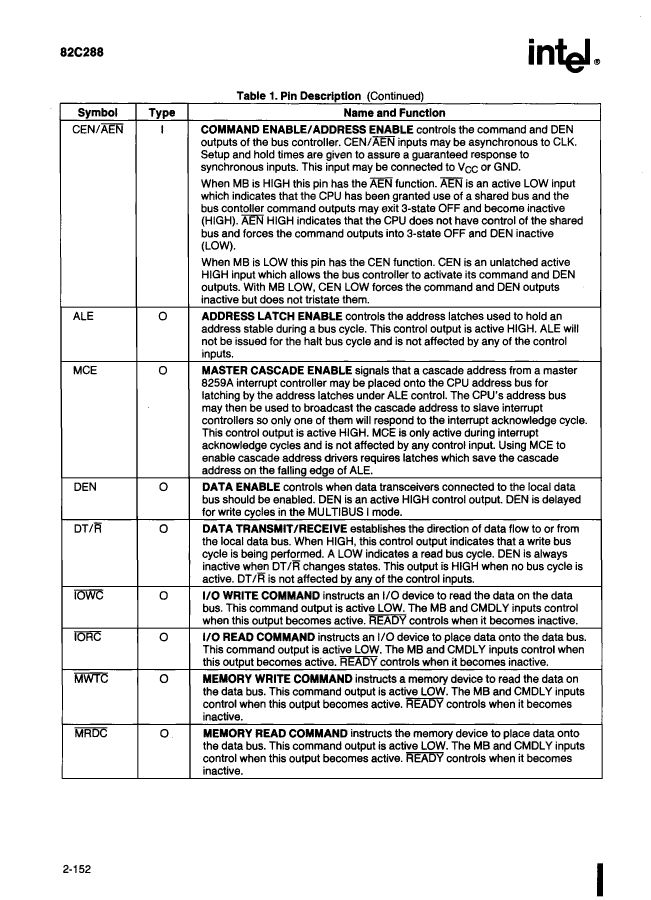

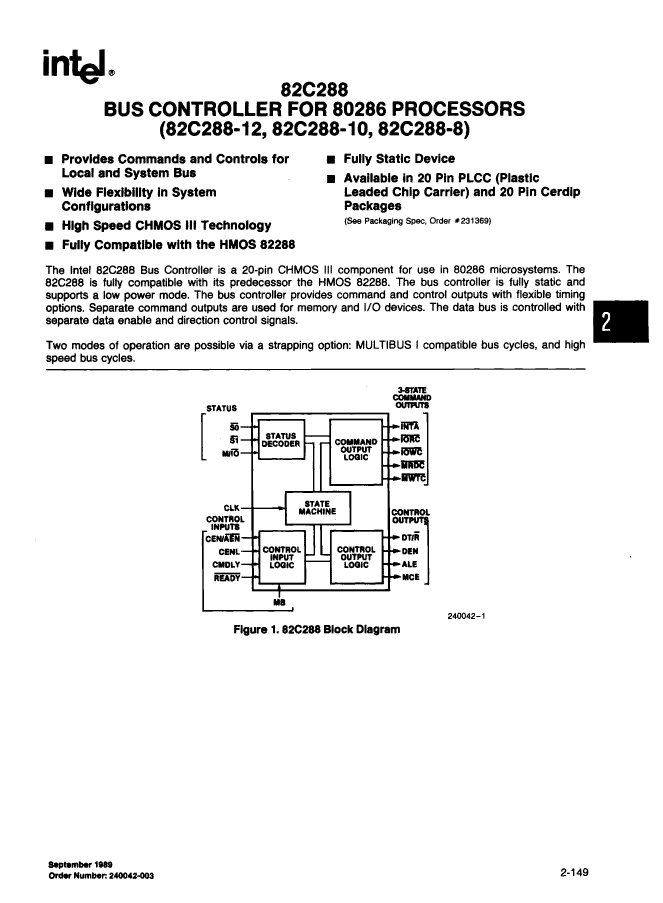

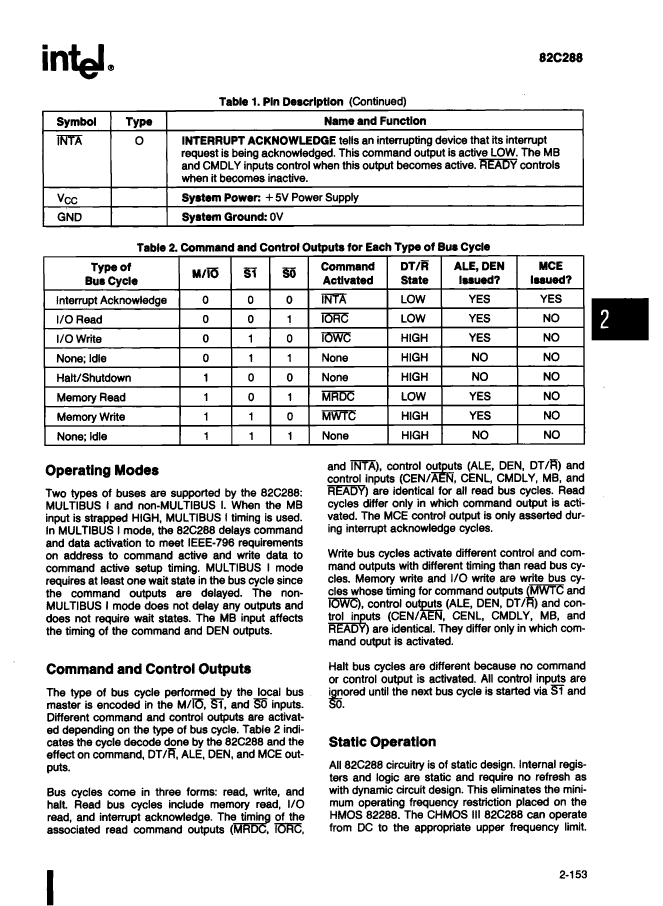

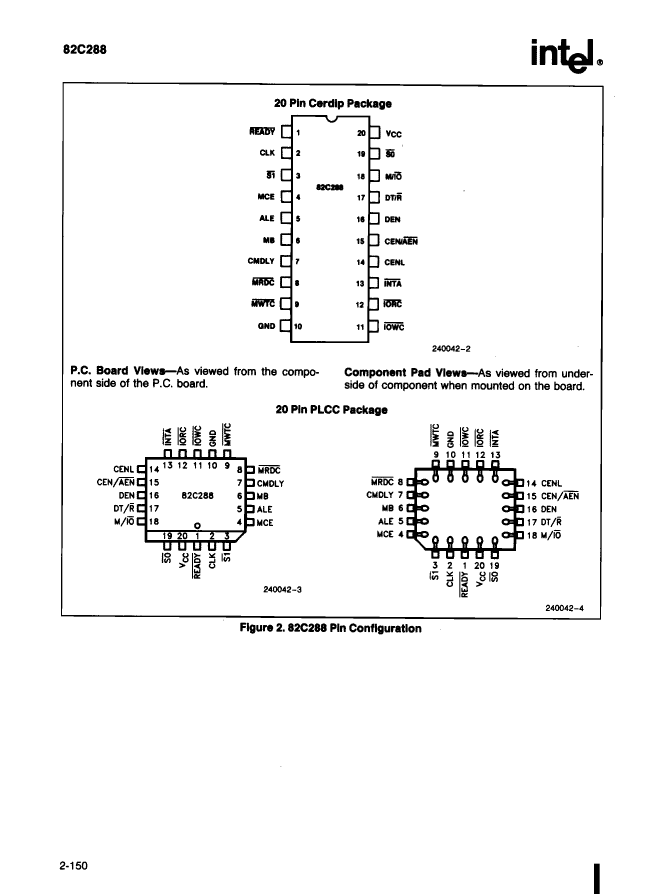

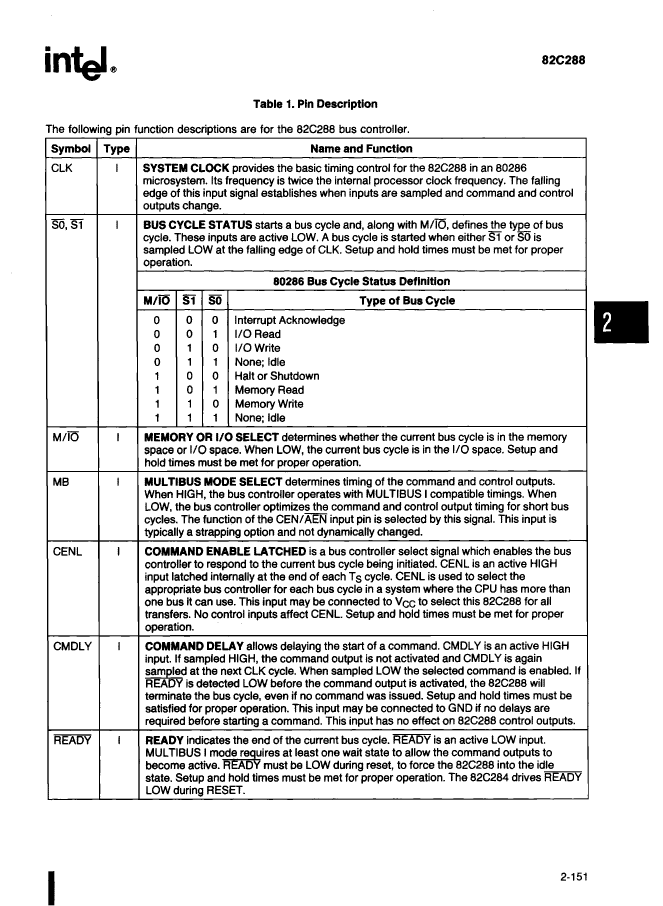

Preview

Download Datasheet

View All

D82C288-10 Related Products

	D82C288-10	N82C288-8	D82C288-12	D82C288-8	N82C288-12	N82C288-10
Description	Control/Command Signal Generator, 20MHz, CMOS, CDIP20, CERDIP-20	Control/Command Signal Generator, 16.13MHz, CMOS, PQCC20, PLASTIC, LCC-20	Control/Command Signal Generator, 25MHz, CMOS, CDIP20, CERDIP-20	Control/Command Signal Generator, 16.13MHz, CMOS, CDIP20, CERDIP-20	Control/Command Signal Generator, 25MHz, CMOS, PQCC20, PLASTIC, LCC-20	Control/Command Signal Generator, 20MHz, CMOS, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	DIP	QLCC	DIP	DIP	QLCC	QLCC
package instruction	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	DIP, DIP20,.3	DIP, DIP20,.3	QCCJ, LDCC20,.4SQ	QCCJ, LDCC20,.4SQ
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant
Bus compatibility	80286	80286	80286	80286	80286	80286
maximum clock frequency	20 MHz	16.13 MHz	25 MHz	16.13 MHz	25 MHz	20 MHz
JESD-30 code	R-GDIP-T20	S-PQCC-J20	R-GDIP-T20	R-GDIP-T20	S-PQCC-J20	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0	e0
length	24.825 mm	8.9662 mm	24.825 mm	24.825 mm	8.9662 mm	8.9662 mm
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	DIP	QCCJ	QCCJ
Encapsulate equivalent code	DIP20,.3	LDCC20,.4SQ	DIP20,.3	DIP20,.3	LDCC20,.4SQ	LDCC20,.4SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.57 mm	5.08 mm	5.08 mm	4.57 mm	4.57 mm
Maximum slew rate	75 mA	75 mA	75 mA	75 mA	75 mA	75 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.9662 mm	7.62 mm	7.62 mm	8.9662 mm	8.9662 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Base Number Matches	-	1	1	1	1	-
