DB536-E datasheet, PDF - EEWORLD Datasheet

DB536-E: DescriptionBase Station/Broadcast Transmission Antenna, 406MHz Min, 413MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size84KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

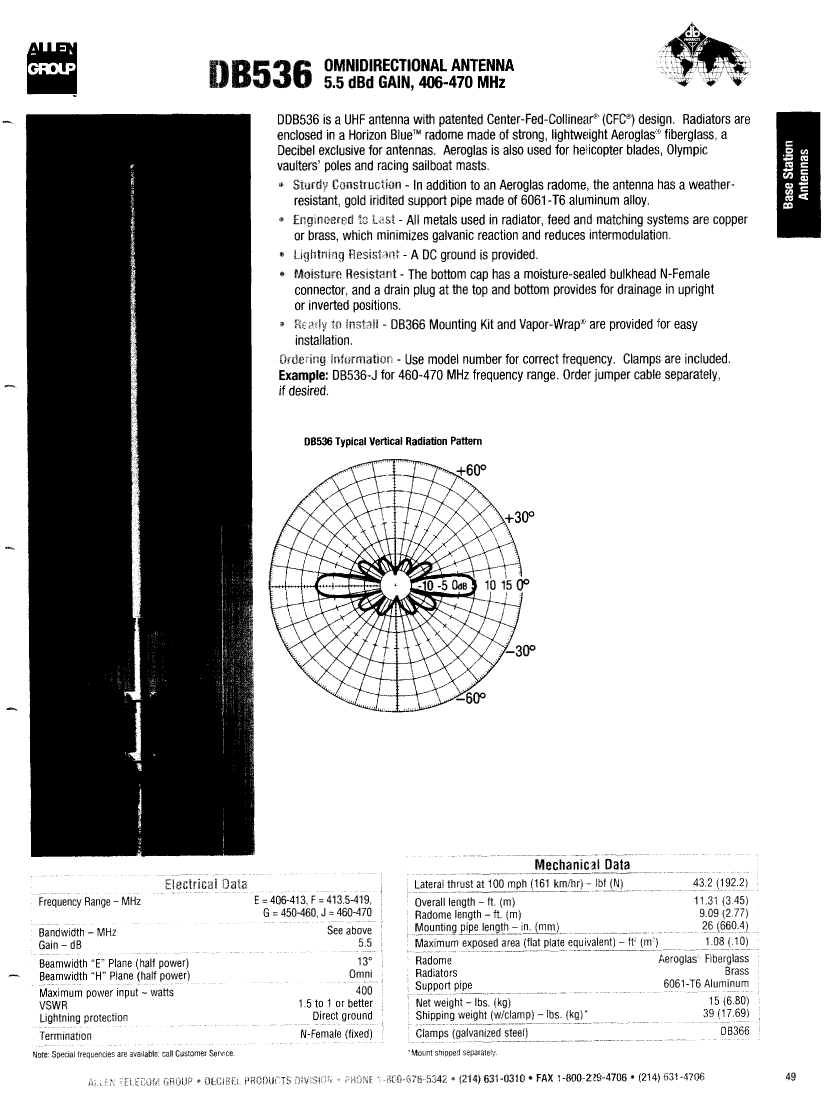

DB536-E Overview

Base Station/Broadcast Transmission Antenna, 406MHz Min, 413MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
application	MULTIPOINT COMMUNICATION SYSTEM
bandwidth	7 MHz
Beam Width-E	13 deg
Beamwidth-H	360 deg
Gain	7.65 dB
Omnidirectional	YES
Maximum operating frequency	413 MHz
Minimum operating frequency	406 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	400 W
Maximum voltage standing wave ratio	1.5

	DB536-E	DB536-F	DB536-G	DB536-J
Description	Base Station/Broadcast Transmission Antenna, 406MHz Min, 413MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 413.5MHz Min, 419MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 450MHz Min, 460MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 460MHz Min, 470MHz Max, 7.65dB Gain, 360deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
application	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM	MULTIPOINT COMMUNICATION SYSTEM
bandwidth	7 MHz	5.5 MHz	10 MHz	10 MHz
Beam Width-E	13 deg	13 deg	13 deg	13 deg
Beamwidth-H	360 deg	360 deg	360 deg	360 deg
Gain	7.65 dB	7.65 dB	7.65 dB	7.65 dB
Omnidirectional	YES	YES	YES	YES
Maximum operating frequency	413 MHz	419 MHz	460 MHz	470 MHz
Minimum operating frequency	406 MHz	413.5 MHz	450 MHz	460 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	400 W	400 W	400 W	400 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
