Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 7.5dB Noise Figure, Silicon
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Dynex |
| package instruction | R-CDMW-F2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Minimum breakdown voltage | 2 V |
| Configuration | SINGLE |
| Maximum diode capacitance | 0.18 pF |
| Diode component materials | SILICON |
| Diode type | MIXER DIODE |
| Maximum forward voltage (VF) | 0.2 V |
| frequency band | S BAND |
| maximum impedance | 400 Ω |
| JESD-30 code | R-CDMW-F2 |
| JESD-609 code | e0 |
| maximum noise index | 7.5 dB |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating frequency | 4 GHz |
| Minimum operating frequency | 2 GHz |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | MICROWAVE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Pulse input maximum power | 0.15 W |
| Minimum pulse input power | 0.3 W |
| Certification status | Not Qualified |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Schottky barrier type | MEDIUM BARRIER |

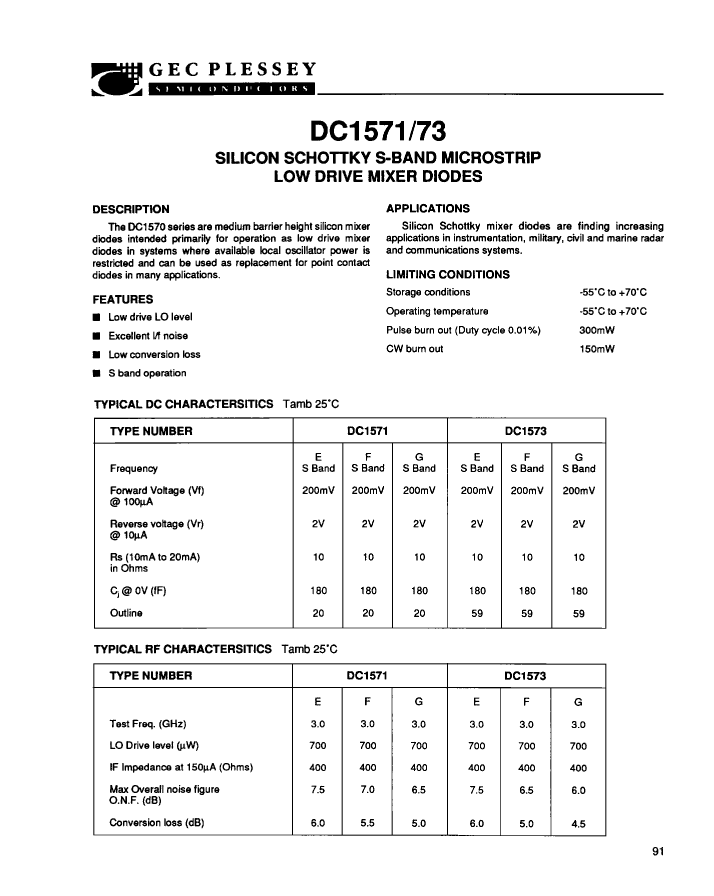

| DC1573E | DC1571E | DC1571F | DC1571G | DC1573F | DC1573G | |
|---|---|---|---|---|---|---|
| Description | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 7.5dB Noise Figure, Silicon | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 7.5dB Noise Figure, Silicon | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 7dB Noise Figure, Silicon | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 6.5dB Noise Figure, Silicon | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 6.5dB Noise Figure, Silicon | Mixer Diode, Medium Barrier, S Band, 400ohm Z(V) Max, 6dB Noise Figure, Silicon |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | R-CDMW-F2 | R-CDMW-N2 | R-CDMW-N2 | R-CDMW-N2 | R-CDMW-F2 | R-CDMW-F2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Minimum breakdown voltage | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum diode capacitance | 0.18 pF | 0.18 pF | 0.18 pF | 0.18 pF | 0.18 pF | 0.18 pF |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE |
| Maximum forward voltage (VF) | 0.2 V | 0.2 V | 0.2 V | 0.2 V | 0.2 V | 0.2 V |
| frequency band | S BAND | S BAND | S BAND | S BAND | S BAND | S BAND |
| maximum impedance | 400 Ω | 400 Ω | 400 Ω | 400 Ω | 400 Ω | 400 Ω |
| JESD-30 code | R-CDMW-F2 | R-CDMW-N2 | R-CDMW-N2 | R-CDMW-N2 | R-CDMW-F2 | R-CDMW-F2 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| maximum noise index | 7.5 dB | 7.5 dB | 7 dB | 6.5 dB | 6.5 dB | 6 dB |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating frequency | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Minimum operating frequency | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | MICROWAVE | MICROWAVE | MICROWAVE | MICROWAVE | MICROWAVE | MICROWAVE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Pulse input maximum power | 0.15 W | 0.15 W | 0.15 W | 0.15 W | 0.15 W | 0.15 W |
| Minimum pulse input power | 0.3 W | 0.3 W | 0.3 W | 0.3 W | 0.3 W | 0.3 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | NO LEAD | NO LEAD | NO LEAD | FLAT | FLAT |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Schottky barrier type | MEDIUM BARRIER | MEDIUM BARRIER | MEDIUM BARRIER | MEDIUM BARRIER | MEDIUM BARRIER | MEDIUM BARRIER |
| Maker | Dynex | Dynex | - | - | Dynex | Dynex |
