890-90-036-10-800 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 890-90-036-10-800

890-90-036-10-800: Description36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

890-90-036-10-800 Overview

36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

890-90-036-10-800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.112 inch
subject depth	0.1 inch
body length	3.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1800VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	890
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	150u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

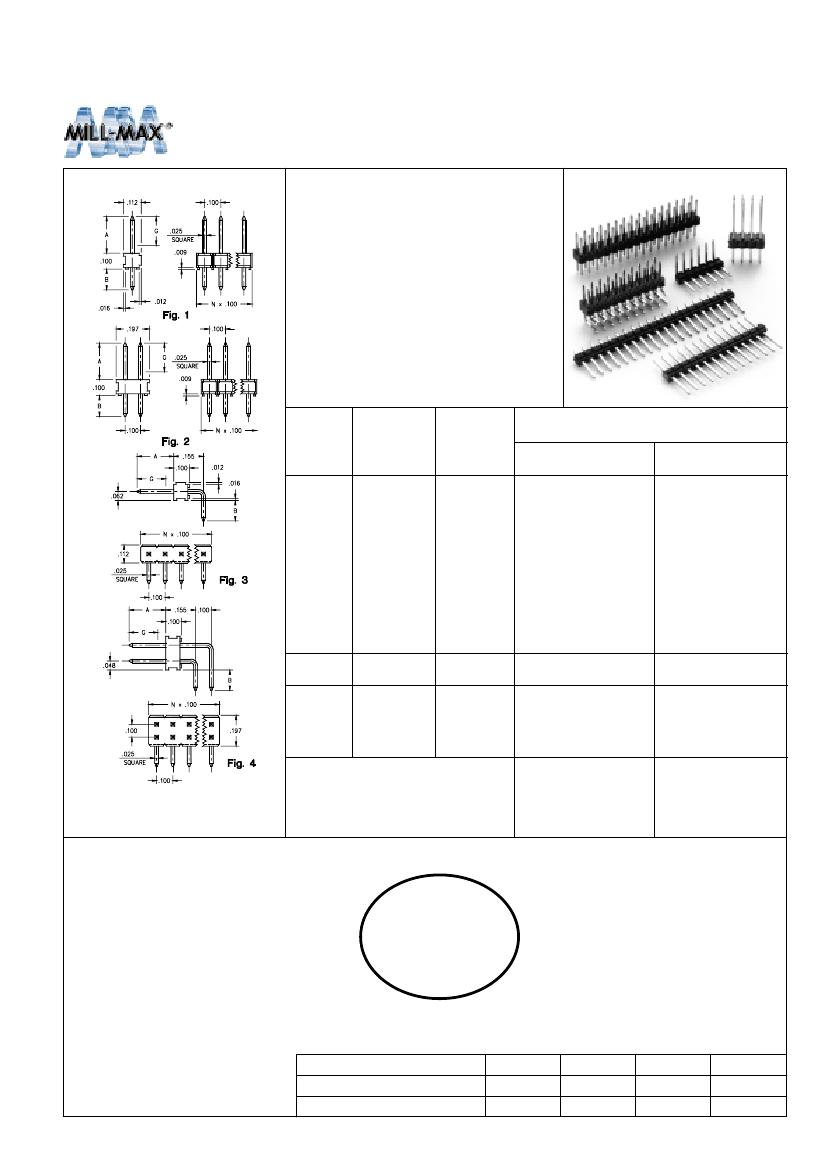

INTERCONNECTS

.025” Square Pin Headers

Single and Double Row

•

Square pin headers may be used

as board-to-board interconnects

using series 801, 803 socket

strips; or as a hardware program-

ming switch with series 999 color

coded jumpers.

Single and double row strips are

available with straight or right

angle solder tails.

Series 890, 892

•

Current rating is 1 amp.

•

Insulator is std. temp.

thermoplastic.

TAIL

LENGTH

LENGTH OF

SELECTIVE

GOLD

LENGTH

Ordering Information

Single Row Fig.1

Vertical Mount

890-XX-XXX-10-802

890-XX-XXX-10-803

890-XX-XXX-10-805

890-XX-XXX-10-806

890-XX-XXX-10-807

890-XX-XXX-10-808

890-XX-XXX-10-800

890-XX-XXX-10-809

Single Row Fig.3

Right Angle

Double Row Fig.2

Vertical Mount

892-XX-XXX-10-802

892-XX-XXX-10-803

892-XX-XXX-10-805

892-XX-XXX-10-806

892-XX-XXX-10-807

892-XX-XXX-10-808

892-XX-XXX-10-800

892-XX-XXX-10-809

Double Row Fig.4

Right Angle

892-XX-XXX-20-902

.230

.235

.230

.265

.335

.100

.120

.205

.305

.405

.505

.135

.100

min.

.180

.215

.285

.230

.115

.180

890-XX-XXX-20-902

Specify number

of pins XXX:

From 002

036

Specify total

no. of pins XXX:

From 004 (2x2)

072 (2x36)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

150µ” Sn/Pb

Pin (Dim ‘A’)

Tail (Dim ‘B’)

150µ” Sn/Pb 150µ” Sn/Pb 150µ” Sn/Pb
