REVISIONS
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DWG FORMAT
DATE
11DEC13
BY
DRP
APPR
-
37
TITLE:

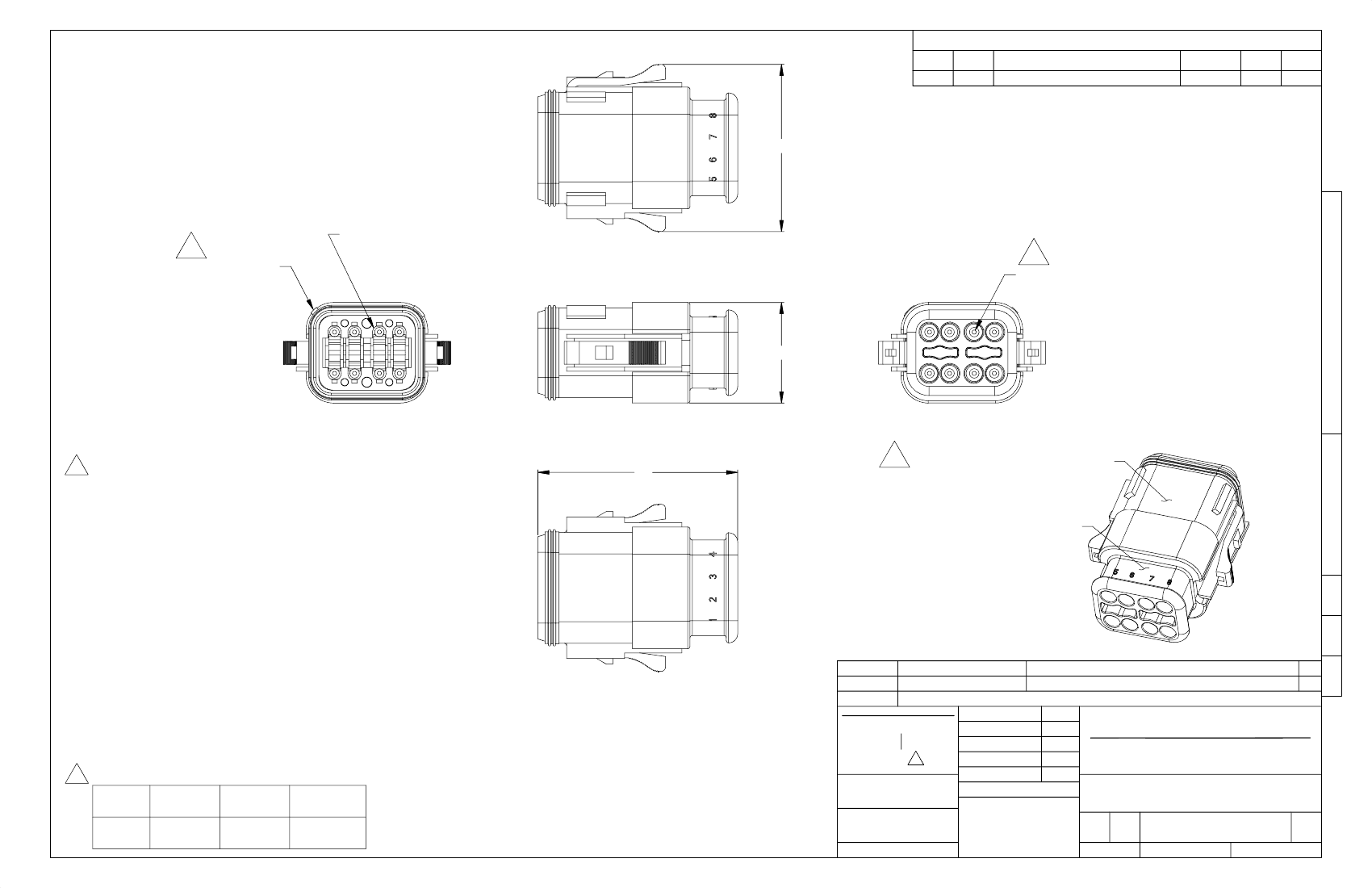

PLUG,8 SOCKET,AT,KEYED,STRAIN RELIEF,REDUCED DIA SEAL
REQUIRES CONTACT
RETENTION WEDGE AW8S
1
KEYED (2) PLACES
7
REDUCED DIAMETER
WIRE SEAL
22.2
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: STRAIN RELIEF END CAP;
REDUCED DIA. WIRE SEAL
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT04-08PX* RECEPTACLE
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
16
MIN. INSUL
O.D.
1.35 mm
(.053 in)
MAX. INSUL
O.D.
3.05 mm
(.120 in)
TYPICAL
WIRE RANGE
14 - 20 AWG
NEXT ASS'Y:
DWG NO:
1
44
REFER TO SHEET 2 FOR AVAILABLE
CONNECTOR HOUSING COLORS
AT06-08SX-SR2XX
STRAIN RELIEF END CAP -
BLACK - ALL CONNECTORS
REV:
A3
SH:
1
OF:
SEE PART NUMBER CHART
DESCRIPTION
PART NUMBER
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
ITEM
2
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
DATE
D.PARKS
11DEC13
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 8 SOCKET, AT SERIES, KEYED, STRAIN
RELIEF END CAP, REDUCED DIAMETER SEAL
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-08SX-SR2XX
SHEET
A3
OF
1
2
REVISIONS
REV
ECO
DESCRIPTION
DATE
BY
APPR

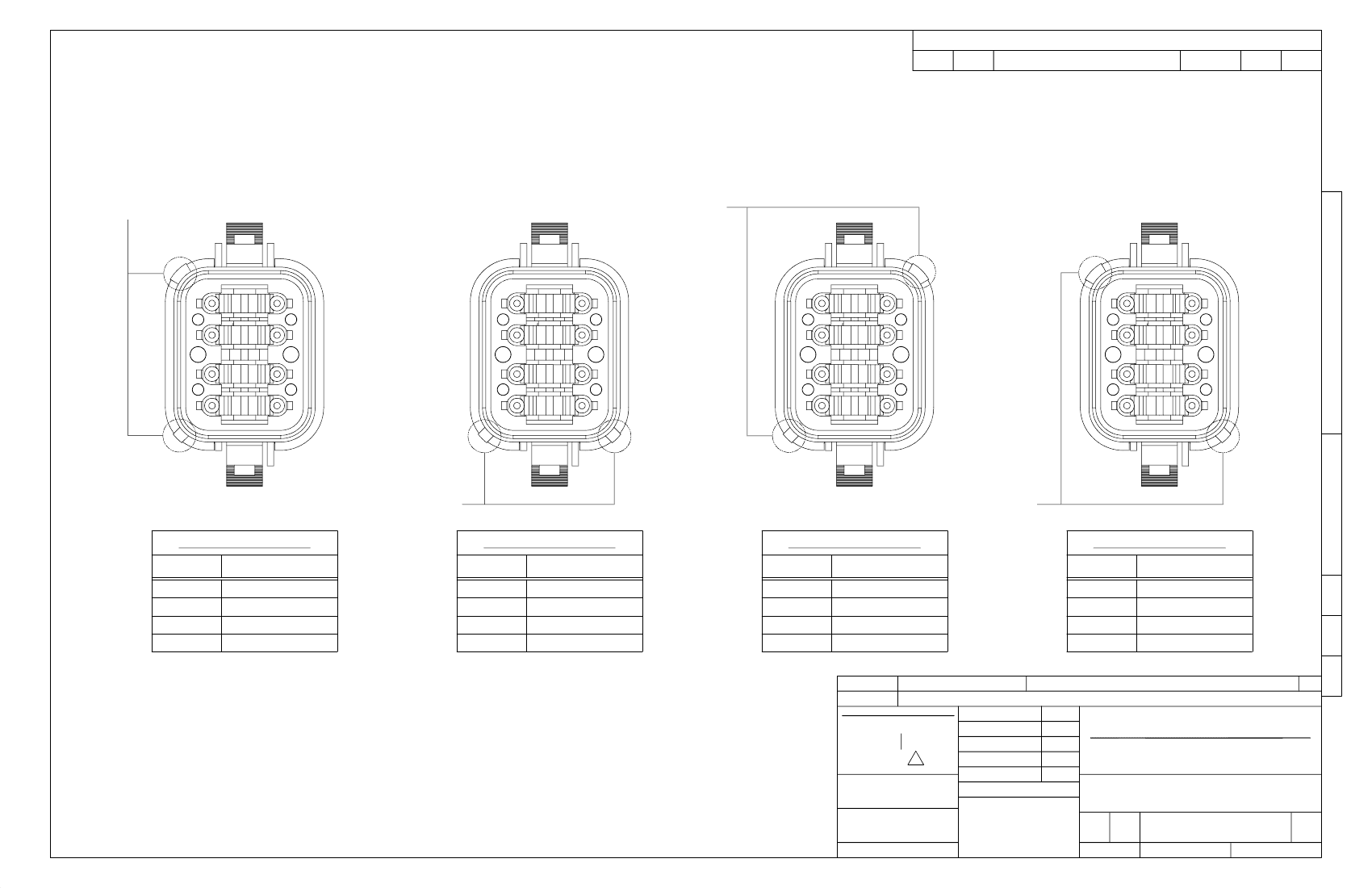

P/N AT06-08SA-SR2GY
KEY-A CONFIGURATION
STANDARD COLOR: GREY
KEYED
(2) PLACES
P/N AT06-08SB-SR2BK
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
KEYED
(2) PLACES
P/N AT06-08SC-SR2GN
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N AT06-08SD-SR2BR
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
PLUG,8 SOCKET,AT,KEYED,STRAIN RELIEF,REDUCED DIA SEAL
DWG NO:
AT06-08SX-SR2XX
KEYED
(2) PLACES
KEY-A CONFIGURATION
COLOR
GREY
*
BLACK
GREEN
BROWN
PART NUMBER
AT06-08SA-SR2GY
AT06-08SA-SR2BK
AT06-08SA-SR2GN
AT06-08SA-SR2BR
KEY-B CONFIGURATION
COLOR
GREY
PART NUMBER
AT06-08SB-SR2GY
AT06-08SB-SR2BK
AT06-08SB-SR2GN
AT06-08SB-SR2BR
KEY-C CONFIGURATION
COLOR
GREY
BLACK
GREEN
*
BROWN
PART NUMBER
AT06-08SC-SR2GY
AT06-08SC-SR2BK
AT06-08SC-SR2GN
AT06-08SC-SR2BR
KEYED
(2) PLACES
KEY-D CONFIGURATION
COLOR
GREY
BLACK
GREEN
PART NUMBER
AT06-08SD-SR2GY
AT06-08SD-SR2BK
AT06-08SD-SR2GN
AT06-08SD-SR2BR
REV:
A3
*
BLACK
GREEN
BROWN
SH:
*
BROWN
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
2
OF:
NOTE:
AN ASTERISKS (
*
) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE. STRAIN RELIEF END
CAPS ARE AVAILABLE IN BLACK ONLY.
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
DATE
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
D.PARKS
11DEC13
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 8 SOCKET, AT SERIES, KEYED, STRAIN
RELIEF END CAP, REDUCED DIAMETER SEAL
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-08SX-SR2XX
SHEET
A3
OF
2
2
