TITLE:

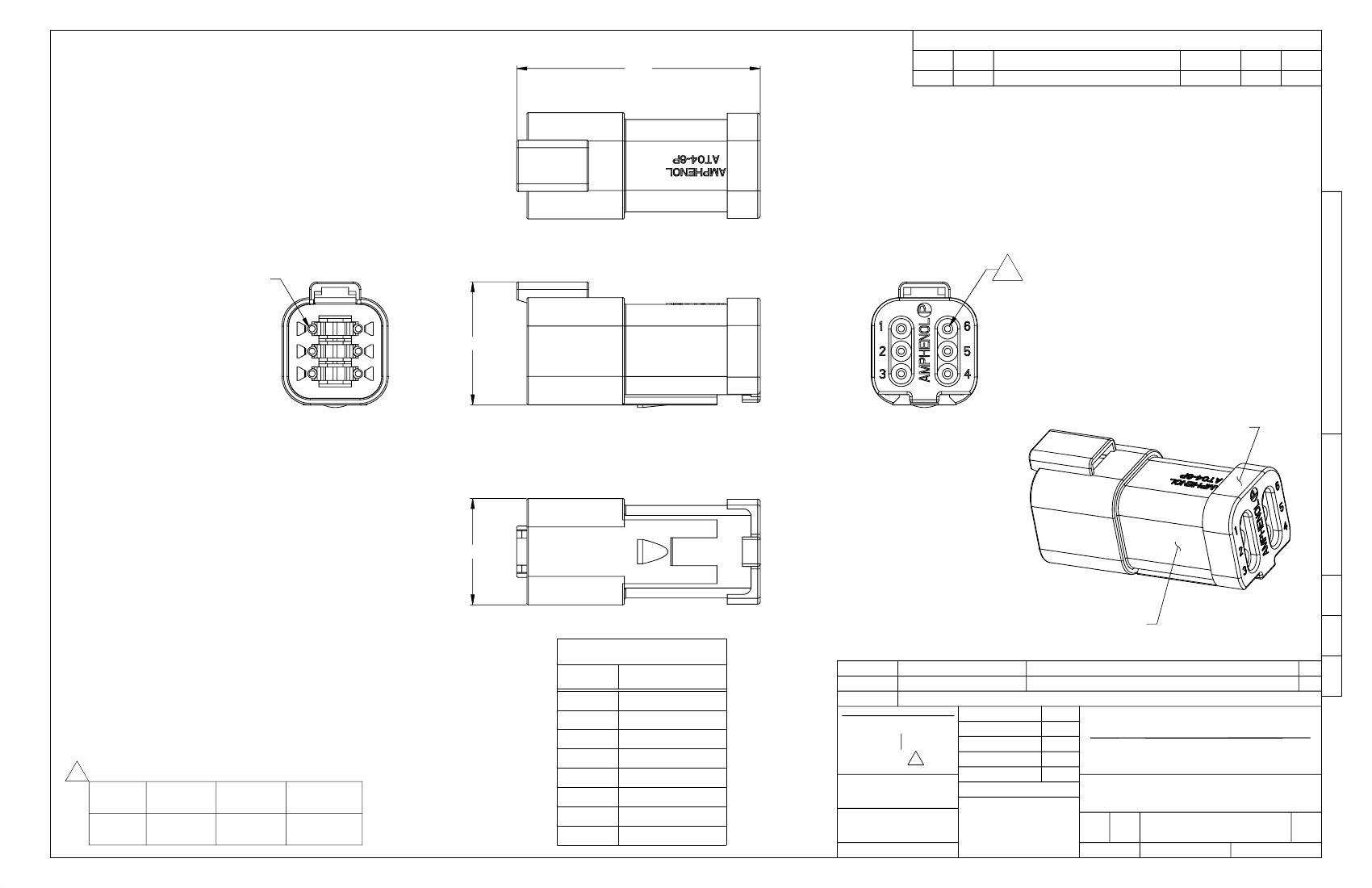

RECEPTACLE, 6 PIN, AT SERIES, END CAP
REQUIRES CONTACT
RETENTION WEDGE AW6P
6
24.4
END CAP
DWG NO:
NOTES: UNLESS OTHERWISE SPECIFIED
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
2. MODIFICATIONS: END CAP
3. SPECIFICATIONS:
3.1 CURRENT RATING: 13 AMPS
3.2 OPERATING TEMPERATURE: -55°C TO +125°C
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
4. MATING PART: AT06-6S* PLUG
( * = MODIFICATIONS AND COLORS )
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
6 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
16
MIN. INSUL
O.D.
2.24 mm
(.088 in)
MAX. INSUL
O.D.
3.68 mm
(.145 in)
TYPICAL
WIRE RANGE
14 - 20 AWG
21
AT04-6P-EC01XXX
REV:
A3
STANDARD MOLDED COLOR IS GREY. ADDITIONAL
COLORS SHOWN IN PART NUMBER CHART ARE
AVAILABLE VIA SPECIAL ORDER.
PART NUMBER CHART
SEE PART NUMBER CHART
DESCRIPTION
PART NUMBER
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
SH:
1
OF:
COLOR
GREY
BLACK
BLUE
BROWN
GREEN
RED
WHITE
YELLOW
PART NUMBER
AT04-6P-EC01
AT04-6P-EC01BLK
AT04-6P-EC01BLU
AT04-6P-EC01BRN
AT04-6P-EC01GRN
AT04-6P-EC01RED
AT04-6P-EC01WHT
AT04-6P-EC01YEL
ITEM
1
DATE
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
JARRY
03JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
RECEPTACLE, 6 PIN, AT SERIES, END CAP
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
REVISION
B C-
NONE
AT04-6P-EC01XXX
SHEET
A3
OF
1
1
