DAPL15P564LTXLF datasheet, PDF

DAPL15P564LTXLF: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, M3, LEAD FREE; CategoryThe connector The connector; File Size206KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

DAPL15P564LTXLF Overview

D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, M3, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1988629165
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.18
Other features	LATCHED
body width	0.479 inch
body length	1.526 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact row spacing	2.54 mm
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.157 inch
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

0.5

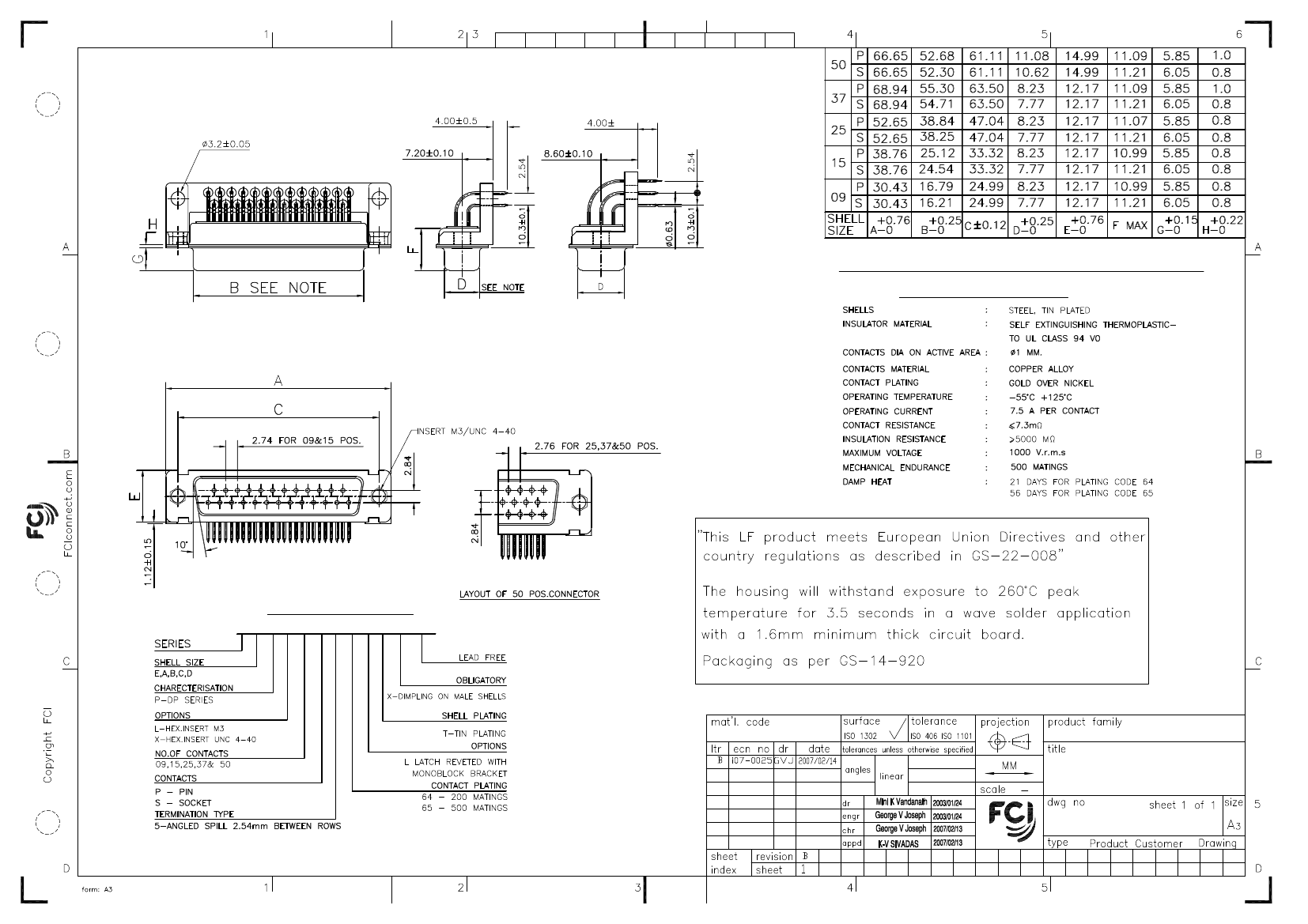

NOTE:-INSIDE DIMENSIONS OF MALE AND OUTSIDE DIMENSIONS OF THE FEMALE CONNECTOR.

TECHNICAL SPECIFICATIONS

ORDERING INFORMATION

D D P L 50 P 5 65 U T X LF

D-SUB

PIN CONNECTORS D-SUB

UT VERSION

C01-8637-1606

PDM: Rev:B

STATUS:

Released

Printed: Jan 23, 2008
