INVADER™
- Solid State Mini-Cell Design
ANTENEX
®
is proud to introduce a new compact line of
fiberglass base station antennas. The Invader™ is a low visibility
an-tenna intended for local coverage applications in urban sites.
From Analog to Digital, DATA to SCADA, the technical
specifications for antennas have reached far beyond what was
®
acceptable just a decade ago.
ANTENEX
takes pride in
leading the industry to higher standards than ever before.
A tuned bandwidth-expanding network is integral to the
Invader™ antenna, which ensures an excellent VSWR over both
the up link and down link portions of the desired frequency band.
800/900 MHz Invader™ antennas are end-fed collinear
antennas with a down-tilt radiating pattern and are intended for
local cover-age operation in high-density urban sites where
coverage below the antenna is crucial. These antennas are more
compact, lower in cost, and shorter in length than comparable
parallel-fed antennas.
1.8 GHz, 2.1 GHz and 2.4 GHz Invader™ antennas are
parallel-fed collinear antennas with no down-tilt and are intended
for generalpurpose applications. Parallel-fed collinear antennas
have an increased efficiency at microwave frequencies, a more
constant radiation angle with frequency and have better immunity
to detuning from icing and rain than the typical end-fed collinear.
ANTENEX
®
has chosen to lead the way in the design of these
antennas to provide a superior product in a market that shows
great promise for growth over the next decade.
Both end-fed and parallel-fed models are available with
built in “N”-female connectors. End-fed models are also available
with pigtail connectors.

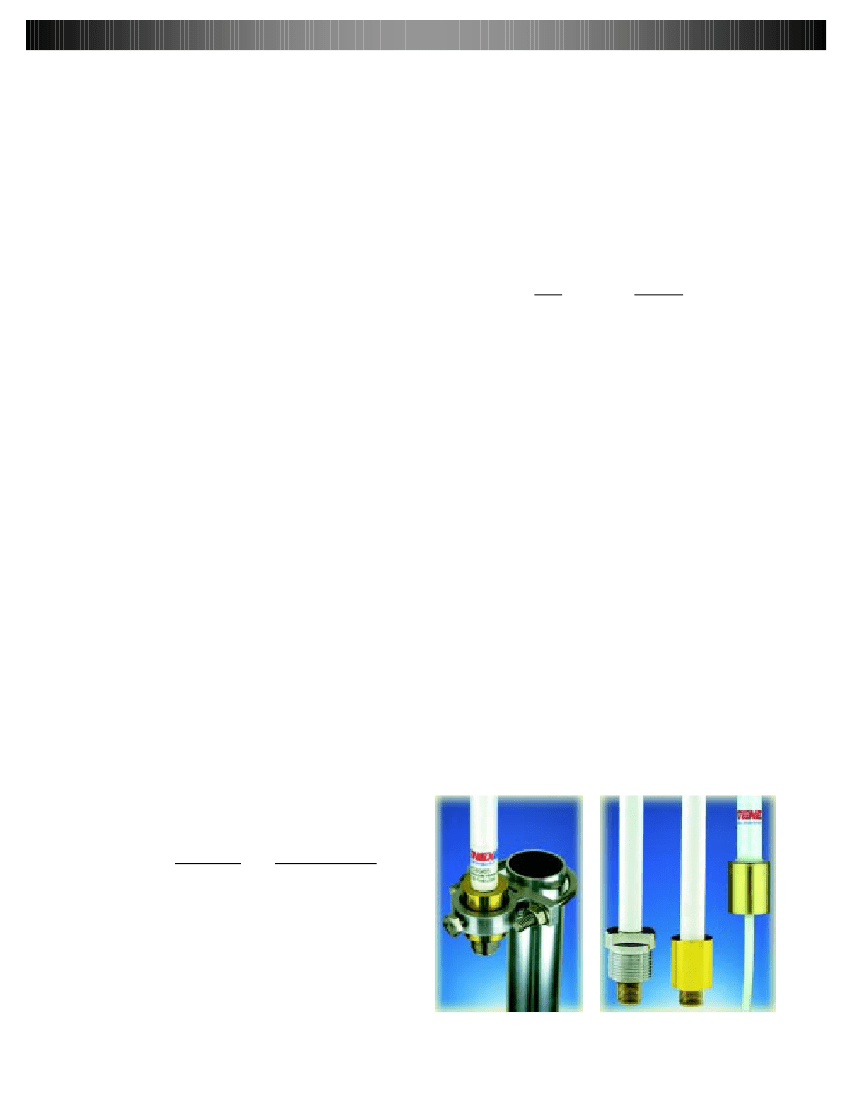

The standard Invader™ features a 1” marine style
threaded base mount and is excellent for pass through mounting
on telemetry enclosures. The sleeve version identified by the “SL”
suffix easily mounts to a mast with the new FMCB mount, see
page 11. The FMCB mount makes a great wall bracket when the
“U” bolt is removed. An economical choice is the pigtail version,
suffixed with “P”.
We are often questioned about the down-tilt aspect on the
800 and 900 MHz urban Invader™ as this pattern puts a signal
null on the horizon. Our down-tilt angle was selected to minimize
the signal power that is wasted above the horizon and maximizes
the signal that is delivered into the antenna’s service area. The
sophisticated user recognizes that at these frequencies, when the
antennas are located only a few feet off the ground, all signal
paths are achieved by reflection. A 20-degree down-tilt angle
therefore provides the maximum signal into the areas where
propagation is desired. As down-tilt is most easily achieved in end-
fed collinear antennas, this geometry was selected for our urban
Invader™ models. All Invader™ models are tested on a HP®
network analyzer prior to shipment.
Ordering Guide -
Clear, Easy & Sensible!
FMC8243
=
Invader™
Fiberglass Mini-Cell Antenna, 824-896 MHz, 3dBd Gain, with Marine Base
.
FMC
824
Antenna Style
Frequency
FMC
=
Inader™
Fiberglass Mini-Cell Antenna
Frequency component of part number in bold below:
806-869
824-896
896-960
1850-1970 2130-2200 2400-2500
0
= Unity
6
= 6 dBd
3
= 3 dBd
9
= 9 dBd
5
= 5 dBd
3
Blank
Gain
Mount
Blank
= Threaded Marine Mount 14 tpi
SL
= Sleeve Aluminum Mount (requires brackets)
P
= Pigtail Version
THREADED BASE
Model
Frequency
800/900 MHz UNITY GAIN THREADED MODELS
FMC8060
FMC8240
FMC8960
806-869 MHz
824-896 MHz
896-960 MHz
Unity
Unity
Unity
1.8 , 2.1 AND 2.4 GHz UNITY GAIN THREADED MODELS
FMC18500
FMC21300
FMC24000
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
Unity
Unity
Unity
800/900 MHz 3 dB GAIN THREADED MODELS
FMC8063
FMC8243
FMC8963
806-869 MHz
824-896 MHz
896-960 MHz
3 dBd
3 dBd
3 dBd
1.8, 2.1, AND 2.4 GHz 3 dB GAIN THREADED MODELS
FMC18503
FMC21303
FMC24003
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
3 dBd
3 dBd
3 dBd
800/900 MHz 5 dB GAIN THREADED MODELS
FMC8065
FMC8245
FMC8965
806-869 MHz
824-896 MHz
896-960 MHz
5 dBd
5 dBd
5 dBd
1.8, 2.1 AND 2.4 GHz 6 dB GAIN THREADED MODELS
FMC18506
FMC21306
FMC24006
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
6 dBd
6 dBd
6 dBd
1.8, 2.1 AND 2.4 GHz 9 dB GAIN THREADED MODELS
FMC18509
FMC21309
FMC24009
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
9 dBd
9 dBd
9 dBd
SLEEVE BASE
800/900 MHz UNITY GAIN SLEEVE MODELS
FMC8060SL
FMC8240SL
FMC8960SL
806-869 MHz
824-896 MHz
896-960 MHz
Unity
Unity
Unity
Technical Data -
Product Features & Information
•
•
•
•
Gain:
Frequency:
Radome Diameter:
Length:
0 dBd
3 dBd
5 dBd
6 dBd
9 dBd
VSWR:
Power:
Impedance:
Ground Plane:
Connector:
Wind Load:
Polarization:
Beam Tilt:
Mounting:
800/900 Models
See model.
See model.
½”
9”
16”
24”
1.8, 2.1, 2.4 GHz Models
See model.
See model.
¾”
9”
12”
•
•
•
•
•
•
•
•
•
25”
50”
<1.5:1 in specified band <2.0:1 in specified band
25 watts
25 watts
50 ohms, DC continuity 50 ohms, DC continuity
None required
None required
ype “N”-female or pigtail with RG316 and type “TNC”
125 M.P.H.
100 M.P.H.
Vertical
Vertical
-20 degrees
0 degrees
1”, 14 TPI Marine Thread or 1” OD mounting sleeve
Threaded, Sleeve, and
Pigtail Models
FMCB Mount
10
ANTENEX
TM
®
INC.
Model
FMC18500SL
FMC21300SL
FMC24000SL
Frequency
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
Gain
Unity
Unity
Unity
1.8, 2.1 AND 2.4 GHz UNITY GAIN SLEEVE MODELS
800/900 MHz 3 dB GAIN SLEEVE MODELS
FMC8063SL
FMC8243SL
FMC8963SL
806-869 MHz
824-896 MHz
896-960 MHz
3 dBd
3 dBd
3 dBd
1.8, 2.1 AND 2.4 GHz 3 dB GAIN SLEEVE MODELS
FMC18503SL
FMC21303SL
FMC24003SL
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
3 dBd
3 dBd
3 dBd
800/900 MHz 5 dB GAIN SLEEVE MODELS
FMC8065SL
FMC8245SL
FMC8965SL
806-869 MHz
824-896 MHz
896-960 MHz
5 dBd
5 dBd
5 dBd
1.8, 2.1 AND 2.4 GHz 6 dB GAIN SLEEVE MODELS
FMC18506SL
FMC21306SL
FMC24006SL
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
6 dBd
6 dBd
6 dBd
1.8, 2.1 AND 2.4 GHz 9 dB GAIN SLEEVE MODELS
FMC18509SL
FMC21309SL
FMC24009SL
1850-1970 MHz
2130-2200 MHz
2400-2500 MHz
9 dBd
9 dBd
9 dBd
PIGTAIL CABLE BASE
800/900 MHz UNITY GAIN PIGTAIL MODELS
FMC8060P
FMC8240P
FMC8960P
806-869 MHz
824-896 MHz
896-960 MHz
Unity
Unity
Unity
800/900 MHz 3 dB GAIN PIGTAIL MODELS
FMC8063P
FMC8243P
FMC8963P
806-869 MHz
824-896 MHz
896-960 MHz
3 dBd
3 dBd
3 dBd
800/900 MHz 5 dB GAIN PIGTAIL MODELS
FMC8065P
FMC8245P
FMC8965P
806-869 MHz
824-896 MHz
896-960 MHz
5 dBd
5 dBd
5 dBd
MOUNTING BRACKET
FMCB
Mounting bracket for Sleeve

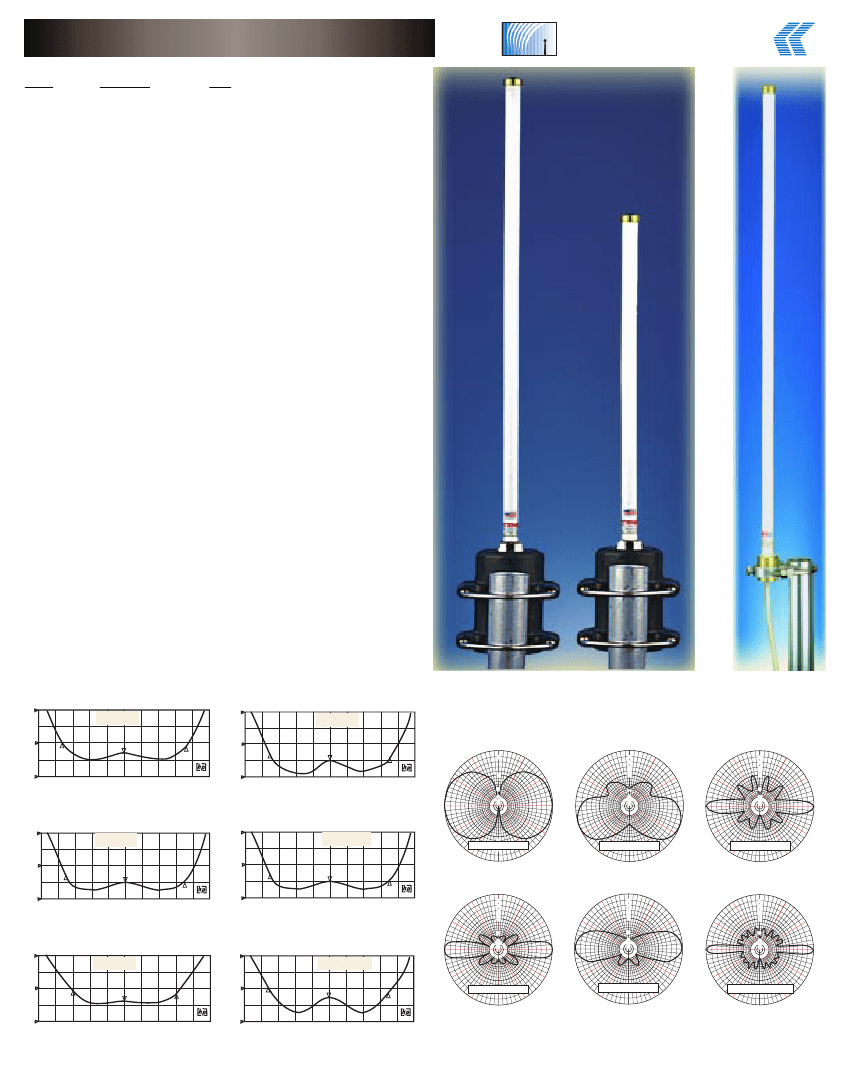

VSWR
CENTER: 835.000 MHz
SPAN:
100.000 MHz
2.0
FMC8245, FMC8243, mounts not included.
CH1 RFL SWR
250 m / REF 1.5
CH1 RFL SWR
250 m / REF 1.5
FMC8060
1.5
2.0
CENTER: 860.000 MHz
SPAN:
SPAN:
100.000 MHz
FMC8063P
With FMCB
Mount
FMC8243
1.5
3
0
Vertical Field Patterns
0
0
1
Cor
2
Cor
2
1
330
30
-2
330
30
-2
-4
-6
-8
-10
330
30
-2
-4
-6
-8
-10
3
300
-10
1.0
1.0
2: 1.4938
806.000 MHz
1: 1.3823
835.000 MHz
3: 1.4286
870.000 MHz
60
300
60
300
60
2: 1.3467
824 MHz
1: 1.2515
860.0 MHz
3: 1.2746
896.0 MHz
270
-20
-20
-30
-40
-50
-20
-30
-40
-50
-30
-40
-50
90
270
90
270
90
2.0
CENTER: 860.000 MHz
SPAN:
SPAN:
100.000 MHz
CH1 RFL SWR
250 m / REF 1.5
CENTER: 2165.000 MHz
CH1 RFL SWR
250 m / REF 1.5
SPAN:
SPAN:
100.000 MHz
2.0
FMC8245
1.5
Cor
2
3
FMC12306
Cor
2
3
1
240
-4
-6
Normalized to 0 dBd
-8
120
240
120
240
120
Normalized to 3.0 dBd
210
180
Normalized to 5.0 dBd
150
210
180
210
150
150
1.5
1
180
FMC8060
0
FMC8243
0
FMC8245
0
1.0
1.0
330
30
-2
-4
-6
-8
-10
330
30
-2
-4
-6
330
30
-2
-4
-6
-8
-10
2: 1.3467
824 MHz
1: 1.2515
860.0 MHz
3: 1.2746
896.0 MHz
2: 1.3467
2130.0 MHz
1: 1.2515
2165.0 MHz
3: 1.2746
2200.0 MHz
300
60
300
-8
-10
60
300
60
-20
-30
-40
-50
-20
-20
-30
-40
-50
CENTER: 1910.000 MHz
SPAN:
SPAN:
200.000 MHz
2.0
CH1 RFL SWR
250 m / REF 1.5
FMC1850
1.5
2.0
CENTER: 2450.000 MHz
SPAN:
SPAN:
100.000 MHz
CH1 RFL SWR
250 m / REF 1.5
270
90
270
-30
-40
-50
90
270
90
FMC24009
240
120
240
120
240
120
1.5
Cor
1
2
3
1
Normalized to 6.0 dBd
3
210
180
Normalized to 3.0 dBd
210
180
150
Normalized to 9.0 dB
210
180
150
Cor
2
150
1.0
1.0
2: 1.4839
1850.000 MHz
1: 1.2833
1910.000 MHz
3: 1.3886
1970.000 MHz
FMC12306
2: 1.5000
2400.0 MHz
1: 1.4500
2450.0 MHz
3: 1.5000
2500.0 MHz
FMC18500
FMC24009
11
Many Models Available By Special Order Only, Call or visit
http://www.antenex.com For Details!
