CD54HCT160H/3A datasheet, PDF - EEWORLD Datasheet

CD54HCT160H/3A: DescriptionHCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, UUC16; Categorylogic logic; File Size299KB，10 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

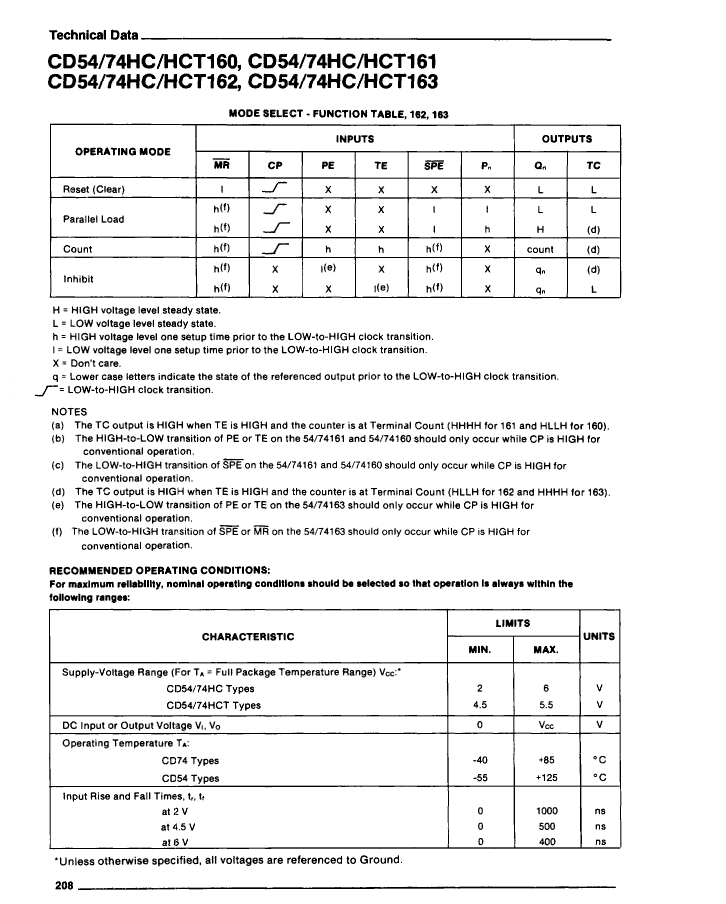

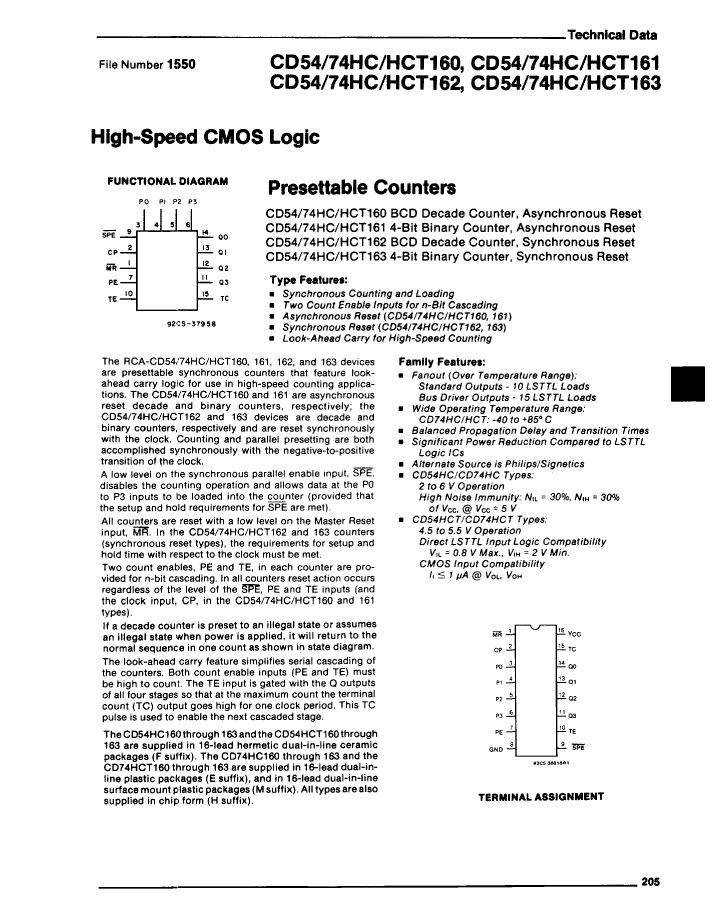

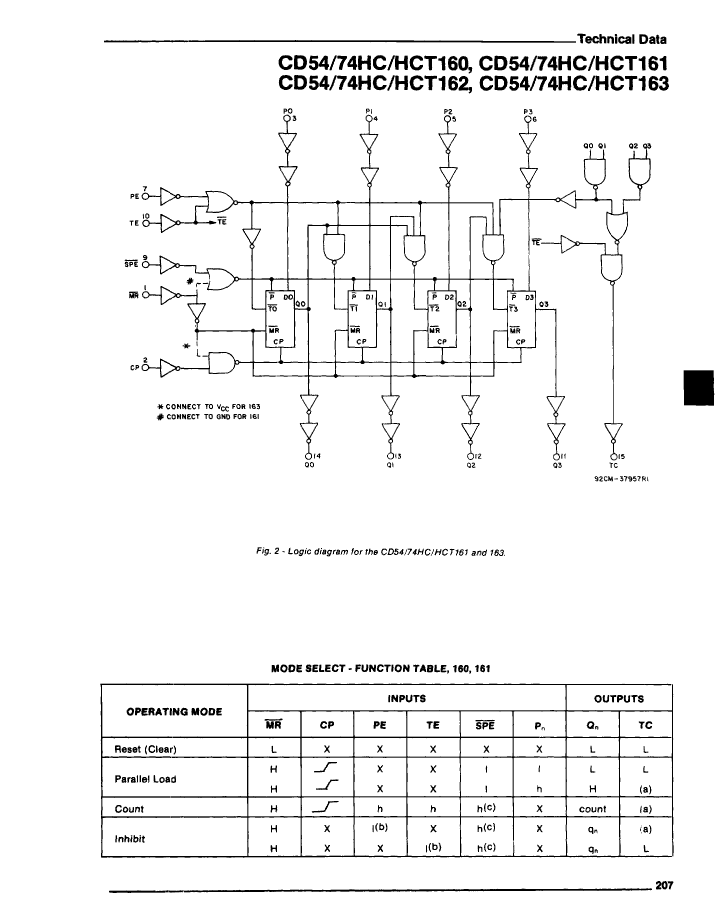

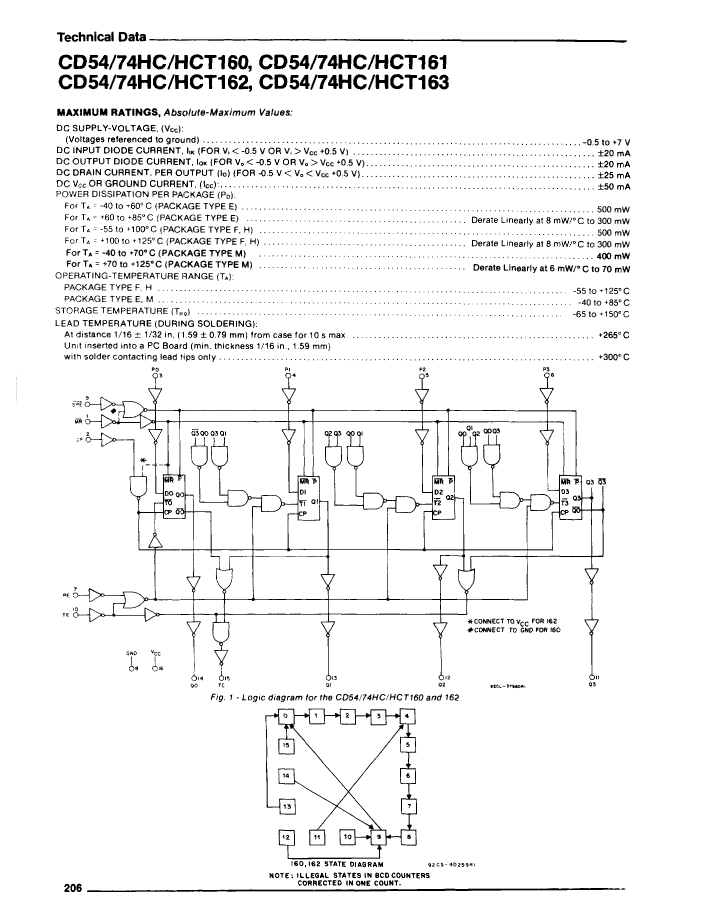

CD54HCT160H/3A Overview

HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, UUC16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	DIE,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	HCT
JESD-30 code	X-XUUC-N16
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16

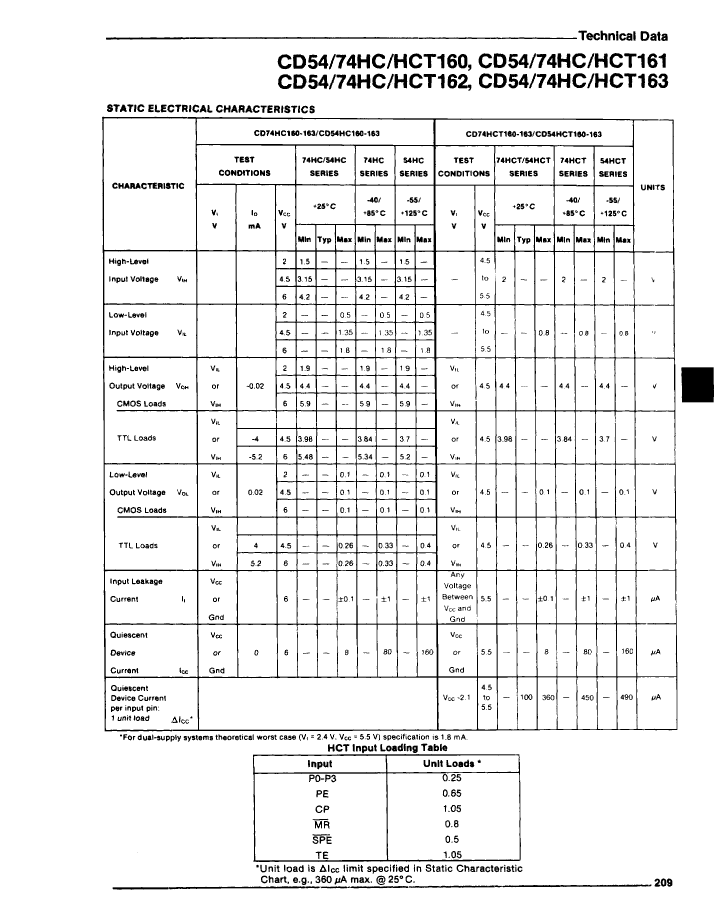

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	59 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Trigger type	POSITIVE EDGE
minfmax	30 MHz
