FJH1101
Information Only Data Sheet
FINAL REVERSE CURRENT & FORWARD VOLTAGE LIMITS MIGHT BE INCREASED SLIGHTLY
General Description:
An Ultra Low Leakage Diode in the DO-35 package.
The forward voltage is typically greater than 0.5 volts
at 1.0 micro-ampere.
This product is light sensitive, any damage to the body
coating will affect the reverse leakage when exposed to
light.
TA = 25
O
C unless otherwise noted
Ultra Low Leakage Diode
Absolute Maximum Ratings*
Sym
T
stg
T
J
P
D
Storage Temperature
Operating Junction Temperature
Total Power Dissipation at T
A
= 25
O
C
Linear Derating Factor from T
A
= 25
O
C
R
OJA
W
iv
I
F
Thermal Resistance Junction-to-Ambient
Working Inverse Voltage
DC Forward Current (I
F
)
Parameter
Value
-55 to +200
175
250
1.67
300
15
150
Units
O
C
O
C
mW
mW/
O
C
O
C/W
V
mA
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired
0.500
Minimum
12.70
Typ 1.000
CATHODE
BAND
LOGO
FJH
11
01
0.090 (2.28)
Diameter
0.060 (1.53)
Typical Forward Voltages
1.0 uA - - - - - - - - - - 530 mV
10 uA - - - - - - - - - - 605 mV
100 uA - - - - - - - - - - 685 mV
1.0 mA- - - - - - - - - - 780 mV
10 mA- - - - - - - - - - 895 mV
50 mA- - - - - - - - - - 995 mV
100 mA- - - - - - - - - - 1.07 V
0.022 (0.558)
Diameter
0.018 (0.458)
Typ 20 mils
0.200 (5.08)
0.120 (3.05)
Electrical Characteristics
SYM
B
V
I
R
V
F
C
T
TA = 25
O
C unless otherwise noted
CHARACTERISTICS
Breakdown Voltage
Reverse Leakage
Forward Voltage
Diode Capacitance
MIN
20
MAX
UNITS
V
I
R
TEST CONDITIONS
=
5.0 uA
5.0 V
15 V
50 mA
0 V, f = 1.0 MHz
FJH1101 - Rev. A
5.0
15
1.10
2.0
pA
pA
V
pF
V
R
=
V
R
=
I
F
=
V
R
=
© 1999 Fairchild Semiconductor Corporation

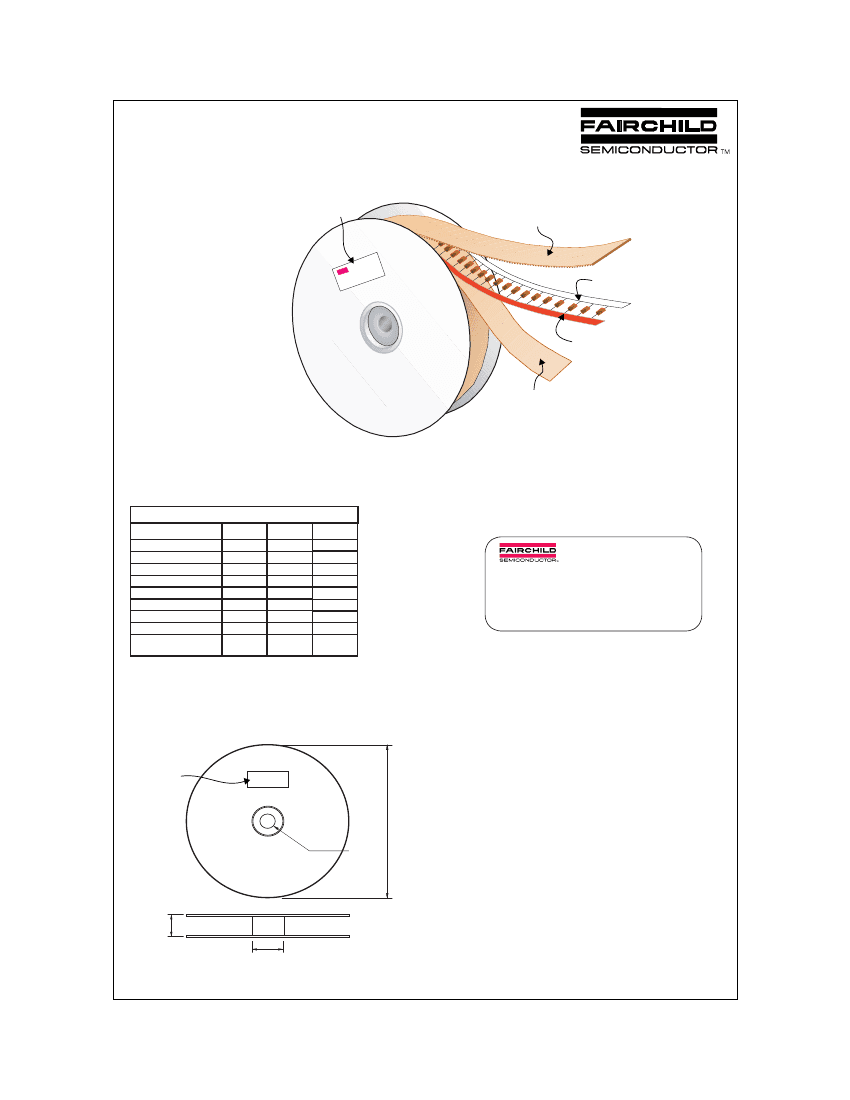

DO-35 Tape and Reel Data
DO-35 Packaging
Configuration:
Figure 1.0
Soabar Label
Corrugated Outer Liner
White (Anode)
Red/Blue (Cathode)
T50R
TNR Options
Kraft Paper Wound
Between Layers
DO-35 Packaging
Information Table:
Figure 2.0
DO-35 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size (inch diameter)
Inside Tape Spacing (mm)
Int Box Dimension (mm)
Max qty per Box
Weight per unit (gm)
Weight per Reel/Ammo (kg)
T50R
TNR
10,000
13
52
30,000
0.137
2.23
T50A
Ammo
5,000
-
52
50,000
0.137
0.800
Standard
(no flow code)
Bag
500
-
-
Soabar Label sample
P.O. No.
TYPE
REV
PKG
QTY
Q.C.
10,000
IN5225A
A2
MARK
PART No.
EC No.
M.O. No.
DATE
OX5046F035
D9903
BLK-BRN
254x79x794 406x267x184 279x133x108
5,000
0.137
-
Bulk
MFD. UNDER US PAT 3.025.589 & OTHER US PATS & APPLICATIONS
Note/Comments
DO-35 Reel Dimensions:
Figure 3.0
Soabar Label
REEL DIMENSIONS
ITEM DESCRIPTION
D1
Reel Diameter
Arbor Hole Diameter (Standard)
D2
Core Diameter
Flange to Flange Inner Width
D1
D2
D3
W1
10.375
1.245
3.190
10.625
1.255
3.310
3.400
SYMBOL
MINIMUM
MAXIMUM
Note: All Dimensions are in inches
W1
D3
©2000 Fairchild Semiconductor International
September 1999, Rev. A
DO-35 Tape and Ammo Data, continued

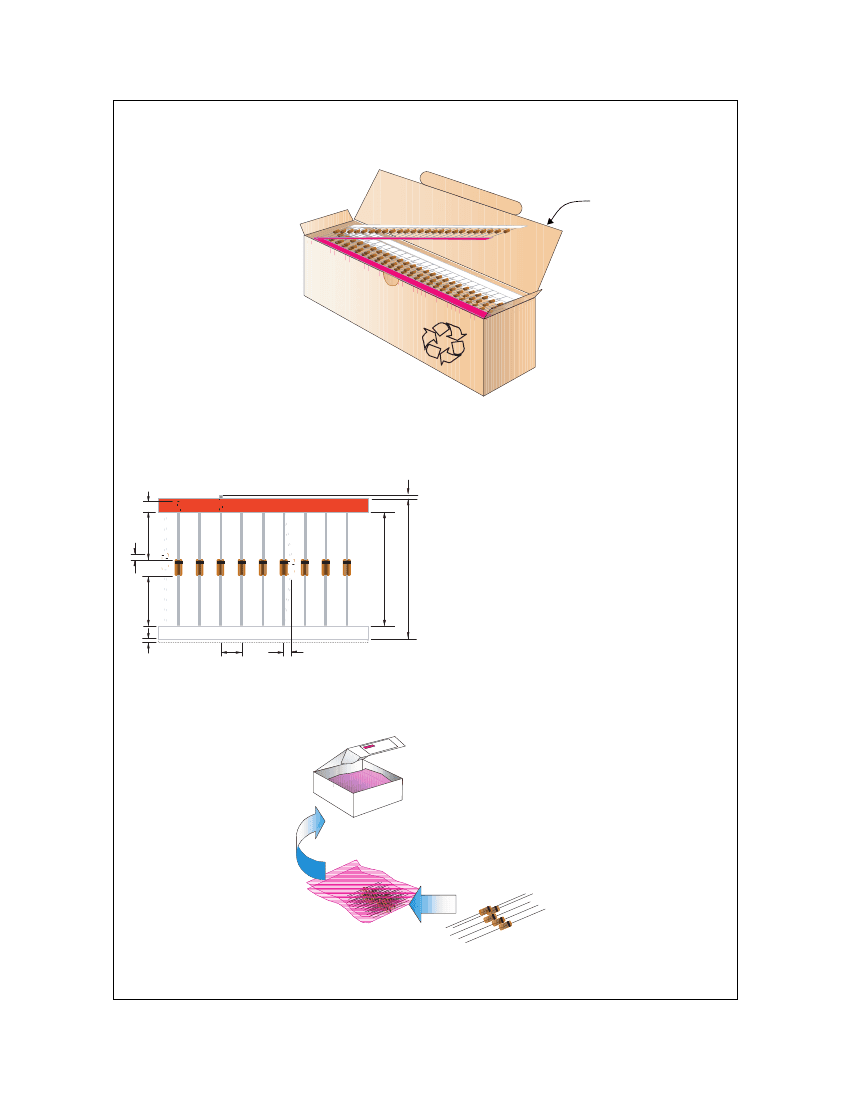

DO-35 Ammo Packing
Configuration:
Figure 4.0
Soabar Label
(on top of box)
254mm x 79mm x 79mm
Intermediate Container (5,000 cap)
T50A Option
DO-35 Taping
Dimension:
Figure 5.0
G
H
TAPING DIMENSIONS
INCH
A
2.520
+0.066/
-0.027
2.047±0.027
0.200
±0.0157
0.047(max)
0.022(max)
0.027(max)
0.126(min)
0
±0.027
MM
64.00
+1.69/
-0.69
52
±0.69
5.08
±0.40
1.2(max)
0.55(max)
±0.69
3.2(min)
0
±0.69
MILS
2519
+66.5/
-27.0
2047±27
200
±15.7
47(max)
22(max)
±27
126(min)
0
±27
NOTES
Overall width
L1
F
B
A
B
C
D
E
Inside Tape Spacing
Component Pitch
Component Misalignment
Tape Mismatch
Units in line w/ one another
Lead amount between tapes
Lead amount beyond tapes
Delta between two leads
L2
F
G
H
E
C
D
L1-L2
DO-35 Bulk Packing
Configuration:
Figure 6.0
102mm x 76mm x 127mm
Immediate Box (1,000 cap)
133mm x 95mm
Anti-static bag (500/bag)
September 1999, Rev. A
DO-35 Package Dimensions
DO-35 (FS PKG Code D2)
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in millimeters
Part Weight per unit (gram): 0.137
©2000 Fairchild Semiconductor International
March 2000, Rev. A
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
ACEx™
Bottomless™
CoolFET™
CROSSVOLT™
DenseTrench™
DOME™
EcoSPARK™
E
2
CMOS
TM
EnSigna
TM
FACT™
FACT Quiet Series™
DISCLAIMER
FAST
FASTr™
FRFET™
GlobalOptoisolator™
GTO™
HiSeC™
ISOPLANAR™
LittleFET™
MicroFET™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™
Power247™
PowerTrench
QFET™
QS™
QT Optoelectronics™
Quiet Series™
SILENT SWITCHER
SMART START™
STAR*POWER™
Stealth™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic™
TruTranslation™
UHC™
UltraFET
VCX™
STAR*POWER is used under license
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
2. A critical component is any component of a life
1. Life support devices or systems are devices or
support device or system whose failure to perform can
systems which, (a) are intended for surgical implant into
be reasonably expected to cause the failure of the life
the body, or (b) support or sustain life, or (c) whose
support device or system, or to affect its safety or
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
effectiveness.
reasonably expected to result in significant injury to the
user.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Advance Information
Product Status
Formative or
In Design
Definition
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Preliminary
First Production
No Identification Needed
Full Production
Obsolete
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. H3
