D-14D Overview

D-14D 2SPST 1 N.O. & 1 N.C., 50 Amps,28 VDC or 115 VAC, 400 Hz

HARTMAN Aerospace Power Products
AC / DC Relays
Features:
• 2SPST Main Contacts
• Mechanically Interlocked
• 28 VDC or 115 VAC, 400 Hz
• 50 Amps
• High Reliability
• Meets many requirements of MIL-R-6106
• Light Weight Construction

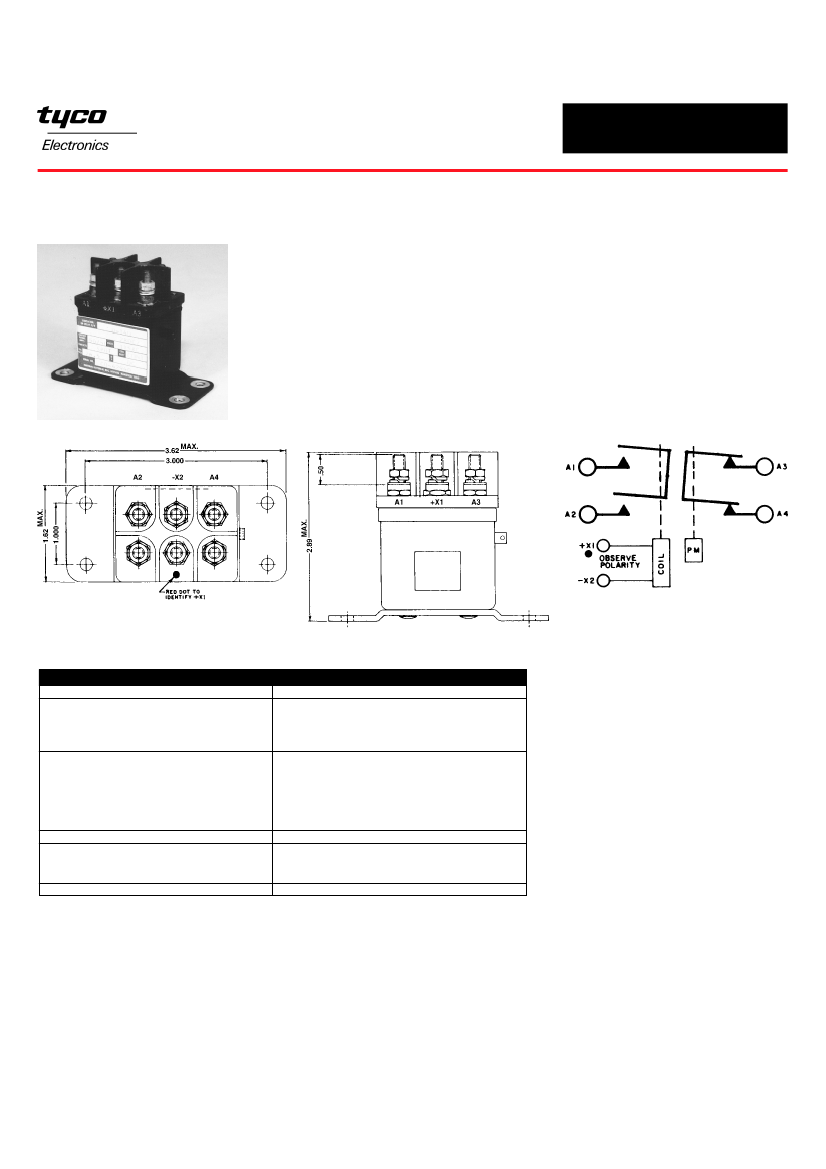

D-14D 2SPST 1 N.O. & 1 N.C., 50 Amps,
28 VDC or 115 VAC, 400 Hz
CONTACTOR CONFIGURATION
Notes:
Dimensions for this product are expressed in inches.
Multiply values by 25.4 for millimeters.
PRODUCT SPECIFICATIONS
Construction
Main Contacts:
Configuration
Voltage (Nominal)
Current (Resistive)
Coil Data:
Duty Cycle
Voltage (Nominal)
Pick-Up Voltage
Drop-Out Voltage
Coil Current @ 28 VDC & +25°C
Operating Temperature
Life:
Electrical
Mechanical
Weight Maximum
Gasket Sealed, Vented
2SPST 1 N.O. & 1 N.C.
28 Volts DC or 115 Volts, 400 Hz
50 Amps
Continuous
28 VDC
18 VDC
1.5 - 7 Volts
120 Milliamperes Maximum
-55°C to +85°C
50,000 Cycles
100,000 Cycles
9 Oz.
For factory-direct application assistance, contact the HARTMAN
product team at (419) 521-9500, Fax (419) 526-2749.
© 2004 by Tyco Electronics Corporation. All Rights Reserved.
HARTMAN and TYCO are trademarks.
Catalog (web doc only)
Revised 5-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
