R1120N291BC-TL datasheet, PDF - EEWORLD Datasheet

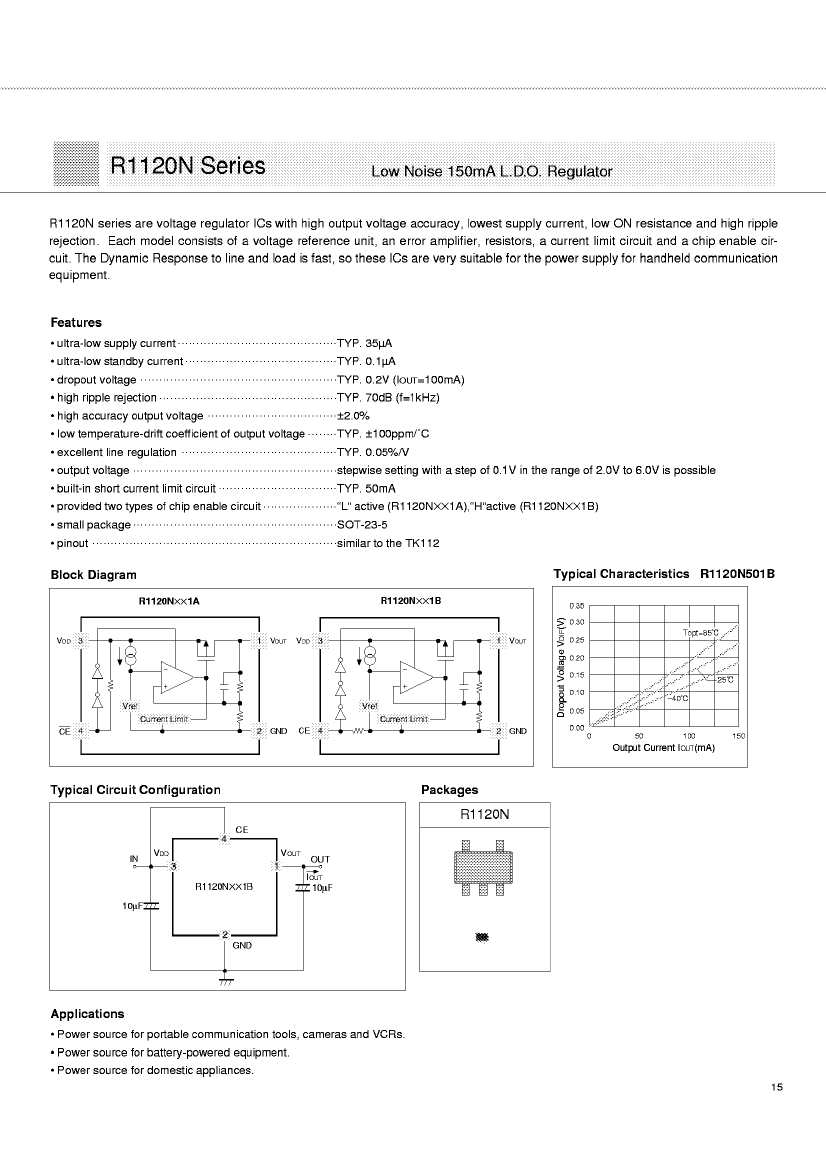

R1120N291BC-TL: DescriptionFixed Positive LDO Regulator, 2.9V, PDSO5, SOT-23, 5 PIN; CategoryPower/power management The power supply circuit; File Size49KB，1 Pages; ManufacturerRICOH Electronic Devices Co., Ltd.

Download Datasheet Parametric View All

R1120N291BC-TL Overview

Fixed Positive LDO Regulator, 2.9V, PDSO5, SOT-23, 5 PIN

Parameter Name	Attribute value
Maker	RICOH Electronic Devices Co., Ltd.
Parts packaging code	SOT-23
package instruction	LSSOP,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PDSO-G5
length	2.9 mm
Number of functions	1
Number of terminals	5
Maximum output current 1	0.15 A
Maximum output voltage 1	2.958 V
Minimum output voltage 1	2.842 V
Nominal output voltage 1	2.9 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.4 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm
