SKC8G Overview

Circular Connector, 7 Contact(s), Copper-Free Aluminum, Female

SKC8G Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SKC
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	COPPER-FREE ALUMINUM
Total number of contacts	7

Preview

Download Datasheet

View All

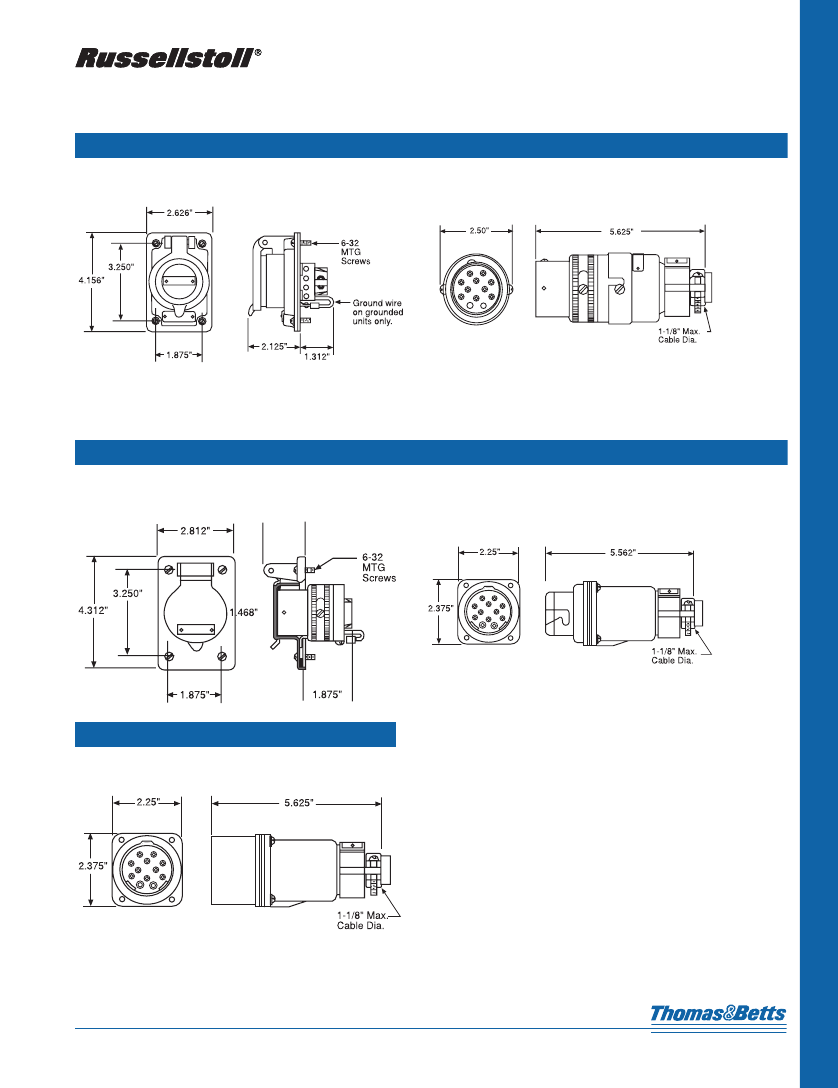

Control Circuit Connectors

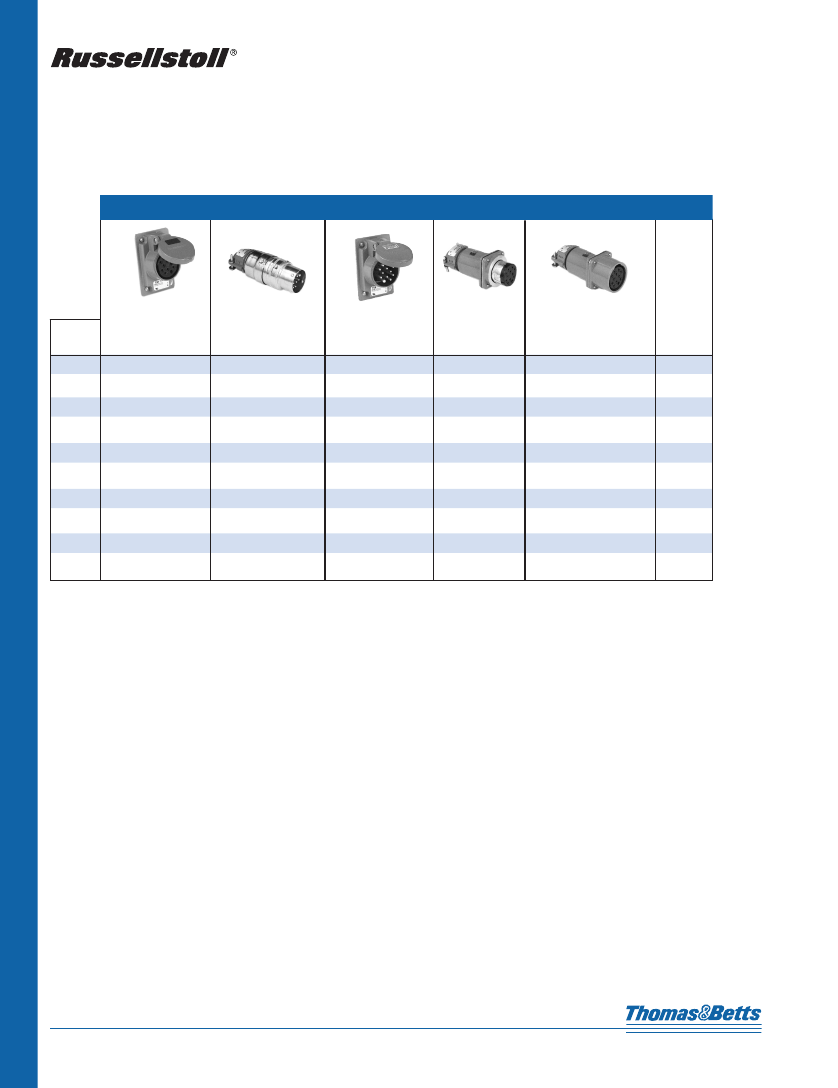

Control Circuits Connectors – Type SK Ordering Information and Specifications

Indoor, NEMA1, 20 Amp Load Breaking

250 Volts DC, 600 Volts AC (Max Rating)

Standard Service

Reverse Service

Connector

Poles/

Wires

2P3W

3P4W

4P5W

5P6W

6P7W

7P8W

8P9W

9P10W

10P11W

11P12W

Female

Receptacle

Style SKR

SKR3G

SKR4G

SKR5G

SKR6G

SKR7G

SKR8G

SKR9G

SKR10G

SKR11G

SKR12XG

Male Plug

Style SKP

SKP3G

SKP4G

SKP5G

SKP6G

SKP7G

SKP8G

SKP9G

SKP10G

SKP11G

SKP12XG

Male Receptacle

Style SKRR

SKRR3G

SKRR4G

SKRR5G

SKRR6G

SKRR7G

SKRR8G

SKRR9G

SKRR10G

SKRR11G

SKRR12XG

Connector*/

Female Plug

Style SKCU

SKCU3G

SKCU4G

SKCU5G

SKCU6G

SKCU7G

SKCU8G

SKCU9G

SKCU10G

SKCU11G

SKCU12XG

Female

Connector

Style SKC

SKC3G

SKC4G

SKC5G

SKC6G

SKC7G

SKC8G

SKC9G

SKC10G

SKC11G

SKC12XG

Cable

Bushing

Hole ID

Control Circuit and Industrial / Interlock

* Connectors –

Both SKCU and SKC connectors will mate with standard service SKP plugs. SKC devices offer external shroud protection for female contacts. Both devices will lock

with plug.

Note: Conduit Fittings:

Plugs and connectors can be furnished with adapters to accommodate rigid conduit or standard connectors for armored and non-metallic cable or flexible

conduit. See page 123.

Special Construction:

Press Control Lockout Dummy, Cat. #SKPD-

Specifications

Receptacle Housing –

Furnished with neoprene gasket and 6-32 mounting screws.

Type SKWR – Cast aluminum, corrosion-resistant copper free alloy.

Style SKR - heavy gauge steel, plated

Plug Housing

Type SKP – Steel, zinc plated with heavy cast aluminum alloy cable clamp and cable bushing.

Type SKWP – Cast aluminum, corrosion-resistant, copper-free alloy, epoxy powder coat finish. Furnished with heavy cast cable clamp and cable bushing.

Connector Housing –

Cast aluminum , corrosion-resistant, copper-free alloy, epoxy powder coat finish. Furnished with heavy cast cable clamp and cable bushing.

Conduit Boxes –

cast boxes for above receptacles are listed on page 101. Type SK receptacles require FD series or DSFD box. Can be furnished with single gang outlet box at

additional cost. When required, add suffix catalog number of box to catalog number of receptacle.

Cable Bushing –

oil resistant, neoprene strain relief cable bushing regularly furnished with hole size as listed. Other hole sizes available at no extra cost if specified on order.

See page 121 for additional sizes.

Interiors –

contacts are removable and have pressure type terminals for 12 AWG wire maximum conductors.

Insulating Bodies –

arc and impact-resisting mold composition.

Contacts –

silver plated with fully insulated pressure screw-type terminals.

Repair Kits –

Pins/Sleeves Repair – components for rebuild of 2-4 interiors

Male Devices

Cat. No. SKX12MS

Female Devices

Cat. No. SKX12FA

116

www.tnb.com
