LPC-4TMA2: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle,; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

LPC-4TMA2 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Brown Insulator, Receptacle,

LPC-4TMA2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.055 inch
body length	0.157 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

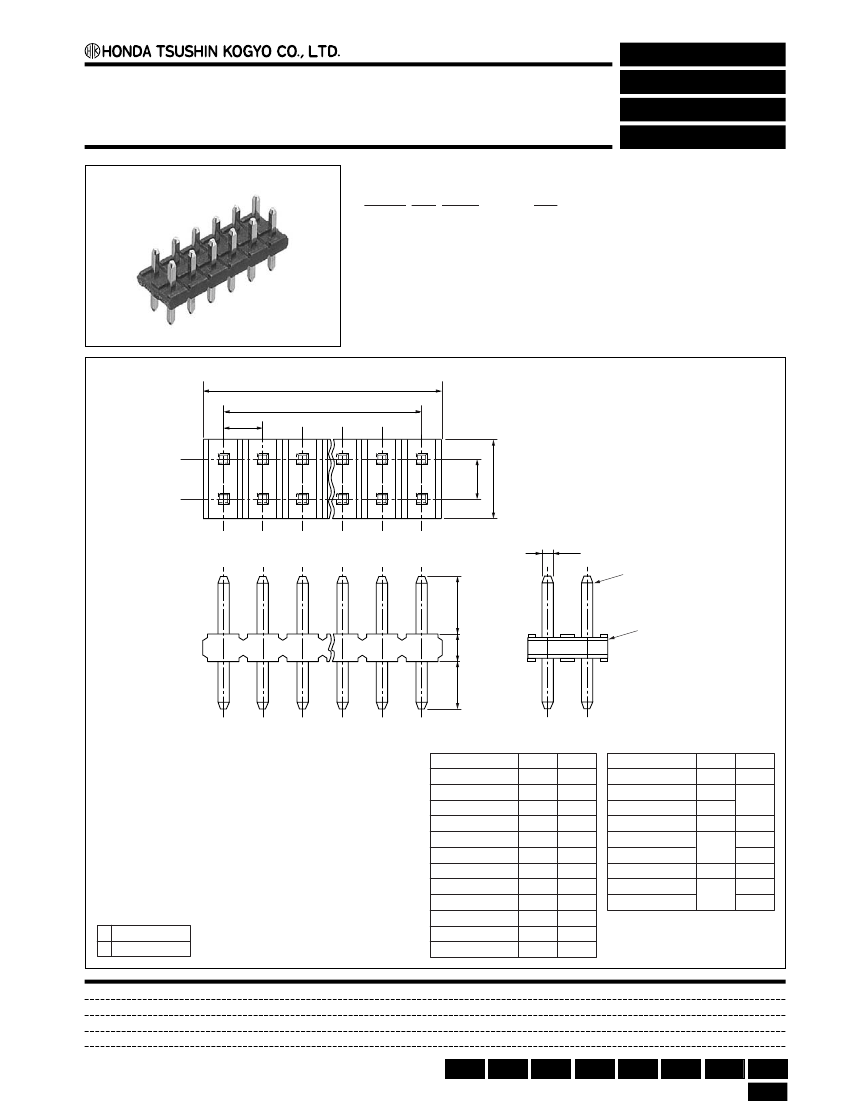

2 mm pitch connectors

Straight DIP type male connector for PCBs

LPC-( )(T )MA2( )

●

Configuration of product Part No.

For PCBs

Straight DIP

Low profile

LPC- ( ) (T ) MA2 ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 2-24

➂

Length No. of contact:

Refer to the table of dimensions below.

➃

Contact plating

Blank: Tin/Lead plating

: Gold plating

œ0.5

™

1.4

●

Dimensions

Part No.

LPC-2(T )MA2( )

LPC-4(T )MA2( )

LPC-6(T )MA2( )

LPC-8(T )MA2( )

LPC-10(T )MA2( )

LPC-12(T )MA2( )

LPC-14(T )MA2( )

LPC-16(T )MA2( )

LPC-18(T )MA2( )

–

Part No.

LPC-( )MA2( )

LPC-( )TMA2( )

LPC-( )T1MA2( )

LPC-( )T2MA2( )

LPC-( )T3MA2( )

LPC-( )T4MA2( )

LPC-( )T5MA2( )

LPC-( )T6MA2( )

LPC-( )T7MA2( )

2.5

1.5

2.9

3.5

2.5

2.9

2.1

5.7

5.1

●

Components

➀

Insulator

➁

Contacts

Because some combinations of “Configurations

of Product Part No.”, are under consideration for

development, please contact us for availability

details.

LPC-20(T )MA2( )

LPC-22(T )MA2( )

LPC-24(T )MA2( )

Mating connectors:

LPC series of female connectors or shunt plugs

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

DIP
