DSP161625-FL: DescriptionDigital Signal Processor, 16-Bit Size, 16-Ext Bit, 40MHz, CMOS, PQFP100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，88 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

DSP161625-FL Overview

Digital Signal Processor, 16-Bit Size, 16-Ext Bit, 40MHz, CMOS, PQFP100

DSP161625-FL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LSC/CSI
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Other features	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT
Address bus width	16
barrel shifter	YES
bit size	16
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
Internal bus architecture	MULTIPLE
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os	2
Number of terminals	100
Number of timers	1
On-chip data RAM width	16
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Encapsulate equivalent code	SPQFP100,.9SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	1024
ROM programmability	MROM
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER

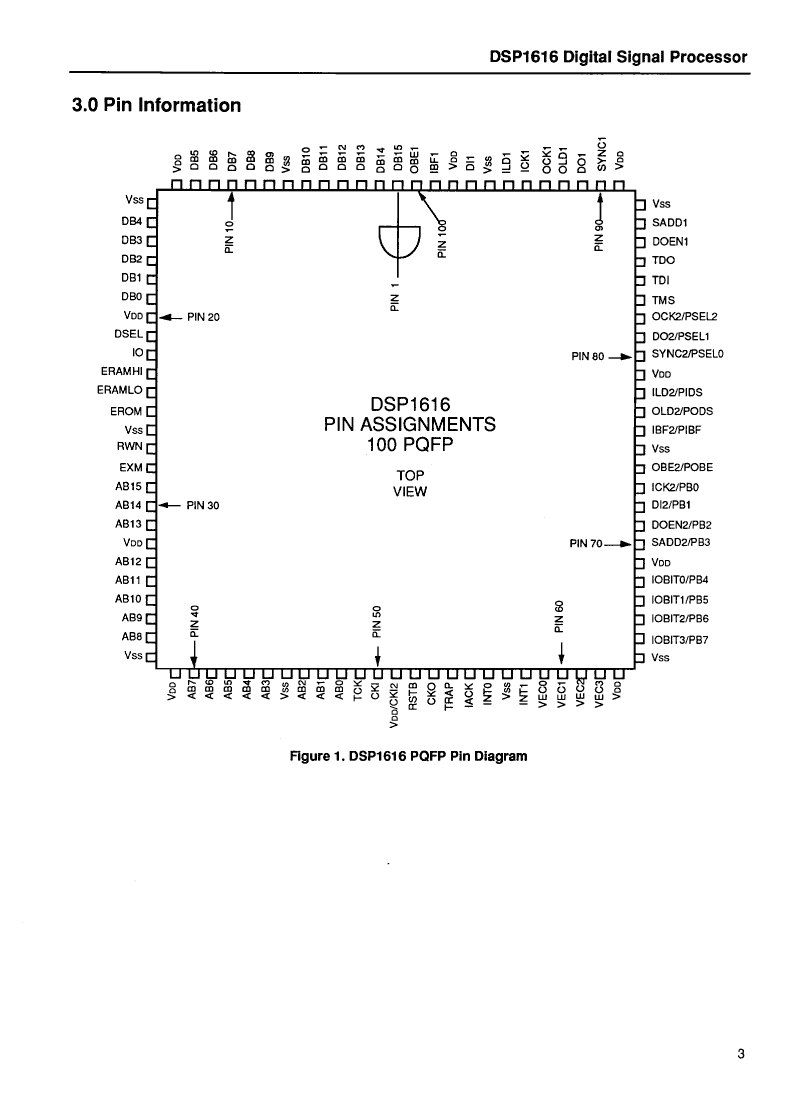

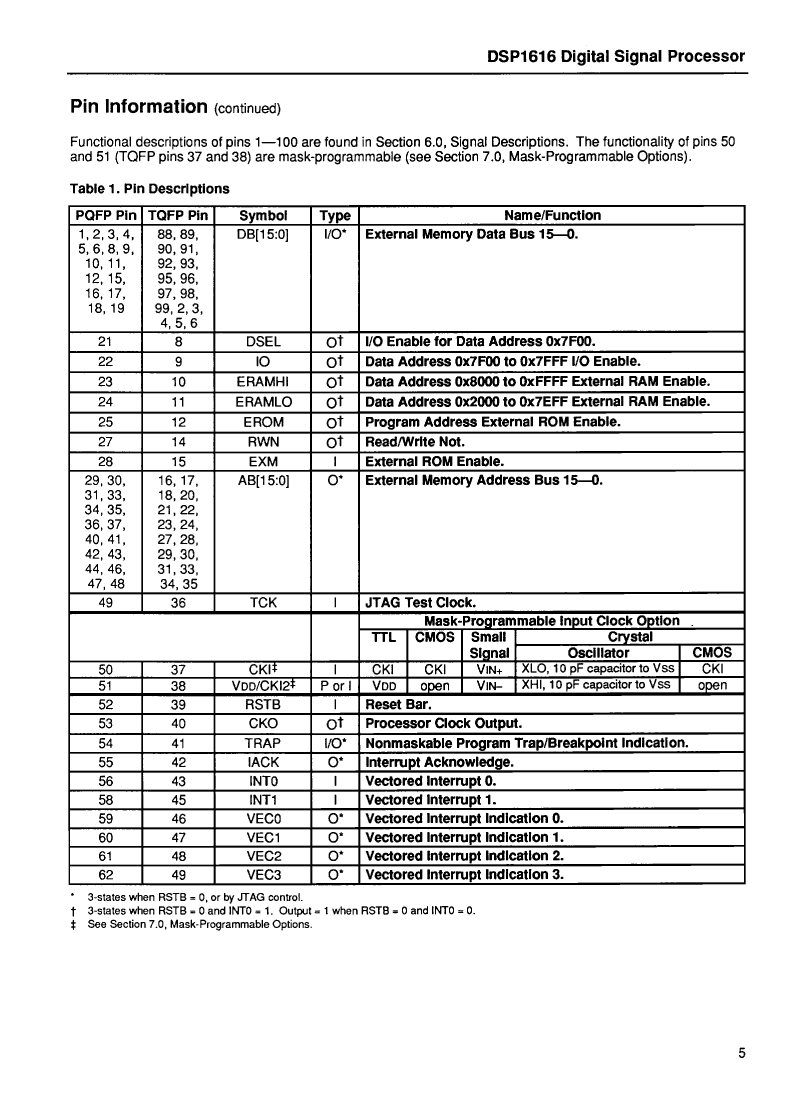

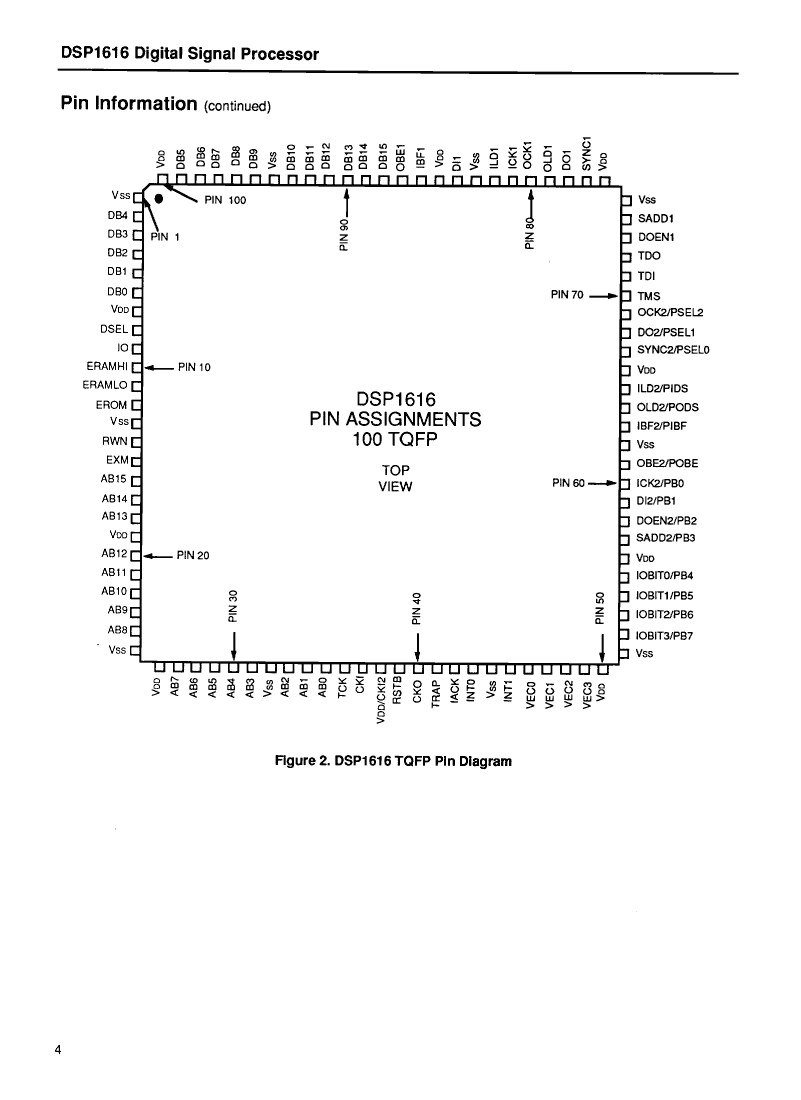

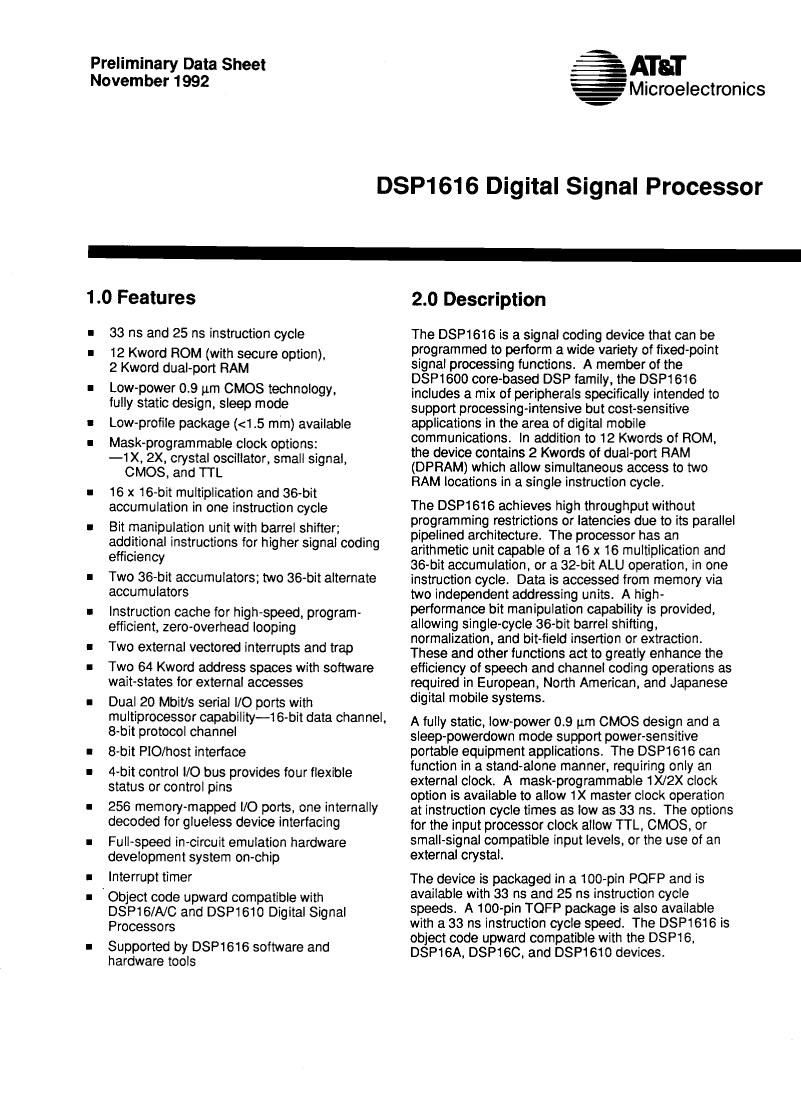

Preview

Download Datasheet

View All

DSP161625-FL Related Products

	DSP161625-FL	DSP161633-FC	DSP161633-TQFPC	DSP161625-FC	DSP161633-FL
Description	Digital Signal Processor, 16-Bit Size, 16-Ext Bit, 40MHz, CMOS, PQFP100	Digital Signal Processor, 16-Bit Size, 16-Ext Bit, 60.6MHz, CMOS, PQFP100	Digital Signal Processor, 16-Ext Bit, 30.3MHz, CMOS, PQFP100	Digital Signal Processor, 16-Bit Size, 16-Ext Bit, 40MHz, CMOS, PQFP100	Digital Signal Processor, 16-Bit Size, 16-Ext Bit, 30.3MHz, CMOS, PQFP100
Maker	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI	LSC/CSI
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.A.2	3A001.A.3	3A991.A.2	3A991.A.2	3A991.A.2
Other features	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT	EMULATION HARDWARE; DUAL PORT RAM; 8-BIT PIO/HOST INTERFACE; MULTIPROCESSOR SUPPORT
Address bus width	16	16	16	16	16
barrel shifter	YES	YES	YES	YES	YES
boundary scan	NO	NO	NO	NO	NO
maximum clock frequency	40 MHz	60.6 MHz	30.3 MHz	40 MHz	30.3 MHz
External data bus width	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO
Internal bus architecture	MULTIPLE	MULTIPLE	MULTIPLE	MULTIPLE	MULTIPLE
JESD-30 code	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100
low power mode	YES	YES	YES	YES	YES
Number of external interrupt devices	3	3	3	3	3
Number of serial I/Os	2	2	2	2	2
Number of terminals	100	100	100	100	100
Number of timers	1	1	1	1	1
On-chip data RAM width	16	16	16	16	16
On-chip program ROM width	16	16	16	16	16
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	1024	1024	1024	1024	1024
ROM programmability	MROM	MROM	MROM	MROM	MROM
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible
bit size	16	16	-	16	16
JESD-609 code	e0	e0	-	e0	e0
encapsulated code	BQFP	BQFP	-	BQFP	BQFP
Encapsulate equivalent code	SPQFP100,.9SQ	SPQFP100,.9SQ	-	SPQFP100,.9SQ	SPQFP100,.9SQ
power supply	5 V	5 V	-	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	0.635 mm	0.635 mm	-	0.635 mm	0.635 mm
