FI-RE41S-HF-R1500 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FI-RE41S-HF-R1500

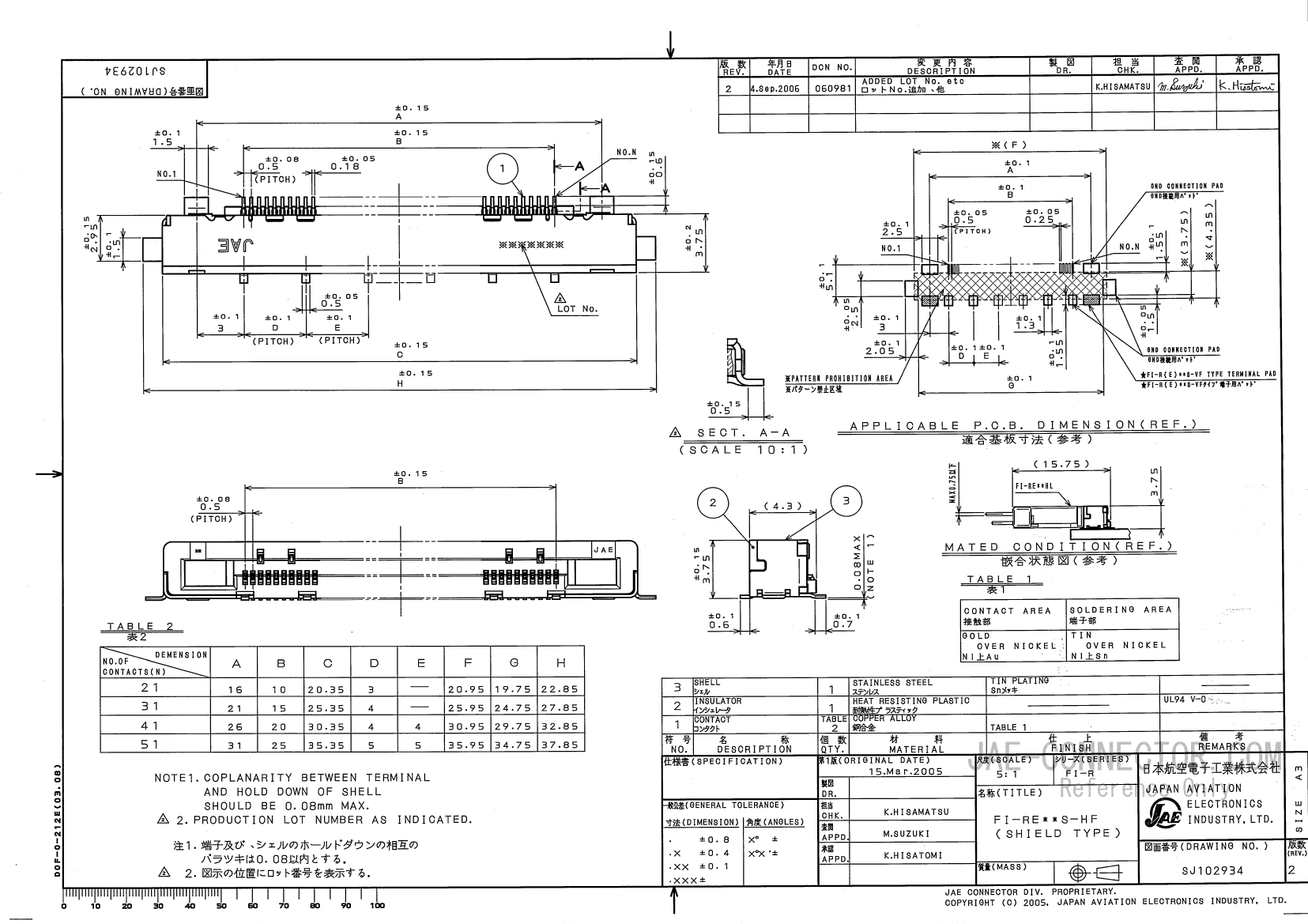

FI-RE41S-HF-R1500: DescriptionCard Edge Connector, 41 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size138KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

FI-RE41S-HF-R1500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FI-RE41S-HF-R1500	-	-	View	Buy Now

FI-RE41S-HF-R1500 Overview

Card Edge Connector, 41 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

FI-RE41S-HF-R1500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
body width	0.143 inch
subject depth	0.169 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	PLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.8 A
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	41

Preview

Download Datasheet

View All

FI-RE41S-HF-R1500 Related Products

	FI-RE41S-HF-R1500	FI-RE21S-HF-R1500	FI-RE31S-HF-R1500	FI-RE51S-HF-R1500
Description	Card Edge Connector, 41 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Card Edge Connector, 21 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Card Edge Connector, 31 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	Tin (Sn)	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	41	21	31	51
