565JY-5211 datasheet, PDF - EEWORLD Datasheet

565JY-5211: DescriptionRF Coaxial Relay, SP6T, Momentary, 0.335A (Coil), 12VDC (Coil), 4020mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,; CategoryMechanical and electronic products relay; File Size53KB，3 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric View All

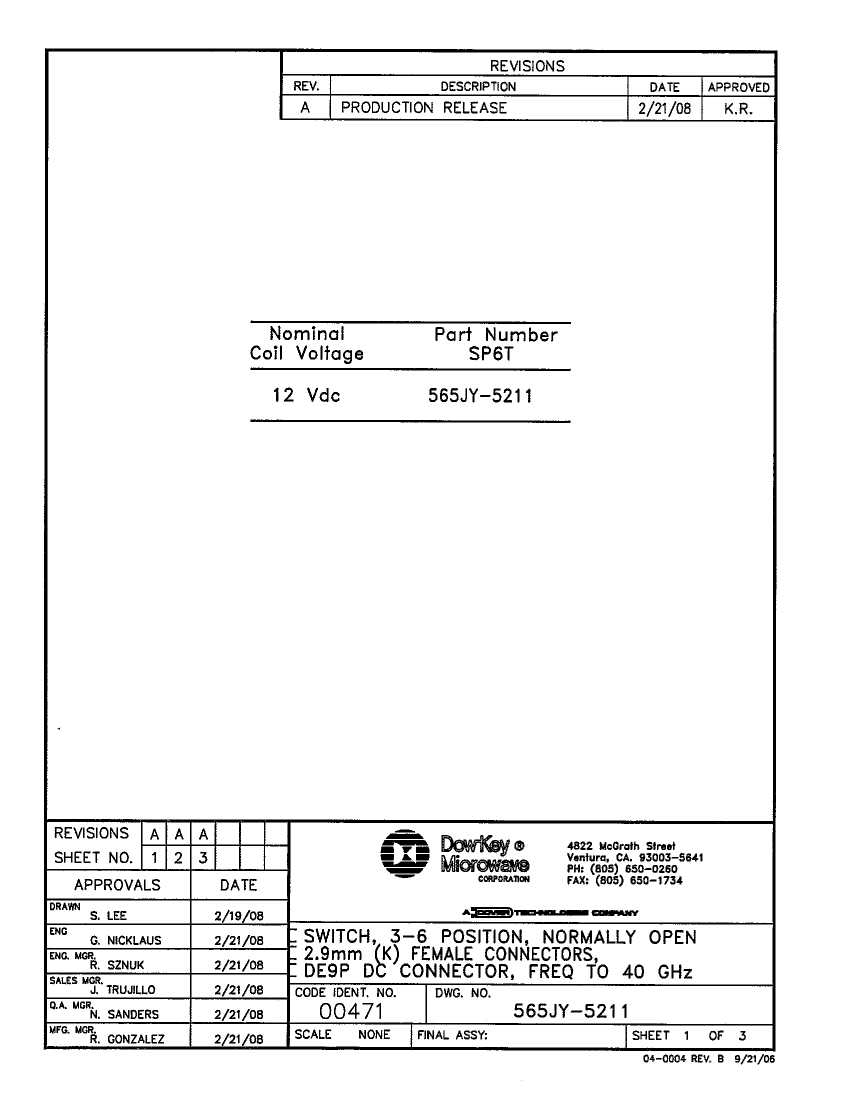

565JY-5211 Overview

RF Coaxial Relay, SP6T, Momentary, 0.335A (Coil), 12VDC (Coil), 4020mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,

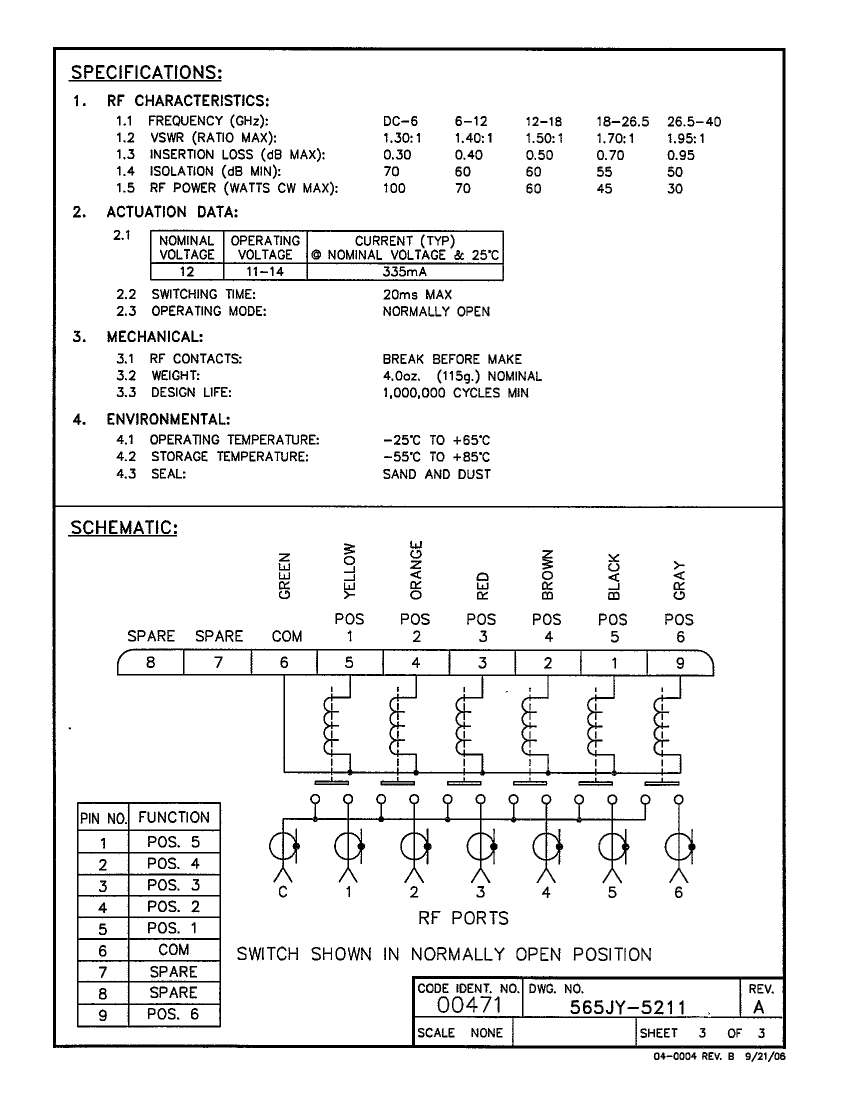

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown

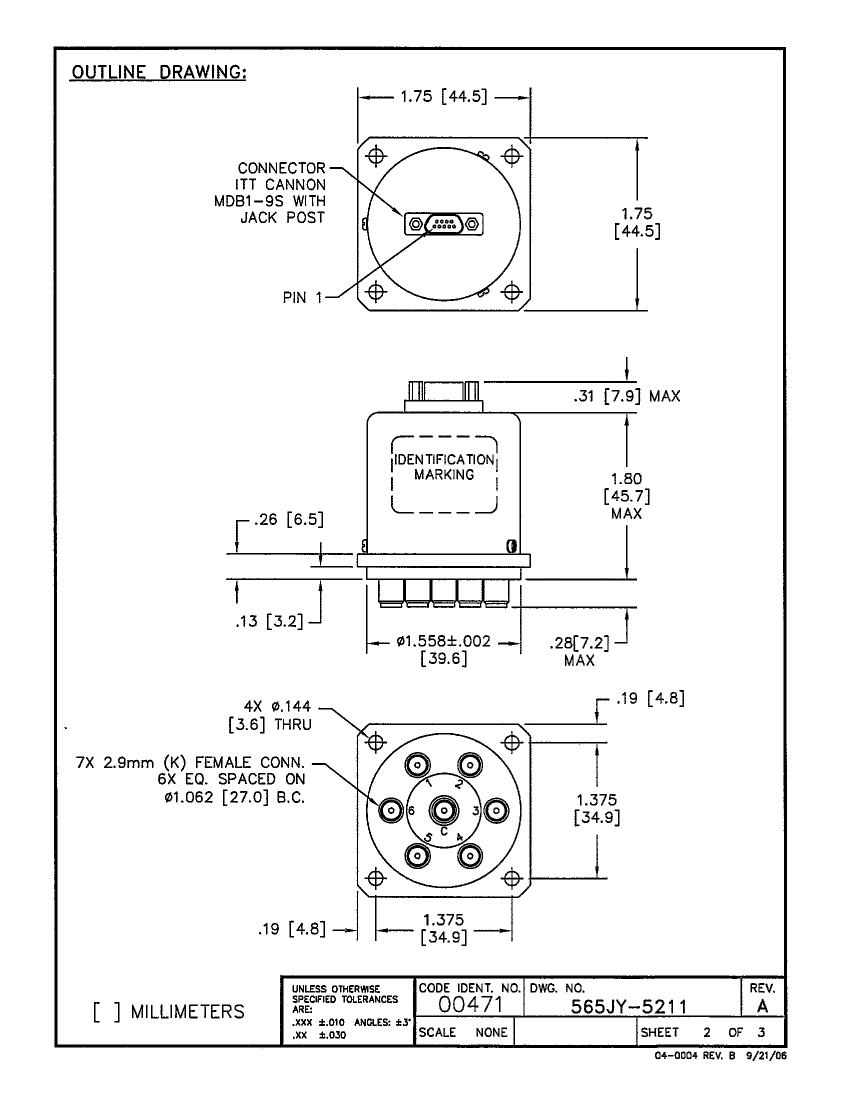

body height	45.7 mm
Body length or diameter	39.6 mm
Maximum coil current (DC)	0.335 A
Coil power	4020 mW
Coil resistance	35.82 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum input power	30 W
Maximum insertion loss	0.95 dB
Maximum isolation	50 dB
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Relay action	MOMENTARY
Relay function	SP6T
Relay type	RF COAXIAL RELAY
seal	DUST PROOF
surface mount	NO
switching time	20 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.95
