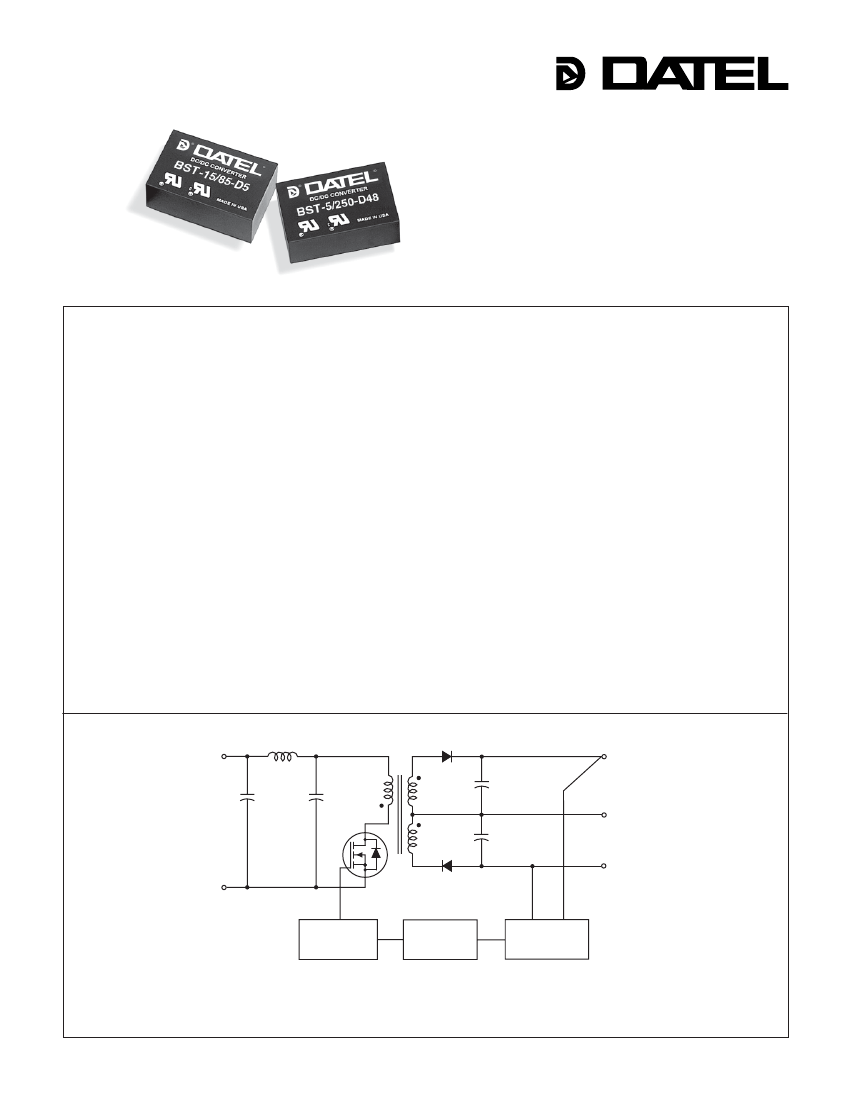

Dual Output
BST Models
Low-Cost, High-Reliability
3 Watt, DC/DC Converters
Features
■
■
■
■
■
■
Lowest cost! Highest reliability!
100% SMT-on-pcb, including magnetics
100% automatically assembled
Standard "DIP" package and pinouts
Fully isolated, 1000Vdc guaranteed
±5, ±12 or ±15 Volt outputs
Choice of 3 wide-range inputs:
4.5-9 Volts
9-18 Volts
18-72 Volts
■
■
■
■
■
Guaranteed efficiencies to 75%
–40 to +75°C full-power operation
Internal input/output filtering
UL1950/C22.2 No. 950/IEC950 certified
Modifications and customs for OEM’s
Rarely, has a Series of low-power DC/DC converters been defined by both low
cost and DATEL's made-in-the-USA quality and reliability. Our new BST Series of
dual-output 3W DC/DC’s achieves this "best-of-both-worlds" status by implementing
a proven circuit architecture (170-200kHz flyback design) as a full, SMT-on-pcb
assembly (including surface-mount magnetics) that is truly 100% automatically
assembled. Packaged in miniature 1.25" x 0.8", DIP-like plastic packages (UL94V-0
rated) and requiring no external components, BST Series DC/DC’s bring true
component-like convenience to designers of today’s distributed power systems.
Output voltages are ±5, ±12 or ±15 Volts. Input voltage ranges are 4.5-9V
("D5" models), 9-18V ("D12" models) or an ultra-wide 18-72V ("D48" models). BST
DC/DC’s are fully isolated (1000Vdc guaranteed) and include input (pi type) and
output filters within their package. Output transient response is a quick 200µsec,
while output ripple and noise are typically 75mVp-p.
These rugged modules are fully encapsulated with a thermally conductive
potting compound that contributes to their outstanding moisture/vibration resistance
and impressive MTBF. They operate over the full –40 to +75°C temperature range
without derating. All models have been thoroughly characterized (electrically,
mechanically and thermally), qualified (including HALT), and EMI/EMC tested.
Additionally, they are certified to UL1950, CSA 22.2 No. 950 and IEC950.
DATEL’s BST Model 3W DC/DC’s are excellent selections for telecom/datacom,
computer and process-control applications demanding small size, low cost and high
reliability. If required, their design "flexibility" allows for easy modification to your
application-specific requirements.
+ V
IN
+ V
O U T
C O M M O N
V
V
IN
O U T
P W M
C O N T R O L L E R
O P T O
IS O L A T IO N
R E F E R E N C E &
E R R O R A M P
Figure 1. Simplified Schematic
DATEL, Inc., Mansfield, MA 02048 (USA)
•
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356
•
Email: sales@datel.com
•
Internet: www.datel.com
XST Series
3W, D UA L O U T P U T D C / D C C O N V E RT E R S
Performance Specifications and Ordering Guide
Output
Model
BST-5/250-D12
BST-5/250-D48
BST-12/105-D5
BST-12/125-D12
BST-12/125-D48
BST-15/85-D5
BST-15/100-D12
BST-15/100-D48
➀
➁
➂
➃
➀
Input
Regulation (Max.)
Line
Load
➂
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
V
OUT
(Volts)
±5
±5
±12
±12
±12
±15
±15
±15
I
OUT
(mA, Max.)
±250
±250
±105
±125
±125
±85
±100
±100
R/N (mVp-p)
➁
Typ.
Max.
75
75
75
75
75
75
75
75
120
120
150
150
150
150
150
150
V
IN
Nom.
(Volts)
12
48
5
12
48
5
12
48
Range
(Volts)
9-18
18-72
4.5-9
9-18
18-72
4.5-9
9-18
18-72
I
IN
➃
(mA)
25/267
7/69
60/690
25/329
8/81
68/689
25/329
8/81
Efficiency
Min.
Typ.
75%
72%
71%
74%
73%
72%
74%
73%
78%
76%
73%
76%
77%
74%
76%
77%
Package
(Case,
Pinout)
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
Typical at T
A
= +25°C under nominal line voltage and full-load conditions unless otherwise noted.
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
Balanced loads, 10% to 100% load.
Nominal line voltage, no-load/full-load conditions.
Mechanical Specifications
PART NUMBER STRUCTURE
M E C H A N I C A L S P E C I F I C AT I O N S
B ST
-
15
/
100
-
D48
1.25
(31.75)
Output Configuration:
B
= Bipolar
Product Series
Nominal Output Voltages:
±5, ±12 or ±15 Volts
Input Voltage Range:
D5
= 4.5-9 Volts (5V nominal)
D12
= 9-18 Volts (12V nominal)
D48
= 18-72 Volts (48V nominal)
Maximum Output Current
in mA from each output
0.45
(11.43)
STANDOFFS
0.025
(0.64)
Case C1
0.020 ±0.002 DIA.
(0.508 ±0.051)
0.600
(15.24)
0.200
(5.08)
0.100
(2.54)
0.18
(4.57)
0.15 MIN
(3.81)
T E M P E R AT U R E D E R AT I N G
3 4
7
8
0.600
(15.24)
1 2
5
6
0.80
(20.32)
Output Power vs. Ambient Temperature
V
IN
Nominal, Natural Convection
3.5
BOTTOM VIEW
3
PLASTIC CASE WITH AN INSULATED BASE
0.10
(2.54)
Output Power (Watts)
2.5
2
I/O Connectiions
Pin
1
2
3
4
5
6
7
8
Function P2
+Input
+Input
–Input
–Input
Common
+Output
Common
–Output
1.5
1
0.5
0
–40
0
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95 100
Ambient Temperature (
˚
C)
2
3W, D UA L O U T P U T D C / D C C O N V E RT E R S
BST Models
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions unless noted.
➀
Input
Input Voltage Range:
"D5" Models
"D12" Models
"D48" Models
Input Current
Input Filter Type
➁
Reverse-Polarity Protection
V
OUT
Accuracy
(50% load)
Temperature Coefficient
Ripple/Noise
(20MHz BW)
➁
Line/Load Regulation
Efficiency
Isolation Voltage
➂
Current Limiting:
“D5” Models
“D12” and “D48” Models
Transient Response
(50% load step)
Switching Frequency:
“D48” Models
“D5” and “D12” Models
Operating Temperature
(Ambient, no derating)
Storage Temperature
Dimensions
Case Material
Pin Material
Weight
4.5-9 Volts (5V nominal)
9-18 Volts (12V nominal)
18-72 Volts (48V nominal)
See Ordering Guide
Pi
Yes (Instantaneous, 2A maximum)
Input Voltage:
"D5" Models
"D12" Models
"D48" Models
Absolute Maximum Ratings
12 Volts
20 Volts
80 Volts
Current must be <2A. Brief duration
only. Fusing recommended.
None
Current limited. Max. current and
short-circuit duration are model
dependent. “D12” and “D48” models
can withstand sustained output short
circuits.
–40 to +100°C
+300°C
Input Reverse-Polarity Protection
Output Overvoltage Protection
Output Current
Output
±1%, maximum
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
1000Vdc, minimum
Power-limiting technique, auto-recovery
Hiccup technique, auto-recovery
Storage Temperature
Lead Temperature
(soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
Dynamic Characteristics
200µsec to ±1.5% of final value
TECHNICAL NOTES
Floating Outputs
200kHz
170kHz
Environmental
–40 to +75°C
–40 to +100°C
Since these are isolated DC/DC converters, their outputs are "floating." Any
BST model may be configured to produce an output of 10V, 24V or 30V (for
±5V, ±12V or ±15V models, respectively) by applying the load across the
+Output (pin 6) and –Output (pin 8), with either output grounded. The
Common (pins 5 and 7) should be left open. Minimum 20% loading is
recommended under these conditions.
Filtering and Noise Reduction
All BST 3 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In critical
applications, input/output ripple and noise may be further reduced by
installing electrolytic capacitors across the input terminals and/or low-ESR
tantalum or electrolytic capacitors across the output terminals. Output
capacitors should be connected between their respective output pin (pins 6
and 8) and Common (pins 5 and 7) as shown in Figure 2. The caps should
be located as close to the power converters as possible. Typical values are
listed in the tables below. In many applications, using values greater than
those listed will yield better results.
To Reduce Input Ripple
"D5" Models
"D12" Models
"D48" Models
To Reduce Output Ripple
±5V Outputs
±12/15V Outputs
47µF, 15V
10µF, 35V
4.7µF, 100V
47µF, 10V, Low ESR
22µF, 20V, Low ESR
Physical
1.25" x 0.8" x 0.45" (31.8 x 20.3 x 11.4mm)
Diallyl phthalate, UL94V-0 rated
Brass, solder coated
0.5 ounces (14.2 grams)
➀
These power converters require a minimum 10% loading to maintain specified regulation.
Operation under no-load conditions will not damage these devices; however they may not
meet all listed specifications.
➁
Application-specific internal input/output filtering can be recommended and perhaps added
internally upon request. Contact DATEL Applications Engineering for details.
➂
Devices can be screened or modified for higher guaranteed isolation voltages.
Contact DATEL Applications Engineering for details.
In critical, space-sensitive applications, DATEL may be able to tailor the
internal input/output filtering of these units to meet your specific require-
ments. Contact our Applications Engineering Group for additional details.
3
XST Series
3 W, D UA L
OUTPUT
DC/DC
CONVERTERS
CUSTOM CAPABILITIES
+OUTPUT
1, 2
+INPUT
+
C
IN
3, 4
–INPUT
COMMON
6
+
C
OUT
5, 7
+
C
OUT
8
DATEL’s world-class design, development and manufacturing team stands
ready to work with you to deliver the exact power converter you need for your
demanding, large volume, OEM applications. And ... we’ll do it on time and
within budget!
Our experienced applications and design staffs; quick-turn prototype
capability; highly automated, SMT assembly facilities; and in-line SPC
quality-control techniques combine to give us the unique ability to design and
deliver any quantity of power converters to the highest standards of quality
and reliability.
We have compiled a large library of DC/DC designs that are currently used in
a variety of telecom, medical, computer, railway, aerospace and industrial
applications. We may already have the converter you need.
Contact us. Our goal is to provide you the highest-quality, most cost-effective
power converters available.
–OUTPUT
Figure 2. Using External Capacitors to Reduce
Input/Output Ripple/Noise
Input Fusing
Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. For DATEL BST
3 Watt DC/DC Converters, you should use slow-blow type fuses with values
no greater than the following:
V
IN
Range
"D5"
"D12"
"D48"
Fuse Value
1.5A
1A
0.5A
®
®
INNOVATION and EXCELLENCE
ISO-9001 REGISTERED
DS-0443
6/01
DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356
Internet: www.datel.com
Email: sales@datel.com
Data Sheet Fax Back: (508) 261-2857
DATEL (UK) LTD. Tadley, England Tel: (01256)-880444
DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: 01-34-60-01-01
DATEL GmbH München, Germany Tel: 89-544334-0
DATEL KK Tokyo, Japan Tel: 3-3779-1031, Osaka Tel: 6-354-2025
DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein
do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
京公网安备 11010802033920号
EEWORLD
