BTS775 datasheet, PDF - EEWORLD Datasheet

BTS775: DescriptionBrush DC Motor Controller, 10A, PDSO28, PLASTIC, SO-28; CategoryOther integrated circuit (IC) The signal circuit; File Size384KB，17 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

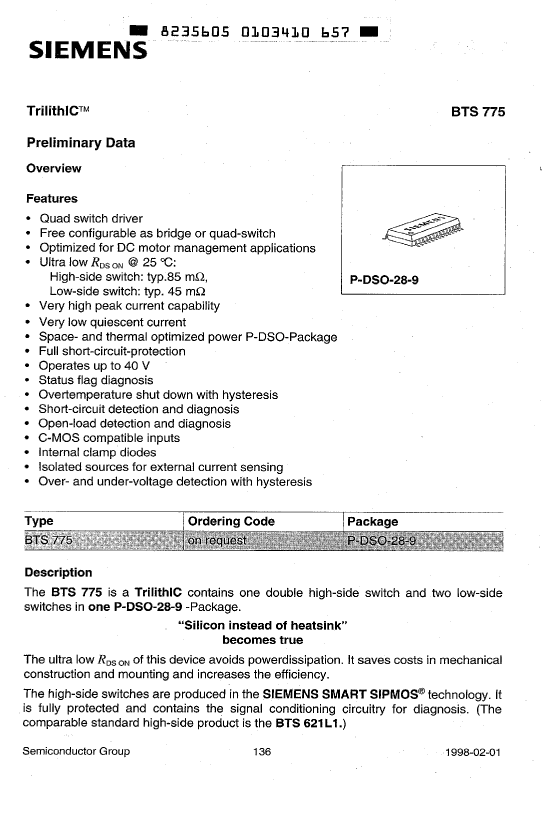

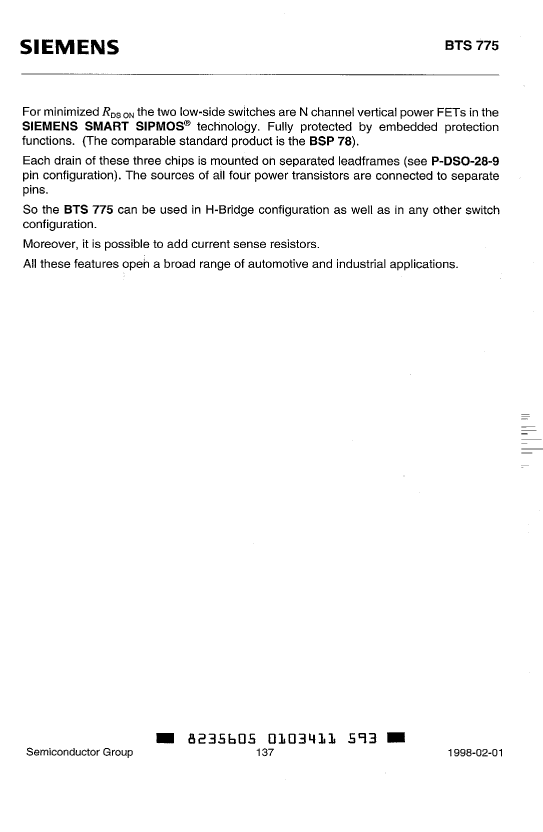

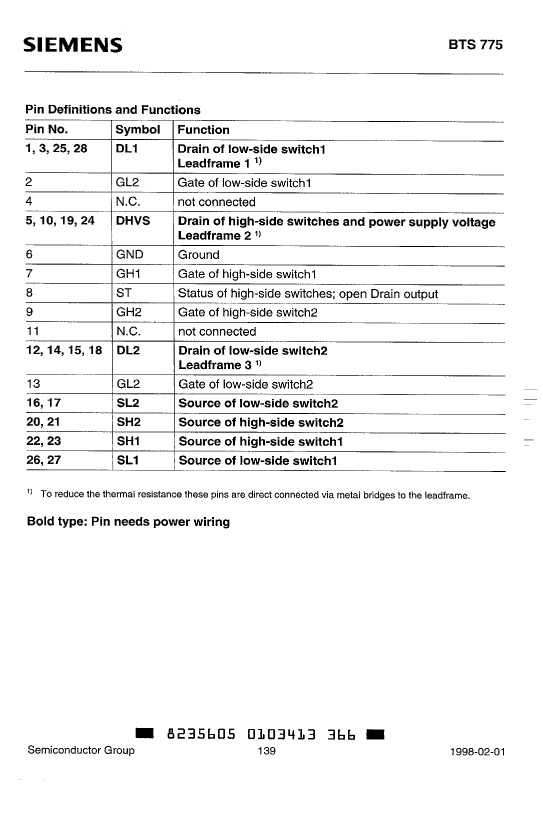

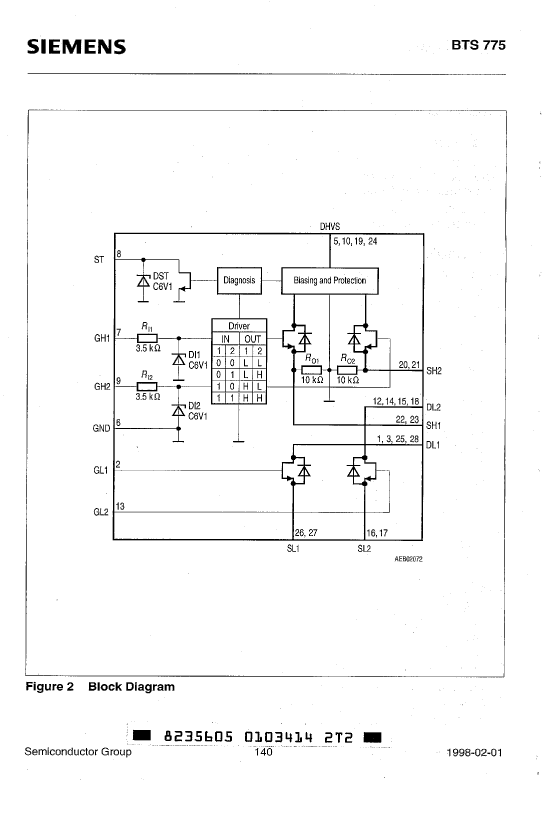

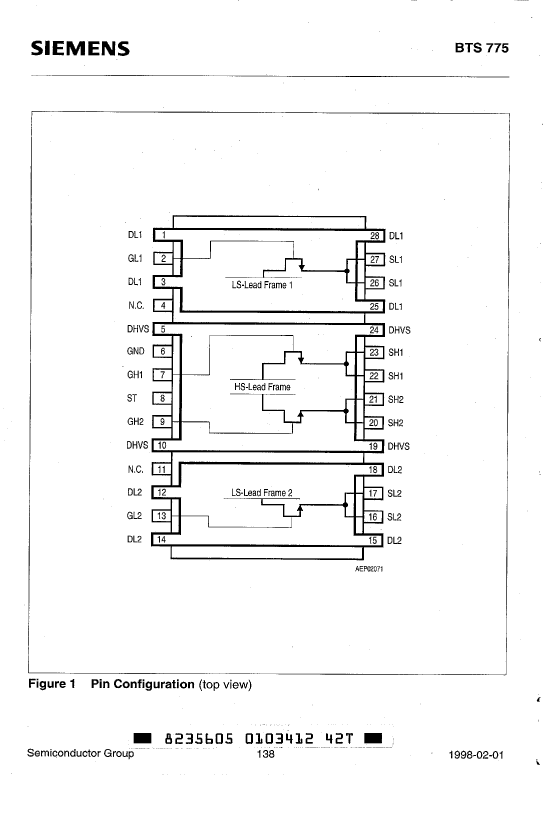

BTS775 Overview

Brush DC Motor Controller, 10A, PDSO28, PLASTIC, SO-28

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	SOIC
package instruction	,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G28
Number of functions	1
Number of terminals	28
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	34 V
Minimum supply voltage (Vsup)	3.5 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

This Material Copyrighted By Its Respective Manufacturer
