SP9502AS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> SP9502AS

SP9502AS: DescriptionD/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDSO28, 0.300 INCH, PLASTIC, SOIC-28; CategoryAnalog mixed-signal IC converter; File Size597KB，9 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP9502AS Overview

D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDSO28, 0.300 INCH, PLASTIC, SOIC-28

SP9502AS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	0.300 INCH, PLASTIC, SOIC-28
Reach Compliance Code	unknown
Maximum analog output voltage	4.5 V
Minimum analog output voltage	-4.5 V
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDSO-G28
length	17.9 mm
Maximum linear error (EL)	0.0244%
Humidity sensitivity level	1
Nominal negative supply voltage	-5 V
Number of digits	12
Number of functions	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal settling time (tstl)	4 µs
Maximum slew rate	8 mA
Nominal supply voltage	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

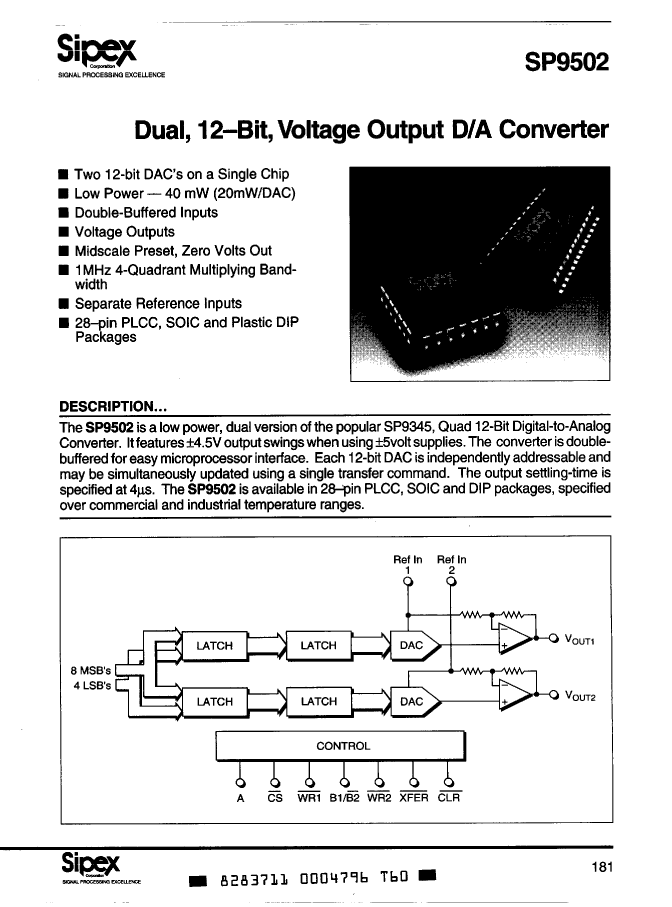

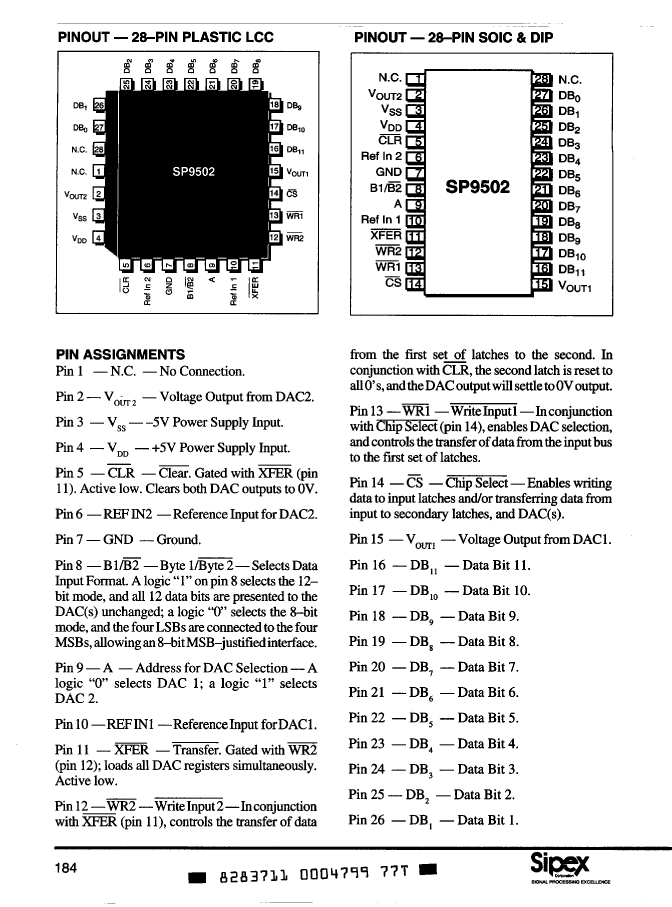

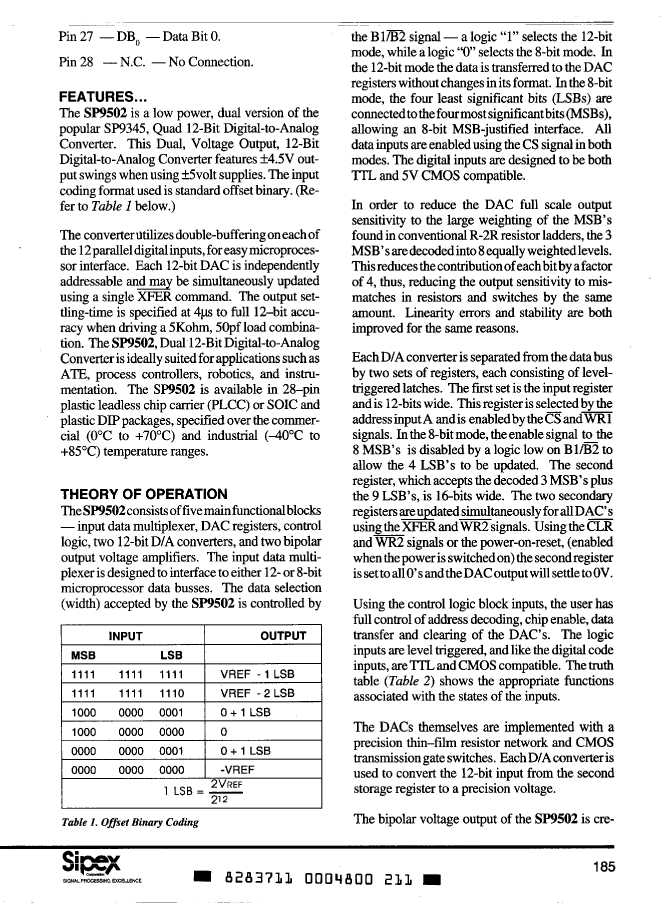

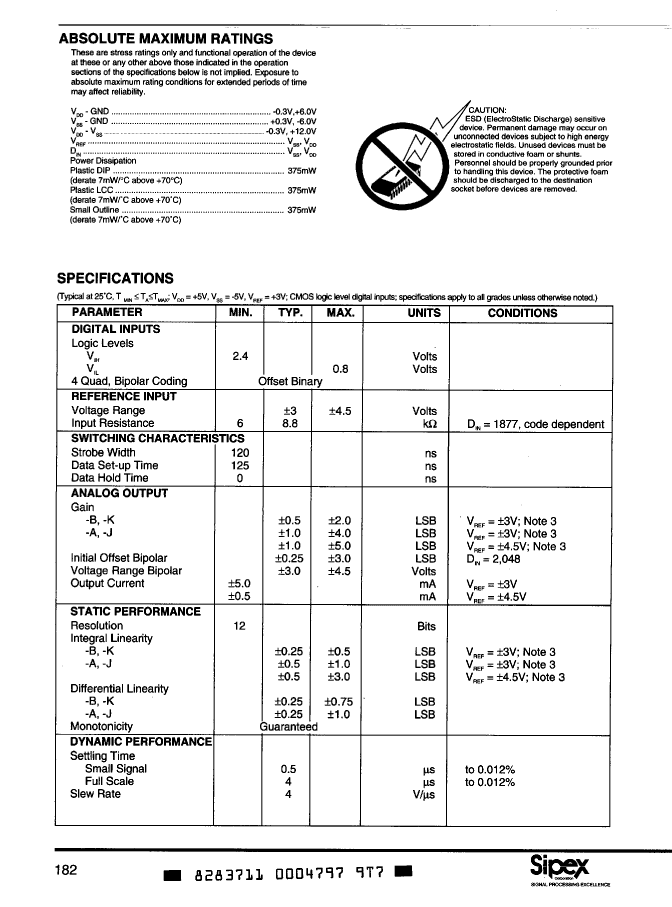

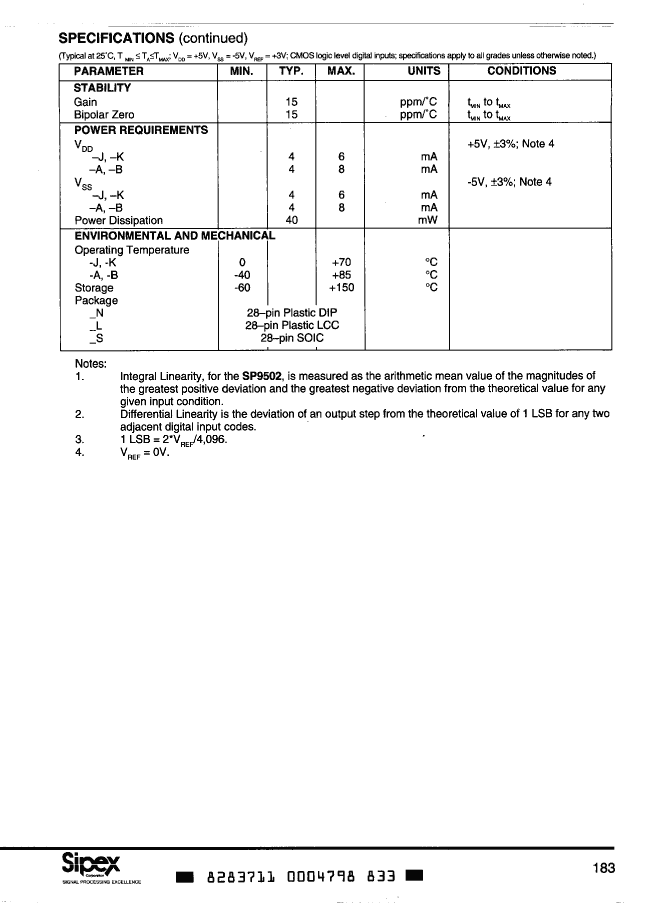

Preview

Download Datasheet

View All

SP9502AS Related Products

	SP9502AS	SP9502BN	SP9502BS	SP9502KL	SP9502BL	SP9502JL	SP9502AL	SP9502AN
Description	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDSO28, 0.300 INCH, PLASTIC, SOIC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDIP28, 0.300 INCH, PLASTIC, DIP-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDSO28, 0.300 INCH, PLASTIC, SOIC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PQCC28, PLASTIC, LCC-28	D/A Converter, 2 Func, Parallel, Word Input Loading, 4us Settling Time, PDIP28, 0.300 INCH, PLASTIC, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX
package instruction	0.300 INCH, PLASTIC, SOIC-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, SOIC-28	PLASTIC, LCC-28	PLASTIC, LCC-28	PLASTIC, LCC-28	PLASTIC, LCC-28	0.300 INCH, PLASTIC, DIP-28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum analog output voltage	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	R-PDIP-T28
length	17.9 mm	36.035 mm	17.9 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	36.035 mm
Maximum linear error (EL)	0.0244%	0.0122%	0.0122%	0.0122%	0.0122%	0.0244%	0.0244%	0.0244%
Humidity sensitivity level	1	1	1	1	1	1	1	1
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	12	12	12	12	12	12	12	12
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	QCCJ	QCCJ	QCCJ	QCCJ	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.334 mm	2.65 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	5.334 mm
Nominal settling time (tstl)	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs	4 µs
Maximum slew rate	8 mA	8 mA	8 mA	6 mA	8 mA	6 mA	8 mA	8 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	YES	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	J BEND	J BEND	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.5 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	7.62 mm
